FJ40L-KJA (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1981
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8110)TPS

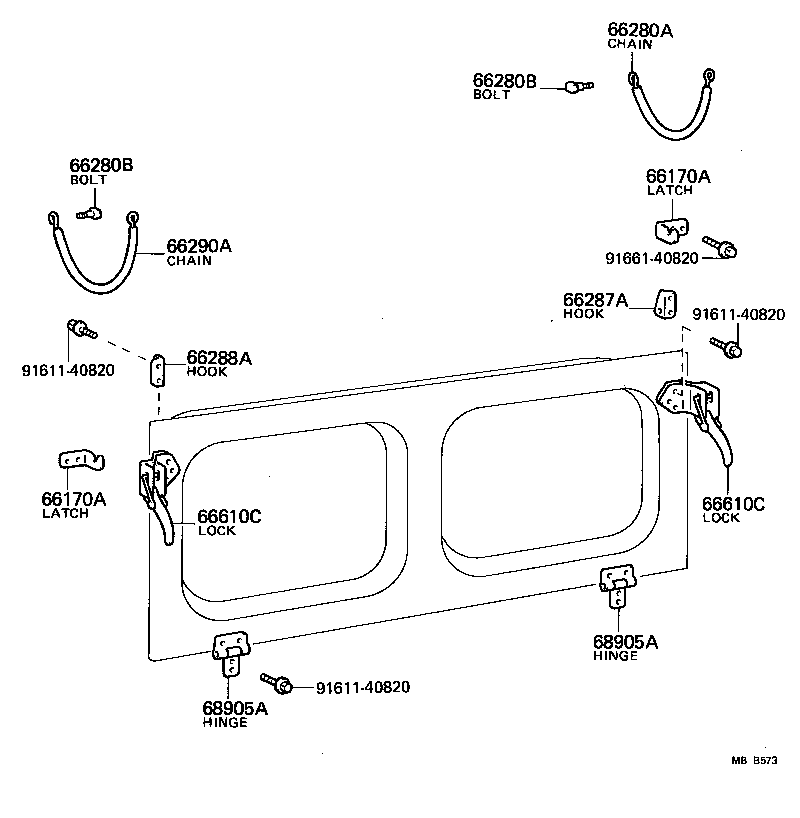

Click highlighted areas on diagram

diagram 66170A 66170A 66280A 66280B 66280B 66287A 66288A 66290A 66610C 66610C 68905A 68905A 9161140820 9161140820 9161140820 9166140820
Part # Description Qty Price
66170A - LATCH ASSY, REAR DROP GATE
69363-90301

FJ40..TPS

LH

 1
69362-90301

FJ40..TPS

RH

 1
66170A - LATCH ASSY, REAR DROP GATE
69363-90301

FJ40..TPS

LH

 1
69362-90301

FJ40..TPS

RH

 1
66280A - CHAIN ASSY, REAR DROP GATE, RH
68909-90301

FJ40..TPS

 1
66280B - BOLT, REAR GATE CHAIN SET
71382-60010

FJ40..TPS

 2
66280B - BOLT, REAR GATE CHAIN SET
71382-60010

FJ40..TPS

 2
66287A - HOOK, REAR DROP GATE CHAIN, RH
64917-60010

FJ40..TPS

 1
66288A - HOOK, REAR DROP GATE CHAIN, LH
64918-60010

FJ40..TPS

 1
66290A - CHAIN ASSY, REAR DROP GATE, LH
68909-90311

FJ40..TPS

 1
66610C - LOCK ASSY, REAR DROP GATE
69360-60010

FJ40..TPS

LH

 1
69350-60010

FJ40..TPS

RH

 1
66610C - LOCK ASSY, REAR DROP GATE
69360-60010

FJ40..TPS

LH

 1
69350-60010

FJ40..TPS

RH

 1
68905A - HINGE, REAR DROP GATE
68905-90305

FJ40..TPS

 3
68905A - HINGE, REAR DROP GATE
68905-90305

FJ40..TPS

 3
Common parts
91611-40820
91661-40820
