FJ40L-KJA (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1981
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

Click highlighted areas on diagram

diagram 41101 41110 41114 41201 41201A 41201B 41201C 41201D 41201E 41201F 41204 41204A 41204B 41214 41222A 41252 41301A 41301A 41302 41315 41315 41316 41331 41331 41341 41341 41342 41343 41344 41351 41351 41361 41361 9017912134 9111140816 9451200800 9451200800 9451201200
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-60021

BJ42,FJ40

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-60026

FJ40

*AXC=K052,*FGR=37:10

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
41114-35010

BJ42,FJ40

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-69095

FJ40

*AXC=K052,*FGR=37:10

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
97619-30308

BJ42,FJ40

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
97619-30306

BJ42,FJ40

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-38134

BJ42,FJ40

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90560-30185

BJ42,FJ40

T=2.77-2.79,T=2.77-2.79

 1
90560-30191

BJ42,FJ40

T=2.92-2.94,T=2.92-2.94

 1
90560-30199

BJ42,FJ40

T=2.98-3.00,T=2.98-3.00

 1
90560-30184

BJ42,FJ40

T=2.74-2.76,T=2.74-2.76

 1
90560-30187

BJ42,FJ40

T=2.83-2.85,T=2.83-2.85

 1
90560-30186

BJ42,FJ40

T=2.80-2.82,T=2.80-2.82

 1
90560-30188

BJ42,FJ40

T=2.86-2.88,T=2.86-2.88

 1
90560-30190

BJ42,FJ40

T=2.89-2.91,T=2.89-2.91

 1
90560-30192

BJ42,FJ40

T=2.95-2.97,T=2.95-2.97

 1
41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
90564-30035

BJ42,FJ40

T=0.25

 4
41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
90564-68004

BJ42,FJ40

T=0.40,T=0.40

 2
90564-68001

BJ42,FJ40

T=0.25,T=0.25

 2
90564-68002

BJ42,FJ40

T=0.30,T=0.30

 2
90564-68003

BJ42,FJ40

T=0.35,T=0.35

 2
90564-68005

BJ42,FJ40

T=0.45,T=0.45

 2
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-60010

BJ42,FJ40

 1
41204A - WASHER, PLATE (FOR REAR DRIVE PINION)
90201-20005

BJ42,FJ40

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-20001

BJ42,FJ40

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-30010

BJ42,FJ40

 1
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41226-35010

BJ42,FJ40

 12
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
37341-30010

BJ42,FJ40

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45066

BJ42,FJ40

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90368-45066

BJ42,FJ40

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-36010

BJ42,FJ40

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010

BJ42,FJ40

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010

BJ42,FJ40

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-30010

BJ42,FJ40

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-35020

BJ42,FJ40

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-35020

BJ42,FJ40

 2
41341 - PINION, REAR DIFFERENTIAL
41341-55012

BJ42,FJ40

 2
41341 - PINION, REAR DIFFERENTIAL
41341-55012

BJ42,FJ40

 2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-55010

BJ42,FJ40

 1
41343 - PIN, REAR DIFFERENTIAL PINION SHAFT
41343-55010

BJ42,FJ40

 1
41344 - SPACER, DIFFERENTIAL PINION SHAFT
41344-35010

BJ42,FJ40

H=29.8

 1
41348-35010

BJ42,FJ40

H=29.4

 1
41345-35010

BJ42,FJ40

H=30.2

 1
41346-35010

BJ42,FJ40

H=30.6

 1
41347-35010

BJ42,FJ40

H=29.0

 1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-35011

BJ42,FJ40

 2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-35011

BJ42,FJ40

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-60040

BJ42,FJ40

T=2.05,T=2.00-2.10

 2
41361-60030

BJ42,FJ40

T=1.90,T=1.85-1.95

 2
41361-60020

BJ42,FJ40

T=1.75,T=1.70-1.80

 2
41361-60010

BJ42,FJ40

T=1.60,T=1.55-1.65

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-60040

BJ42,FJ40

T=2.05,T=2.00-2.10

 2
41361-60030

BJ42,FJ40

T=1.90,T=1.85-1.95

 2
41361-60020

BJ42,FJ40

T=1.75,T=1.70-1.80

 2
41361-60010

BJ42,FJ40

T=1.60,T=1.55-1.65

 2
Common parts
90179-12134
91111-40816
94512-00800
94512-01200

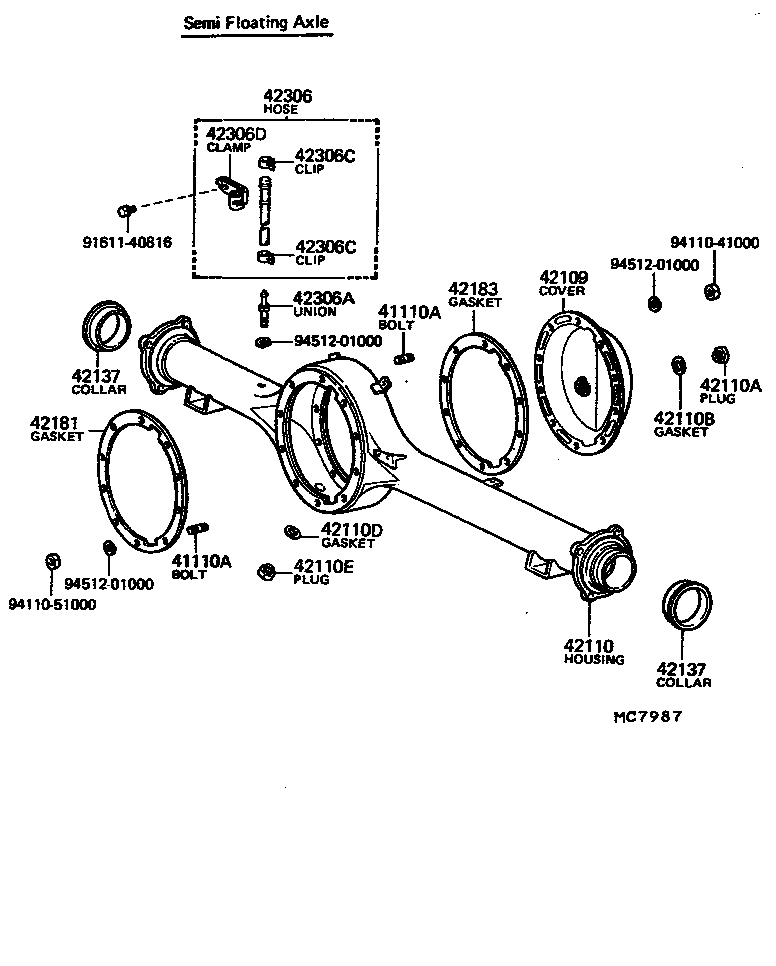

(8008- )

Click highlighted areas on diagram

diagram 41110A 41110A 42109 42110 42110A 42110B 42110D 42110E 42137 42137 42181 42183 42306 42306A 42306C 42306C 42306D 9161140816 9411041000 9411051000 9451201000 9451201000 9451201000
Part # Description Qty Price
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10103

BJ42,FJ40

L=37,S=12 & 25,L=37,S=12 & 16

 8
90116-10107

BJ42,FJ40

L=32,S=12 & 20,COVER,L=32,S=12 & 15,COVER

 10
90116-10104

BJ42,FJ40

L=50,S=12 & 18,L=50,S=12 & 18

 2
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10103

BJ42,FJ40

L=37,S=12 & 25,L=37,S=12 & 16

 8
90116-10107

BJ42,FJ40

L=32,S=12 & 20,COVER,L=32,S=12 & 15,COVER

 10
90116-10104

BJ42,FJ40

L=50,S=12 & 18,L=50,S=12 & 18

 2
42109 - COVER SUB-ASSY, REAR AXLE HOUSING
42109-60050

BJ42,FJ40

 1
42110 - HOUSING ASSY, REAR AXLE
42110-60073

FJ40

FULL FLOATING AXLE

 1
42110-60025

FJ40

SEMI FLOATING AXLE

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18049

BJ42,FJ40

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

BJ42,FJ40

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

BJ42,FJ40

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

BJ42,FJ40

 1
42137 - COLLAR, REAR AXLE HOUSING SIDE
42137-55010

BJ42,FJ40

 2
42137 - COLLAR, REAR AXLE HOUSING SIDE
42137-55010

BJ42,FJ40

 2
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-36010

BJ42,FJ40

 1
42183 - GASKET, REAR AXLE HOUSING COVER
42183-35010

BJ42,FJ40

 1
42306 - HOSE SUB-ASSY, REAR AXLE BREATHER
42306-60040

FJ40

 1
42306A - UNION (FOR REAR AXLE BREATHER HOUSE)
90404-10013

BJ42,FJ40

 1
42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
96132-30600

BJ42,FJ40

 2
42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
96132-30600

BJ42,FJ40

 2
42306D - CLAMP (FOR REAR AXLE BRATHER HOSE)
90461-10387

BJ42,FJ40

 1
Common parts
91611-40816
94110-41000
94110-51000
94512-01000

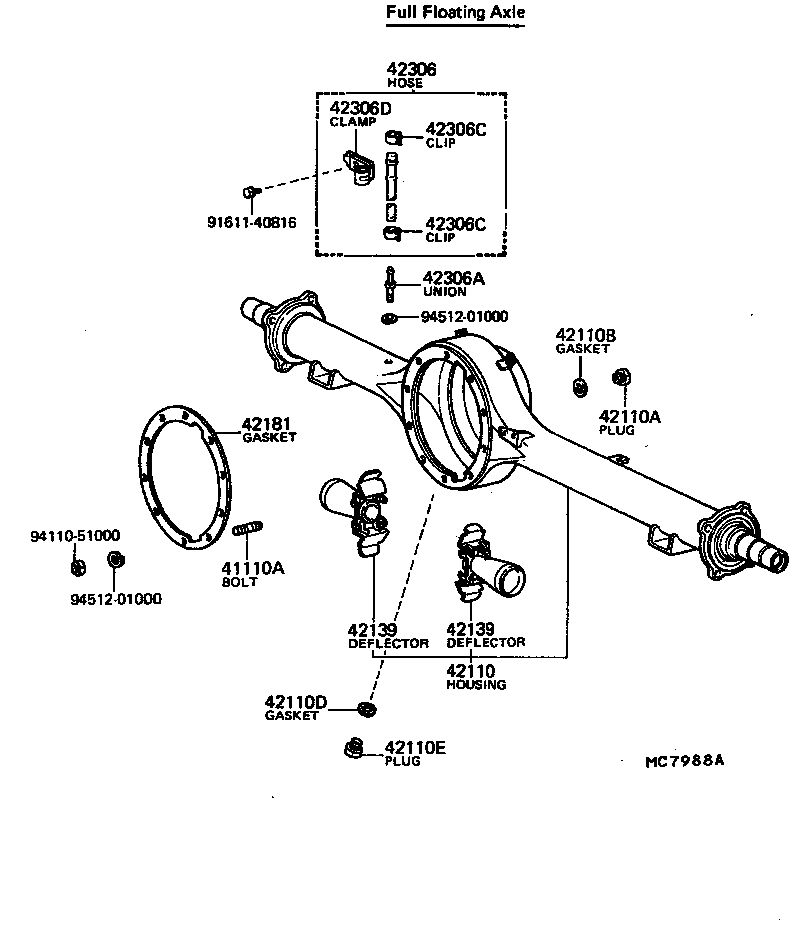

(8008-8110)

Click highlighted areas on diagram

diagram 41110A 42110 42110A 42110B 42110D 42110E 42139 42139 42181 42306 42306A 42306C 42306C 42306D 9161140816 9411051000 9451201000 9451201000
Part # Description Qty Price
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10103

BJ42,FJ40

L=37,S=12 & 25,L=37,S=12 & 16

 8
90116-10107

BJ42,FJ40

L=32,S=12 & 20,COVER,L=32,S=12 & 15,COVER

 10
90116-10104

BJ42,FJ40

L=50,S=12 & 18,L=50,S=12 & 18

 2
42110 - HOUSING ASSY, REAR AXLE
42110-60073

FJ40

FULL FLOATING AXLE

 1
42110-60025

FJ40

SEMI FLOATING AXLE

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18049

BJ42,FJ40

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

BJ42,FJ40

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

BJ42,FJ40

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

BJ42,FJ40

 1
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-60010

BJ42,FJ40

 2
42139 - DEFLECTOR, REAR AXLE HOUSING OIL
42108-60010

BJ42,FJ40

 2
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-36010

BJ42,FJ40

 1
42306 - HOSE SUB-ASSY, REAR AXLE BREATHER
42306-60040

FJ40

 1
42306A - UNION (FOR REAR AXLE BREATHER HOUSE)
90404-10013

BJ42,FJ40

 1
42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
96132-30600

BJ42,FJ40

 2
42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
96132-30600

BJ42,FJ40

 2
42306D - CLAMP (FOR REAR AXLE BRATHER HOSE)
90461-10387

BJ42,FJ40

 1
Common parts
91611-40816
94110-51000
94512-01000
