FJ40L-KJA (1976)

Toyota Land Cruiser

Production Feb 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8309)4F

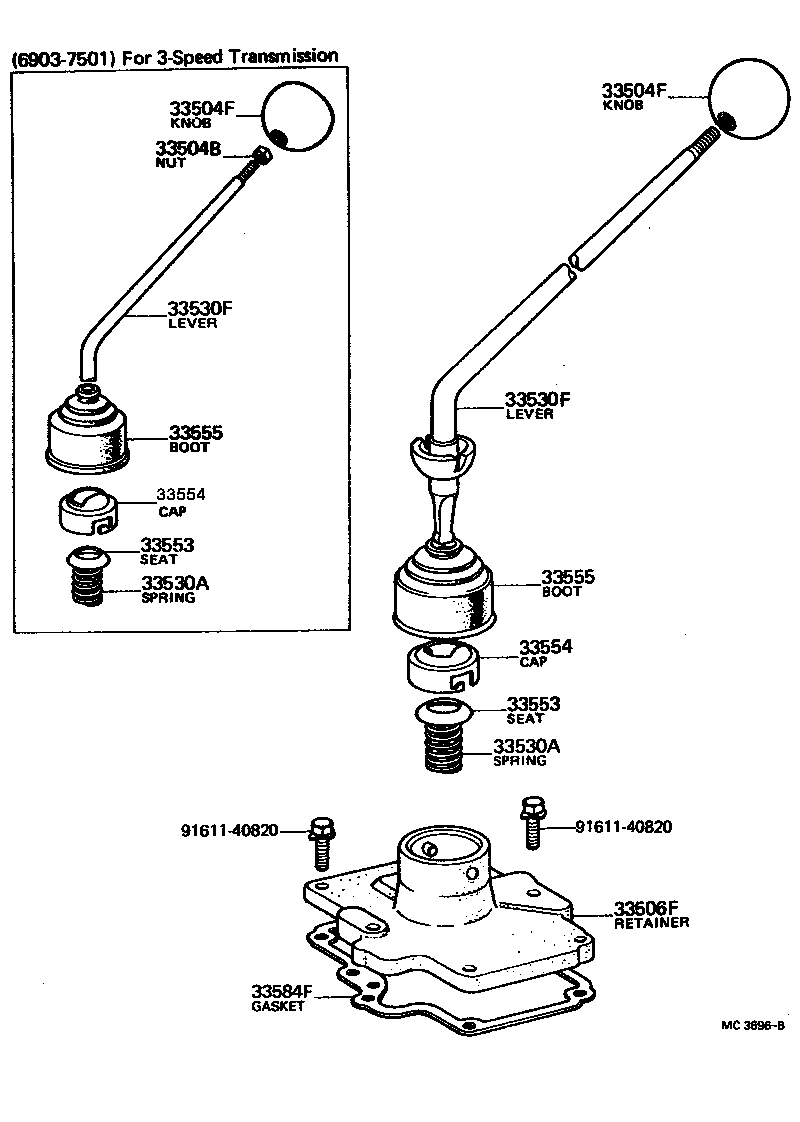

Click highlighted areas on diagram

diagram 33504F 33506F 33530A 33530F 33553 33554 33555 33584F 9161160820 9161160825
Part # Description Qty Price
Common parts
91611-60820
91611-60825

(6903-8007)

Click highlighted areas on diagram

diagram 33504B 33504F 33504F 33506F 33530A 33530A 33530F 33530F 33553 33553 33554 33554 33555 33555 33584F 9161140820 9161140820
Part # Description Qty Price
33504B - NUT, HEXAGON
90170-10054

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60020

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60020

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
33530A - SPRING, COMPRESSION (FOR SHIFT LEVER)
90501-32051

FJ40,55

 1
33530A - SPRING, COMPRESSION (FOR SHIFT LEVER)
90501-32051

FJ40,55

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33541-60030

FJ40

FOR 3-SPEED TRANSMISSION

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33541-60030

FJ40

FOR 3-SPEED TRANSMISSION

 1
33553 - SEAT, SHIFT LEVER SPRING
33553-55010

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
33553 - SEAT, SHIFT LEVER SPRING
33553-55010

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
33554 - CAP, SHIFT LEVER
33554-55010

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
33554 - CAP, SHIFT LEVER
33554-55010

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
33555 - BOOT, SHIFT LEVER
33555-55010

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
33555 - BOOT, SHIFT LEVER
33555-55010

FJ40,55

FOR 3-SPEED TRANSMISSION

 1
Common parts
91611-40820
