FJ40L-KJA (1976)
Toyota Land Cruiser
Production
Feb 1976
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8309)2F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-12032 | ||||
| 90119-12068 | ||||
| 90170-12018 | ||||
| 90201-12021 | ||||
| 91212-41025 | ||||
| 91611-61030 | ||||
| 91659-61225 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||

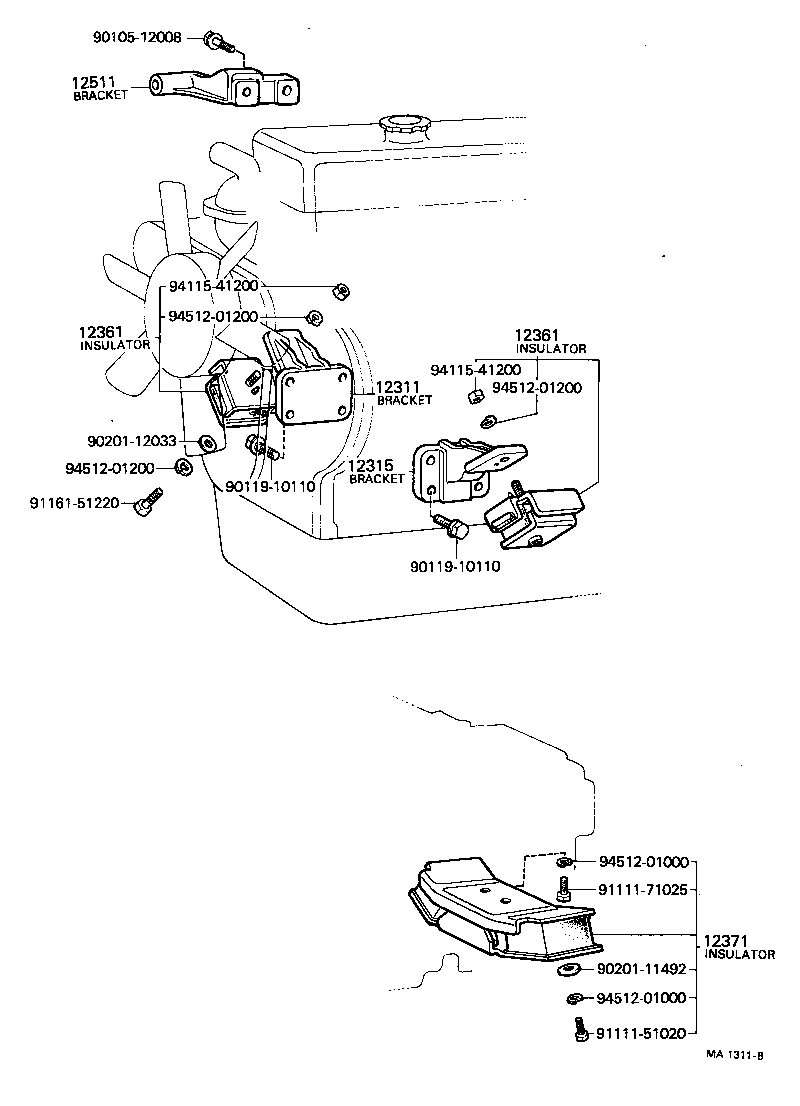

(7803-8007)B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-60030 |
F..FJ40,55 |
1 | ||
| 12301-61010 |
2F..FJ40,55..USA W/COOLER |
1 | ||
| 12301-61011 |
2F..FJ40,55..USA W/COOLER |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-60020 |
F..FJ40,55 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-60020 |
F..FJ40,55 |
2 | ||
| 12361-60022 |
2F..FJ4#,55 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-60020 |
F..FJ40,55 |
2 | ||
| 12361-60022 |
2F..FJ4#,55 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-60010 |
F,2F..FJ4# |
4 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-61020 |
2F..FJ40,55..USA |
1 | ||
| 12511-60080 |
F..FJ40,55 |
1 | ||
| 12511-61021 |
2F..FJ40,55..USA |
1 | ||
| Common parts | ||||
| 90105-12008 | ||||
| 90119-10110 | ||||
| 90201-11492 | ||||
| 90201-12033 | ||||
| 91111-51020 | ||||
| 91111-71025 | ||||
| 91161-51220 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
