FJ40L-A (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7709)

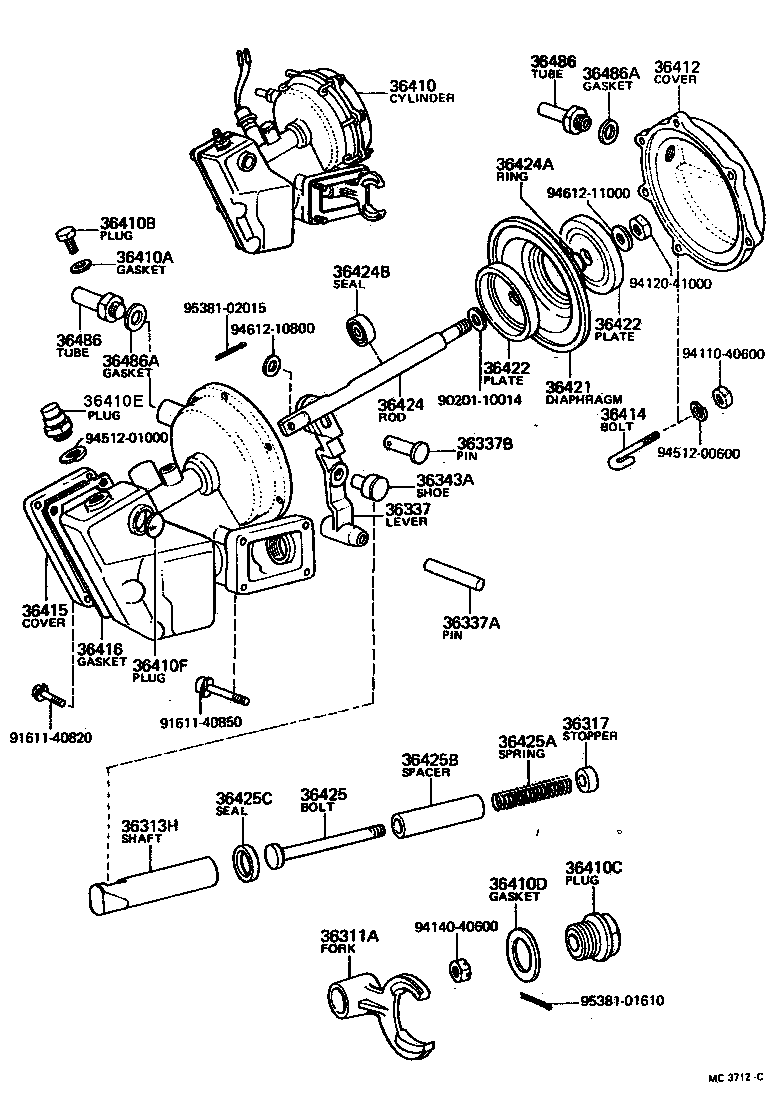

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36311A - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-60020 |
FJ4#,55 |
1 | ||
| 36313H - SHAFT, TRANSFER FRONT DRIVE SHIFT(FOR MAGNET TYPE) | ||||
| 36313-60021 |
FJ4#,55 |
1 | ||
| 36317 - STOPPER, SHIFT SHAFT | ||||
| 36317-60010 |
FJ4#,55 |
1 | ||
| 36337 - LEVER, FRONT DRIVE SHIFT LINK | ||||
| 36337-60011 |
FJ4#,55 |
1 | ||
| 36337A - PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER) | ||||
| 90250-08108 |
FJ4#,55 |
1 | ||
| 36337B - PIN, W/HOLE (FOR FRONT DRIVE SHIFT LINK LEVER) | ||||
| 90240-08028 |
FJ4#,55 |
1 | ||
| 36343A - SHOE, FR DRIVE SHIFT LINK LEVER (FOR VACUUM MAGNET TYPE | ||||
| 36343-60010 |
FJ4#,55 |
1 | ||
| 36410 - CYLINDER ASSY, DIAPHRAGM | ||||
| 36410-60011 |
FJ4#,55 |
1 | ||
| 36410A - GASKET (FOR DIAPHRAGM CYLINDER) | ||||
| 90430-06021 |
FJ4#,55 |
1 | ||
| 36410B - PLUG, W/HEAD STRAIGHT SCREW | ||||
| 90341-06001 |
FJ4#,55 |
1 | ||
| 36410C - PLUG, W/HEAD(FOR TRANSFER FRONT DRIVE SHIFT SHAFT) | ||||
| 90341-26026 |
FJ40,55 |
1 | ||
| 36410D - GASKET(FOR TRANSFER FRONT DRIVE SHIFT SHAFT) | ||||
| 90430-26020 |
FJ4#,55 |
1 | ||
| 36410E - PLUG, BREATHER(FOR DIAPHRAGM CYLINDER) | ||||
| 90930-03019 |
FJ4#,55 |
1 | ||
| 36410F - PLUG, EXPANSION(FOR DIAPHRAGM CYLINDER) | ||||
| 96412-02200 |
FJ4#,55 |
1 | ||
| 36412 - COVER, DIAPHRAGM CYLINDER BODY | ||||
| 36412-60011 |
FJ4#,55 |
1 | ||
| 36414 - BOLT, DIAPHRAGM CYLINDER | ||||
| 36414-60010 |
FJ4#,55 |
6 | ||
| 36415 - COVER, DIAPHRAGM CYLINDER | ||||
| 36415-60010 |
FJ4#,55 |
1 | ||
| 36416 - GASKET, DIAPHRAGM CYLINDER | ||||
| 36416-60010 |
FJ4#,55 |
1 | ||
| 36421 - DIAPHRAGM, TRANSFER | ||||
| 36421-60010 |
FJ4#,55 |
1 | ||
| 36422 - PLATE, TRANSFER DIAPHRAGM | ||||
| 36422-60010 |
FJ4#,55 |
2 | ||
| 36422 - PLATE, TRANSFER DIAPHRAGM | ||||
| 36422-60010 |
FJ4#,55 |
2 | ||
| 36424 - ROD, DIAPHRAGM PUSH | ||||
| 36424-60011 |
FJ4#,55 |
1 | ||
| 36424A - RING, O (FOR DIAPHRAGM PUSH ROD) | ||||
| 90301-10024 |
FJ40,55 |
1 | ||
| 36424B - SEAL, TYPE T, OIL (FOR DIAPHRAGM PUSH ROD) | ||||
| 90311-13066 |
FJ4#,55 |
1 | ||
| 36425 - BOLT, PUSH ROD | ||||
| 36425-60010 |
FJ4#,55 |
1 | ||
| 36425A - SPRING, COMPRESSION (FOR DIAPHRAGM CYLINDER) | ||||
| 90501-20029 |
FJ4#,55 |
1 | ||
| 36425B - SPACER (FOR DIAPHRAGM CYLINDER) | ||||
| 90560-12074 |
FJ4#,55 |
1 | ||
| 36425C - SEAL, DUST (FOR DIAPHRAGM CYLINDER) | ||||
| 90303-23019 |
FJ4#,55 |
1 | ||
| 36486 - TUBE, SUCTION | ||||
| 36486-60010 |
FJ4#,55 |
2 | ||
| 36486 - TUBE, SUCTION | ||||
| 36486-60010 |
FJ4#,55 |
2 | ||
| 36486A - GASKET (FOR SUCTION TUBE) | ||||
| 90430-10022 |
FJ4#,55 |
2 | ||
| 36486A - GASKET (FOR SUCTION TUBE) | ||||
| 90430-10022 |
FJ4#,55 |
2 | ||
| Common parts | ||||
| 90201-10014 | ||||
| 91611-40820 | ||||
| 91611-40850 | ||||
| 94110-40600 | ||||
| 94120-41000 | ||||
| 94140-40600 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94612-11000 | ||||
| 95381-01610 | ||||
| 95381-02015 | ||||
