BJ70LV-MRK (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1986
Engine
3B
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

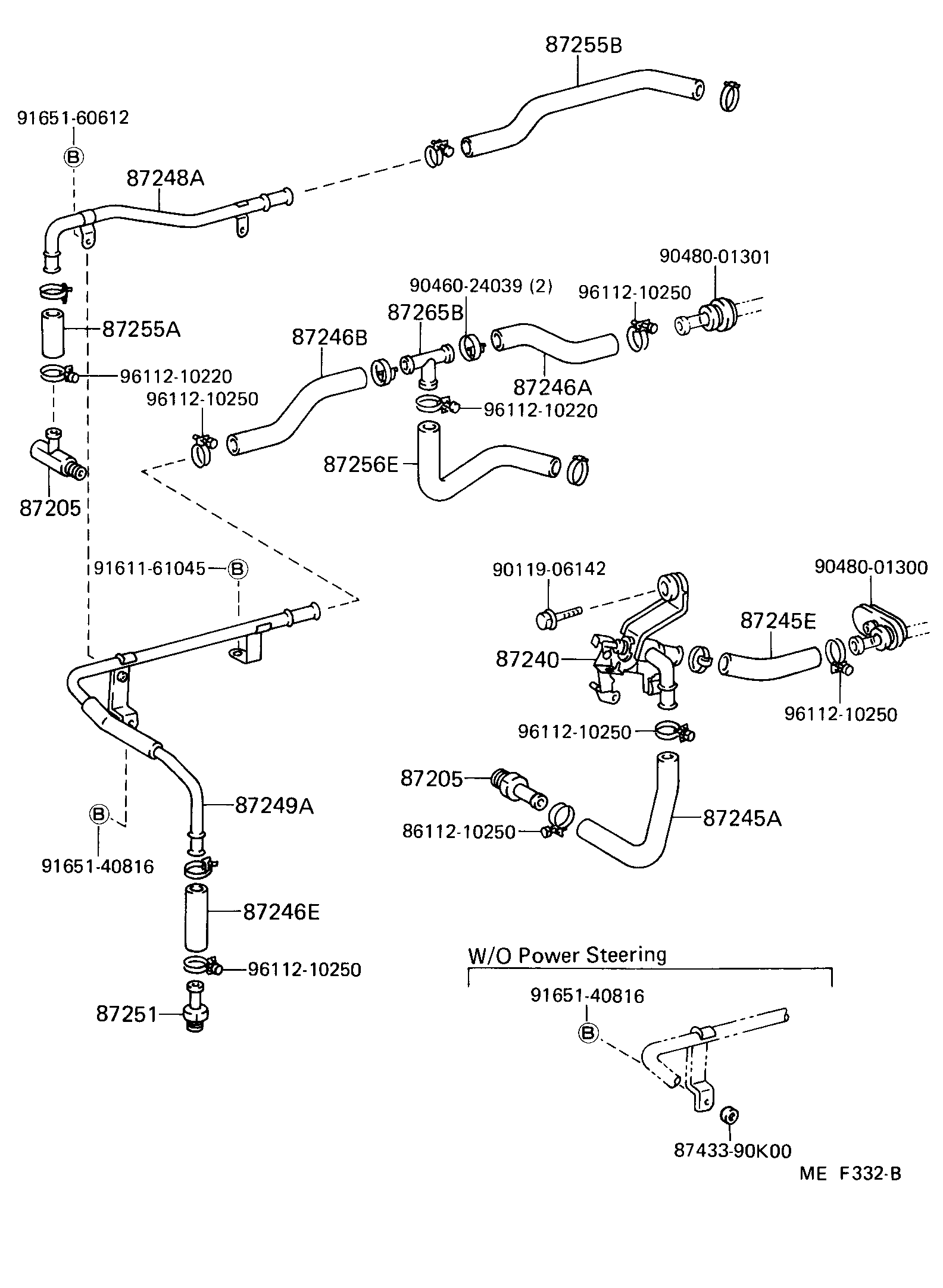

(8411- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
BJ70 FR HEATER |
1 | ||
| 87251-90K00 |
BJ70 RR HEATER |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
BJ70 FR HEATER |
1 | ||
| 87251-90K00 |
BJ70 RR HEATER |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90K00 |
BJ70 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90K04 |
BJ70 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-1B060 |
BJ70 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90K30 |
BJ70 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-90K31 |
BJ70 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-30055 |
BJ70 *H,L=55 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-90K19 |
BJ70 W/RR HEATER |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-90K18 |
BJ70 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BJ70 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20055 |
BJ70 *H,L=55 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-90K28 |
BJ70 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90K29 |
BJ70 |
1 | ||
| 87265B - CONNECTOR, HEATER WATER HOSE, NO.2 | ||||
| 87248-95400 |
BJ70 |
1 | ||
| Common parts | ||||
| 86112-10250 | ||||
| 87433-90K00 | ||||
| 90119-06142 | ||||
| 90460-24039 | ||||
| 90480-01300 | ||||
| 90480-01301 | ||||
| 91611-61045 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||

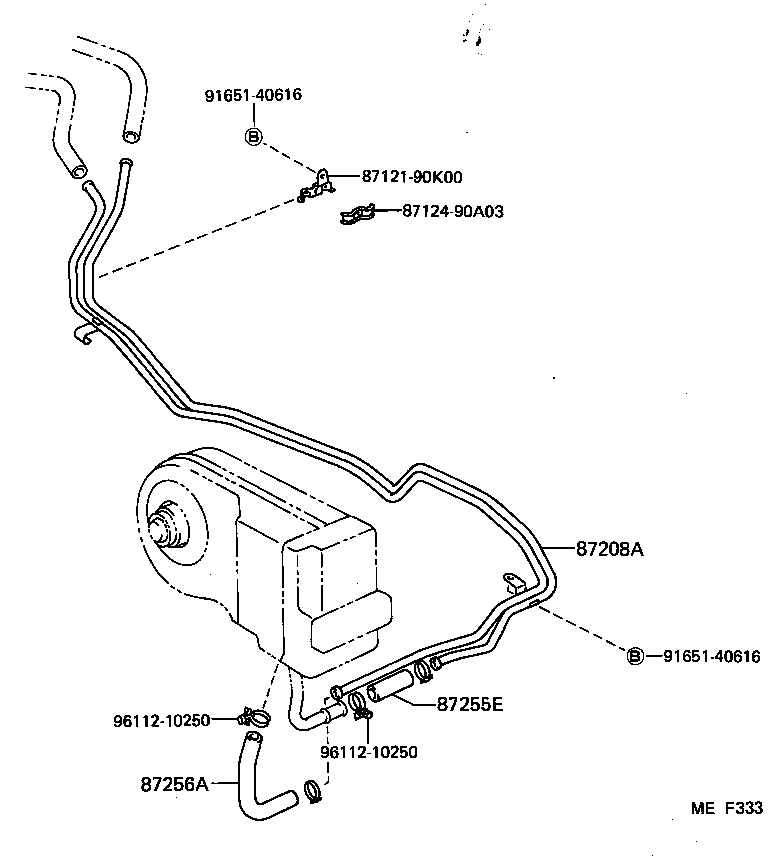

(8411- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90K07 |
BJ70 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20080 |
BJ70 *H,L=80 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-90K16 |
BJ70 |
1 | ||
| Common parts | ||||
| 87121-90K00 | ||||
| 87124-90A03 | ||||
| 91651-40616 | ||||
| 96112-10250 | ||||
