BJ70LV-MRK (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1986
Engine
3B
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

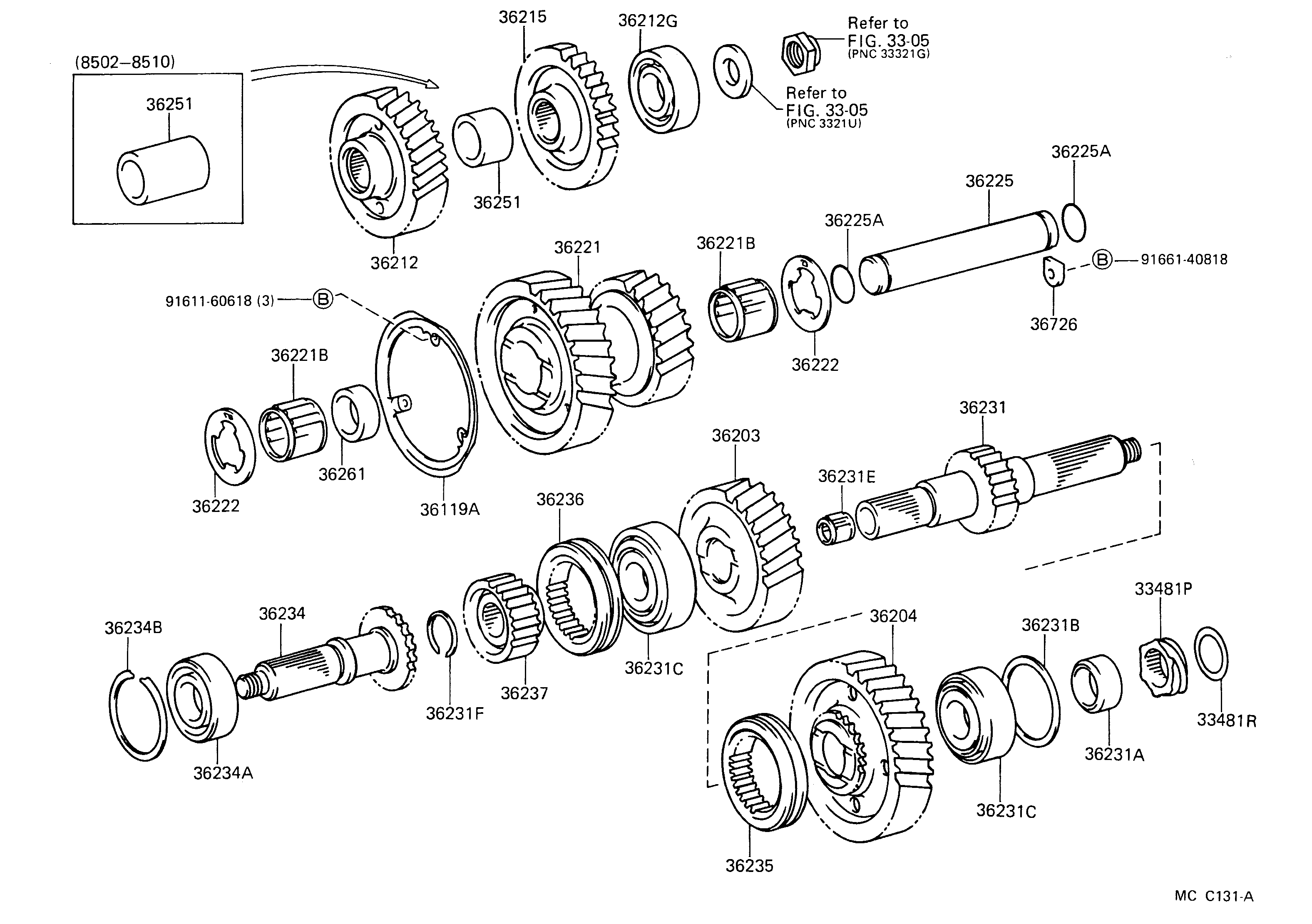

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60060 |
BJ70 N=6,MARK 6:15-17 |
1 | ||
| 33481R - WASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90201-35002 |
BJ70 |
1 | ||
| 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) | ||||
| 36119-60020 |
BJ70 |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60021 |
BJ70 |
1 | ||
| 36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT | ||||
| 36204-60031 |
BJ70 |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60041 |
BJ70 |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| 90363-35013 |
BJ70 |
1 | ||
| 36215 - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-60030 |
BJ70 |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60041 |
BJ70 |
1 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-34006 |
BJ70 |
2 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-34006 |
BJ70 |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60010 |
BJ70 |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60010 |
BJ70 |
2 | ||
| 36225 - SHAFT, TRANSFER IDLER GEAR | ||||
| 36225-60030 |
BJ70 |
1 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-27003 |
BJ70 |
2 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-27003 |
BJ70 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-60021 |
BJ70 |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90560-35008 |
BJ70 T=17.5 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90564-70001 |
BJ70 T=0.15,T=0.15 |
1 | ||
| 90564-70011 |
BJ70 T=1.30,T=1.30 |
1 | ||
| 90564-70009 |
BJ70 T=1.10,T=1.10 |
1 | ||
| 90564-70005 |
BJ70 T=0.70,T=0.70 |
1 | ||
| 90564-70007 |
BJ70 T=0.90,T=0.90 |
1 | ||
| 90564-70002 |
BJ70 T=0.40,T=0.40 |
1 | ||
| 90564-70004 |
BJ70 T=0.60,T=0.60 |
1 | ||
| 90564-70003 |
BJ70 T=0.50,T=0.50 |
1 | ||
| 90564-70006 |
BJ70 T=0.80,T=0.80 |
1 | ||
| 90564-70010 |
BJ70 T=1.20,T=1.20 |
1 | ||
| 90564-70008 |
BJ70 T=1.00,T=1.00 |
1 | ||
| 90564-70013 |
BJ70 T=1.50,T=1.50 |
1 | ||
| 90564-70012 |
BJ70 T=1.40,T=1.40 |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 97600-30307 |
BJ70 RR |
1 | ||
| 90366-35011 |
BJ70 FR |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 97600-30307 |
BJ70 RR |
1 | ||
| 90366-35011 |
BJ70 FR |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-17010 |
BJ70 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-33107 |
BJ70 T=2.30-2.35,MARK 11,T=2.3 |
1 | ||
| 90520-33110 |
BJ70 T=2.6-2.65,MARK 17,T=2.6 |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-60031 |
BJ70 |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-35013 |
BJ70 |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-75023 |
BJ70 T=1.6 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60020 |
BJ70 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36235-60020 |
BJ70 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60020 |
BJ70 |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60030 |
BJ70 |
1 | ||
| 36251-60050 |
BJ70 |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60030 |
BJ70 |
1 | ||
| 36251-60050 |
BJ70 |
1 | ||
| 36261 - SPACER, TRANSFER IDLER GEAR | ||||
| 90560-34001 |
BJ70 |
1 | ||
| 36726 - PLATE, LOCK (FOR TRANSFER GEAR) | ||||
| 36726-60020 |
BJ70 |
1 | ||
| Common parts | ||||
| 91611-60618 | ||||
| 91661-40818 | ||||
| Linked diagrams | ||||
| 3305 | ||||
