BJ60LV-KK (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1981
Engine
3B
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8110)3B

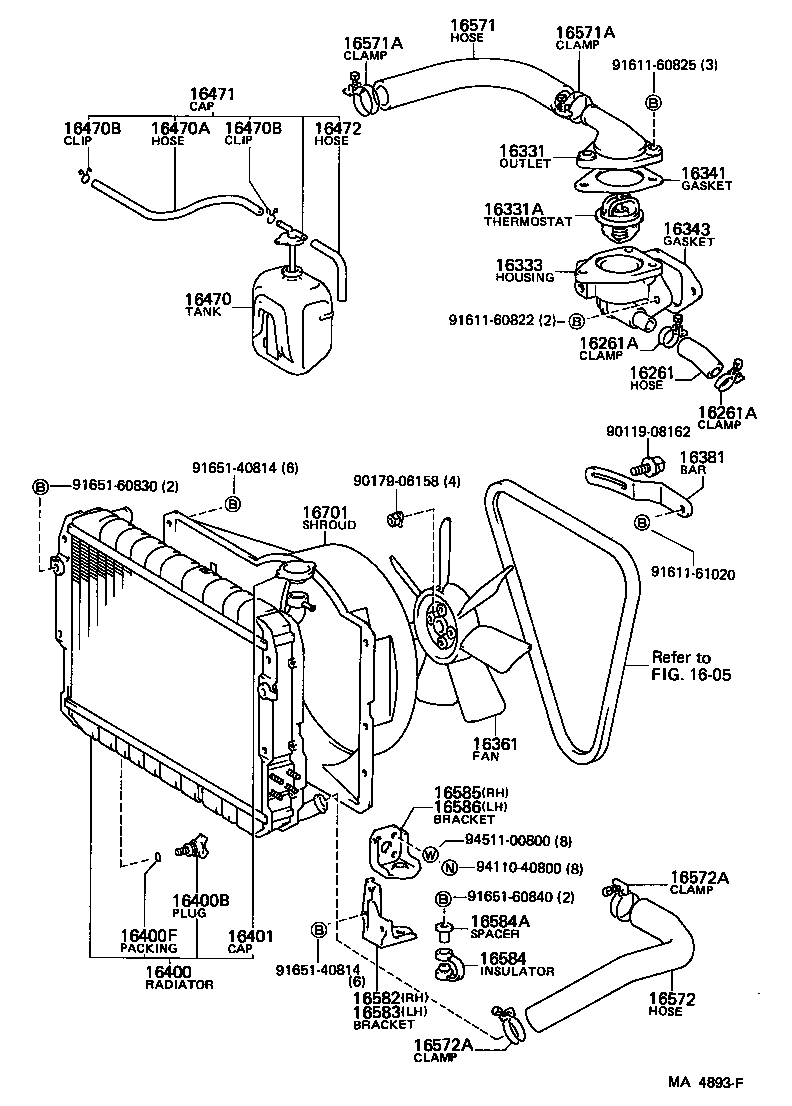

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56011 |
3B..BJ60 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
3B..BJ60 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
3B..BJ60 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56020 |
3B..BJ60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03045 |
3B..BJ60 *WAX 88-100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56040 |
3B..BJ60 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56020 |
3B..BJ60 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56020 |
3B..BJ60 |
1 | ||
| 16361 - FAN | ||||
| 16361-41070 |
3B..BJ60 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-56030 |
3B..BJ60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-58010 |
3B..BJ60 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
3B..BJ60 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
3B..BJ60 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
3B..BJ60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-90A00 |
3B..BJ60 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12002 |
3B..BJ60 *H,L=260 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3B..BJ60 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3B..BJ60 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-90A02 |
3B..BJ60 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
3B..BJ60 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58010 |
3B..BJ60 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
3B..BJ60 RADIATOR SIDE |
1 | ||
| 96111-10560 |
3B..BJ60 WATER OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-50016 |
3B..BJ60 RADIATOR SIDE |
1 | ||
| 96111-10560 |
3B..BJ60 WATER OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-58010 |
3B..BJ60 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
3B..BJ60 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
3B..BJ60 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-61010 |
3B..BJ60 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-61010 |
3B..BJ60 |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61010 |
3B..BJ60 |
2 | ||
| 16584A - SPACER, RADIATOR MOUNTING INSULATOR | ||||
| 90561-09005 |
3B..BJ60 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61010 |
3B..BJ60 |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-61010 |
3B..BJ60 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-58010 |
3B..BJ60 |
1 | ||
| Common parts | ||||
| 90119-08162 | ||||
| 90179-06158 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91651-40814 | ||||
| 91651-60830 | ||||
| 91651-60840 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
