BJ60LG-MK (1982)

Toyota Land Cruiser

Production Oct 1982 - Oct 1985
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

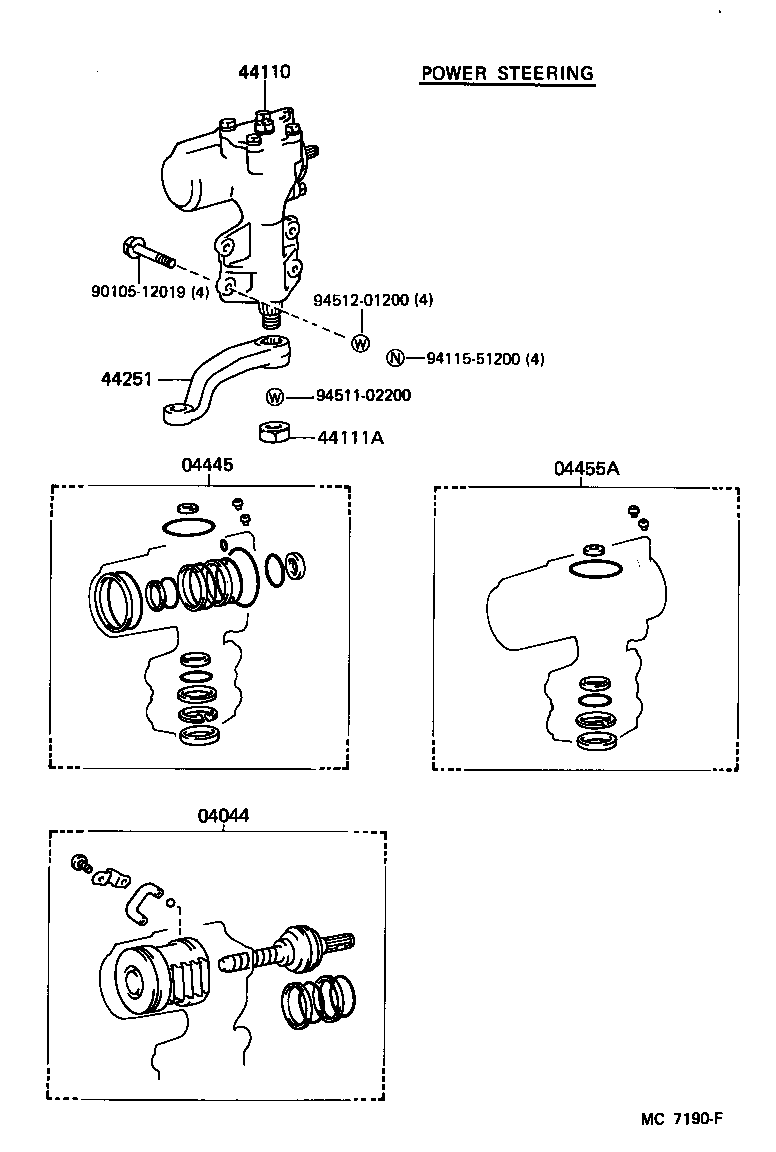

(8008-8504)FJ60 ; (8210-8411)BJ60

Click highlighted areas on diagram

diagram 04044 04445 04455A 44110 44111A 44251 9010512019 9411551200 9451102200 9451201200
Part # Description Qty Price
04044 - WARM KIT, POWER STEERING
04044-60060

BJ60,FJ60

 1
04044-60070

BJ60

 1
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-60020

BJ60,FJ60

 1
04445-60030

BJ60

 1
04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE
04455-60010

BJ60,FJ60

 1
04455-60020

BJ60

 1
44110 - GEAR ASSY, POWER STEERING
44110-60051

BJ60,FJ60

 1
44110-60120

BJ60

 1
44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)
90170-22058

BJ60,FJ60,HJ60

 1
Common parts
90105-12019
94115-51200
94511-02200
94512-01200

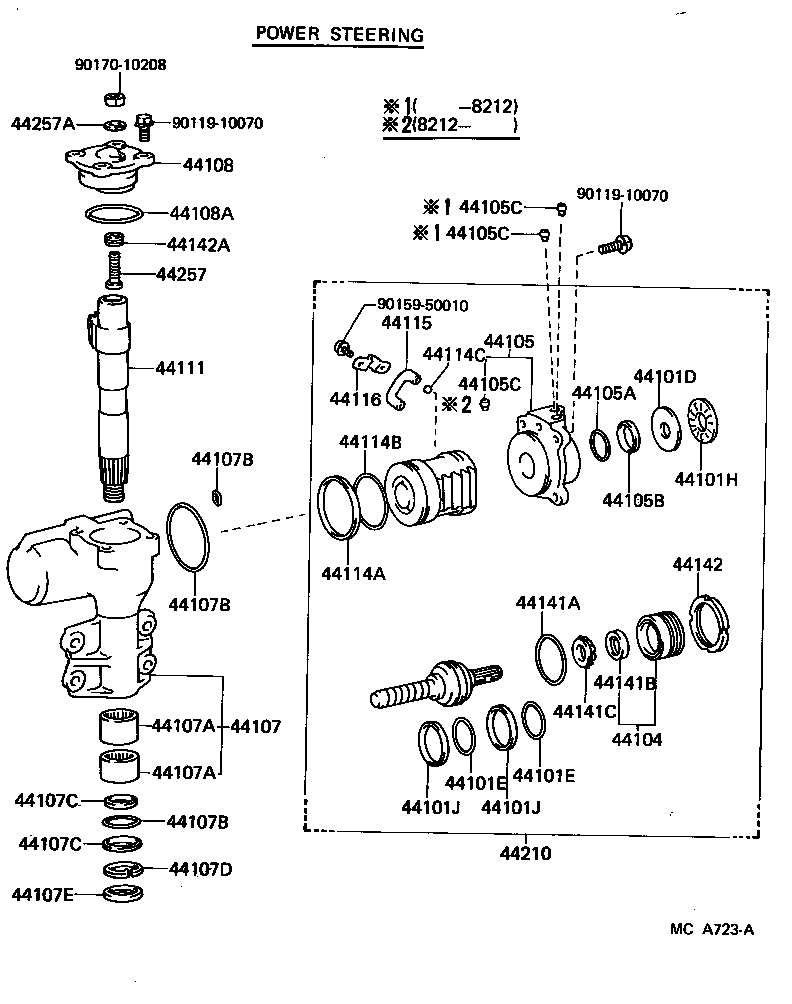

(8008-8504)FJ60 ; (8210-8411)BJ60

Click highlighted areas on diagram

diagram 44101D 44101E 44101E 44101H 44101J 44101J 44104 44105 44105A 44105B 44105C 44105C 44105C 44107 44107A 44107A 44107B 44107B 44107B 44107C 44107C 44107D 44107E 44108 44108A 44111 44114A 44114B 44114C 44115 44116 44141A 44141B 44141C 44142 44142A 44210 44257 44257A 9011910070 9011910070 9015950010 9017010208
Part # Description Qty Price
44101E - RING, O(FOR STEERING WORM)
90301-44001

BJ60,FJ60

 2
44101E - RING, O(FOR STEERING WORM)
90301-44001

BJ60,FJ60

 2
44101J - RING(FOR STEERING WORM)
90562-48001

BJ60

 2
90562-47002

BJ60,FJ60

 2
44101J - RING(FOR STEERING WORM)
90562-48001

BJ60

 2
90562-47002

BJ60,FJ60

 2
44105 - HOUSING SUB-ASSY, VALVE
44105-30050

BJ60,FJ60

 1
44105C - SEAT, UNION(FOR VALVE BODY HOUSING)
90410-06006

BJ60

 2
90410-06030

BJ60,FJ60

 2
44105C - SEAT, UNION(FOR VALVE BODY HOUSING)
90410-06006

BJ60

 2
90410-06030

BJ60,FJ60

 2
44105C - SEAT, UNION(FOR VALVE BODY HOUSING)
90410-06006

BJ60

 2
90410-06030

BJ60,FJ60

 2
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-60040

BJ60,FJ60

 1
44107-60060

BJ60

 1
44141C - BEARING(FOR ADJUSTER PLUG)
90369-22004

BJ60

 1
90369-22001

BJ60,FJ60

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44120-60041

BJ60,FJ60

 1
44120-60050

BJ60

 1
Common parts
90119-10070
90159-50010
90170-10208

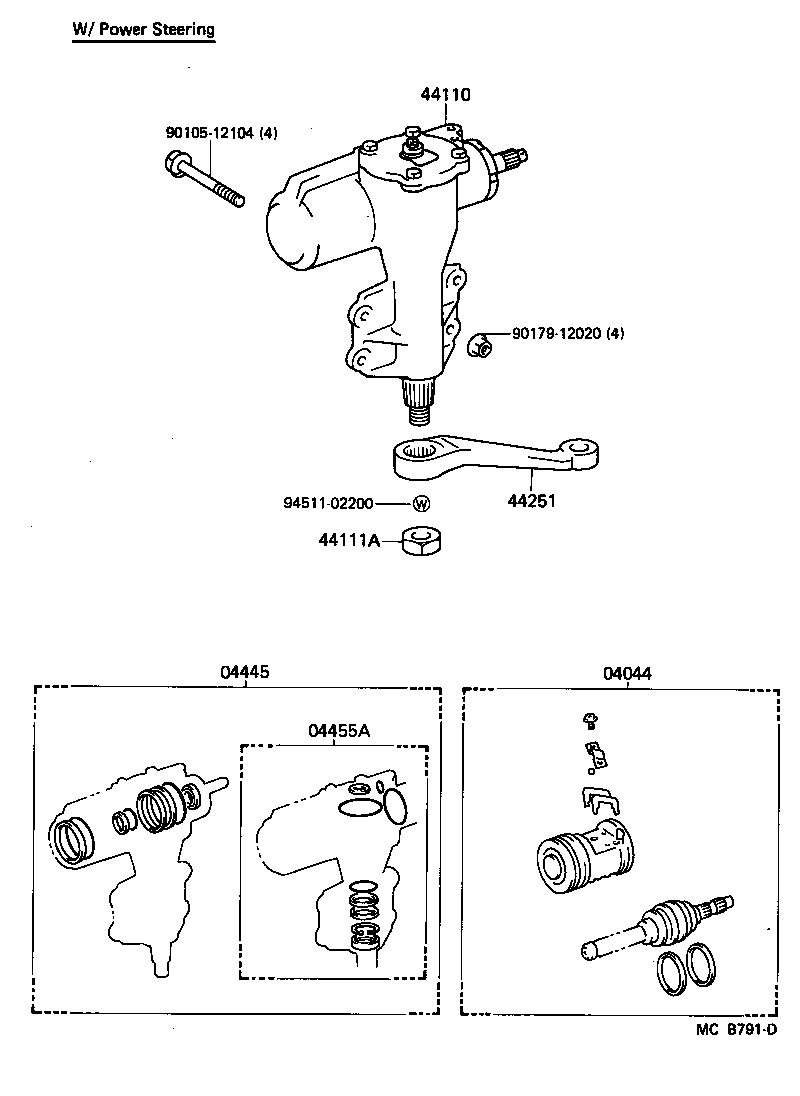

(8411-8510)BJ60 ; (8504- )FJ60 ; (8510- )HJ60

Click highlighted areas on diagram

diagram 04044 04445 04455A 44110 44111A 44251 9010512104 9017912020 9451102200
Part # Description Qty Price
04044 - WARM KIT, POWER STEERING
04044-60060

BJ60,FJ60

 1
04044-60070

BJ60

 1
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-60020

BJ60,FJ60

 1
04445-60030

BJ60

 1
04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE
04455-60010

BJ60,FJ60

 1
04455-60020

BJ60

 1
44110 - GEAR ASSY, POWER STEERING
44110-60051

BJ60,FJ60

 1
44110-60120

BJ60

 1
44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)
90170-22058

BJ60,FJ60,HJ60

 1
Common parts
90105-12104
90179-12020
94511-02200

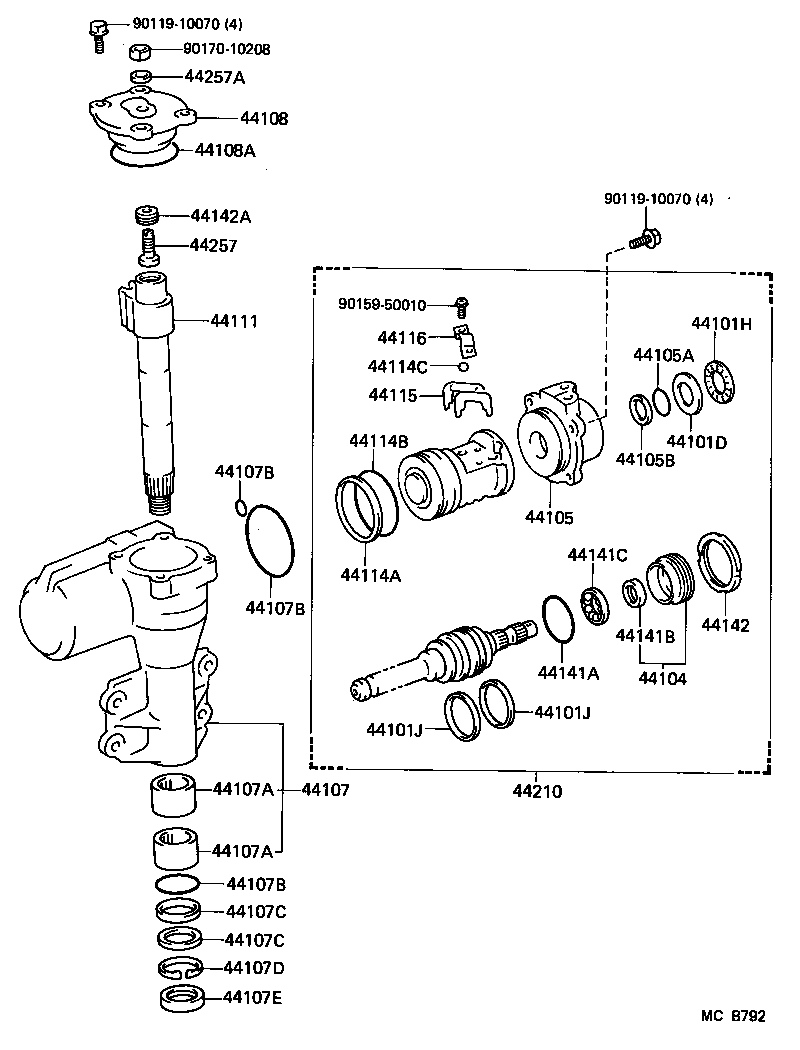

(8411-8510)BJ60 ; (8504- )FJ60 ; (8510- )HJ60

Click highlighted areas on diagram

diagram 44101D 44101H 44101J 44101J 44104 44105 44105A 44105B 44107 44107A 44107A 44107B 44107B 44107B 44107C 44107C 44107D 44107E 44108 44108A 44111 44114A 44114B 44114C 44115 44116 44141A 44141B 44141C 44142 44142A 44210 44257 44257A 9011910070 9011910070 9015950010 9017010208
Part # Description Qty Price
44101J - RING(FOR STEERING WORM)
90562-48001

BJ60

 2
90562-47002

BJ60,FJ60

 2
44101J - RING(FOR STEERING WORM)
90562-48001

BJ60

 2
90562-47002

BJ60,FJ60

 2
44105 - HOUSING SUB-ASSY, VALVE
44105-30050

BJ60,FJ60

 1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-60040

BJ60,FJ60

 1
44107-60060

BJ60

 1
44141C - BEARING(FOR ADJUSTER PLUG)
90369-22004

BJ60

 1
90369-22001

BJ60,FJ60

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44120-60041

BJ60,FJ60

 1
44120-60050

BJ60

 1
Common parts
90119-10070
90159-50010
90170-10208
