BJ60LG-MK (1982)

Toyota Land Cruiser

Production Oct 1982 - Oct 1985
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8510)BJ60

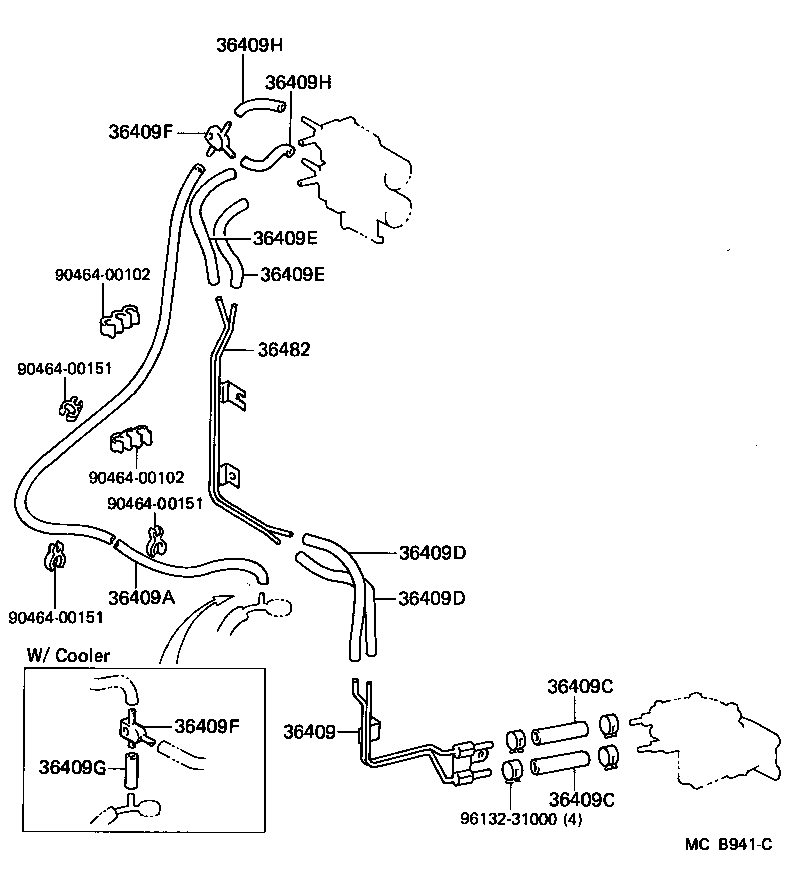

Click highlighted areas on diagram

diagram 36409 36409A 36409C 36409C 36409D 36409D 36409E 36409E 36409F 36409F 36409G 36409H 36409H 36482 9046400102 9046400102 9046400151 9046400151 9046400151 9613231000
Part # Description Qty Price
36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION
36409-60050

BJ60

 1
36409A - HOSE (FOR VACUUM TUBE)
95411-19960

BJ60

W/COOLER,*H,L=500

 1
90445-08215

BJ60

 1
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ60

*H,L=300,MARK=#*

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ60

*H,L=300,MARK=#*

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
95411-19960

BJ60

*H,L=480,MARK=#*

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
95411-19960

BJ60

*H,L=480,MARK=#*

 2
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-60110

BJ60

 1
Common parts
90464-00102
90464-00151
96132-31000
