BJ60LG-MK (1982)
Toyota Land Cruiser
Production
Oct 1982
-
Oct 1985
Engine
3B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

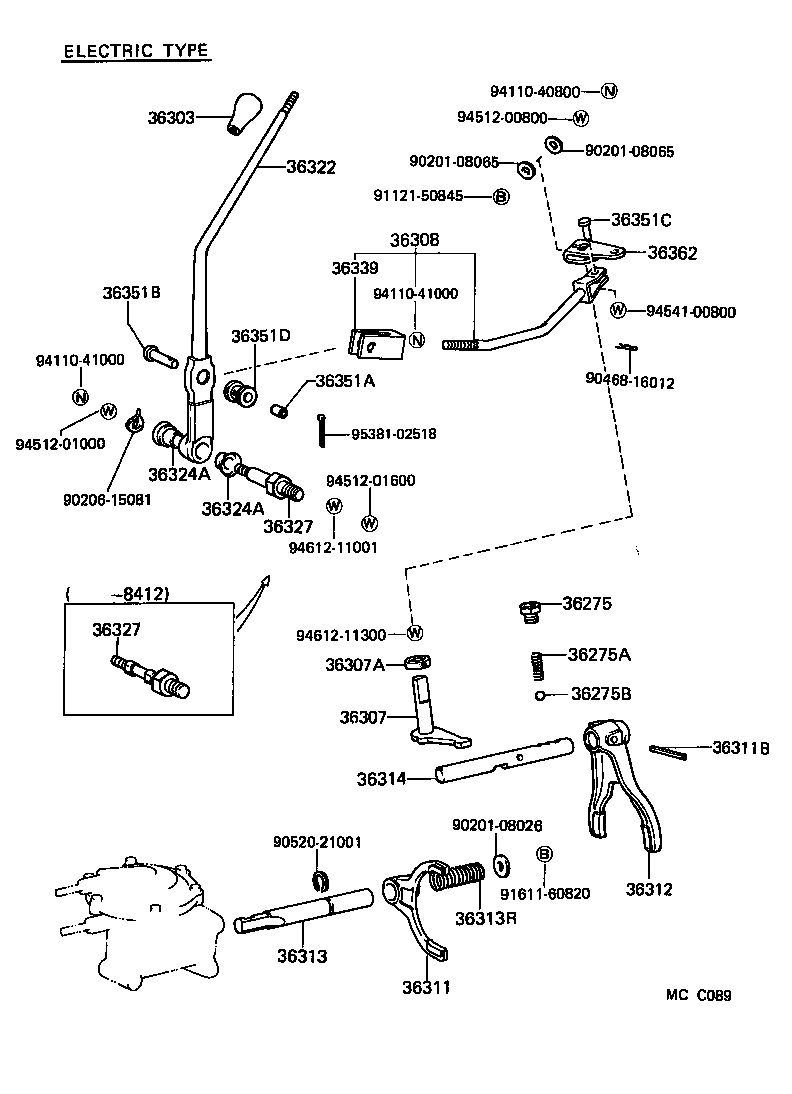

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-15001 |
BJ60,FJ60,HJ60 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14029 |
BJ60,FJ60,HJ60 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
BJ60,FJ60,HJ60 OD=9.52,STEEL |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60070 |
BJ60 DIRECT TYPE |
1 | ||
| 36303-60080 |
BJ60,FJ60 DIRECT TYPE |
1 | ||
| 36307 - LEVER SUB-ASSY, HIGH & LOW SHIFT INNER | ||||
| 36307-60030 |
BJ60,FJ60,HJ60..MTM DIRECT TYPE |
1 | ||
| 36307A - SEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER) | ||||
| 90313-13001 |
BJ60,FJ60,HJ60 |
1 | ||
| 36308 - ROD SUB-ASSY, HIGH & LOW SHIFT | ||||
| 36308-60050 |
BJ60 |
1 | ||
| 36311 - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-60040 |
BJ60,FJ60 |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05004 |
BJ60,FJ60,HJ60..MTM L=36.0,L=36,DIRECT TYPE |
1 | ||
| 90254-05016 |
BJ60,FJ60,HJ60 L=25.5,L=25.5,DIRECT & MAGNET TYPE |
1 | ||
| 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-60030 |
BJ60,FJ60,HJ60..MTM DIRECT TYPE |
1 | ||
| 36313 - SHAFT, TRANSFER FRONT DRIVE SHIFT | ||||
| 36313-60050 |
BJ60,FJ60,HJ60..MTM DIRECT TYPE |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60030 |
BJ60,FJ60 |
1 | ||
| 36314-60040 |
BJ60 |
1 | ||
| 36322 - LEVER, TRANSFER HIGH & LOW SHIFT | ||||
| 36322-60110 |
BJ60 |
1 | ||
| 36322-60111 |
BJ60 |
1 | ||
| 36327 - SHAFT, TRANSFER SHIFT LEVER | ||||
| 36327-60040 |
BJ60,FJ60,HJ60..MTM DIRECT TYPE |
1 | ||
| 36327-60030 |
BJ60 MAGNET TYPE |
1 | ||
| 36327 - SHAFT, TRANSFER SHIFT LEVER | ||||
| 36327-60040 |
BJ60,FJ60,HJ60..MTM DIRECT TYPE |
1 | ||
| 36327-60030 |
BJ60 MAGNET TYPE |
1 | ||
| 36339 - CLEVIS, TRANSFER SHIFT ROD | ||||
| 36338-60020 |
BJ60 |
1 | ||
| 36351B - PIN (FOR HIGH & LOW SHIFT ROD) | ||||
| 90240-10027 |
BJ60 |
1 | ||
| 36362 - LEVER, TRANSFER HIGH AND LOW SHIFT OUTER | ||||
| 36362-60011 |
BJ60,FJ60 |
1 | ||
| 36362-60040 |
BJ60 DIRECT TYPE |
1 | ||
| Common parts | ||||
| 90201-08026 | ||||
| 90201-08065 | ||||
| 90206-15081 | ||||
| 90468-16012 | ||||
| 90520-21001 | ||||
| 91121-50845 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01600 | ||||
| 94541-00800 | ||||
| 94612-11001 | ||||
| 94612-11300 | ||||
| 95381-02518 | ||||
