BJ60LG-MK (1982)
Toyota Land Cruiser
Production
Oct 1982
-
Oct 1985
Engine
3B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8510)3B

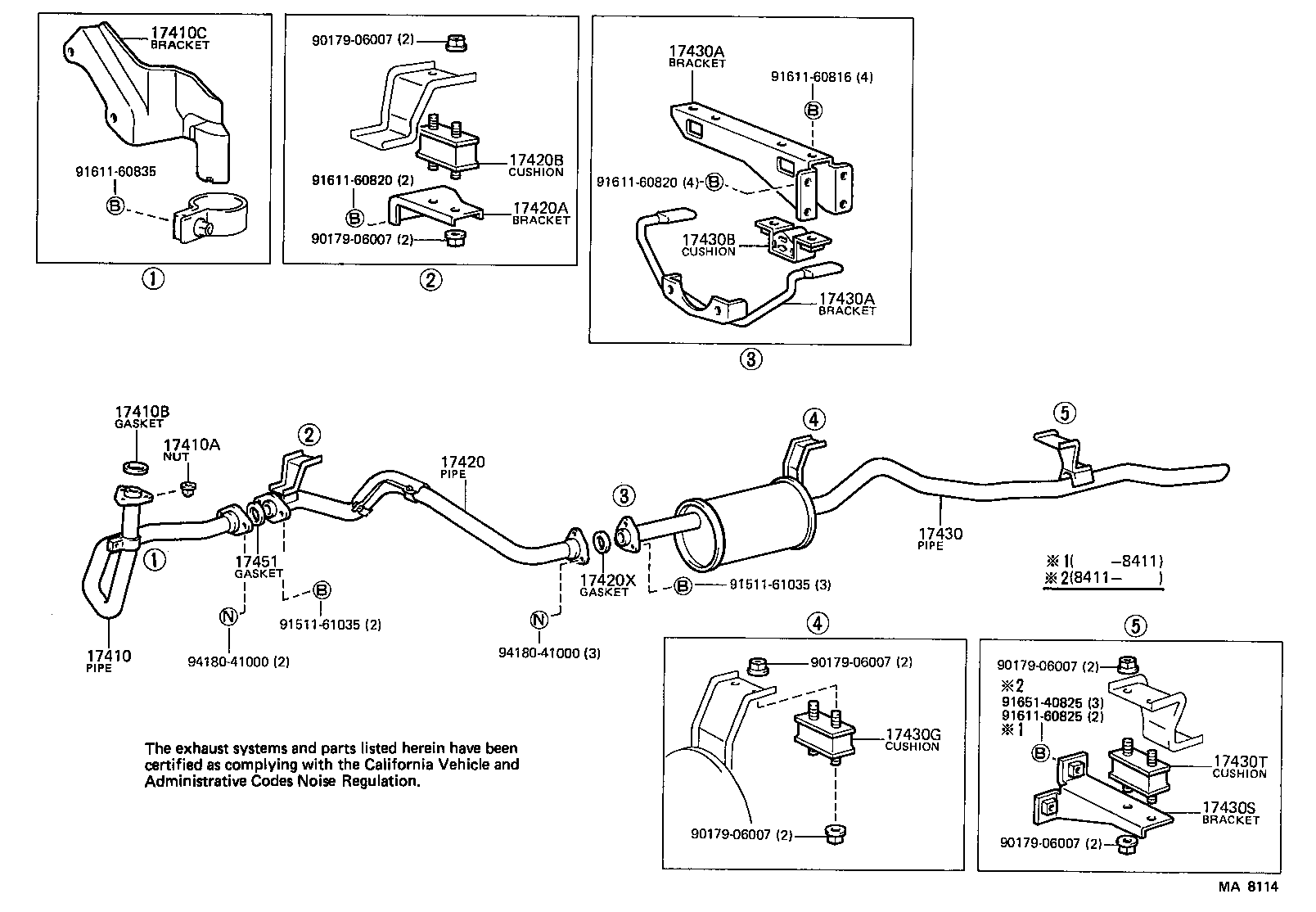

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58050 |
3B..BJ60 |
1 | ||
| 17401-56080 |
3B..BJ60 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
3B,2F..BJ60,FJ60 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
3B..BJ60 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-58090 |
3B..BJ60 |
1 | ||
| 17571-56040 |
3B..BJ60 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58240 |
3B..BJ60 |
1 | ||
| 17420-56051 |
3B..BJ60 |
1 | ||
| 17420-56050 |
3B..BJ60 |
1 | ||
| 17420A - BRACKET, EXHAUST PIPE CENTER, FRONT | ||||
| 17572-58050 |
3B..BJ60 |
1 | ||
| 17572-56130 |
3B..BJ60 |
1 | ||
| 17420B - CUSHION, EXHAUST PIPE CENTER, FRONT | ||||
| 17567-61030 |
3B..BJ60 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06024 |
3B..BJ60 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-56260 |
3B..BJ60 |
1 | ||
| 17405-58050 |
3B..BJ60 |
1 | ||
| 17430-56261 |
3B..BJ60 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17583-61050 |
3B,2F..BJ60,FJ60 FRAME SIDE |
1 | ||
| 17505-61040 |
3B,2F..BJ60,FJ60..CND PIPE SUPPORT |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17583-61050 |
3B,2F..BJ60,FJ60 FRAME SIDE |
1 | ||
| 17505-61040 |
3B,2F..BJ60,FJ60..CND PIPE SUPPORT |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90917-04052 |
3B,2F,2H..BJ60,FJ60,HJ60 |
2 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61030 |
3B,2F,2H..BJ60,FJ60,HJ60 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-61050 |
3B,2F..BJ60,FJ60 |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-61030 |
3B,2F,2H..BJ60,FJ60,HJ60 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06012 |
3B..BJ60 |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 91511-61035 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60835 | ||||
| 91651-40825 | ||||
| 94180-41000 | ||||
