BJ60LG-KK (1981)

Toyota Land Cruiser

Production Oct 1981 - Oct 1982
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )FJ60 ; (8210-8510)BJ60 ; (8510- )HJ60

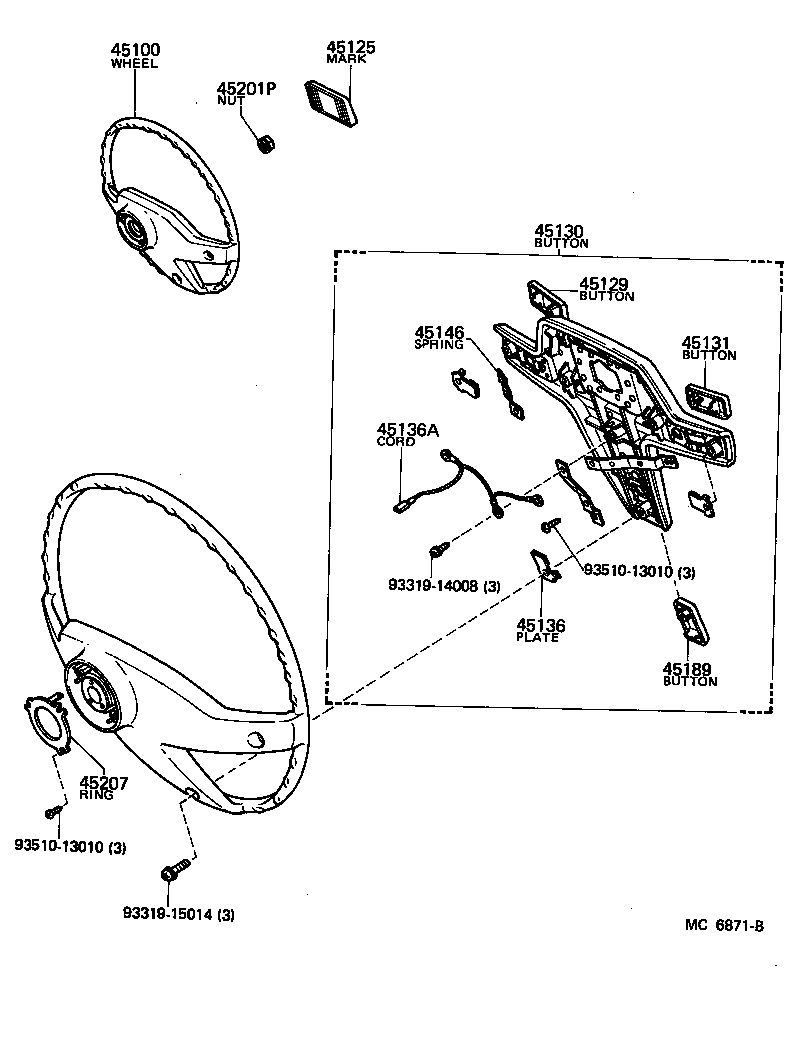

Click highlighted areas on diagram

diagram 45100 45125 45129 45130 45131 45136 45136A 45146 45189 45201P 45207 9331914008 9331915014 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60070

BJ60,FJ60..CND

 1
45100-6006003

BJ60

GRAY,GRAY

 1
45125 - MARK, STEERING WHEEL PAD
45125-6002003

BJ60,FJ60..CND

SHADOW GRAY,GRAY

 1
45125-6002006

BJ60

DARK BROWN,BROWN

 1
45125-6002006

BJ60,FJ60..CND

DARK BROWN,BROWN

 1
45125-6002003

BJ60

SHADOW GRAY,GRAY

 1
45129 - BUTTON, HORN, NO.2
45131-60050

BJ60,FJ60..CND

 1
45131-60040

BJ60

 1
45130 - BUTTON ASSY, HORN
45130-6002006

BJ60

DARK BROWN,BROWN

 1
45130-60030

BJ60,FJ60..CND

 1
45130-6002003

BJ60

SHADOW GRAY,GRAY

 1
45131 - BUTTON, HORN, NO.1
45131-60040

BJ60

 1
45131-60050

BJ60,FJ60..CND

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02048

BJ60,FJ60..CND

 1
90945-02048

BJ60

 1
45189 - BUTTON, HORN, NO.3
45131-60050

BJ60,FJ60..CND

 1
45131-60040

BJ60

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

BJ60,FJ60,HJ60

 1
45207 - RING, HORN CONTACT
45176-20030

BJ60,FJ60,HJ60

 1
Common parts
93319-14008
93319-15014
93510-13010

(8008-8210)CND

Click highlighted areas on diagram

diagram 45100 45105 45125 45129 45130 45131 45136A 45189 45194A 45201P 45207 9331515016 9331914006 9351013010 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60070

BJ60,FJ60..CND

 1
45100-6006003

BJ60

GRAY,GRAY

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-60010

BJ60

 3
45105-60010

BJ60,FJ60..CND

 3
45125 - MARK, STEERING WHEEL PAD
45125-6002003

BJ60,FJ60..CND

SHADOW GRAY,GRAY

 1
45125-6002006

BJ60

DARK BROWN,BROWN

 1
45125-6002006

BJ60,FJ60..CND

DARK BROWN,BROWN

 1
45125-6002003

BJ60

SHADOW GRAY,GRAY

 1
45129 - BUTTON, HORN, NO.2
45131-60050

BJ60,FJ60..CND

 1
45131-60040

BJ60

 1
45130 - BUTTON ASSY, HORN
45130-6002006

BJ60

DARK BROWN,BROWN

 1
45130-60030

BJ60,FJ60..CND

 1
45130-6002003

BJ60

SHADOW GRAY,GRAY

 1
45131 - BUTTON, HORN, NO.1
45131-60040

BJ60

 1
45131-60050

BJ60,FJ60..CND

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02048

BJ60,FJ60..CND

 1
90945-02048

BJ60

 1
45189 - BUTTON, HORN, NO.3
45131-60050

BJ60,FJ60..CND

 1
45131-60040

BJ60

 1
45194A - PLATE, HORN BUTTON CONTACT, NO.2
45194-60010

BJ60,FJ60..CND

 3
45194-60010

BJ60

 3
45201P - NUT, STEERING WHEEL SET
90179-12086

BJ60,FJ60,HJ60

 1
45207 - RING, HORN CONTACT
45176-20030

BJ60,FJ60,HJ60

 1
Common parts
93315-15016
93319-14006
93510-13010
