BJ42LV-MCJK (1982)

Toyota Land Cruiser

Production Oct 1982 - Oct 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

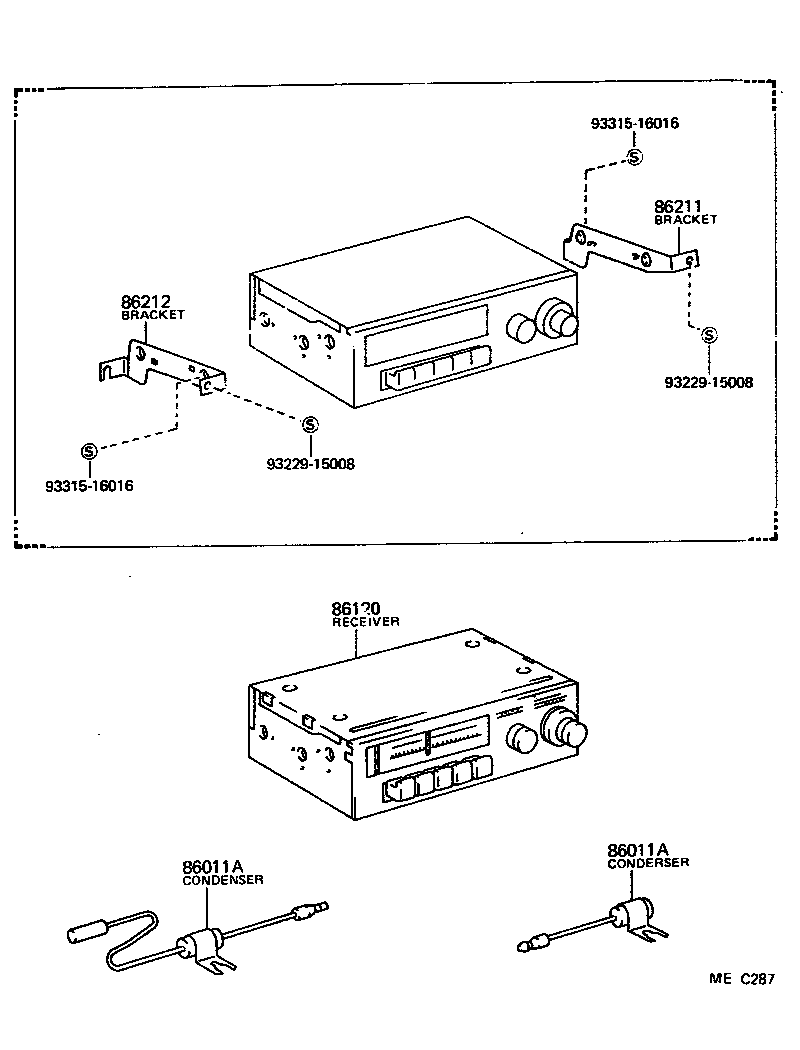

Click highlighted areas on diagram

diagram 86011A 86011A 86120 86211 86212 9322915008 9322915008 9331516016 9331516016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04011

BJ42,FJ40

VOLTAGE REGULATOR

 2
90980-04021

BJ42,FJ40

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

BJ42,FJ40

VOLTAGE REGULATOR

 2
90980-04021

BJ42,FJ40

IGNITION COIL

 1
86120 - RECEIVER ASSY, RADIO
86120-25020

BJ42

AM

 1
86120-60041

BJ42

AM

 1
86211 - BRACKET, RADIO, NO.1
86211-60030

BJ42,FJ40

 1
86212 - BRACKET, RADIO, NO.2
86212-60030

BJ42,FJ40

 1
Common parts
93229-15008
93315-16016
