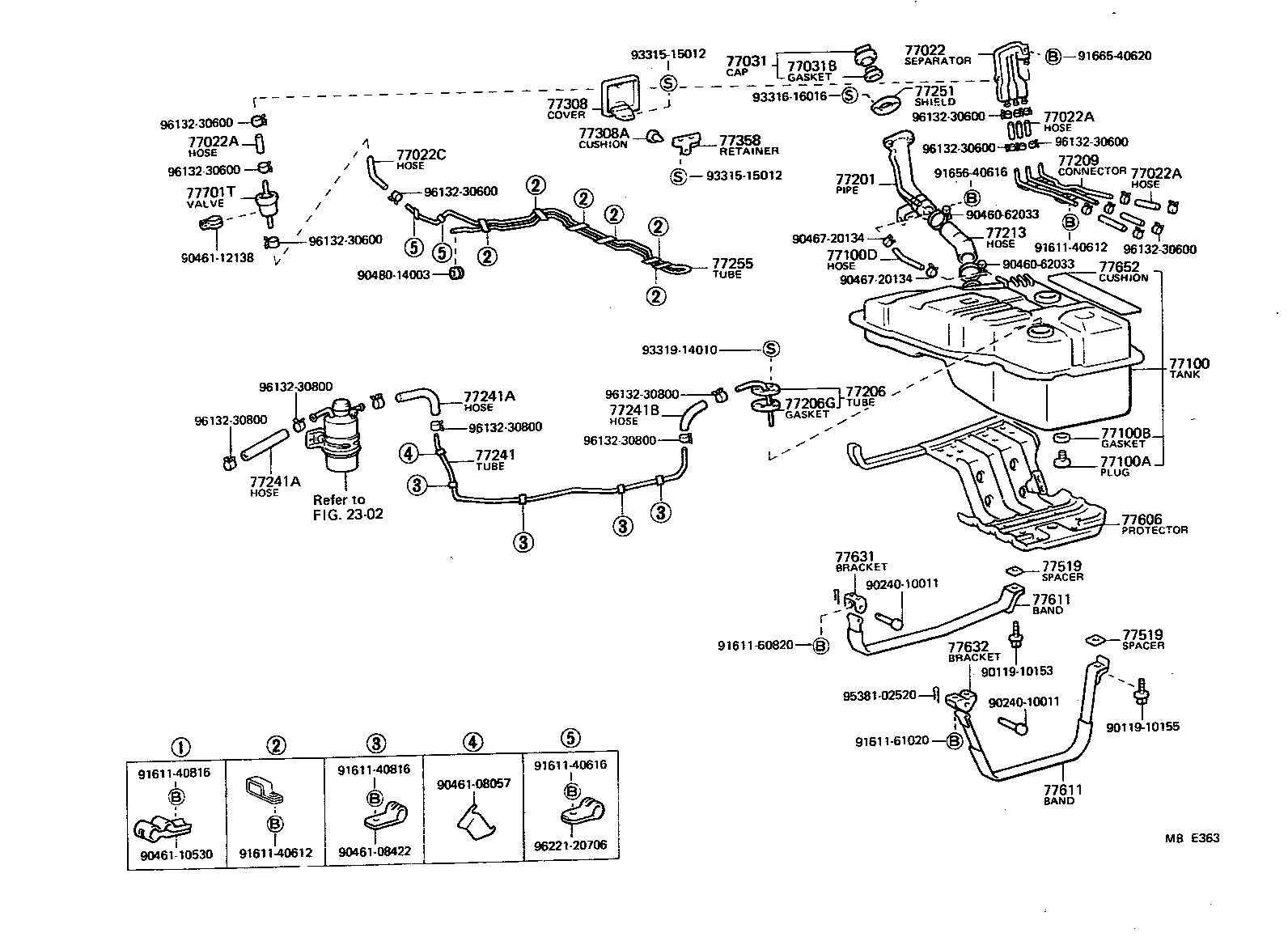

BJ42LV-MCJK (1982)
Toyota Land Cruiser
(8210- )BJ42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77193-60013 |
BJ42,FJ40 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
BJ42,FJ40..CND *H,L=60 |
1 | ||
| 95332-06020 |
BJ42,FJ40 *H,L=150 |
3 | ||
| 95332-06010 |
BJ42,FJ40 *H,L=80 |
3 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
BJ42,FJ40..CND *H,L=60 |
1 | ||
| 95332-06020 |
BJ42,FJ40 *H,L=150 |
3 | ||
| 95332-06010 |
BJ42,FJ40 *H,L=80 |
3 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
BJ42,FJ40..CND *H,L=60 |
1 | ||
| 95332-06020 |
BJ42,FJ40 *H,L=150 |
3 | ||
| 95332-06010 |
BJ42,FJ40 *H,L=80 |
3 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06040 |
BJ42,FJ40..CND *H,L=360 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12090 |
BJ42,FJ40 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
BJ42,FJ40 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60055 |
BJ42,FJ40 |
1 | ||
| 77100-60045 |
BJ42,FJ40 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
BJ42,FJ40 |
1 | ||
| 90341-20003 |
BJ42,FJ40 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
BJ42,FJ40 |
1 | ||
| 90430-24047 |
BJ42,FJ40 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22016 |
BJ42,FJ40 L=220 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60052 |
BJ42,FJ40..CND |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77240-60040 |
BJ42 |
1 | ||
| 77203-60030 |
BJ42 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ42,FJ40 |
1 | ||
| 83361-20030 |
BJ42,FJ40 |
1 | ||
| 77209 - CONNECTOR SUB-ASSY, FUEL TUBE | ||||
| 77209-60021 |
BJ42,FJ40 |
1 | ||
| 77209-60020 |
BJ42,FJ40 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77217-60030 |
BJ42,FJ40 |
1 | ||
| 77217-60015 |
BJ42,FJ40 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-60131 |
BJ42 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 23906-58010 |
BJ42 W/POWER STEERING |
1 | ||
| 95332-08030 |
BJ42 *H,L=280,ID=7.6 |
1 | ||
| 95332-08040 |
BJ42 *H,L=380,ID=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 23906-58010 |
BJ42 W/POWER STEERING |
1 | ||
| 95332-08030 |
BJ42 *H,L=280,ID=7.6 |
1 | ||
| 95332-08040 |
BJ42 *H,L=380,ID=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
BJ42 *H,L=400,ID=7.6 |
1 | ||
| 95332-08060 |
BJ42 *H,L=440,ID=7.6 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
BJ42,FJ40 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77244-60051 |
BJ42 |
1 | ||
| 77244-60050 |
BJ42,FJ40..CND |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 61802-90302 |
BJ42,FJ40 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-03078 |
BJ42,FJ40 |
1 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 61824-90302 |
BJ42,FJ40 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60010 |
BJ42,FJ40 T=1.0 |
1 | ||
| 77519-60020 |
BJ42,FJ40 T=4.5 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77519-60010 |
BJ42,FJ40 T=1.0 |
1 | ||
| 77519-60020 |
BJ42,FJ40 T=4.5 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60021 |
BJ42,FJ40 |
1 | ||
| 77606-60020 |
BJ42,FJ40 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60041 |
BJ42,FJ40 RH |
1 | ||
| 77602-60021 |
BJ42,FJ40 LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60041 |
BJ42,FJ40 RH |
1 | ||
| 77602-60021 |
BJ42,FJ40 LH |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60030 |
BJ42,FJ40 |
1 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60020 |
BJ42,FJ40 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-60020 |
BJ42,FJ40 750X100 |
1 | ||
| 77653-60010 |
BJ42,FJ40 350X80 |
1 | ||
| 77652-60011 |
BJ42,FJ40 230X80 |
2 | ||
| 77654-60010 |
BJ42,FJ40 100X100 |
4 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BJ42,FJ40..CND |
1 | ||
| Common parts | ||||
| 90119-10153 | ||||
| 90119-10155 | ||||
| 90240-10011 | ||||
| 90460-62033 | ||||
| 90461-08057 | ||||
| 90461-08422 | ||||
| 90461-10530 | ||||
| 90461-12138 | ||||
| 90467-20134 | ||||
| 90480-14003 | ||||
| 91611-40612 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91656-40616 | ||||
| 91665-40620 | ||||
| 93315-15012 | ||||
| 93316-16016 | ||||
| 93319-14010 | ||||
| 95381-02520 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20706 | ||||
| Linked diagrams | ||||
| 2302 | ||||
