BJ42LV-MCJK (1982)
Toyota Land Cruiser
Production
Oct 1982
-
Oct 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )

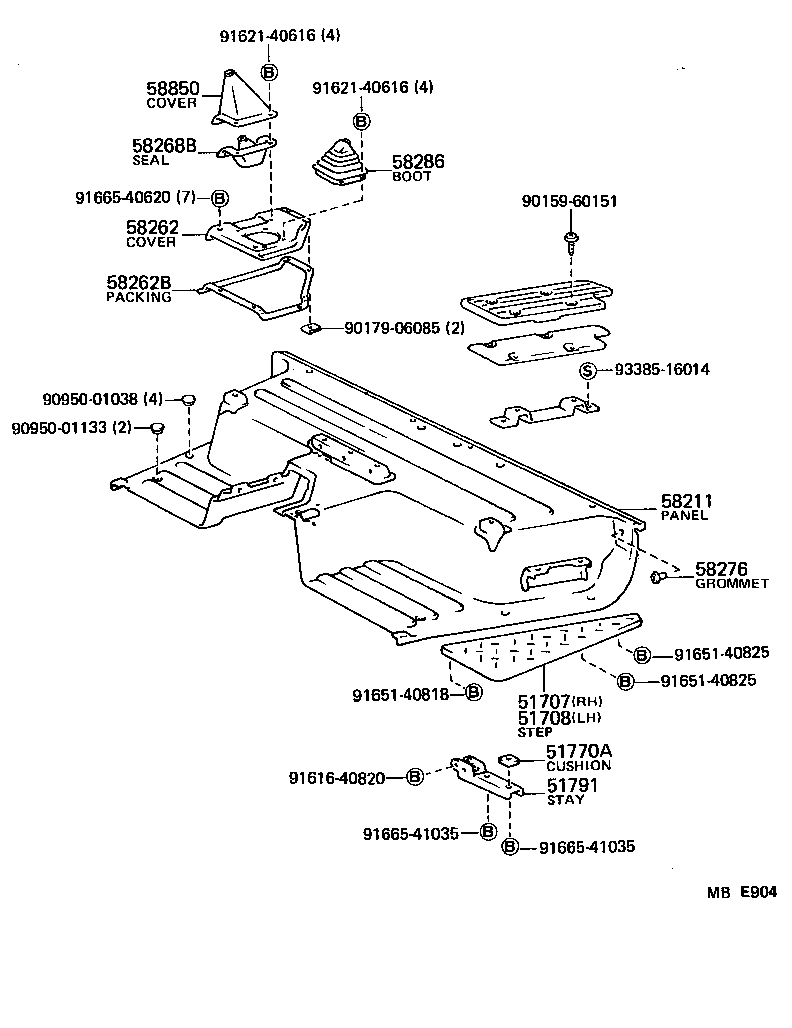

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-90304 |
BJ42,FJ40 |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51708-90304 |
BJ42,FJ40 |
1 | ||
| 51770A - CUSHION(FOR STEP) | ||||
| 52232-90300 |
BJ42,FJ40 |
2 | ||
| 51791 - STAY, STEP | ||||
| 51701-90300 |
BJ42,FJ40 |
2 | ||
| 58211 - PANEL, FRONT FLOOR | ||||
| 58101-90829 |
BJ42 |
1 | ||
| 58101-90842 |
BJ42 W/INSULATOR |
1 | ||
| 58101-90809 |
BJ42 |
1 | ||
| 58101-90882 |
BJ42 |
1 | ||
| 58262 - COVER, TRANSMISSION | ||||
| 58261-90801 |
BJ42 |
1 | ||
| 58262-90084 |
BJ42,FJ40 |
1 | ||
| 58262B - PACKING, TRANSMISSION COVER | ||||
| 58263-90800 |
BJ42,FJ40 |
1 | ||
| 58263-90300 |
BJ42,FJ40 |
1 | ||
| 58268B - SEAL, TRANSFER LEVER BOOT | ||||
| 58268-90800 |
BJ42,FJ40 |
1 | ||
| 58276 - GROMMET, SAFETY BAND ANCHORAGE NUT | ||||
| 58276-90300 |
BJ42,FJ40..CND |
4 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58273-90300 |
BJ42,FJ40 |
1 | ||
| 58280-90800 |
BJ42,FJ40 |
1 | ||
| 58850 - COVER ASSY, TRANSFER LEVER HOLE | ||||
| 58850-90800 |
BJ42,FJ40 |
1 | ||
| Common parts | ||||
| 90159-60151 | ||||
| 90179-06085 | ||||
| 90950-01038 | ||||
| 90950-01133 | ||||
| 91616-40820 | ||||
| 91621-40616 | ||||
| 91651-40818 | ||||
| 91651-40825 | ||||
| 91665-40620 | ||||
| 91665-41035 | ||||
| 93385-16014 | ||||
