BJ42LV-MCJK (1982)
Toyota Land Cruiser
Production
Oct 1982
-
Oct 1984
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )

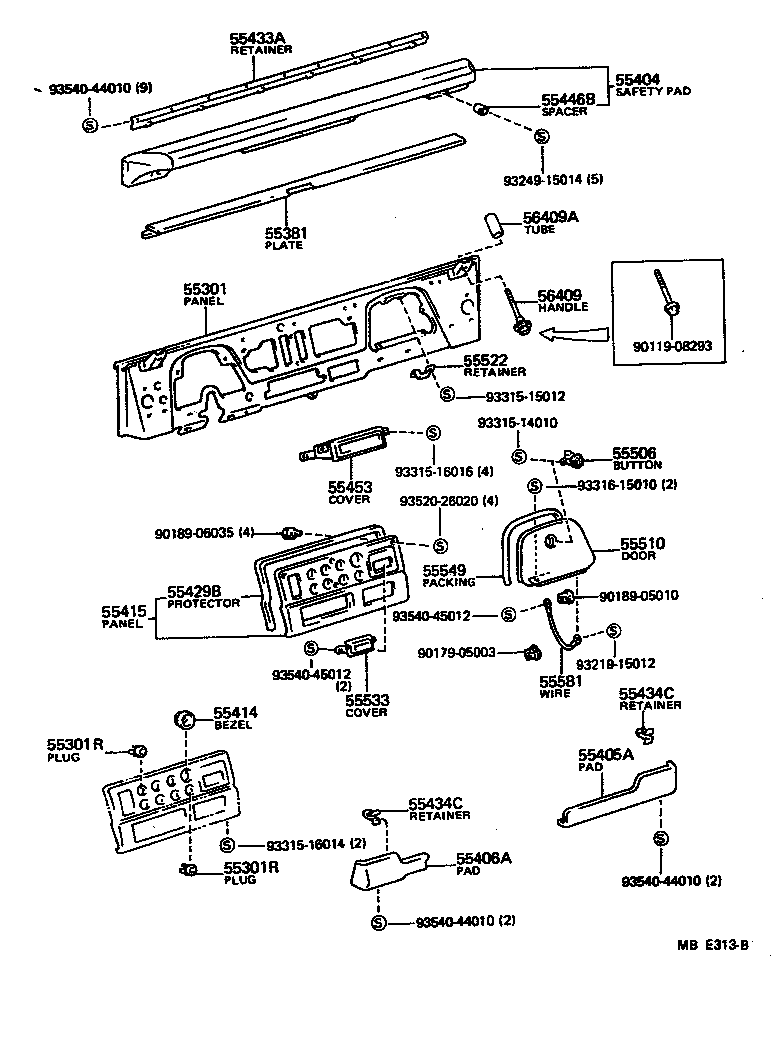

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55031-90818 |
BJ42 |
1 | ||
| 55301-90810 |
BJ42 |
1 | ||
| 55301-90868 |
BJ42 |
1 | ||
| 55301R - PLUG, HOLE(FOR INSTRUMENT PANEL) | ||||
| 90950-01225 |
BJ42 ID=23.0 |
1 | ||
| 90950-01156 |
BJ42 ID=25.0 |
1 | ||
| 90950-01156 |
BJ42,FJ40 ID=25.0 |
2 | ||
| 90950-01155 |
BJ42 ID=17.5 |
1 | ||
| 90950-01330 |
BJ42,FJ40 ID=11.5 |
3 | ||
| 55301R - PLUG, HOLE(FOR INSTRUMENT PANEL) | ||||
| 90950-01225 |
BJ42 ID=23.0 |
1 | ||
| 90950-01156 |
BJ42 ID=25.0 |
1 | ||
| 90950-01156 |
BJ42,FJ40 ID=25.0 |
2 | ||
| 90950-01155 |
BJ42 ID=17.5 |
1 | ||
| 90950-01330 |
BJ42,FJ40 ID=11.5 |
3 | ||
| 55381 - PANEL, INSTRUMENT IMPACT | ||||
| 55381-60010 |
BJ42,FJ40 |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-90300 |
BJ42,FJ40 |
1 | ||
| 55405A - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-90800 |
BJ42,FJ40 |
1 | ||
| 55405-90300 |
BJ42,FJ40 |
1 | ||
| 55406A - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-90800 |
BJ42,FJ40 |
1 | ||
| 55406-90300 |
BJ42,FJ40 |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-90800 |
BJ42,FJ40 |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-90808 |
BJ42 |
1 | ||
| 55429B - PROTECTOR, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55429-90800 |
BJ42,FJ40 |
1 | ||
| 55433A - RETAINER, SAFETY PAD SET PLATE | ||||
| 55449-60010 |
BJ42,FJ40 |
1 | ||
| 55434C - RETAINER,INSTRUMENT PANEL LOWER PAD SET | ||||
| 55434-30020 |
BJ42,FJ40 |
11 | ||
| 55434C - RETAINER,INSTRUMENT PANEL LOWER PAD SET | ||||
| 55434-30020 |
BJ42,FJ40 |
11 | ||
| 55446B - SPACER, INSTRUMENT PANEL SAFETY PAD, SET | ||||
| 55446-60010 |
BJ42,FJ40 |
5 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-90800 |
BJ42,FJ40 |
1 | ||
| 55461-90351 |
BJ42,FJ40 |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12020 |
BJ42,FJ40 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-90802 |
BJ42,FJ40 |
1 | ||
| 55501-90800 |
BJ42,FJ40 |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-90800 |
BJ42,FJ40 |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-90801 |
BJ42,FJ40 |
1 | ||
| 55549 - PACKING, GLOVE COMPARTMENT DOOR | ||||
| 55549-90300 |
BJ42,FJ40 |
1 | ||
| 55581 - WIRE, GLOVE COMPARTMENT DOOR OPEN | ||||
| 55508-30020 |
BJ42,FJ40 |
1 | ||
| 56409A - TUBE, WINDSHIELD CATCH HANDLE | ||||
| 90440-17057 |
BJ42,FJ40 |
2 | ||
| Common parts | ||||
| 90119-08293 | ||||
| 90179-05003 | ||||
| 90189-05010 | ||||
| 90189-06035 | ||||
| 93219-15012 | ||||
| 93249-15014 | ||||
| 93315-14010 | ||||
| 93315-15012 | ||||
| 93315-16014 | ||||
| 93315-16016 | ||||
| 93316-15010 | ||||
| 93520-26020 | ||||
| 93540-44010 | ||||
| 93540-45012 | ||||
