BJ42LV-KCJK (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

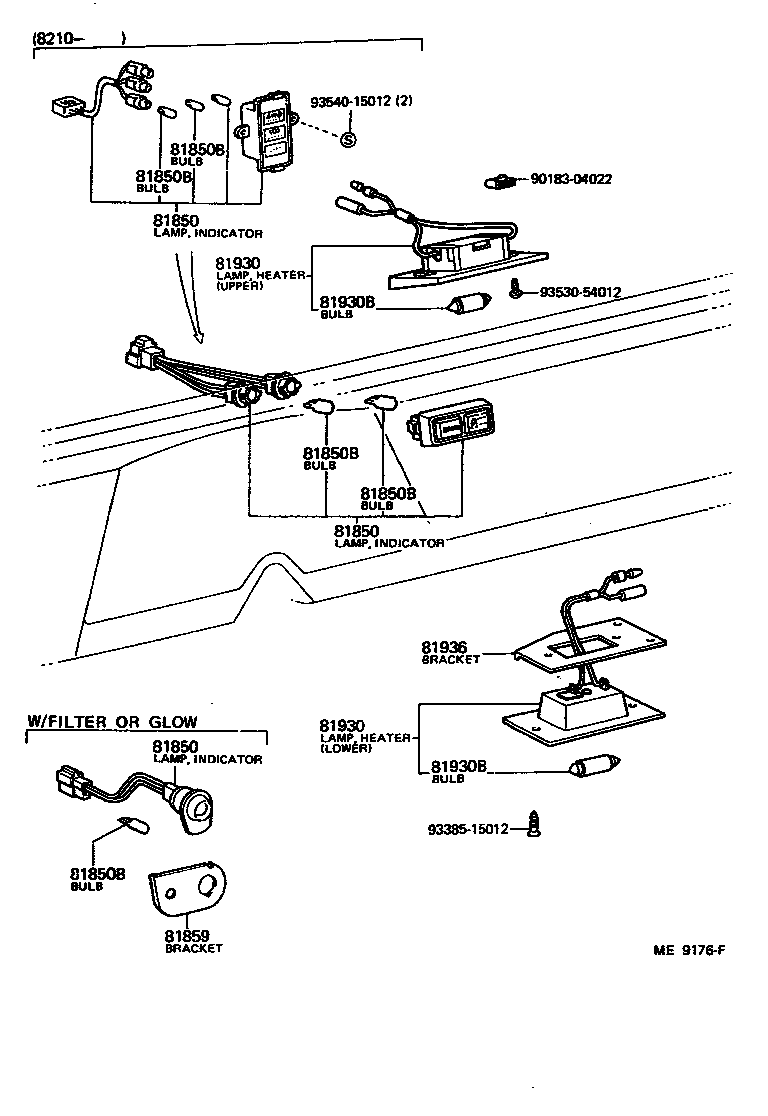

Click highlighted areas on diagram

diagram 81850 81850 81850 81850B 81850B 81850B 81850B 81850B 81859 81930 81930 81930B 81930B 81936 9018304022 9338515012 9353054012 9354015012
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-36070

BJ42

FILTER WARNING

 1
81850-60170

BJ42

BRAKE WARNING

 1
81850 - LAMP ASSY, INDICATOR
81850-36070

BJ42

FILTER WARNING

 1
81850-60170

BJ42

BRAKE WARNING

 1
81850 - LAMP ASSY, INDICATOR
81850-36070

BJ42

FILTER WARNING

 1
81850-60170

BJ42

BRAKE WARNING

 1
81850B - BULB, INDICATOR LAMP
99134-11030

BJ42

24V 3W,FILTER WARNING

 1
99134-12030

BJ42

24V 3W,24V 3W,BRAKE WARNING

 2
81850B - BULB, INDICATOR LAMP
99134-11030

BJ42

24V 3W,FILTER WARNING

 1
99134-12030

BJ42

24V 3W,24V 3W,BRAKE WARNING

 2
81850B - BULB, INDICATOR LAMP
99134-11030

BJ42

24V 3W,FILTER WARNING

 1
99134-12030

BJ42

24V 3W,24V 3W,BRAKE WARNING

 2
81850B - BULB, INDICATOR LAMP
99134-11030

BJ42

24V 3W,FILTER WARNING

 1
99134-12030

BJ42

24V 3W,24V 3W,BRAKE WARNING

 2
81850B - BULB, INDICATOR LAMP
99134-11030

BJ42

24V 3W,FILTER WARNING

 1
99134-12030

BJ42

24V 3W,24V 3W,BRAKE WARNING

 2
81859 - BRACKET, INDICATOR LAMP
81943-90301

BJ42

W/FILTER

 1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-20011

BJ42,FJ40

UPR

 1
81930-22012

BJ42,FJ40

LWR

 1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-20011

BJ42,FJ40

UPR

 1
81930-22012

BJ42,FJ40

LWR

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11006

BJ42,FJ40

12V 3W,12V 3W,UPR

 1
90981-11010

BJ42,FJ40

12V 2W,12V 3.4W,LWR

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11006

BJ42,FJ40

12V 3W,12V 3W,UPR

 1
90981-11010

BJ42,FJ40

12V 2W,12V 3.4W,LWR

 1
81936 - BRACKET, HEATER CONTROL INDICATOR LAMP
81943-90302

BJ42,FJ40

 1
Common parts
90183-04022
93385-15012
93530-54012
93540-15012
