BJ42LV-KCJK (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

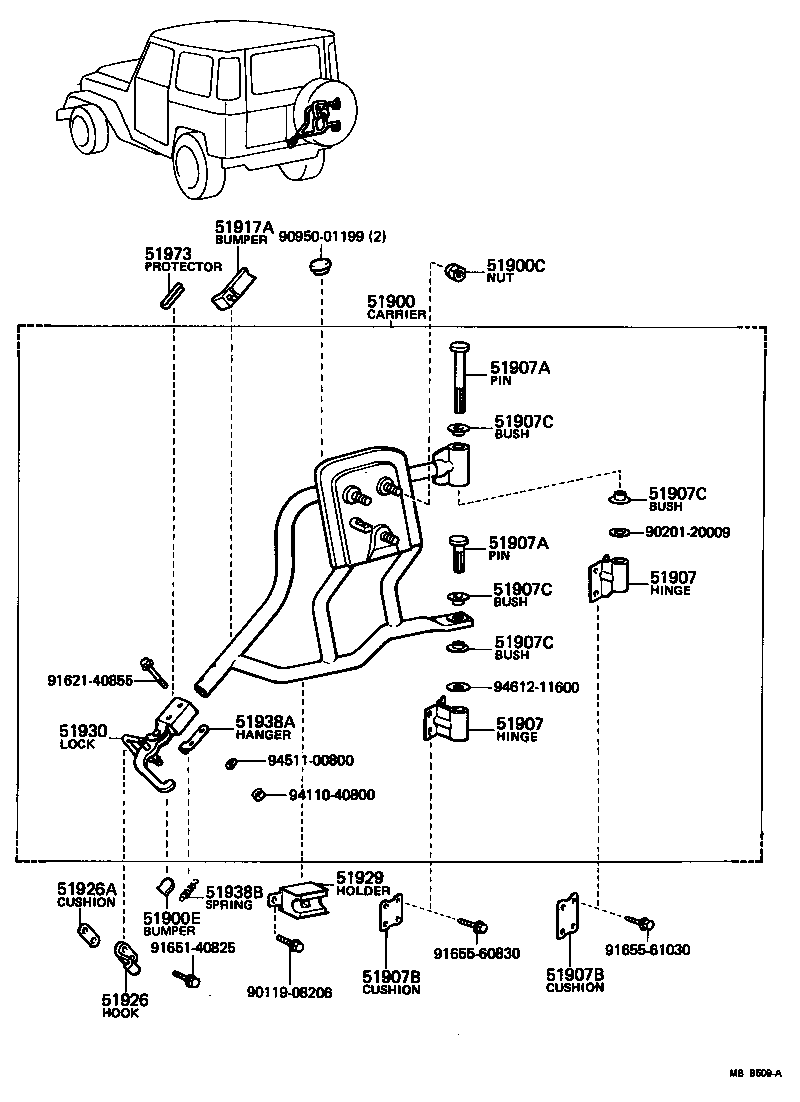

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51903-90800 |
BJ42,FJ40 |
1 | ||
| 51900C - NUT, SPARE WHEEL, HUB | ||||
| 90942-01007 |
BJ42,FJ40 |
3 | ||
| 51900E - BUMPER, SPARE WHEEL CARRIER | ||||
| 51928-90300 |
BJ42,FJ40 |
1 | ||
| 51907 - HINGE SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51955-90800 |
BJ42,FJ40 UPR |
1 | ||
| 51937-90302 |
BJ42,FJ40 LWR |
1 | ||
| 51907 - HINGE SUB-ASSY, SPARE WHEEL CARRIER | ||||
| 51955-90800 |
BJ42,FJ40 UPR |
1 | ||
| 51937-90302 |
BJ42,FJ40 LWR |
1 | ||
| 51907A - PIN, SPARE WHEEL CARRIER HINGE | ||||
| 90245-20001 |
BJ42,FJ40 UPR |
1 | ||
| 90245-16001 |
BJ42,FJ40 LWR |
1 | ||
| 51907A - PIN, SPARE WHEEL CARRIER HINGE | ||||
| 90245-20001 |
BJ42,FJ40 UPR |
1 | ||
| 90245-16001 |
BJ42,FJ40 LWR |
1 | ||
| 51907B - CUSHION, SPARE WHEEL CARRIER HINGE | ||||
| 51935-90800 |
BJ42,FJ40 UPR |
1 | ||
| 51954-90300 |
BJ42,FJ40 LWR |
1 | ||
| 51907B - CUSHION, SPARE WHEEL CARRIER HINGE | ||||
| 51935-90800 |
BJ42,FJ40 UPR |
1 | ||
| 51954-90300 |
BJ42,FJ40 LWR |
1 | ||
| 51907C - BUSH, SPARE WHEEL CARRIER HINGE | ||||
| 90386-16004 |
BJ42,FJ40 LWR |
2 | ||
| 90386-20002 |
BJ42,FJ40 UPR |
2 | ||
| 51907C - BUSH, SPARE WHEEL CARRIER HINGE | ||||
| 90386-16004 |
BJ42,FJ40 LWR |
2 | ||
| 90386-20002 |
BJ42,FJ40 UPR |
2 | ||
| 51907C - BUSH, SPARE WHEEL CARRIER HINGE | ||||
| 90386-16004 |
BJ42,FJ40 LWR |
2 | ||
| 90386-20002 |
BJ42,FJ40 UPR |
2 | ||
| 51907C - BUSH, SPARE WHEEL CARRIER HINGE | ||||
| 90386-16004 |
BJ42,FJ40 LWR |
2 | ||
| 90386-20002 |
BJ42,FJ40 UPR |
2 | ||
| 51917A - BUMPER, SPARE WHEEL CARRIER TO REAR GATE | ||||
| 51917-90301 |
BJ42,FJ40 |
1 | ||
| 51926 - HOOK, SPARE WHEEL CARRIER LOCK | ||||
| 51926-90301 |
BJ42,FJ40 |
1 | ||
| 51926A - CUSHION, SPARE WHEEL CARRIER, HOOK | ||||
| 51941-90300 |
BJ42,FJ40 |
1 | ||
| 51929 - HOLDER, SPARE WHEEL CARRIER | ||||
| 51929-90300 |
BJ42,FJ40 |
1 | ||
| 51930 - LOCK ASSY, SPARE WHEEL CARRIER | ||||
| 51930-90300 |
BJ42,FJ40 |
1 | ||
| 51938A - HANGER, SPARE WHEEL CARRIER LOCK SPRING | ||||
| 51938-90300 |
BJ42,FJ40 |
1 | ||
| 51938B - SPRING, TENSION(FOR SPARE WHEEL CARRIER LOCK) | ||||
| 90506-12480 |
BJ42,FJ40 |
1 | ||
| 51973 - PROTECTOR, SPARE WHEEL CARRIER LOCK | ||||
| 51973-90300 |
BJ42,FJ40 |
1 | ||
| Common parts | ||||
| 90119-08206 | ||||
| 90201-20009 | ||||
| 90950-01199 | ||||
| 91621-40855 | ||||
| 91651-40825 | ||||
| 91655-60830 | ||||
| 91655-61030 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94612-11600 | ||||
