BJ42LV-KCJK (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

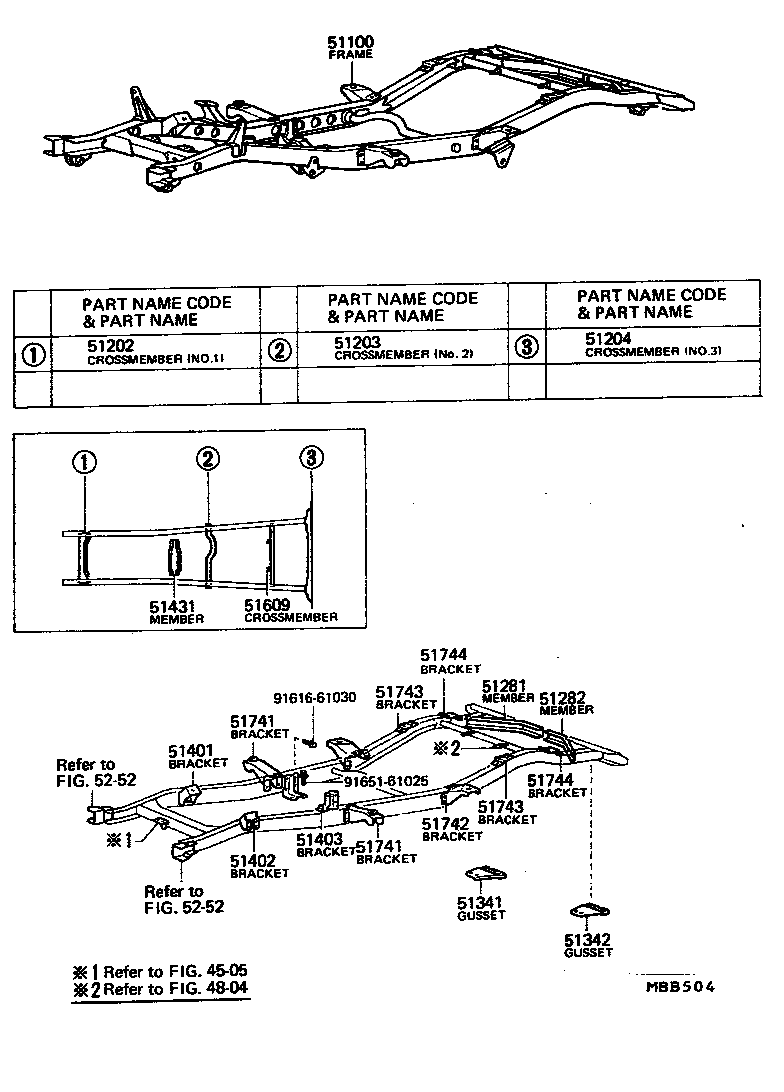

Click highlighted areas on diagram

diagram 4505 4804 51100 51202 51203 51204 51281 51282 51341 51342 51401 51402 51403 51431 51609 51741 51741 51742 51743 51743 51744 51744 5252 5252 9161661030 9165161025
Part # Description Qty Price
51100 - FRAME ASSY
51001-60274

BJ42

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-60071

BJ42

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-60042

BJ42,FJ40

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51209-60031

BJ42,FJ40

 1
51281 - MEMBER, REAR DIAGONAL, RH
51281-60023

BJ42,FJ40

 1
51282 - MEMBER, REAR DIAGONAL, LH
51282-60013

BJ42,FJ40

 1
51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH
51308-60012

BJ42,FJ40

 1
51342 - GUSSET, FRAME NO.4 CROSSMEMBER, LH
51309-60012

BJ42,FJ40

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60030

BJ42

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60030

BJ42

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51433-60020

BJ42,FJ40

RH

 1
51434-60030

BJ42,FJ40

LH

 1
51431 - MEMBER, ENGINE REAR MOUNTING
51403-60010

BJ42,FJ40

 1
51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51203-60015

BJ42

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51701-60020

BJ42,FJ40

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51701-60020

BJ42,FJ40

 2
51742 - BRACKET, BODY MOUNTING, NO.2
51752-60020

BJ42,FJ40

LH

 1
51751-60020

BJ42,FJ40

RH

 1
51743 - BRACKET, BODY MOUNTING, NO.3
51741-60011

BJ42,FJ40

 2
51743 - BRACKET, BODY MOUNTING, NO.3
51741-60011

BJ42,FJ40

 2
51744 - BRACKET, BODY MOUNTING, NO.4
51741-60011

BJ42,FJ40

 2
51744 - BRACKET, BODY MOUNTING, NO.4
51741-60011

BJ42,FJ40

 2
Common parts
91616-61030
91651-61025
Linked diagrams
4505
4804
5252
