YN92L-CRMDS3 (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1994
Engine 4Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)2L,3L

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16264 16264A 16264A 16331 16331 16331A 16333 16341 16341 16343 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16470R 16471 16472 16473 16571 16571A 16571A 16572 16572 16572 16572A 16572A 16572A 16572A 16572C 16572C 16577 16701 16712 9009904428 9011608366 9011908127 9011908689 9011908689 9011908689 9011908694 9011912224 9017906293 9017908150 9048025025 9092901219 9162660616 9162660618 9162660618 9162660818 9418560600
Part # Description Qty Price
16331 - OUTLET, WATER
16331-71010

2Y,3Y,4Y..YN8#,9#

 1
16331 - OUTLET, WATER
16331-71010

2Y,3Y,4Y..YN8#,9#

 1
16331A - THERMOSTAT
90916-03069

2Y,3Y,4Y..YN8#,92

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y,3Y,4Y..YN8#,92

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y,3Y,4Y..YN8#,92

 1
16361 - FAN
16361-54040

2L..LN85..GEN,TH;2L..LN85..4FC..ARL;2L,3L..LN80,81,86,9#

 1
16361-73010

4Y..YN87,92

W(AIR CONDITIONER)

 1
16361-44032

2Y,3Y,4Y..YN8#,9#..GEN,TH,V

 1
16381 - BAR, FAN BELT ADJUSTING
16381-71010

2Y,3Y,4Y..YN8#,9#

 1
16381-54060

2L,3L..LN8#,9#

T=3.2

 1
16400 - RADIATOR ASSY
16400-73370

4Y..YN87,92

W(AIR CONDITIONER)

 1
16400-35350

4Y..YN87,92;2Y..YN85..ARL

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

2Y,3Y,4Y..YN8#,9#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

2L,3L..LN8#,9#

 1
96711-19007

2Y,3Y,4Y..YN8#,9#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2L,3L..LN8#,9#

 1
16401-63010

2Y,3Y,4Y..YN8#,9#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-72030

2Y,3Y,4Y..YN8#,92

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y,3Y,4Y..YN8#,9#

*H,L=350,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y,3Y,4Y..YN8#,9#

*H,L=350,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y,4Y..YN8#,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y,4Y..YN8#,9#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54180

2L,3L..LN8#,9#

 1
16405-71010

2Y,3Y,4Y..YN8#,9#

 1
16472 - HOSE, BREATHER
85338-71030

2Y,3Y,4Y..YN8#,9#

 1
16473 - SUPPORT(FOR RADIATOR RESERVE TANK)
16473-54240

2L,3L..LN8#,9#

 1
16571 - HOSE, RADIATOR, INLET
16571-71030

2Y,3Y,4Y..YN8#,9#

 1
16571-54270

2L,3L..LN8#,9#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2L,3L..LN8#,9#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2L,3L..LN8#,9#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-71031

2Y,3Y,4Y..YN8#,9#

 1
16572 - HOSE, RADIATOR, OUTLET
16572-71031

2Y,3Y,4Y..YN8#,9#

 1
16572 - HOSE, RADIATOR, OUTLET
16572-71031

2Y,3Y,4Y..YN8#,9#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-37002

2Y,3Y,4Y..YN8#,9#

TYPE B

 1
90467-37001

2Y,3Y,4Y..YN8#,92

TYPE A

 2
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-37002

2Y,3Y,4Y..YN8#,9#

TYPE B

 1
90467-37001

2Y,3Y,4Y..YN8#,92

TYPE A

 2
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-37002

2Y,3Y,4Y..YN8#,9#

TYPE B

 1
90467-37001

2Y,3Y,4Y..YN8#,92

TYPE A

 2
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-37002

2Y,3Y,4Y..YN8#,9#

TYPE B

 1
90467-37001

2Y,3Y,4Y..YN8#,92

TYPE A

 2
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-54270

3L..LN86..V;2L..LN85..GEN,TH;2L,3L..LN80,81,9#..5F;2L..LN85..4FC..ARL..CBU

 1
16711-71030

4Y..YN87,92

W(AIR CONDITIONER)

 1
16711-73060

3Y,4Y..YN81,86,87,92

 1
16712 - SHROUD, FAN, NO.2
16712-54050

2Y,3Y,4Y..YN8#,9#

 1
Common parts
90099-04428
90116-08366
90119-08127
90119-08689
90119-08694
90119-12224
90179-06293
90179-08150
90480-25025
90929-01219
91626-60616
91626-60618
91626-60818
94185-60600

(8808- )2Y,3Y,4Y

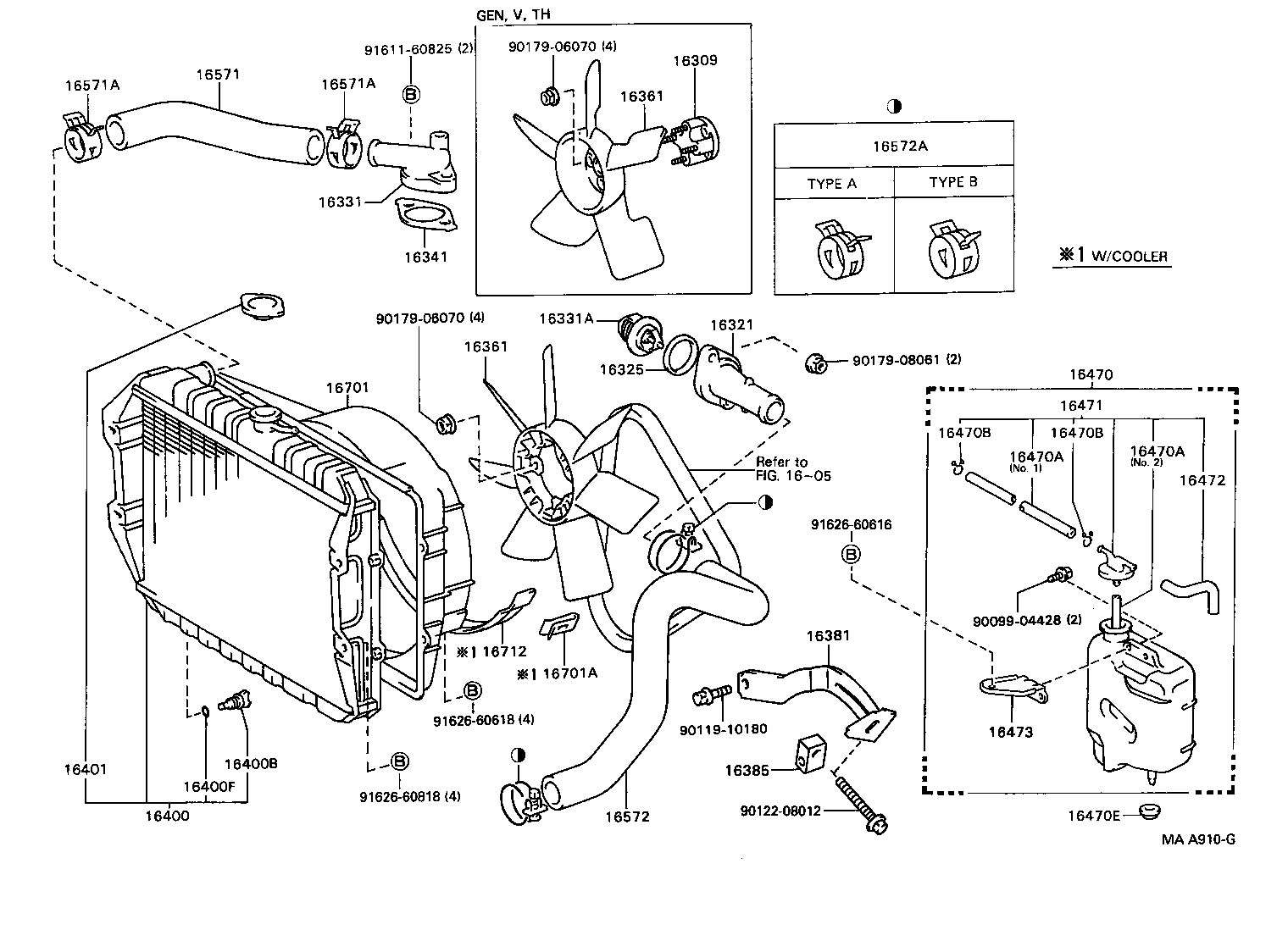

Click highlighted areas on diagram

diagram 1605 16309 16321 16325 16331 16331A 16341 16361 16361 16381 16385 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16470E 16471 16472 16473 16571 16571A 16571A 16572 16572A 16701 16701A 16712 9009904428 9011910180 9012208012 9017906070 9017906070 9017908061 9161160825 9162660616 9162660618 9162660818
Part # Description Qty Price
16309 - SHAFT SUB-ASSY, FAN DRIVE
16309-71010

2Y,3Y,4Y..YN8#,9#..GEN,TH,V

 1
16321 - INLET, WATER
16321-71010

2Y,3Y,4Y..YN8#,9#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2Y,3Y,4Y..YN8#,92

 1
16331 - OUTLET, WATER
16331-71010

2Y,3Y,4Y..YN8#,9#

 1
16331A - THERMOSTAT
90916-03069

2Y,3Y,4Y..YN8#,92

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y,3Y,4Y..YN8#,92

 1
16361 - FAN
16361-54040

2L..LN85..GEN,TH;2L..LN85..4FC..ARL;2L,3L..LN80,81,86,9#

 1
16361-73010

4Y..YN87,92

W(AIR CONDITIONER)

 1
16361-44032

2Y,3Y,4Y..YN8#,9#..GEN,TH,V

 1
16361 - FAN
16361-54040

2L..LN85..GEN,TH;2L..LN85..4FC..ARL;2L,3L..LN80,81,86,9#

 1
16361-73010

4Y..YN87,92

W(AIR CONDITIONER)

 1
16361-44032

2Y,3Y,4Y..YN8#,9#..GEN,TH,V

 1
16381 - BAR, FAN BELT ADJUSTING
16381-71010

2Y,3Y,4Y..YN8#,9#

 1
16381-54060

2L,3L..LN8#,9#

T=3.2

 1
16400 - RADIATOR ASSY
16400-73370

4Y..YN87,92

W(AIR CONDITIONER)

 1
16400-35350

4Y..YN87,92;2Y..YN85..ARL

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

2Y,3Y,4Y..YN8#,9#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

2L,3L..LN8#,9#

 1
96711-19007

2Y,3Y,4Y..YN8#,9#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

2L,3L..LN8#,9#

 1
16401-63010

2Y,3Y,4Y..YN8#,9#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-72030

2Y,3Y,4Y..YN8#,92

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y,3Y,4Y..YN8#,9#

*H,L=350,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

2Y,3Y,4Y..YN8#,9#

*H,L=350,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y,4Y..YN8#,9#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y,4Y..YN8#,9#

 2
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-25025

2Y,3Y,4Y..YN8#,9#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-71010

2Y,3Y,4Y..YN8#,9#

 1
16405-54180

2L,3L..LN8#,9#

 1
16472 - HOSE, BREATHER
85338-71030

2Y,3Y,4Y..YN8#,9#

 1
16473 - SUPPORT(FOR RADIATOR RESERVE TANK)
16473-54240

2L,3L..LN8#,9#

 1
16571 - HOSE, RADIATOR, INLET
16571-71030

2Y,3Y,4Y..YN8#,9#

 1
16571-54270

2L,3L..LN8#,9#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2L,3L..LN8#,9#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

2L,3L..LN8#,9#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-71031

2Y,3Y,4Y..YN8#,9#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

2L,3L..LN8#,9#

RADIATOR SIDE

 1
90467-37002

2Y,3Y,4Y..YN8#,9#

TYPE B

 1
90467-37001

2Y,3Y,4Y..YN8#,92

TYPE A

 2
90467-41001

2L,3L..LN8#,9#

ENGINE SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-54270

3L..LN86..V;2L..LN85..GEN,TH;2L,3L..LN80,81,9#..5F;2L..LN85..4FC..ARL..CBU

 1
16711-71030

4Y..YN87,92

W(AIR CONDITIONER)

 1
16711-73060

3Y,4Y..YN81,86,87,92

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

2Y,3Y,4Y..YN8#,9#

 2
16712 - SHROUD, FAN, NO.2
16712-54050

2Y,3Y,4Y..YN8#,9#

 1
Common parts
90099-04428
90119-10180
90122-08012
90179-06070
90179-08061
91611-60825
91626-60616
91626-60618
91626-60818
Linked diagrams
1605
