YN90R-CRMSST (1994)

Toyota Hilux 2wd

Production Jan 1994 - Apr 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9812)RN85,90..RHD

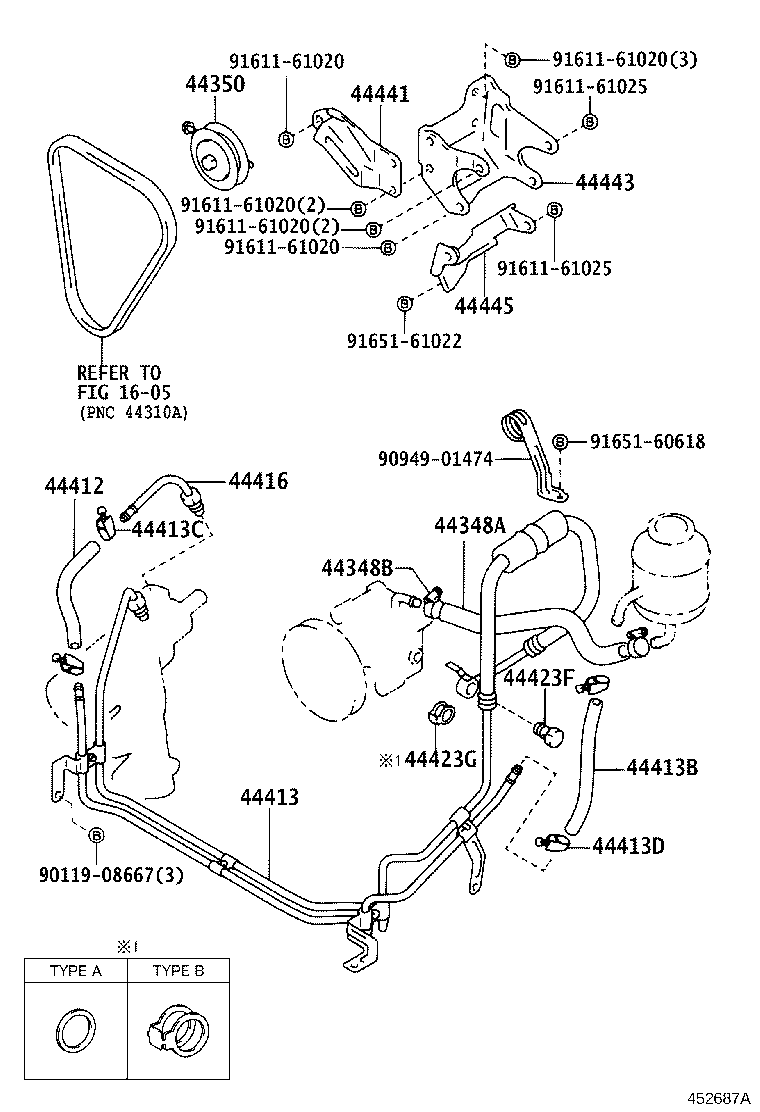

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44350 44412 44413 44413B 44413C 44413D 44416 44423F 44423G 44441 44443 44445 9011908667 9094901474 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9161161025 9165160618 9165161022
Part # Description Qty Price
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

RN85..V;RN85..RHD;LN85,RN85..LHD..(DSL,EFI)..GEN;LN81,85,86,90,RN80,90..ARL,TH,V

 2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90467-16008

LN85..LHD..GEN;LN81,85,86,90,YN90..ARL,TH,V;RN85,90,YN85..RHD..(4FC,5F)..(ARL,GEN)

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90467-16008

LN85..LHD..GEN;LN81,85,86,90,YN90..ARL,TH,V;RN85,90,YN85..RHD..(4FC,5F)..(ARL,GEN)

 2
44423F - BOLT, UNION
96341-41603

RN85..V;RN85..EFI;RN85,YN90..RHD;RN80,90,YN85..ARL,V

 1
44423G - GASKET, UNION BOLT
44327-12010

RN85..V;RN85..EFI;RN85,YN90..RHD;RN80,90,YN85..ARL,V

TYPE B:REFER ILLUST.

 1
Common parts
90119-08667
90949-01474
91611-61020
91611-61025
91651-60618
91651-61022
Linked diagrams
1605
