YN90R-CRMSST (1994)

Toyota Hilux 2wd

Production Jan 1994 - Apr 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9909)RN125,8#,90

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302F 44302G 44302H 44304 44305 44308 44311 44311A 44312 44312A 44312B 44313 44320 44326 44326A 44330 44330A 44330C 44337 44337A 44338A 44338A 44342 44342A 44342B 44343 44343A 44345B 44360 44362C 44362D 44392 9011906256 9011910072 9017012043 9020112022 9161160814 9451101200
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30030

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44312 - SHAFT, VANE PUMP
44312-12010

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
Common parts
90119-06256
90119-10072
90170-12043
90201-12022
91611-60814
94511-01200

(8808-9408)LN80,85,86,90..RHD

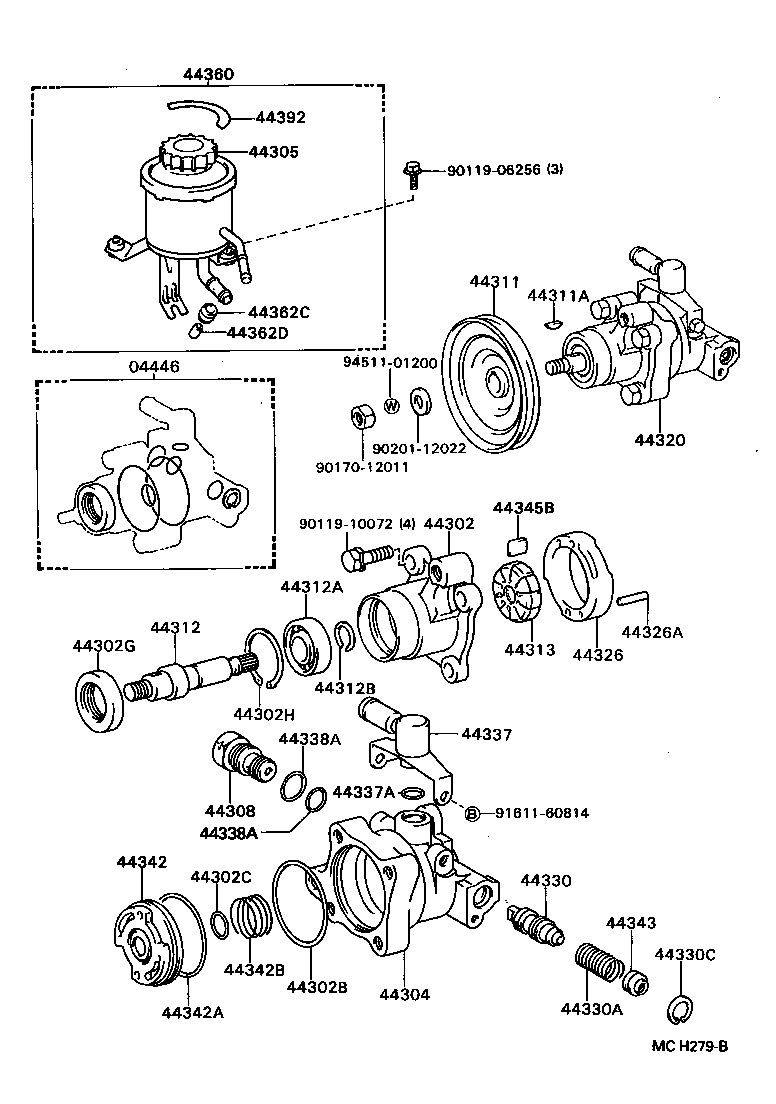

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302G 44302H 44304 44305 44308 44311 44311A 44312 44312A 44312B 44313 44320 44326 44326A 44330 44330A 44330C 44337 44337A 44338A 44338A 44342 44342A 44342B 44343 44345B 44360 44362C 44362D 44392 9011906256 9011910072 9017012011 9020112022 9161160814 9451101200
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30030

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44312 - SHAFT, VANE PUMP
44312-12010

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)

 1
Common parts
90119-06256
90119-10072
90170-12011
90201-12022
91611-60814
94511-01200
