YN86L-TRMDSV (1988)
Toyota Hilux 2wd
Production
Aug 1988
-
Aug 1997
Engine
3Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )LN81,85,86,90..LHD..GEN,V

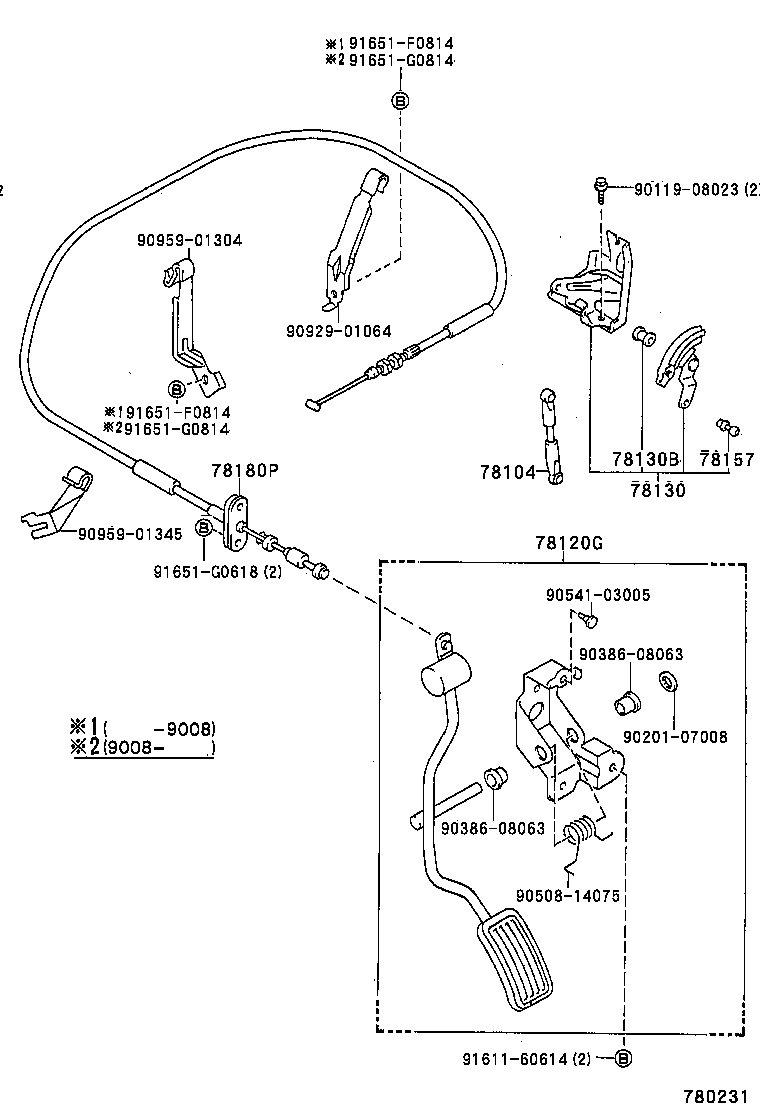

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89106 |
YN8#,9# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89152 |
RN125,8#,90..LHD..CBR |
1 | ||
| 78120-89142 |
LN81,85,86,90..LHD |
1 | ||
| 78120-89139 |
YN8#,92..LHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-89157 |
YN8#,92..LHD |
1 | ||
| 78180-35080 |
LN81,85,86..LHD |
1 | ||
| 78180-89151 |
LN81,85,86,90..LHD |
1 | ||
| 78180-89152 |
RN125,8#,90..LHD |
1 | ||
| 78180-35040 |
YN8#,92..LHD |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90119-08808 | ||||
| 90170-11006 | ||||
| 90179-08150 | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90386-10138 | ||||
| 90463-12011 | ||||
| 90464-00504 | ||||
| 90464-00633 | ||||
| 90508-26077 | ||||
| 90541-03005 | ||||
| 90959-01343 | ||||
| 91611-60614 | ||||
| 91611-G0814 | ||||
| 91612-60814 | ||||
| 91652-60630 | ||||
| 94142-61000 | ||||
| 95381-02518 | ||||
(8808- )YN81,86..V
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89106 |
YN8#,9# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89152 |
RN125,8#,90..LHD..CBR |
1 | ||
| 78120-89142 |
LN81,85,86,90..LHD |
1 | ||
| 78120-89139 |
YN8#,92..LHD |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-35020 |
YN81,85,86..ARL,V |
1 | ||
| 78130-35020 |
YN86;YN80,81,85,90..ARL,TH,V |
1 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08003 |
YN8#,92 |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
YN8#,92 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-89157 |
YN8#,92..LHD |
1 | ||
| 78180-35080 |
LN81,85,86..LHD |
1 | ||
| 78180-89151 |
LN81,85,86,90..LHD |
1 | ||
| 78180-89152 |
RN125,8#,90..LHD |
1 | ||
| 78180-35040 |
YN8#,92..LHD |
1 | ||
| Common parts | ||||
| 90119-08023 | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90508-14075 | ||||
| 90541-03005 | ||||
| 90929-01064 | ||||
| 90959-01304 | ||||
| 90959-01345 | ||||
| 91611-60614 | ||||
| 91651-F0814 | ||||
| 91651-G0618 | ||||
| 91651-G0814 | ||||
