YN86L-PRKRSV (1988)
Toyota Hilux 2wd
ILLUST NO. 1 OF 2(8808- )LN8#,9#,RN8#,90,YN8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RN125,8#,90,YN8#,9#..CBR |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35978 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN8#,90,RN8#,90,YN8#,92 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-21883 |
LN85,86,RN85,YN85,86,87..TW1 L=320 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35090 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
LN8#,9#,RN125,8#,90,YN8#,9#..CBR,DSL |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35340 |
LN85,86,YN85,86,87..TW1;RN85..TW1..CBR..(GEN,V) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35340 |
LN85,86,YN85,86,87..TW1;RN85..TW1..CBR..(GEN,V) |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35380 |
RN85,90,YN85,86,87,9#..CBR |
1 | ||
| 77203-35390 |
LN85,86,9# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35210 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89107 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-89107 |
LN85,86,RN85,YN85,86,87..TW1 |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-08668 | ||||
| 90159-60032 | ||||
| 90167-50028 | ||||
| 90170-08204 | ||||
| 90170-11006 | ||||
| 90179-05020 | ||||
| 90460-22001 | ||||
| 90460-65002 | ||||
| 90463-12002 | ||||
| 90463-15003 | ||||
| 90541-06058 | ||||
| 90541-08014 | ||||
| 91626-40618 | ||||
| 93319-14010 | ||||
| 93382-15010 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||

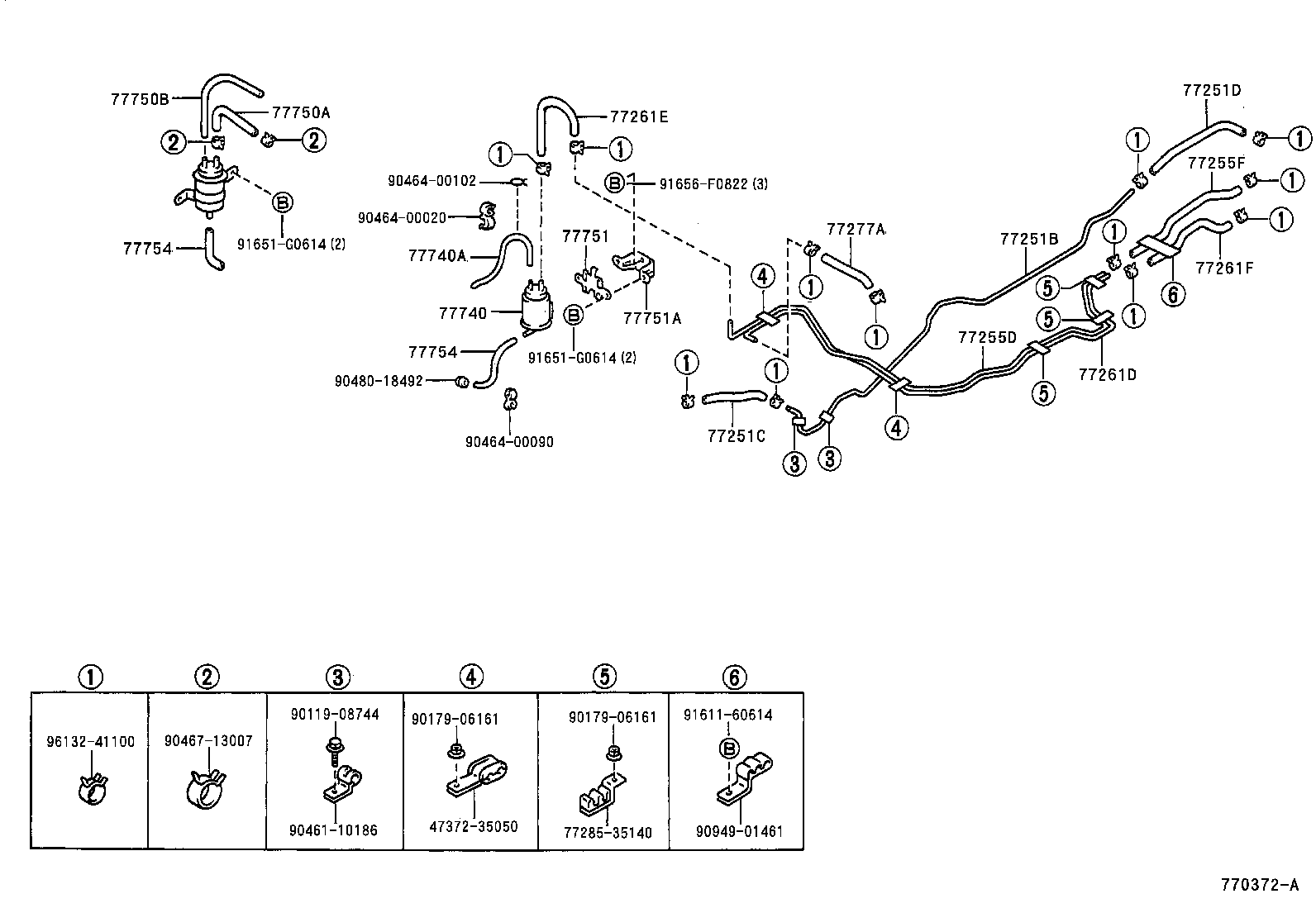

ILLUST NO. 2 OF 2(8808- )YN81,86..V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-35730 |
LN85,86..TW1 |
1 | ||
| 77251-35850 |
YN85,86,87..TW1;RN85..LHD..TW1..CBR |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08030 |
LN81,85,86,90..LHD *H,L=240,ID=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06030 |
RN85,YN85,86,87..TW1 *H,L=240 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35610 |
LN85,86..TW1 |
1 | ||
| 77255-35580 |
RN85,YN85,86,87..TW1..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 90445-12225 |
RN85,YN85,86,87..TW1 L=610 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-35450 |
YN86..TW1;RN85..TW1..V |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
YN81,86 *H,L=240 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06060 |
RN85,YN86..TW1..V *H,L=500 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12022 |
RN125,8#,90..LHD..CBR L=300 |
1 | ||
| 95333-06040 |
YN8#,92 *H,L=400 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35170 |
RN125,8#,YN81,86..V FR |
1 | ||
| 77704-35100 |
YN81,86 RR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
RN125,8#,90..V *H,L=450,MARK=#* |
1 | ||
| 90999-92004 |
YN81,86 *H,L=750,MARK=#6 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 23829-35021 |
RN125,8#,90..LHD..CBR |
1 | ||
| 90445-14090 |
YN81,86 L=320 |
1 | ||
| 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
RN125,8#,90..V *H,L=420,MARK=#* |
1 | ||
| 90999-92003 |
YN81,86 *H,L=480,MARK=#6 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35051 |
YN81,86..V |
1 | ||
| 77751A - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35040 |
YN81,86 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35140 |
RN8#,90,YN81,86..LHD..CBR L=160 |
1 | ||
| 77754-35151 |
YN81,86;RN85..EFI L=530 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35140 |
RN8#,90,YN81,86..LHD..CBR L=160 |
1 | ||
| 77754-35151 |
YN81,86;RN85..EFI L=530 |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90461-10186 | ||||
| 90464-00020 | ||||
| 90464-00090 | ||||
| 90464-00102 | ||||
| 90467-13007 | ||||
| 90480-18492 | ||||
| 90949-01461 | ||||
| 91611-60614 | ||||
| 91651-G0614 | ||||
| 91656-F0822 | ||||
| 96132-41100 | ||||
