YN85R-TRKRSQ (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1992
Engine 2Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9005)2Y,3Y,4Y ; (9005- )2Y,3Y,4Y..GEN,TH,V

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700A 17700B 17700F 17801 17805 17848 17881 17881A 17881A 17882D 9011908761 9162660818 91651G0614 9611110690
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54490

2Y,3Y..YN81,85,86..ARL,V

 1
17700-35460

2Y..YN85..ARL

 1
17700-54491

2Y,3Y..YN81,85,86..ARL,V

 1
17700-35461

2Y..YN85..ARL

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2Y,3Y..YN81,85,86..ARL,V

NO.2

 1
90175-06013

2Y,3Y,4Y..YN8#,92

NO.2

 1
94271-00800

2Y,3Y..YN81,85,86..ARL,V

NO.1

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2Y,3Y..YN81,85,86..ARL,V

NO.2

 1
90175-06013

2Y,3Y,4Y..YN8#,92

NO.2

 1
94271-00800

2Y,3Y..YN81,85,86..ARL,V

NO.1

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08024

2Y,3Y,4Y..YN8#,92

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06024

2Y,3Y,4Y..YN8#,9#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54080

2Y,3Y..YN81,85,86..ARL,V

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-73030

2Y,4Y..YN80,85,87,92

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y,3Y,4Y..YN8#,9#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-72060

2Y..YN85..ARL

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87,92..LHD;2Y,4Y..YN85,87..ARL,TH

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87,92..LHD;2Y,4Y..YN85,87..ARL,TH

 2
17882D - HOSE, COOL AIR INTAKE
17880-89102

2Y,3Y..YN81,85,86..ARL,V

 1
Common parts
90119-08761
91626-60818
91651-G0614
96111-10690
Linked diagrams
1709

(9005- )2Y..YN85..ARL

Click highlighted areas on diagram

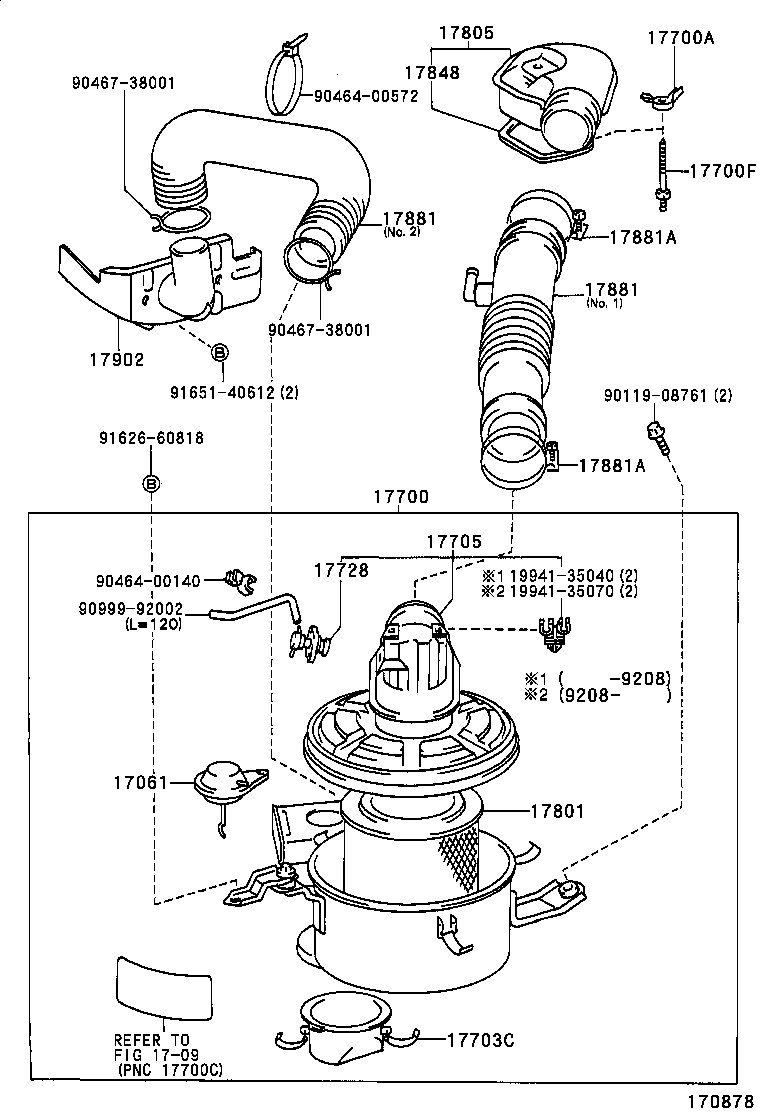

diagram 17061 1709 17700 17700A 17700F 17703C 17705 17728 17801 17805 17848 17881 17881 17881A 17881A 17902 1994135040 1994135070 9011908761 9046400140 9046400572 9046738001 9046738001 9099992002 9162660818 9165140612
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54490

2Y,3Y..YN81,85,86..ARL,V

 1
17700-35460

2Y..YN85..ARL

 1
17700-54491

2Y,3Y..YN81,85,86..ARL,V

 1
17700-35461

2Y..YN85..ARL

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2Y,3Y..YN81,85,86..ARL,V

NO.2

 1
90175-06013

2Y,3Y,4Y..YN8#,92

NO.2

 1
94271-00800

2Y,3Y..YN81,85,86..ARL,V

NO.1

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06024

2Y,3Y,4Y..YN8#,9#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35200

2Y..YN85..ARL

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54080

2Y,3Y..YN81,85,86..ARL,V

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-73030

2Y,4Y..YN80,85,87,92

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y,3Y,4Y..YN8#,9#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-72060

2Y..YN85..ARL

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-72060

2Y..YN85..ARL

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87,92..LHD;2Y,4Y..YN85,87..ARL,TH

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87,92..LHD;2Y,4Y..YN85,87..ARL,TH

 2
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17895-73050

2Y,4Y..YN85,87,92..RHD..(ARL,GEN)

 1
Common parts
19941-35040
19941-35070
90119-08761
90464-00140
90464-00572
90467-38001
90999-92002
91626-60818
91651-40612
Linked diagrams
1709
