Toyota Hilux 2wd YN85 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
US
HILUX 2WD
YN85R-TRKRS (1988)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

YN85R-TRKRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Sep 1999

Engine 2Y

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

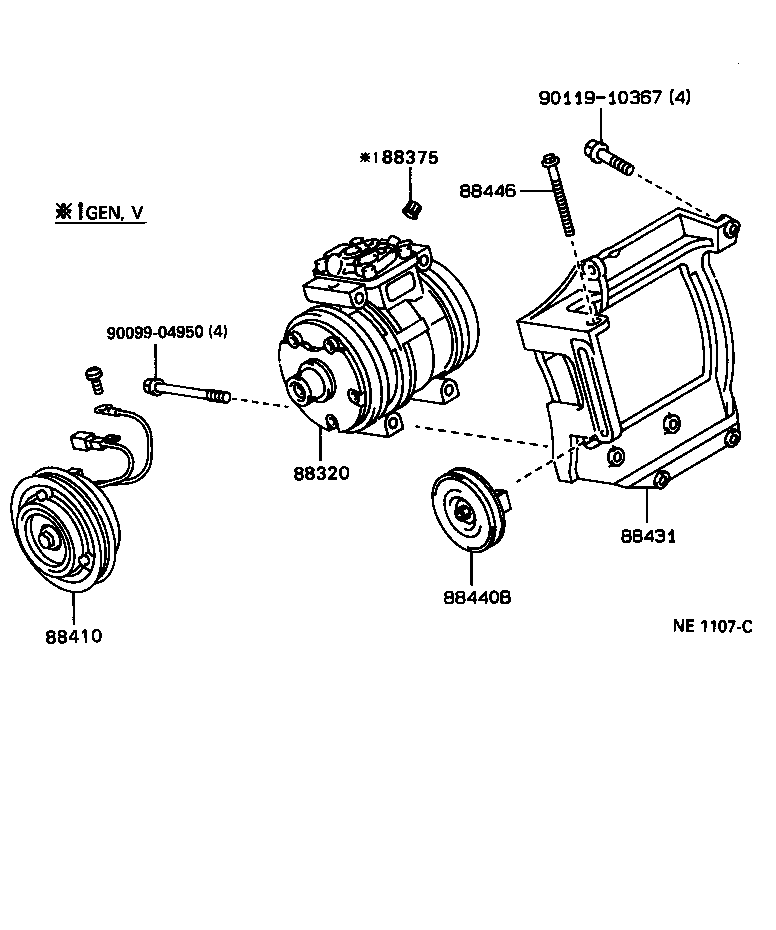

ILLUST NO. 1 OF 3(8808- )LN200,8#,9#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-35260	YN80,85,87,92..GEN	08/1988 - 09/1988	1
88320-35260	YN80,85,87,92..ARL,GEN	09/1988 - 01/1990	1
88320-35260	YN80,85,87,92	01/1990 - 01/1994	1
88320-35250	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD	08/1992 - 01/1994	1
88320-60620	YN80,85,92;RN85,90,YN90..ARL,TH	01/1994 - 08/1994	1
88320-35250	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH	01/1990 - 08/1992	1
88320-35560	LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,90..RHD	01/1994 - 08/1994	1
88320-35560	LN85..RHD;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,86,90,YN80,85,9#..ARL,GEN,TH	08/1994 - 10/1995	1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-20010	YN80,85,87..GEN,TH;LN8#,90,RN125,8#,YN81,86,92..GEN,V DISCHARGE	08/1988 - 01/1990	1
88375-20010	YN85..GEN,TH;LN8#,90,RN125,8#,YN80,81,86,87,92 DISCHARGE	08/1990 - 08/1991	1
88375-20010	LN8#,90,RN125,8#,YN8#,92..GEN,TH,V DISCHARGE	01/1990 - 08/1990	1
88410 - CLUTCH ASSY, MAGNET
88410-35050	LN85..4FC..ARL;YN80,85,87,92..ARL,GEN	09/1988 - 01/1990	1
88410-35050	LN85..ARL;YN80,85,87,92..GEN	08/1988 - 09/1988	1
88410-35040	LN85..4FC..IV3;LN85..4FC..GEN;LN80,85,90..MTM	01/1990 - 08/1991	1
88410-90P80	LN80,85,86,90..ARL,GEN,TH	08/1991 - 08/1992	1
88410-90P80	LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90..RHD	08/1992 - 01/1994	1
88410-60310	RN85..ARL;RN85..LHD..GEN;RN90,YN80,85,9#..ARL,GEN,TH	01/1994 - 08/1994	1
88410-35050	YN80,85,87,92;LN85..4FC..ARL..CBU	01/1990 - 08/1991	1
88410-35120	RN85..ARL;RN85..LHD..GEN;RN90,YN80,85,92..ARL,GEN,TH	08/1991 - 01/1994	1
88410-22480	LN80,85,86,90..ARL,GEN,TH	01/1994 - 04/1994	1
88410-35350	YN8#,92;LN86,YN90..RHD DEALER OPTION	08/1994 - 09/1999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35160	YN8#,92..ARL,GEN,V	09/1988 - 01/1990	1
88431-35160	YN8#,9#	01/1990 - 09/1999	1
88431-35160	YN8#,92..GEN,V	08/1988 - 09/1988	1
88440B - PULLEY ASSY, IDLE
88440-35040	YN8#,92..GEN,V	08/1988 - 09/1988	1
88440-35030	RN125,8#,90	08/1988 - 08/1990	1
88440-35040	YN8#,92..ARL,GEN,V	09/1988 - 01/1990	1
88440-35040	YN8#,9#	01/1990 - 09/1999	1
88440-35010	LN80,85,90..GEN,TH NO.2	08/1988 - 08/1992	1
88440B - PULLEY ASSY, IDLE
88440-35040	YN8#,92..GEN,V	08/1988 - 09/1988	1
88440-35030	RN125,8#,90	08/1988 - 08/1990	1
88440-35040	YN8#,92..ARL,GEN,V	09/1988 - 01/1990	1
88440-35040	YN8#,9#	01/1990 - 09/1999	1
88440-35010	LN80,85,90..GEN,TH NO.2	08/1988 - 08/1992	1
88440B - PULLEY ASSY, IDLE
88440-35040	YN8#,92..GEN,V	08/1988 - 09/1988	1
88440-35030	RN125,8#,90	08/1988 - 08/1990	1
88440-35040	YN8#,92..ARL,GEN,V	09/1988 - 01/1990	1
88440-35040	YN8#,9#	01/1990 - 09/1999	1
88440-35010	LN80,85,90..GEN,TH NO.2	08/1988 - 08/1992	1
88444 - BRACKET, IDLE PULLEY
88444-35050	LN86..ARL;LN80,85,9#	01/1990 - 09/1999	1
88444 - BRACKET, IDLE PULLEY
88444-35050	LN86..ARL;LN80,85,9#	01/1990 - 09/1999	1
88446 - BOLT, IDLE PULLEY
88446-35010	LN80,85,9#..GEN,TH	01/1990 - 09/1999	1
88446-35040	LN85..ARL;YN8#,92..GEN,V;LN85..LHD..TW1..CBU W(POWER STEERING)	08/1988 - 01/1990	1
88446-35040	LN85..ARL;LN85..LHD..TW1..CBU;LN81,86,YN8#,92..GEN,TH,V W(POWER STEERING)	01/1990 - 08/1991	1
88446-35030	RN85..ARL,V;RN85..LHD..GEN;RN125,80,90,YN8#,9#	08/1991 - 09/1999	1
88648F - WIRE, MAGNET CLUTCH
88648-89128	LN80,85,90	01/1990 - 08/1991	1
Common parts
82711-12200
82711-89185
90099-04321
90099-04950
90119-08474
90119-08720
90119-10367
90119-12160

ILLUST NO. 1 OF 3(8808- )RN125,8#,90,RZN200

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-35260	YN80,85,87,92..GEN	08/1988 - 09/1988	1
88320-35260	YN80,85,87,92..ARL,GEN	09/1988 - 01/1990	1
88320-35260	YN80,85,87,92	01/1990 - 01/1994	1
88320-35250	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD	08/1992 - 01/1994	1
88320-60620	YN80,85,92;RN85,90,YN90..ARL,TH	01/1994 - 08/1994	1
88320-35250	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH	01/1990 - 08/1992	1
88320-35560	LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,90..RHD	01/1994 - 08/1994	1
88320-35560	LN85..RHD;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,86,90,YN80,85,9#..ARL,GEN,TH	08/1994 - 10/1995	1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-20010	YN80,85,87..GEN,TH;LN8#,90,RN125,8#,YN81,86,92..GEN,V DISCHARGE	08/1988 - 01/1990	1
88375-20010	YN85..GEN,TH;LN8#,90,RN125,8#,YN80,81,86,87,92 DISCHARGE	08/1990 - 08/1991	1
88375-20010	LN8#,90,RN125,8#,YN8#,92..GEN,TH,V DISCHARGE	01/1990 - 08/1990	1
88410 - CLUTCH ASSY, MAGNET
88410-35050	LN85..4FC..ARL;YN80,85,87,92..ARL,GEN	09/1988 - 01/1990	1
88410-35050	LN85..ARL;YN80,85,87,92..GEN	08/1988 - 09/1988	1
88410-35040	LN85..4FC..IV3;LN85..4FC..GEN;LN80,85,90..MTM	01/1990 - 08/1991	1
88410-90P80	LN80,85,86,90..ARL,GEN,TH	08/1991 - 08/1992	1
88410-90P80	LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90..RHD	08/1992 - 01/1994	1
88410-60310	RN85..ARL;RN85..LHD..GEN;RN90,YN80,85,9#..ARL,GEN,TH	01/1994 - 08/1994	1
88410-35050	YN80,85,87,92;LN85..4FC..ARL..CBU	01/1990 - 08/1991	1
88410-35120	RN85..ARL;RN85..LHD..GEN;RN90,YN80,85,92..ARL,GEN,TH	08/1991 - 01/1994	1
88410-22480	LN80,85,86,90..ARL,GEN,TH	01/1994 - 04/1994	1
88410-35350	YN8#,92;LN86,YN90..RHD DEALER OPTION	08/1994 - 09/1999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35160	YN8#,92..ARL,GEN,V	09/1988 - 01/1990	1
88431-35160	YN8#,9#	01/1990 - 09/1999	1
88431-35160	YN8#,92..GEN,V	08/1988 - 09/1988	1
88440B - PULLEY ASSY, IDLE
88440-35040	YN8#,92..GEN,V	08/1988 - 09/1988	1
88440-35030	RN125,8#,90	08/1988 - 08/1990	1
88440-35040	YN8#,92..ARL,GEN,V	09/1988 - 01/1990	1
88440-35040	YN8#,9#	01/1990 - 09/1999	1
88440-35010	LN80,85,90..GEN,TH NO.2	08/1988 - 08/1992	1
88446 - BOLT, IDLE PULLEY
88446-35010	LN80,85,9#..GEN,TH	01/1990 - 09/1999	1
88446-35040	LN85..ARL;YN8#,92..GEN,V;LN85..LHD..TW1..CBU W(POWER STEERING)	08/1988 - 01/1990	1
88446-35040	LN85..ARL;LN85..LHD..TW1..CBU;LN81,86,YN8#,92..GEN,TH,V W(POWER STEERING)	01/1990 - 08/1991	1
88446-35030	RN85..ARL,V;RN85..LHD..GEN;RN125,80,90,YN8#,9#	08/1991 - 09/1999	1
88648F - WIRE, MAGNET CLUTCH
88648-89128	LN80,85,90	01/1990 - 08/1991	1
88648F - WIRE, MAGNET CLUTCH
88648-89128	LN80,85,90	01/1990 - 08/1991	1
Common parts
82711-12200
90099-04950
90119-10100
90119-10367
91512-81040
91512-81070
91512-81085
91651-G0850
Linked diagrams
8202
8401

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-35030	RN85..ARL,V;RN85..LHD..GEN;RN80,90,YN8#,9#	08/1991 - 08/1994	1
88412-30430	LN80,85,90	08/1991 - 01/1994	1
88412-35030	RN85..ARL,V;RN85..LHD..GEN;RN80,90,YN80,9#;YN85,86..GEN,TH	08/1994 - 09/1999	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22310	RN85..ARL;RN85..LHD..GEN;LN80,85,86,90,RN90,YN80,85,9#..ARL,GEN,TH	01/1994 - 04/1994	1
88411-22310	RN85,90..ARL;RN85..LHD..GEN;LN8#,9#,YN8#,9#	08/1994 - 08/1997	1
88411-2B080	YN85..GEN,TH;YN85..5F..ARL;LN80,85,86,90,RN85,90,YN80,92..ARL,GEN,TH	08/1991 - 01/1994	1
88411-22310	RN85,90..ARL;RN85..LHD..GEN;LN8#,90,YN80,85,9#	04/1994 - 08/1994	1
88320 - COMPRESSOR ASSY, COOLER
88320-35260	YN80,85,87,92..GEN	08/1988 - 09/1988	1
88320-35260	YN80,85,87,92..ARL,GEN	09/1988 - 01/1990	1
88320-35260	YN80,85,87,92	01/1990 - 01/1994	1
88320-35250	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD	08/1992 - 01/1994	1
88320-60620	YN80,85,92;RN85,90,YN90..ARL,TH	01/1994 - 08/1994	1
88320-35250	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH	01/1990 - 08/1992	1
88320-35560	LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,90..RHD	01/1994 - 08/1994	1
88320-35560	LN85..RHD;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,86,90,YN80,85,9#..ARL,GEN,TH	08/1994 - 10/1995	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011	RN90,YN85;RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN125,80,YN80,81,86,92..GEN,TH,V	08/1991 - 08/1992	1
88403-16011	RN90,YN85;LN85..RHD;RN85..ARL,V;LN85..LHD..TH;LN85..LHD..4F;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,RN125,80,YN80,81,86,92..GEN,TH,V	08/1992 - 01/1994	1
88410 - CLUTCH ASSY, MAGNET
88410-35050	LN85..4FC..ARL;YN80,85,87,92..ARL,GEN	09/1988 - 01/1990	1
88410-35050	LN85..ARL;YN80,85,87,92..GEN	08/1988 - 09/1988	1
88410-35040	LN85..4FC..IV3;LN85..4FC..GEN;LN80,85,90..MTM	01/1990 - 08/1991	1
88410-90P80	LN80,85,86,90..ARL,GEN,TH	08/1991 - 08/1992	1
88410-90P80	LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90..RHD	08/1992 - 01/1994	1
88410-60310	RN85..ARL;RN85..LHD..GEN;RN90,YN80,85,9#..ARL,GEN,TH	01/1994 - 08/1994	1
88410-35050	YN80,85,87,92;LN85..4FC..ARL..CBU	01/1990 - 08/1991	1
88410-35120	RN85..ARL;RN85..LHD..GEN;RN90,YN80,85,92..ARL,GEN,TH	08/1991 - 01/1994	1
88410-22480	LN80,85,86,90..ARL,GEN,TH	01/1994 - 04/1994	1
88410-35350	YN8#,92;LN86,YN90..RHD DEALER OPTION	08/1994 - 09/1999	1
Common parts
90099-04349
90099-07114
90099-07125

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-32010	LN85..RHD;RN85..ARL,V;LN85..LHD..TH;LN85..LHD..4F;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,RN80,90,YN8#,9# FRONT	01/1994 - 10/1995	1
88322-32040	LN85..RHD;RN85..ARL,V;LN85..LHD..TH;LN85..LHD..4F;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,RN80,90,YN8#,9# REAR	01/1994 - 10/1995	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-32010	LN85..RHD;RN85..ARL,V;LN85..LHD..TH;LN85..LHD..4F;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,RN80,90,YN8#,9# FRONT	01/1994 - 10/1995	1
88322-32040	LN85..RHD;RN85..ARL,V;LN85..LHD..TH;LN85..LHD..4F;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,RN80,90,YN8#,9# REAR	01/1994 - 10/1995	1
88321A - PLATE SUB-ASSY, VALVE
88342-14020	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH REAR	08/1991 - 08/1992	1
88341-14020	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD FRONT	08/1992 - 01/1994	1
88341-14020	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH FRONT	08/1991 - 08/1992	1
88341-22010	RN85..ARL;LN85..LHD..TH;LN85..LHD..4F;LN85,RN90..RHD;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,YN8#,9# FRONT	01/1994 - 10/1995	1
88342-22010	RN85..ARL;LN85..LHD..TH;LN85..LHD..4F;LN85,RN90..RHD;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,YN8#,9# REAR	01/1994 - 10/1995	1
88342-14020	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD REAR	08/1992 - 01/1994	1
88321A - PLATE SUB-ASSY, VALVE
88342-14020	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH REAR	08/1991 - 08/1992	1
88341-14020	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD FRONT	08/1992 - 01/1994	1
88341-14020	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH FRONT	08/1991 - 08/1992	1
88341-22010	RN85..ARL;LN85..LHD..TH;LN85..LHD..4F;LN85,RN90..RHD;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,YN8#,9# FRONT	01/1994 - 10/1995	1
88342-22010	RN85..ARL;LN85..LHD..TH;LN85..LHD..4F;LN85,RN90..RHD;LN85..LHD..IV3;RN85..LHD..GEN;LN80,81,86,90,YN8#,9# REAR	01/1994 - 10/1995	1
88342-14020	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD REAR	08/1992 - 01/1994	1
88335 - GASKET KIT, OVERHAUL
88335-2B030	RN85..LHD..GEN;YN80,85,86,92..GEN	08/1995 - 11/1996	1
88335-2B030	YN80,85,9#..GEN,TH	01/1994 - 10/1994	1
88335-2B030	RN85..LHD..GEN;YN80,85,9#..GEN,TH	10/1994 - 01/1995	1
88335-2B030	YN80,85,9#..GEN,TH	01/1995 - 08/1995	1
88343B - REED, SUCTION VALVE
88343-14020	RN85,90..LHD;YN85..GEN,TH;LN8#,90,RN80,YN80,81,86,9#	01/1994 - 08/1994	2
88343B - REED, SUCTION VALVE
88343-14020	RN85,90..LHD;YN85..GEN,TH;LN8#,90,RN80,YN80,81,86,9#	01/1994 - 08/1994	2
88344C - REED, DISCHARGE VALVE
88344-14020	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD	08/1992 - 01/1994	2
88344-14020	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH	08/1991 - 08/1992	2
88344C - REED, DISCHARGE VALVE
88344-14020	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD	08/1992 - 01/1994	2
88344-14020	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH	08/1991 - 08/1992	2
88360C - SEAL ASSY, SHAFT
88360-2B010	RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9#	01/1995 - 08/1995	1
88360-2B010	RN85..ARL,V;RN85..LHD..GEN;LN8#,90,RN80,90,YN8#,9#	08/1994 - 10/1994	1
88360-2B010	RN85..ARL,V;LN8#,90,RN80,90,YN8#,92	08/1995 - 11/1996	1
88360-2B010	RN85..ARL,V;LN8#,90,RN80,90,YN8#,9#	10/1994 - 01/1995	1
88360-2B010	YN80,85,86,92;LN85..LHD..TW1;LN81,86,RN8#,90,YN81..ARL,V	11/1996 - 03/1997	1
88360-2B010	RN85,90..LHD;YN85..GEN,TH;LN8#,90,RN80,YN80,81,86,9#	01/1994 - 08/1994	1
88360-2B010	YN80,85,86,92;LN81,86,RN8#,90,YN81..ARL,V	03/1997 - 09/1999	1
88371A - VALVE, SUCTION
88371-35070	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD	08/1992 - 01/1994	1
88371-35070	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH	08/1991 - 08/1992	1
88371-35240	LN80,85,90	01/1994 - 08/1994	1
88371-60350	YN80,85,92;RN85,90,YN90..ARL,TH	01/1994 - 08/1994	1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-20010	YN80,85,87..GEN,TH;LN8#,90,RN125,8#,YN81,86,92..GEN,V DISCHARGE	08/1988 - 01/1990	1
88375-20010	YN85..GEN,TH;LN8#,90,RN125,8#,YN80,81,86,87,92 DISCHARGE	08/1990 - 08/1991	1
88375-20010	LN8#,90,RN125,8#,YN8#,92..GEN,TH,V DISCHARGE	01/1990 - 08/1990	1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-20010	YN80,85,87..GEN,TH;LN8#,90,RN125,8#,YN81,86,92..GEN,V DISCHARGE	08/1988 - 01/1990	1
88375-20010	YN85..GEN,TH;LN8#,90,RN125,8#,YN80,81,86,87,92 DISCHARGE	08/1990 - 08/1991	1
88375-20010	LN8#,90,RN125,8#,YN8#,92..GEN,TH,V DISCHARGE	01/1990 - 08/1990	1
88376 - CAP, BLIND
88376-22020	RN8#,90..ARL,V;LN80,85,86,90..ARL,GEN,TH SUCTION	08/1991 - 01/1994	1
88376-22010	RN8#,90..ARL,V;LN80,85,86,90..ARL,GEN,TH DISCHARGE	08/1991 - 01/1994	1
88376 - CAP, BLIND
88376-22020	RN8#,90..ARL,V;LN80,85,86,90..ARL,GEN,TH SUCTION	08/1991 - 01/1994	1
88376-22010	RN8#,90..ARL,V;LN80,85,86,90..ARL,GEN,TH DISCHARGE	08/1991 - 01/1994	1
Common parts
90099-04370
90099-04924
90099-08058

ILLUST NO. 1 OF 3(8808- )YN8#,9#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-35260	YN80,85,87,92..GEN	08/1988 - 09/1988	1
88320-35260	YN80,85,87,92..ARL,GEN	09/1988 - 01/1990	1
88320-35260	YN80,85,87,92	01/1990 - 01/1994	1
88320-35250	RN85..ARL;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90,RN90..RHD	08/1992 - 01/1994	1
88320-60620	YN80,85,92;RN85,90,YN90..ARL,TH	01/1994 - 08/1994	1
88320-35250	RN85..ARL;LN80,85,86,90,RN90..ARL,GEN,TH	01/1990 - 08/1992	1
88320-35560	LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,90..RHD	01/1994 - 08/1994	1
88320-35560	LN85..RHD;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,86,90,YN80,85,9#..ARL,GEN,TH	08/1994 - 10/1995	1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-20010	YN80,85,87..GEN,TH;LN8#,90,RN125,8#,YN81,86,92..GEN,V DISCHARGE	08/1988 - 01/1990	1
88375-20010	YN85..GEN,TH;LN8#,90,RN125,8#,YN80,81,86,87,92 DISCHARGE	08/1990 - 08/1991	1
88375-20010	LN8#,90,RN125,8#,YN8#,92..GEN,TH,V DISCHARGE	01/1990 - 08/1990	1
88410 - CLUTCH ASSY, MAGNET
88410-35050	LN85..4FC..ARL;YN80,85,87,92..ARL,GEN	09/1988 - 01/1990	1
88410-35050	LN85..ARL;YN80,85,87,92..GEN	08/1988 - 09/1988	1
88410-35040	LN85..4FC..IV3;LN85..4FC..GEN;LN80,85,90..MTM	01/1990 - 08/1991	1
88410-90P80	LN80,85,86,90..ARL,GEN,TH	08/1991 - 08/1992	1
88410-90P80	LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3;LN80,85,86,90..RHD	08/1992 - 01/1994	1
88410-60310	RN85..ARL;RN85..LHD..GEN;RN90,YN80,85,9#..ARL,GEN,TH	01/1994 - 08/1994	1
88410-35050	YN80,85,87,92;LN85..4FC..ARL..CBU	01/1990 - 08/1991	1
88410-35120	RN85..ARL;RN85..LHD..GEN;RN90,YN80,85,92..ARL,GEN,TH	08/1991 - 01/1994	1
88410-22480	LN80,85,86,90..ARL,GEN,TH	01/1994 - 04/1994	1
88410-35350	YN8#,92;LN86,YN90..RHD DEALER OPTION	08/1994 - 09/1999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35160	YN8#,92..ARL,GEN,V	09/1988 - 01/1990	1
88431-35160	YN8#,9#	01/1990 - 09/1999	1
88431-35160	YN8#,92..GEN,V	08/1988 - 09/1988	1
88440B - PULLEY ASSY, IDLE
88440-35040	YN8#,92..GEN,V	08/1988 - 09/1988	1
88440-35030	RN125,8#,90	08/1988 - 08/1990	1
88440-35040	YN8#,92..ARL,GEN,V	09/1988 - 01/1990	1
88440-35040	YN8#,9#	01/1990 - 09/1999	1
88440-35010	LN80,85,90..GEN,TH NO.2	08/1988 - 08/1992	1
88446 - BOLT, IDLE PULLEY
88446-35010	LN80,85,9#..GEN,TH	01/1990 - 09/1999	1
88446-35040	LN85..ARL;YN8#,92..GEN,V;LN85..LHD..TW1..CBU W(POWER STEERING)	08/1988 - 01/1990	1
88446-35040	LN85..ARL;LN85..LHD..TW1..CBU;LN81,86,YN8#,92..GEN,TH,V W(POWER STEERING)	01/1990 - 08/1991	1
88446-35030	RN85..ARL,V;RN85..LHD..GEN;RN125,80,90,YN8#,9#	08/1991 - 09/1999	1
Common parts
90099-04950
90119-10367

YN85R-TRKRS (1988)

ILLUST NO. 1 OF 3(8808- )LN200,8#,9#

ILLUST NO. 1 OF 3(8808- )RN125,8#,90,RZN200

ILLUST NO. 2 OF 3(8808- )

ILLUST NO. 3 OF 3(8808- )

ILLUST NO. 1 OF 3(8808- )YN8#,9#

Part Price Details
