YN85L-TRKRS3 (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1990
Engine 2Y
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

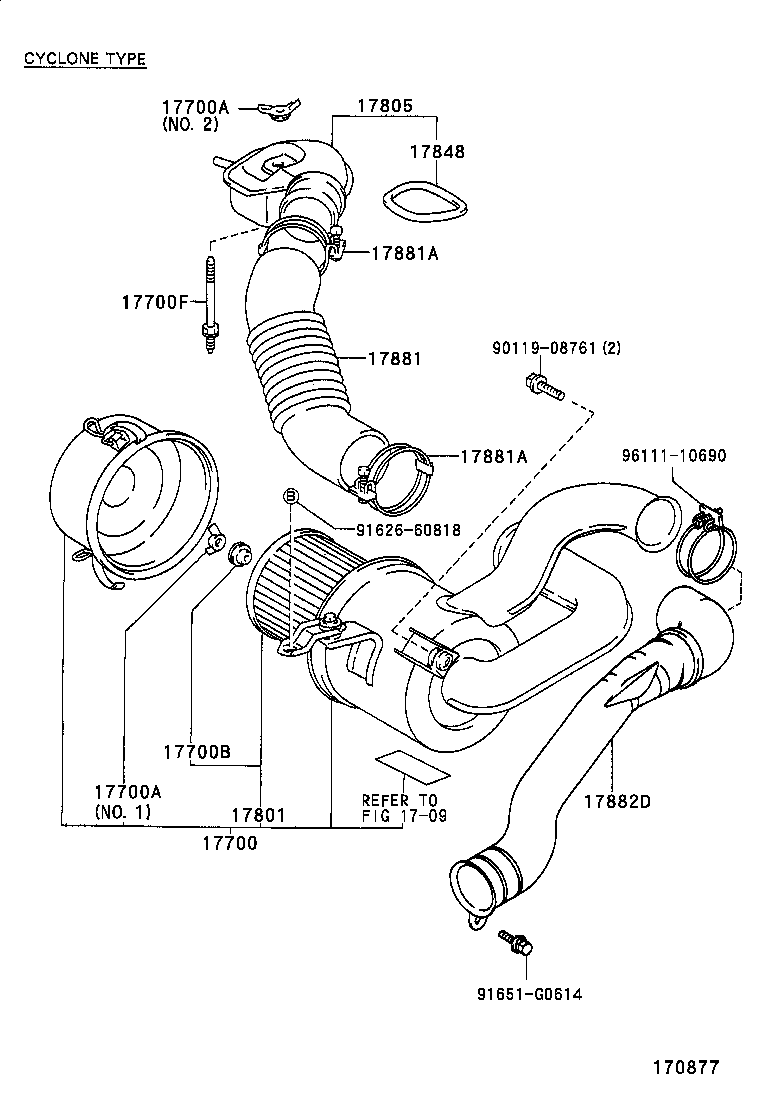

(8808-9005)2Y,3Y,4Y ; (9005- )2Y,3Y,4Y..GEN,TH,V

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700A 17700B 17700F 17801 17805 17848 17881 17881A 17881A 17882D 9011908761 9162660818 91651G0614 9611110690
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54490

2Y,3Y..YN81,85,86..ARL,V

 1
17700-72170

2Y,4Y..YN80,85,87,92..GEN,TH

W(CYCLONE TYPE AIR CLEANER)

 1
17700-72180

2Y,4Y..YN80,85,87,92..GEN,TH

 1
17700-54491

2Y,3Y..YN81,85,86..ARL,V

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2Y,4Y..YN80,85,87,92..GEN

 1
90175-06003

2Y,3Y..YN81,85,86..ARL,V

NO.2

 1
94271-00800

2Y,3Y..YN81,85,86..ARL,V

NO.1

 1
94271-00800

2Y,4Y..YN80,85,87,92..GEN,TH

W(CYCLONE TYPE AIR CLEANER),NO.1

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2Y,4Y..YN80,85,87,92..GEN

 1
90175-06003

2Y,3Y..YN81,85,86..ARL,V

NO.2

 1
94271-00800

2Y,3Y..YN81,85,86..ARL,V

NO.1

 1
94271-00800

2Y,4Y..YN80,85,87,92..GEN,TH

W(CYCLONE TYPE AIR CLEANER),NO.1

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08024

2Y,3Y,4Y..YN8#,92

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06024

2Y,3Y,4Y..YN8#,9#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54080

2Y,4Y..YN80,85,87,92..GEN,TH

W(CYCLONE TYPE AIR CLEANER)

 1
17801-34070

2Y,4Y..YN80,85,87,92..GEN,TH

 1
17801-54080

2Y,3Y..YN81,85,86..ARL,V

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-73030

2Y,4Y..YN80,85,87,92

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y,3Y,4Y..YN8#,9#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-73030

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87..TH;2Y,4Y..YN85,87,92..LHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87,92..LHD;2Y,4Y..YN85,87..ARL,TH

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87,92..LHD;2Y,4Y..YN85,87..ARL,TH

 2
17882D - HOSE, COOL AIR INTAKE
17880-89102

2Y,3Y..YN81,85,86..ARL,V

 1
17882-89109

2Y,4Y..YN80,85,87,92..GEN,TH

 1
Common parts
90119-08761
91626-60818
91651-G0614
96111-10690
Linked diagrams
1709

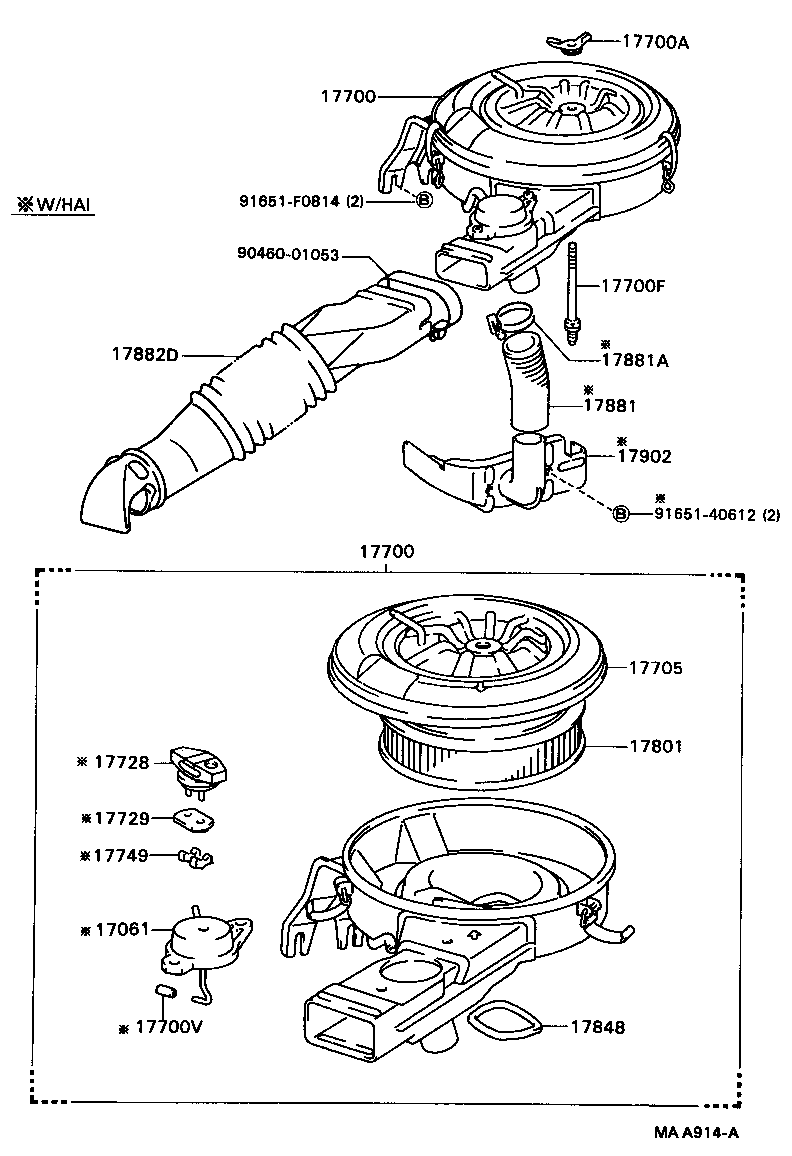

(8808-9401)2Y,4Y..GEN,TH ; (9401- )2Y,4Y..YN80,85,92..GEN

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700F 17700V 17705 17728 17729 17749 17801 17848 17881 17881A 17882D 17902 9046001053 9165140612 91651F0814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54490

2Y,3Y..YN81,85,86..ARL,V

 1
17700-72170

2Y,4Y..YN80,85,87,92..GEN,TH

W(CYCLONE TYPE AIR CLEANER)

 1
17700-72180

2Y,4Y..YN80,85,87,92..GEN,TH

 1
17700-54491

2Y,3Y..YN81,85,86..ARL,V

 1
17700 - CLEANER ASSY, AIR
17700-54490

2Y,3Y..YN81,85,86..ARL,V

 1
17700-72170

2Y,4Y..YN80,85,87,92..GEN,TH

W(CYCLONE TYPE AIR CLEANER)

 1
17700-72180

2Y,4Y..YN80,85,87,92..GEN,TH

 1
17700-54491

2Y,3Y..YN81,85,86..ARL,V

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2Y,4Y..YN80,85,87,92..GEN

 1
90175-06003

2Y,3Y..YN81,85,86..ARL,V

NO.2

 1
94271-00800

2Y,3Y..YN81,85,86..ARL,V

NO.1

 1
94271-00800

2Y,4Y..YN80,85,87,92..GEN,TH

W(CYCLONE TYPE AIR CLEANER),NO.1

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06024

2Y,3Y,4Y..YN8#,9#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-73080

2Y,4Y..YN80,85,87,92..GEN,TH

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54080

2Y,4Y..YN80,85,87,92..GEN,TH

W(CYCLONE TYPE AIR CLEANER)

 1
17801-34070

2Y,4Y..YN80,85,87,92..GEN,TH

 1
17801-54080

2Y,3Y..YN81,85,86..ARL,V

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y,3Y,4Y..YN8#,9#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-73030

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87..TH;2Y,4Y..YN85,87,92..LHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

2Y,3Y..YN80,81,86;2Y,4Y..YN85,87,92..LHD;2Y,4Y..YN85,87..ARL,TH

 2
17882D - HOSE, COOL AIR INTAKE
17880-89102

2Y,3Y..YN81,85,86..ARL,V

 1
17882-89109

2Y,4Y..YN80,85,87,92..GEN,TH

 1
Common parts
90460-01053
91651-40612
91651-F0814
