YN85L-TRKRS3 (1988)
Toyota Hilux 2wd
(8808- )2Y,3Y,4Y

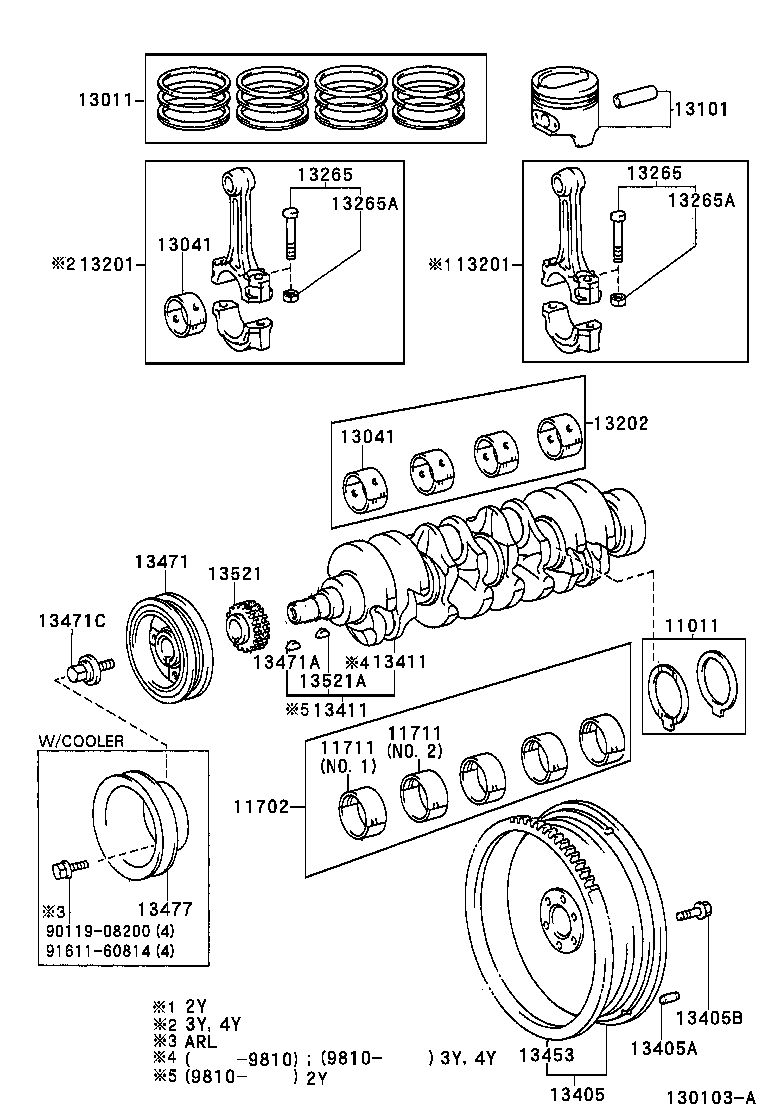

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
2Y,3Y,4Y..YN8#,9# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-71020 |
2Y,3Y,4Y..YN8#,9# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
2Y,3Y,4Y..YN8#,9# MARK 1,MARK 1 |
5 | ||
| 11701-7102003 |
2Y,3Y,4Y..YN8#,9# MARK 3,MARK 3 |
5 | ||
| 11701-7102002 |
2Y,3Y,4Y..YN8#,9# MARK 2,MARK 2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
2Y,3Y,4Y..YN8#,9# MARK 1,MARK 1 |
5 | ||
| 11701-7102003 |
2Y,3Y,4Y..YN8#,9# MARK 3,MARK 3 |
5 | ||
| 11701-7102002 |
2Y,3Y,4Y..YN8#,9# MARK 2,MARK 2 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-71031 |
2Y,3Y..YN80,81,85,86..GEN,TH,V O/S 0.50 |
1 | ||
| 13011-71031 |
2Y,3Y..YN80,81,85,86..GEN,TH,V STD |
1 | ||
| 13015-71031 |
2Y,3Y..YN80,81,85,86..GEN,TH,V O/S 1.00 |
1 | ||
| 13014-71031 |
2Y,3Y..YN80,81,85,86..GEN,TH,V O/S 0.75 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
2Y,3Y,4Y..YN8#,9# MARK 6,MARK 6 |
4 | ||
| 13041-7101108 |
2Y,3Y,4Y..YN8#,9# MARK 8,MARK 8 |
4 | ||
| 13041-7101107 |
2Y,3Y,4Y..YN8#,9# MARK 7,MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
2Y,3Y,4Y..YN8#,9# MARK 6,MARK 6 |
4 | ||
| 13041-7101108 |
2Y,3Y,4Y..YN8#,9# MARK 8,MARK 8 |
4 | ||
| 13041-7101107 |
2Y,3Y,4Y..YN8#,9# MARK 7,MARK 7 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-7201001 |
2Y..YN80,85,90 STD,MARK 1,MARK 1 |
4 | ||
| 13103-72010 |
2Y..YN80,85,90 O/S 0.50 |
4 | ||
| 13101-7201003 |
2Y..YN80,85,90 STD,MARK 3,MARK 3 |
4 | ||
| 13101-7201002 |
2Y..YN80,85,90 STD,MARK 2,MARK 2 |
4 | ||
| 13105-72010 |
2Y..YN80,85,90 O/S 1.00 |
4 | ||
| 13104-72010 |
2Y..YN80,85,90 O/S 0.75 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-71011 |
2Y..YN80,85,90 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-71011 |
2Y..YN80,85,90 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-71011 |
2Y,3Y,4Y..YN8#,9# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
2Y,3Y,4Y..YN8#,9# |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
2Y,3Y,4Y..YN8#,9# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
2Y,3Y,4Y..YN8#,9# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
2Y,3Y,4Y..YN8#,9# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-71010 |
2Y..YN80,85 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2Y,3Y,4Y..YN8#,9# L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
2Y,3Y,4Y..YN8#,9# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-72010 |
2Y..YN80,85,90 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-72010 |
2Y..YN80,85,90 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
2Y,3Y,4Y..YN8#,9# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-71010 |
2Y,3Y,4Y..YN8#,9# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2Y,3Y,4Y..YN8#,92 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14013 |
2Y,3Y,4Y..YN8#,92 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-20110 |
2Y,3Y,4Y..YN8#,92 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
2Y,3Y,4Y..YN8#,9# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2Y,3Y,4Y..YN8#,92 |
1 | ||
| Common parts | ||||
| 90119-08200 | ||||
| 91611-60814 | ||||
(8808- )2L,3L,5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
2Y,3Y,4Y..YN8#,9# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-71020 |
2Y,3Y,4Y..YN8#,9# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
2Y,3Y,4Y..YN8#,9# MARK 1,MARK 1 |
5 | ||
| 11701-7102003 |
2Y,3Y,4Y..YN8#,9# MARK 3,MARK 3 |
5 | ||
| 11701-7102002 |
2Y,3Y,4Y..YN8#,9# MARK 2,MARK 2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
2Y,3Y,4Y..YN8#,9# MARK 1,MARK 1 |
5 | ||
| 11701-7102003 |
2Y,3Y,4Y..YN8#,9# MARK 3,MARK 3 |
5 | ||
| 11701-7102002 |
2Y,3Y,4Y..YN8#,9# MARK 2,MARK 2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
2Y,3Y,4Y..YN8#,9# MARK 1,MARK 1 |
5 | ||
| 11701-7102003 |
2Y,3Y,4Y..YN8#,9# MARK 3,MARK 3 |
5 | ||
| 11701-7102002 |
2Y,3Y,4Y..YN8#,9# MARK 2,MARK 2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
2Y,3Y,4Y..YN8#,9# MARK 1,MARK 1 |
5 | ||
| 11701-7102003 |
2Y,3Y,4Y..YN8#,9# MARK 3,MARK 3 |
5 | ||
| 11701-7102002 |
2Y,3Y,4Y..YN8#,9# MARK 2,MARK 2 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
2Y,3Y,4Y..YN8#,9# MARK 1,MARK 1 |
5 | ||
| 11701-7102003 |
2Y,3Y,4Y..YN8#,9# MARK 3,MARK 3 |
5 | ||
| 11701-7102002 |
2Y,3Y,4Y..YN8#,9# MARK 2,MARK 2 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-71031 |
2Y,3Y..YN80,81,85,86..GEN,TH,V O/S 0.50 |
1 | ||
| 13011-71031 |
2Y,3Y..YN80,81,85,86..GEN,TH,V STD |
1 | ||
| 13015-71031 |
2Y,3Y..YN80,81,85,86..GEN,TH,V O/S 1.00 |
1 | ||
| 13014-71031 |
2Y,3Y..YN80,81,85,86..GEN,TH,V O/S 0.75 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
2Y,3Y,4Y..YN8#,9# MARK 6,MARK 6 |
4 | ||
| 13041-7101108 |
2Y,3Y,4Y..YN8#,9# MARK 8,MARK 8 |
4 | ||
| 13041-7101107 |
2Y,3Y,4Y..YN8#,9# MARK 7,MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
2Y,3Y,4Y..YN8#,9# MARK 6,MARK 6 |
4 | ||
| 13041-7101108 |
2Y,3Y,4Y..YN8#,9# MARK 8,MARK 8 |
4 | ||
| 13041-7101107 |
2Y,3Y,4Y..YN8#,9# MARK 7,MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
2Y,3Y,4Y..YN8#,9# MARK 6,MARK 6 |
4 | ||
| 13041-7101108 |
2Y,3Y,4Y..YN8#,9# MARK 8,MARK 8 |
4 | ||
| 13041-7101107 |
2Y,3Y,4Y..YN8#,9# MARK 7,MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
2Y,3Y,4Y..YN8#,9# MARK 6,MARK 6 |
4 | ||
| 13041-7101108 |
2Y,3Y,4Y..YN8#,9# MARK 8,MARK 8 |
4 | ||
| 13041-7101107 |
2Y,3Y,4Y..YN8#,9# MARK 7,MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
2Y,3Y,4Y..YN8#,9# MARK 6,MARK 6 |
4 | ||
| 13041-7101108 |
2Y,3Y,4Y..YN8#,9# MARK 8,MARK 8 |
4 | ||
| 13041-7101107 |
2Y,3Y,4Y..YN8#,9# MARK 7,MARK 7 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-7201001 |
2Y..YN80,85,90 STD,MARK 1,MARK 1 |
4 | ||
| 13103-72010 |
2Y..YN80,85,90 O/S 0.50 |
4 | ||
| 13101-7201003 |
2Y..YN80,85,90 STD,MARK 3,MARK 3 |
4 | ||
| 13101-7201002 |
2Y..YN80,85,90 STD,MARK 2,MARK 2 |
4 | ||
| 13105-72010 |
2Y..YN80,85,90 O/S 1.00 |
4 | ||
| 13104-72010 |
2Y..YN80,85,90 O/S 0.75 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-71011 |
2Y..YN80,85,90 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-71011 |
2Y,3Y,4Y..YN8#,9# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
2Y,3Y,4Y..YN8#,9# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
2Y,3Y,4Y..YN8#,9# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-71010 |
2Y..YN80,85 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2Y,3Y,4Y..YN8#,9# L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
2Y,3Y,4Y..YN8#,9# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-72010 |
2Y..YN80,85,90 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
2Y,3Y,4Y..YN8#,9# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-71010 |
2Y,3Y,4Y..YN8#,9# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2Y,3Y,4Y..YN8#,92 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14013 |
2Y,3Y,4Y..YN8#,92 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-20110 |
2Y,3Y,4Y..YN8#,92 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2Y,3Y,4Y..YN8#,92 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
