YN85L-PRMRS (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1997
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )LN8#,9#,RN125,8#,90,YN8#,9#

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35020

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-26070

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-26030

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1

ILLUST NO. 1 OF 2(8907-9308)RN125 ; (0106- )

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47730 47731 47731 47731A 47731A 47744 47744 47745 47745 47748 47748 47748A 47748B 47748B 47750 9161160814 9451201200
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-35200

RN90..V;LN8#,90,RN8#,YN8#,9#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LN8#,9#,RN125,8#,90,YN8#,9#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12058

LN8#,9#,RN8#,90,YN8#,9#

*12-1.25PX31-20

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26080

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47731 - PISTON, FRONT DISC BRAKE
47731-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-70001

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-70001

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-26020

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-26020

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-40020

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-40020

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26080

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
Common parts
91611-60814
94512-01200

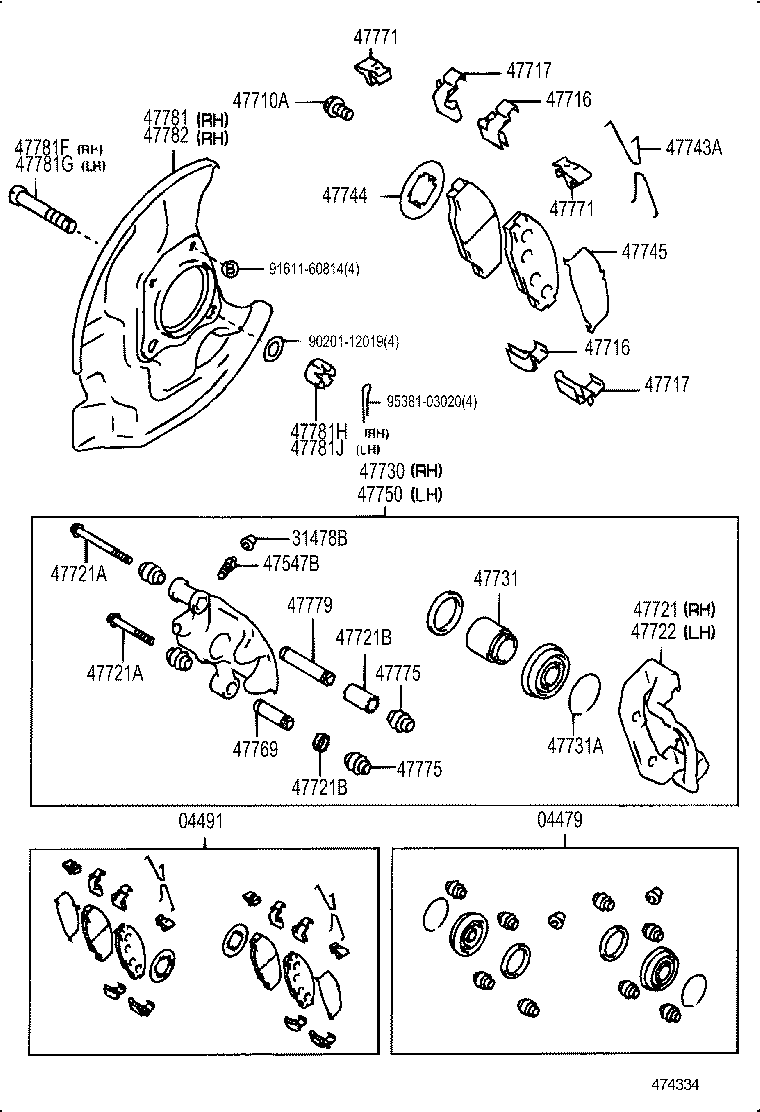

ILLUST NO. 1 OF 2(8808- )RN90..V ; (8808- )LN8#,9#,RN8#,YN8#,9#

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47743A 47744 47745 47750 47769 47771 47771 47775 47775 47779 47781 47781F 47781G 47781H 47781J 47782 9020112019 9161160814 9538103020
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-35200

RN90..V;LN8#,90,RN8#,YN8#,9#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LN8#,9#,RN125,8#,90,YN8#,9#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12058

LN8#,9#,RN8#,90,YN8#,9#

*12-1.25PX31-20

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-40010

LN8#,90,RN8#,YN8#,92

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-40010

LN8#,90,RN8#,YN8#,92

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-40010

LN8#,90,RN8#,YN8#,92

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-40010

LN8#,90,RN8#,YN8#,92

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26050

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10249

RN90..V;LN8#,9#,RN8#,YN8#,9#

*10-1.25PX95.5-30

 2
90119-10014

RN90..V;LN8#,9#,RN8#,YN8#,9#

*10-1.25PX65.5-30

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10249

RN90..V;LN8#,9#,RN8#,YN8#,9#

*10-1.25PX95.5-30

 2
90119-10014

RN90..V;LN8#,9#,RN8#,YN8#,9#

*10-1.25PX65.5-30

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16004

RN90..V;LN8#,9#,RN8#,YN8#,9#

SUB

 2
90387-16005

RN90..V;LN8#,9#,RN8#,YN8#,9#

MAIN

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16004

RN90..V;LN8#,9#,RN8#,YN8#,9#

SUB

 2
90387-16005

RN90..V;LN8#,9#,RN8#,YN8#,9#

MAIN

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-26050

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26080

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-70001

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-40020

RN90..V;LN8#,9#,RN8#,YN8#,9#

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-26020

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-40020

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26080

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-35010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-35010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

RN90..V;LN8#,9#,RN8#,YN8#,9#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-35080

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90102-12006

LN8#,9#,RN8#,90,YN8#,9#

FRONT

 1
90102-12011

LN8#,9#,RN8#,90,YN8#,9#

REAR

 1
47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90102-12011

LN8#,9#,RN8#,90,YN8#,9#

REAR

 1
90102-12006

LN8#,9#,RN8#,90,YN8#,9#

FRONT

 1
47781H - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90171-12006

LN85,YN80,85..GEN

W(FR DISC BRAKE)

 2
47781J - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90171-12006

LN85,YN80,85..GEN

W(FR DISC BRAKE)

 2
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-35080

RN90..V;LN8#,9#,RN8#,YN8#,9#

 1
Common parts
90201-12019
91611-60814
95381-03020
