YN80R-TRMRST (1993)

Toyota Hilux 2wd

Production Mar 1993 - Apr 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

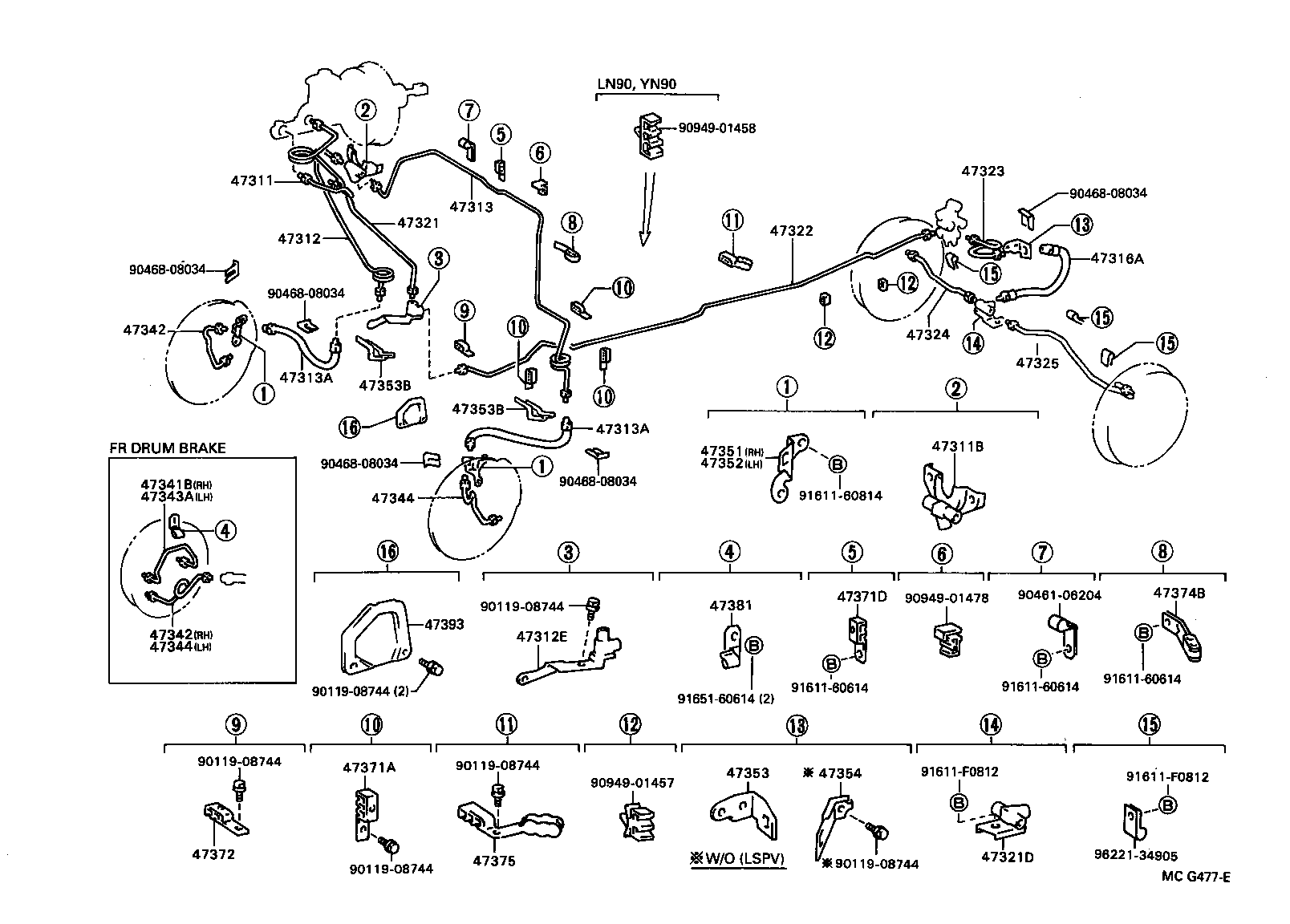

ILLUST NO. 1 OF 2(8808-9909)RHD..GEN,TH

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47316A 47321 47321D 47322 47323 47324 47325 47341B 47342 47342 47343A 47344 47344 47351 47352 47353 47353B 47353B 47354 47371A 47371D 47372 47374B 47375 47381 47393 9011908744 9011908744 9011908744 9011908744 9011908744 9011908744 9046106204 9046808034 9046808034 9046808034 9046808034 9046808034 9094901457 9094901458 9094901478 9161160614 9161160614 9161160614 9161160814 91611F0812 91611F0812 9165160614 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35460

YN80,85,87,9#..RHD

W(FR DISC BRAKE)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

YN80,85..GEN;YN87,92..LHD;LN8#,9#,RN125,8#,90,YN81,86

 1
90413-10226

YN87,92..RHD;YN80,85,90..ARL,TH

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D130

RN85,YN87,92..RHD..(GEN,TH);LN80,85,90,YN80,85,90..RHD..TH

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN8#,90,RN8#,90,YN8#,9#..GEN,TH,V

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35630

YN87,92..RHD;YN80,85,90..ARL,TH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02581

LN8#,90,RN8#,90,YN8#,9#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02581

LN8#,90,RN8#,90,YN8#,9#

 2
47321 - TUBE, REAR BRAKE, NO.1
47321-35460

YN87,92..RHD;YN80,85,90..ARL,TH

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35490

LN80,81,RN80,YN80,81..TH,V

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35100

LN8#,9#,RN8#,90,YN8#,9#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35230

RN90..V;LN8#,90,RN8#,YN8#,9#

 1
47324-35200

RN90..V;LN8#,90,RN8#,YN8#,9#

 1
47324-35230

RN90..V;RN85,YN92;LN8#,90,RN80,YN8#,90..ARL,TH,V

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35210

LN8#,90,RN8#,YN8#,92

 1
47325-35250

RN85,YN92..ARL,GEN;LN80,85,86,90,YN80,85,90..ARL,TH

 1
47325-35250

LN80,85,86,90,RN85,YN80,85,9#..ARL,GEN,TH

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35110

LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,90,YN80,81,85,90..ARL,TH,V

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35110

LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,90,YN80,81,85,90..ARL,TH,V

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35110

LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,90,YN80,81,85,90..ARL,TH,V

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35110

LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,90,YN80,81,85,90..ARL,TH,V

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35170

RN90..V;LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,YN80,81,85,90..ARL,TH,V

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35190

RN90..V;LN86,90,RN85,YN86,87,92;LN80,81,85,91,RN80,YN80,81,85,90..ARL,TH,V

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35200

LN8#,9#,RN8#,90,YN8#,9#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35070

RN85,YN85,86,87;LN8#,90,RN80,YN80,81..T1

 3
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080

LN8#,90,RN125,8#,90,YN8#,9#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030

LN8#,90,RN125,8#,90,YN8#,9#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35020

LN80,85,86,90,RN85,90,YN80,85,87,9#..RHD

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35100

RN8#,90,YN8#,9#..T1..CBR

 1
Common parts
90119-08744
90461-06204
90468-08034
90949-01457
90949-01458
90949-01478
91611-60614
91611-60814
91611-F0812
91651-60614
96221-34905
