RN90R-CRPSSQ (1988)

Toyota Hilux 2wd

Production Aug 1988 - Aug 1997
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN9#,RN90,YN9#

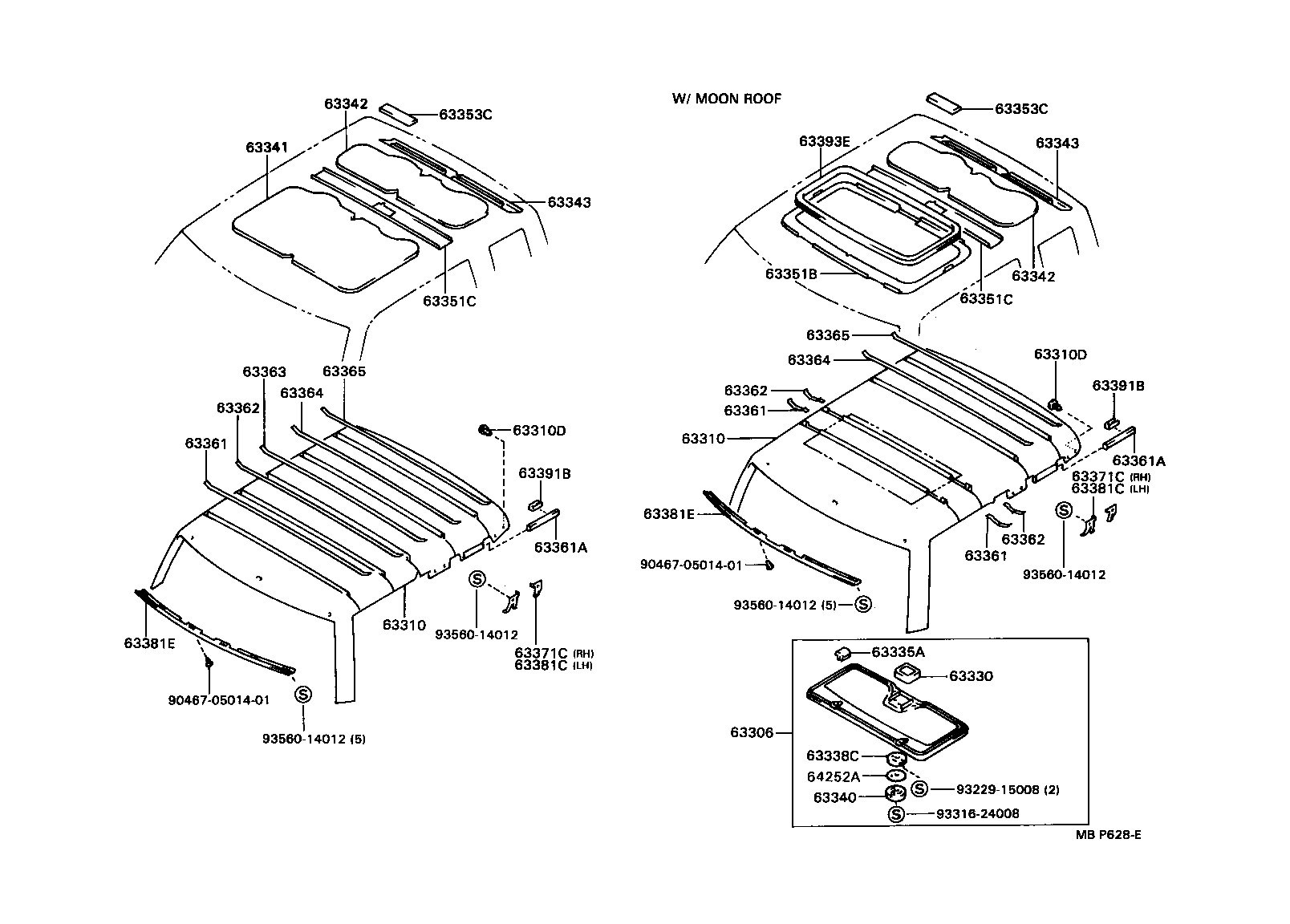

Click highlighted areas on diagram

diagram 63306 63310 63310 63310D 63310D 63330 63335A 63338C 63340 63341 63342 63342 63343 63343 63351B 63351C 63351C 63353C 63353C 63361 63361 63361 63361A 63361A 63362 63362 63362 63363 63364 63364 63365 63365 63371C 63371C 63381C 63381C 63381E 63381E 63391B 63391B 63393E 64252A 904670501401 904670501401 9322915008 9331624008 9356014012 9356014012 9356014012 9356014012
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-8910203

RN90

GRAY,TRIM1#

 1
63306-8910206

RN90

BROWN,TRIM4#

 1
63306-8910204

RN90

BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63311-8912606

LN90,RN90,YN92

BROWN,TRIM4#

 1
63311-8912604

LN90,RN90,YN92

BLUE,TRIM8#

 1
63311-8912703

RN90

W(MOON ROOF),GRAY,TRIM1#

 1
63311-8912706

RN90

W(MOON ROOF),BROWN,TRIM4#

 1
63311-8912704

RN90

W(MOON ROOF),BLUE,TRIM8#

 1
63311-89126J1

RN90..DLX;LN90,RN90,YN9#..ARL,GEN,TH

BLUE,TRIM8#

 1
63311-8912603

RN90..DLX;LN9#,RN90,YN9#..ARL,GEN,TH

GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63311-8912606

LN90,RN90,YN92

BROWN,TRIM4#

 1
63311-8912604

LN90,RN90,YN92

BLUE,TRIM8#

 1
63311-8912703

RN90

W(MOON ROOF),GRAY,TRIM1#

 1
63311-8912706

RN90

W(MOON ROOF),BROWN,TRIM4#

 1
63311-8912704

RN90

W(MOON ROOF),BLUE,TRIM8#

 1
63311-89126J1

RN90..DLX;LN90,RN90,YN9#..ARL,GEN,TH

BLUE,TRIM8#

 1
63311-8912603

RN90..DLX;LN9#,RN90,YN9#..ARL,GEN,TH

GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-10044E0

LN90,RN90,YN92

LIGHT BROWN,TRIM4#

 8
90467-1004433

LN90,RN90,YN92

GRAY,TRIM1#

 8
90467-1004414

LN90,RN90,YN92

BLUE,TRIM8#

 8
90467-1004416

LN90,RN90,YN92

BROWN,TRIM4#

 8
90467-10044J1

LN90,RN90,YN9#

LIGHT BLUE,TRIM8#

 8
90467-10044B0

LN90,RN90,YN92

SLATE GRAY,TRIM1#

 8
90467-10044J0

LN90,RN90,YN92

LIGHT BLUE,TRIM8#

 8
63310D - CLIP, ROOF HEADLINING
90467-10044E0

LN90,RN90,YN92

LIGHT BROWN,TRIM4#

 8
90467-1004433

LN90,RN90,YN92

GRAY,TRIM1#

 8
90467-1004414

LN90,RN90,YN92

BLUE,TRIM8#

 8
90467-1004416

LN90,RN90,YN92

BROWN,TRIM4#

 8
90467-10044J1

LN90,RN90,YN9#

LIGHT BLUE,TRIM8#

 8
90467-10044B0

LN90,RN90,YN92

SLATE GRAY,TRIM1#

 8
90467-10044J0

LN90,RN90,YN92

LIGHT BLUE,TRIM8#

 8
63330 - LOCK ASSY, SUNSHADE TRIM
63330-89101

RN90

 1
63335A - CUSHION, SUNSHADE TRIM, NO.1
63335-89102

RN90

 4
63338C - STOPPER, SUNSHADE LOCK, NO.2
63338-12010

RN90

 1
63340 - HANDLE ASSY, SUNSHADE TRIM LOCK
63340-1201004

RN90

BLUE,TRIM8#

 1
63340-1201006

RN90

BROWN,TRIM4#

 1
63340-1201023

RN90

GRAY,TRIM1#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-89121

LN9#,RN90,YN9#

 1
63342 - PAD, ROOF SILENCER, NO.2
63341-89118

LN9#,RN90,YN9#

 1
63342 - PAD, ROOF SILENCER, NO.2
63341-89118

LN9#,RN90,YN9#

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-89104

LN9#,RN90,YN9#

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-89104

LN9#,RN90,YN9#

 1
63351B - PAD, ROOF HEADLINING
63351-89107

RN90

 1
63351C - PAD, ROOF HEADLINING
63351-89108

LN9#,RN90,YN9#

 1
63351C - PAD, ROOF HEADLINING
63351-89108

LN9#,RN90,YN9#

 1
63353C - PAD, ROOF HEADLINING, CENTER
63353-89101

RN90

 1
63353C - PAD, ROOF HEADLINING, CENTER
63353-89101

RN90

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-89113

RN90

W(MOON ROOF)

 2
63361-89115

LN90,RN90,YN92

 1
63361-89116

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-89113

RN90

W(MOON ROOF)

 2
63361-89115

LN90,RN90,YN92

 1
63361-89116

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-89113

RN90

W(MOON ROOF)

 2
63361-89115

LN90,RN90,YN92

 1
63361-89116

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
63361A - SUPPORT, ROOF HEADLINING
63361-89122

LN9#,RN90,YN9#

 2
63361A - SUPPORT, ROOF HEADLINING
63361-89122

LN9#,RN90,YN9#

 2
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-89113

RN90

W(MOON ROOF)

 2
63361-89115

LN9#,RN90,YN9#

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-89113

RN90

W(MOON ROOF)

 2
63361-89115

LN9#,RN90,YN9#

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-89113

RN90

W(MOON ROOF)

 2
63361-89115

LN9#,RN90,YN9#

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-89115

LN9#,RN90,YN9#

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63361-89121

RN90

 1
63361-89117

LN90,RN90,YN92

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63361-89121

RN90

 1
63361-89117

LN90,RN90,YN92

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63361-89117

LN90,RN90,YN92

MARK=BLUE

 1
63361-89117

RN90

W(MOON ROOF)

 1
63361-89121

LN90,RN90,YN92

MARK=YELLOW

 1
63361-89117

LN90,RN90,YN92

 1
63365 - SUPPORT, ROOF HEADLINING, NO.5
63361-89117

LN90,RN90,YN92

MARK=BLUE

 1
63361-89117

RN90

W(MOON ROOF)

 1
63361-89121

LN90,RN90,YN92

MARK=YELLOW

 1
63361-89117

LN90,RN90,YN92

 1
63371C - RETAINER, ROOF HEADLINING, NO.1 RH
63371-89102

LN9#,RN90,YN9#

 2
63371C - RETAINER, ROOF HEADLINING, NO.1 RH
63371-89102

LN9#,RN90,YN9#

 2
63381C - RETAINER, ROOF HEADLINING, NO.1 LH
63374-89102

LN9#,RN90,YN9#

 2
63381C - RETAINER, ROOF HEADLINING, NO.1 LH
63374-89102

LN9#,RN90,YN9#

 2
63391B - CLIP, ROOF HEADLINING TRIM
63391-89104

LN9#,RN90,YN9#

 2
63391B - CLIP, ROOF HEADLINING TRIM
63391-89104

LN9#,RN90,YN9#

 2
63393E - TRIM, ROOF HEADLINING
63393-8910404

RN90

BLUE,TRIM8#

 1
63393-8910406

RN90

BROWN,TRIM4#

 1
63393-8910423

RN90

GRAY,TRIM1#

 1
64252A - SPACER, SUNSHADE TRIM LOCK
64252-17010

RN90

 1
Common parts
90467-0501401
93229-15008
93316-24008
93560-14012
