RN85R-PRMRS (1991)
Toyota Hilux 2wd

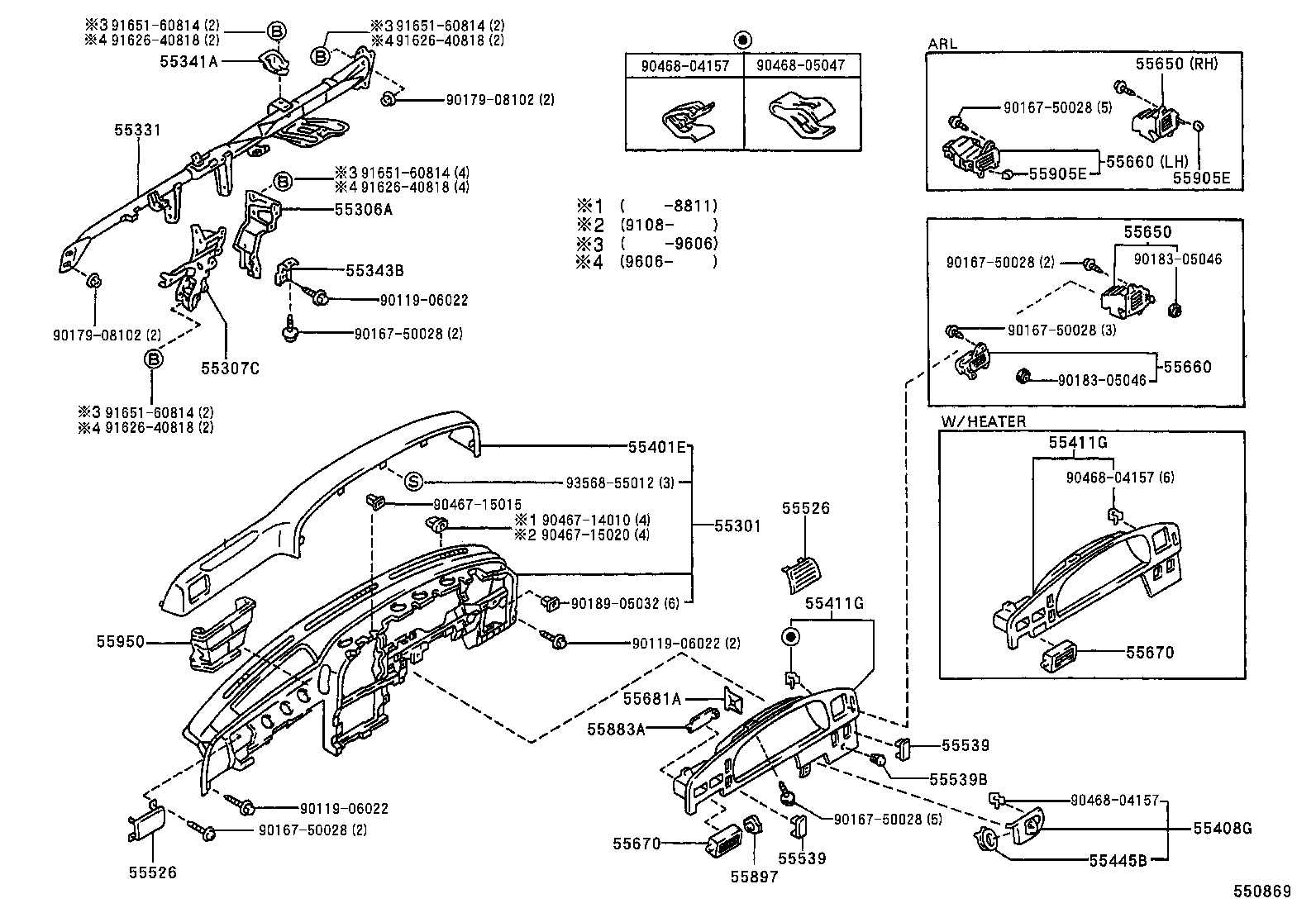

ILLUST NO. 1 OF 2(8808-9909)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-8912304 |
LN8#,RN85,90,YN85,87,92..RHD BLUE,TRIM8# |
1 | ||
| 55301-8912306 |
LN8#,RN85,90,YN85,87,92..RHD BROWN,TRIM4# |
1 | ||
| 55301-8912303 |
LN8#,RN85,90,YN85,87,92..RHD GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-89106 |
LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-89108 |
LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-89118 |
LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD |
1 | ||
| 55341A - BRACE, INSTRUMENT PANEL TO COWL, UPPER | ||||
| 55341-89104 |
LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-89102 |
LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-8912306 |
LN8#,RN85,90,YN85,87,92..RHD BROWN,TRIM4# |
1 | ||
| 55401-8912303 |
LN8#,RN85,90,YN85,87,92..RHD GRAY,TRIM1# |
1 | ||
| 55401-8912304 |
LN8#,RN85,90,YN85,87,92..RHD BLUE,TRIM8# |
1 | ||
| 55408G - BEZEL SUB-ASSY, STARTER SWITCH | ||||
| 55408-89104 |
LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-89114 |
LN80,85,9#,RN85,YN80,85,87,9#..RHD..(GEN,TH) |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-89114 |
LN80,85,9#,RN85,YN80,85,87,9#..RHD..(GEN,TH) |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-89103 |
LN86..ARL,V;LN80,81,85,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 55526 - COVER, INSTRUMENT PANEL REGISTER OPENING | ||||
| 55526-89110 |
LN80,85,YN85,87,92..RHD..GEN DRIVER SIDE |
1 | ||
| 55526-8911103 |
LN80,85,YN85,87,92..RHD..GEN GRAY,TRIM1#,PASSENGER SIDE |
1 | ||
| 55526-8911106 |
LN80,85,YN85,87,92..RHD..GEN BROWN,TRIM4#,PASSENGER SIDE |
1 | ||
| 55526-8911104 |
LN80,85,YN85,87,92..RHD..GEN BLUE,TRIM8#,PASSENGER SIDE |
1 | ||
| 55526 - COVER, INSTRUMENT PANEL REGISTER OPENING | ||||
| 55526-89110 |
LN80,85,YN85,87,92..RHD..GEN DRIVER SIDE |
1 | ||
| 55526-8911103 |
LN80,85,YN85,87,92..RHD..GEN GRAY,TRIM1#,PASSENGER SIDE |
1 | ||
| 55526-8911106 |
LN80,85,YN85,87,92..RHD..GEN BROWN,TRIM4#,PASSENGER SIDE |
1 | ||
| 55526-8911104 |
LN80,85,YN85,87,92..RHD..GEN BLUE,TRIM8#,PASSENGER SIDE |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-89105 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-89105 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-89104 |
RN8#,90..GEN,V;LN8#,YN8#,92..(DLX,STD)..(GEN,TH,V) |
1 | ||
| 55539-89104 |
LN86..V;RN85..LHD;LN80,81,85,RN80,90,YN8#,92..GEN,TH,V |
1 | ||
| 55539-89104 |
LN8#,RN8#,90,YN8#,92..GEN,TH,V |
1 | ||
| 55539-89104 |
LN8#,90,RN8#,YN8#,92..GEN,TH,V |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-89113 |
LN80,85,9#,RN85,YN80,85,87,9#..RHD..(GEN,TH) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-89113 |
LN80,85,9#,RN85,YN80,85,87,9#..RHD..(GEN,TH) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-8910803 |
LN80,85,90,RN85,YN80,85,87,92..RHD..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 55660-8910804 |
LN80,85,90,RN85,YN80,85,87,92..RHD..(GEN,TH) BLUE,TRIM8# |
1 | ||
| 55660-8910806 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) BROWN,TRIM4# |
1 | ||
| 55660-89108J0 |
LN80,85,90,RN85,YN80,85,90..RHD..(GEN,TH) MEDIUM BLUE,TRIM8# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-8910803 |
LN80,85,90,RN85,YN80,85,87,92..RHD..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 55660-8910804 |
LN80,85,90,RN85,YN80,85,87,92..RHD..(GEN,TH) BLUE,TRIM8# |
1 | ||
| 55660-8910806 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) BROWN,TRIM4# |
1 | ||
| 55660-89108J0 |
LN80,85,90,RN85,YN80,85,90..RHD..(GEN,TH) MEDIUM BLUE,TRIM8# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-89116 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) W(HEATER) |
2 | ||
| 55670-89118 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-89116 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) W(HEATER) |
2 | ||
| 55670-89118 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) |
2 | ||
| 55681A - SUPPORT, INSTRUMENT PANEL REGISTER | ||||
| 55681-89102 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) |
1 | ||
| 55883A - DAMPER, AIR | ||||
| 55883-89102 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) |
2 | ||
| 55897 - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-89108 |
LN80,85,90,YN80,85,87,92..RHD..(GEN,TH) |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-89109 |
LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90167-50028 | ||||
| 90179-08102 | ||||
| 90183-05046 | ||||
| 90189-05032 | ||||
| 90467-14010 | ||||
| 90467-15015 | ||||
| 90467-15020 | ||||
| 90468-04157 | ||||
| 90468-05047 | ||||
| 91626-40818 | ||||
| 91651-60814 | ||||
| 93568-55012 | ||||

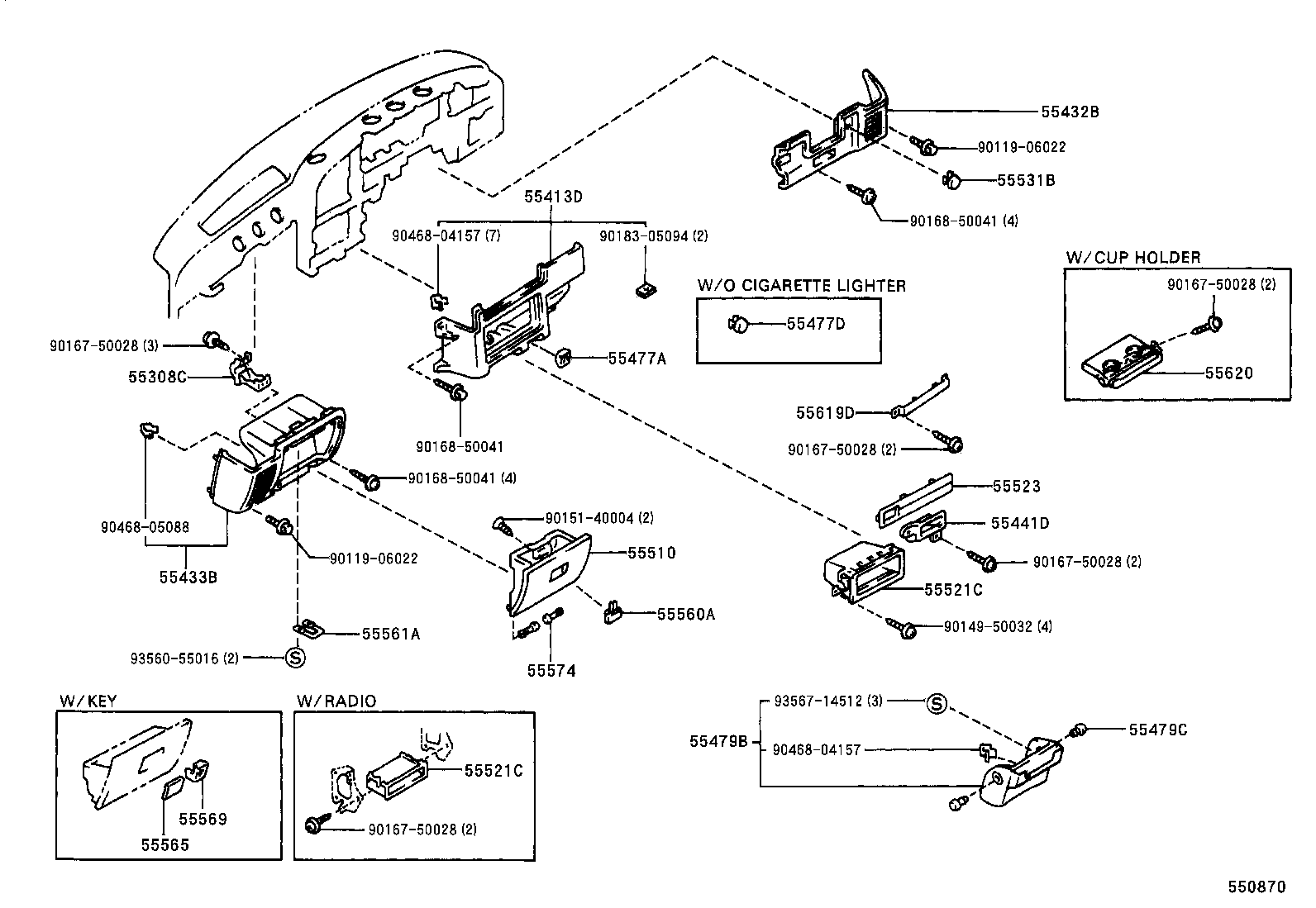

ILLUST NO. 2 OF 2(8808-0106)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-89109 |
LN85,RN125..LHD..(TH,V);LN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-8910303 |
LN8#,RN85,90,YN85,87,92..RHD GRAY,TRIM1# |
1 | ||
| 55413-8910304 |
LN8#,RN85,90,YN85,87,92..RHD BLUE,TRIM8# |
1 | ||
| 55413-8910306 |
LN8#,RN85,90,YN85,87,92..RHD BROWN,TRIM4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-8911503 |
LN8#,RN85,90,YN85,87,92..RHD GRAY,TRIM1# |
1 | ||
| 55432-8911504 |
LN8#,RN85,90,YN85,87,92..RHD BLUE,TRIM8# |
1 | ||
| 55432-8911506 |
LN8#,RN85,90,YN85,87,92..RHD BROWN,TRIM4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-8910903 |
LN8#,RN85,90,YN85,87,92..RHD GRAY,TRIM1# |
1 | ||
| 55433-8910904 |
LN8#,RN85,90,YN85,87,92..RHD BLUE,TRIM8# |
1 | ||
| 55433-8910906 |
LN8#,RN85,90,YN85,87,92..RHD BROWN,TRIM4# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-89105 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 55477D - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10050J0 |
LN8#,90,RN125,8#,YN8#,92..DLX,STD BLUE,TRIM8# |
1 | ||
| 55477-10050J0 |
YN80,85..GEN,TH;LN80,85,RN85..STD..(DSL,EFI) BLUE,TRIM8# |
1 | ||
| 55477-1005043 |
LN8#,90,RN125,8#,YN8#,92..DLX,STD BROWN,TRIM4# |
1 | ||
| 55477-10050B0 |
LN8#,90,RN125,8#,YN8#,92..DLX,STD GRAY,TRIM1# |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-8910303 |
LN8#,RN85,90,YN85,87,92..RHD GRAY,TRIM1# |
1 | ||
| 55479-8910306 |
LN8#,RN85,90,YN85,87,92..RHD BROWN,TRIM4# |
1 | ||
| 55479-8910304 |
LN8#,RN85,90,YN85,87,92..RHD BLUE,TRIM8# |
1 | ||
| 55407-35020J0 |
LN80,85,86,90,RN85,90,YN80,85,90..RHD BLUE,TRIM8# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-0704110 |
LN8#,RN85,90,YN85,87,92..RHD MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704101 |
LN8#,90,RN85,90,YN80,85,87,92..RHD BLACK,TRIM1#,4#,8# |
2 | ||
| 90467-0704156 |
LN8#,RN85,90,YN85,87,92..RHD BROWN,TRIM4# |
2 | ||
| 90467-07041B2 |
LN8#,9#,RN125,8#,90,YN8#,9# MEDIUM GRAY,TRIM1# |
2 | ||
| 90467-0704144 |
LN8#,RN85,90,YN85,87,92..RHD BLUE,TRIM8# |
2 | ||
| 90467-07041J1 |
LN8#,90,RN125,8#,90,YN8#,9# MEDIUM BLUE,TRIM8# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-8910103 |
LN8#,90,RN8#,90,YN8#,92 GRAY,TRIM1# |
1 | ||
| 55550-8910106 |
LN8#,90,RN8#,90,YN8#,92 BROWN,TRIM4# |
1 | ||
| 55550-8910104 |
LN8#,90,RN8#,90,YN8#,92 BLUE,TRIM8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
LN85..SR5;LN85,YN85..LHD..GEN;RN90,YN80..ARL,GEN,V;LN81,86,9#,RN125,8#,YN81,86,9#..GEN,TH,V |
1 | ||
| 55521-89102 |
RN85..ARL;LN85..LHD..TH;LN80,85,86,YN80,85,87,92..RHD..(DLX,STD) W(RADIO) |
1 | ||
| 55521-89103 |
RN85..ARL;LN85..LHD..TH;LN80,85,86,YN80,85,87,92..RHD..(DLX,STD) |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
LN85..SR5;LN85,YN85..LHD..GEN;RN90,YN80..ARL,GEN,V;LN81,86,9#,RN125,8#,YN81,86,9#..GEN,TH,V |
1 | ||
| 55521-89102 |
RN85..ARL;LN85..LHD..TH;LN80,85,86,YN80,85,87,92..RHD..(DLX,STD) W(RADIO) |
1 | ||
| 55521-89103 |
RN85..ARL;LN85..LHD..TH;LN80,85,86,YN80,85,87,92..RHD..(DLX,STD) |
1 | ||
| 55523 - COVER, HEATER CONTROL OPENING | ||||
| 55523-89117 |
LN80,85,YN80,85,87,92..RHD..(DLX,STD)..(GEN,TH) W(DIGITAL CLOCK) |
1 | ||
| 55523-89116 |
LN80,85,YN80,85,87,92..RHD..(DLX,STD)..(GEN,TH) |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-89105J0 |
YN85..ARL;RN125,8#,90,YN81,86 MEDIUM BLUE,TRIM8# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-8910303 |
LN8#,90,RN85,YN80,85,87,92..ARL,GEN GRAY,TRIM1# |
1 | ||
| 55560-8910304 |
LN8#,90,RN85,YN80,85,87,92..ARL,GEN BLUE,TRIM8# |
1 | ||
| 55560-8910306 |
LN8#,90,RN85,YN80,85,87,92..ARL,GEN BROWN,TRIM4# |
1 | ||
| 55560-89103B0 |
RN85..ARL;LN85..LHD..GEN;LN85..RHD..STD;RN85..RHD..GEN..IV3;LN80,86,YN80,85,92..ARL,GEN MEDIUM GRAY,TRIM1# |
1 | ||
| 55560-89103B0 |
LN85..RHD;RN85..ARL;RN85..RHD..GEN..IV3;LN80,86,YN80,85,92..ARL,GEN;LN85,RN85..LHD..(DSL,EFI)..GEN MEDIUM GRAY,TRIM1# |
1 | ||
| 55560-89103J0 |
RN85..ARL;LN85..LHD..GEN;LN85..RHD..STD;RN85..RHD..GEN..IV3;LN80,86,YN80,85,92..ARL,GEN MEDIUM BLUE,TRIM8# |
1 | ||
| 55560-89103J0 |
LN85..RHD;RN85..ARL;RN85..RHD..GEN..IV3;LN80,86,YN80,85,92..ARL,GEN;LN85,RN85..LHD..(DSL,EFI)..GEN MEDIUM BLUE,TRIM8# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-89104 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-89101S4 |
LN86,RN85..LHD..T1;LN86,RN85..TW1..(DLX,STD);LN80,81,85,RN125,80,YN8#,92..(DLX,STD)..(GEN,TH,V) GRAY,TRIM1# |
1 | ||
| 55565-89101R9 |
LN85..GEN;LN85..SR5;YN85..GEN,TH;RN85..LHD..T1;LN86,RN85..TW1;LN85,86..LHD..T1..(TH,V);LN80,81,90,RN125,80,90,YN80,81,86,92 BLUE,TRIM8# |
1 | ||
| 55565-89101S4 |
LN86,RN85..LHD..T1..STD;LN86,RN85..TW1..(DLX,STD);LN80,81,85,RN125,80,YN8#,92..(DLX,STD)..(GEN,TH,V) GRAY,TRIM1# |
1 | ||
| 55565-89101S4 |
LN86,RN85..LHD..T1;LN86,RN85..TW1..(DLX,STD);LN80,81,85,RN125,80,90,YN8#,92..(DLX,STD)..(GEN,TH,V) GRAY,TRIM1# |
1 | ||
| 55565-89101S4 |
YN85..GEN;LN86..T1..V;LN86..T1..DLX;RN85..LHD..T1;LN86,RN85..TW1;LN80,81,85,9#,RN80,90,YN80,81,86,9# GRAY,TRIM1# |
1 | ||
| 55565-89101S4 |
LN85..GEN;RN85..LHD..T1;LN85,86..LHD..T1..(TH,V);LN86,RN85..TW1..(DLX,STD);LN80,81,RN125,80,90,YN8#,92..(DLX,STD)..(GEN,TH,V) GRAY,TRIM1# |
1 | ||
| 55565-89101R9 |
YN85..GEN,TH;LN86,RN85..TW1;LN86,RN85..LHD..T1;LN80,81,85,90,RN125,80,90,YN80,81,86,92 BLUE,TRIM8# |
1 | ||
| 55565-89101R9 |
YN85..GEN,TH;LN86,RN85..TW1;LN86,RN85..LHD..T1;LN80,81,85,90,RN125,80,90,YN80,81,86,9# BLUE,TRIM8# |
1 | ||
| 55565-89101S4 |
YN85..GEN,TH;LN86,RN85..TW1;LN86,RN85..LHD..T1;LN80,81,85,90,RN80,90,YN80,81,86,9# GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-89101S4 |
YN86..DLX;RN85..LHD..IV3;RN85..(DLX,STD)..(GEN,V)..CBU;LN80,85,RN125,80,YN80,85..(DLX,STD)..(GEN,TH,V) GRAY,TRIM1# |
1 | ||
| 55569-89101S4 |
YN86..DLX;RN85..T1..V;RN85..LHD..IV3;RN85..(DLX,STD)..(GEN,V)..CBU;LN80,85,RN125,80,YN80,85..(DLX,STD)..(GEN,TH,V) GRAY,TRIM1# |
1 | ||
| 55569-89101S4 |
RN85..T1..V;RN85..LHD..IV3;RN90,YN86..(DLX,SR5)..V;RN85..(DLX,STD)..(GEN,V)..CBU;LN80,85,RN125,80,YN80,85..(DLX,STD)..(GEN,TH,V) GRAY,TRIM1# |
1 | ||
| 55569-89101S4 |
YN86..DLX;YN85..GEN,TH;RN85..LHD..IV3;RN85..(GEN,V)..CBU;LN80,85,90,RN80,90,YN80,90 GRAY,TRIM1# |
1 | ||
| 55569-89101R9 |
YN85..GEN,TH;LN86,RN85..TW1;LN86,RN85..LHD..T1;LN80,81,85,90,RN125,80,90,YN80,81,86,92 BLUE,TRIM8# |
1 | ||
| 55569-89101S4 |
LN85..GEN;RN85..LHD..IV3;RN90,YN86..(DLX,SR5)..V;LN85,RN85..LHD..T1..(TH,V);RN85..(DLX,STD)..(GEN,V)..CBU;LN80,RN125,80,YN80,85..(DLX,STD)..(GEN,TH,V) GRAY,TRIM1# |
1 | ||
| 55569-89101R9 |
LN85..GEN;LN85..SR5;YN85..GEN,TH;RN85..LHD..T1;LN86,RN85..TW1;LN85,86..LHD..T1..(TH,V);LN80,81,90,RN125,80,90,YN80,81,86,92 BLUE,TRIM8# |
1 | ||
| 55569-89101S4 |
YN85..GEN;LN86..T1..V;LN86..T1..DLX;RN85..LHD..T1;LN86,RN85..TW1;LN80,81,85,9#,RN80,90,YN80,81,86,9# GRAY,TRIM1# |
1 | ||
| 55569-89101R9 |
YN85..GEN,TH;LN86,RN85..TW1;LN86,RN85..LHD..T1;LN80,81,85,90,RN125,80,90,YN80,81,86,9# BLUE,TRIM8# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
LN8#,9#,RN125,8#,90,YN8#,9# |
2 | ||
| 55619D - COVER, CUP HOLDER HOLE | ||||
| 55619-89101 |
RN125;LN80,85,90,RN85,YN80,85,87,92..RHD |
1 | ||
| 55619-89101 |
RN90..V;LN8#,90,RN8#,YN8#,92 |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-89103 |
LN85,90..SR5;YN85..RHD..GEN;LN80,85,RN90..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90149-50032 | ||||
| 90151-40004 | ||||
| 90167-50028 | ||||
| 90168-50041 | ||||
| 90183-05094 | ||||
| 90468-04157 | ||||
| 90468-05088 | ||||
| 93560-55016 | ||||
| 93567-14512 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
