RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN125,8#,90

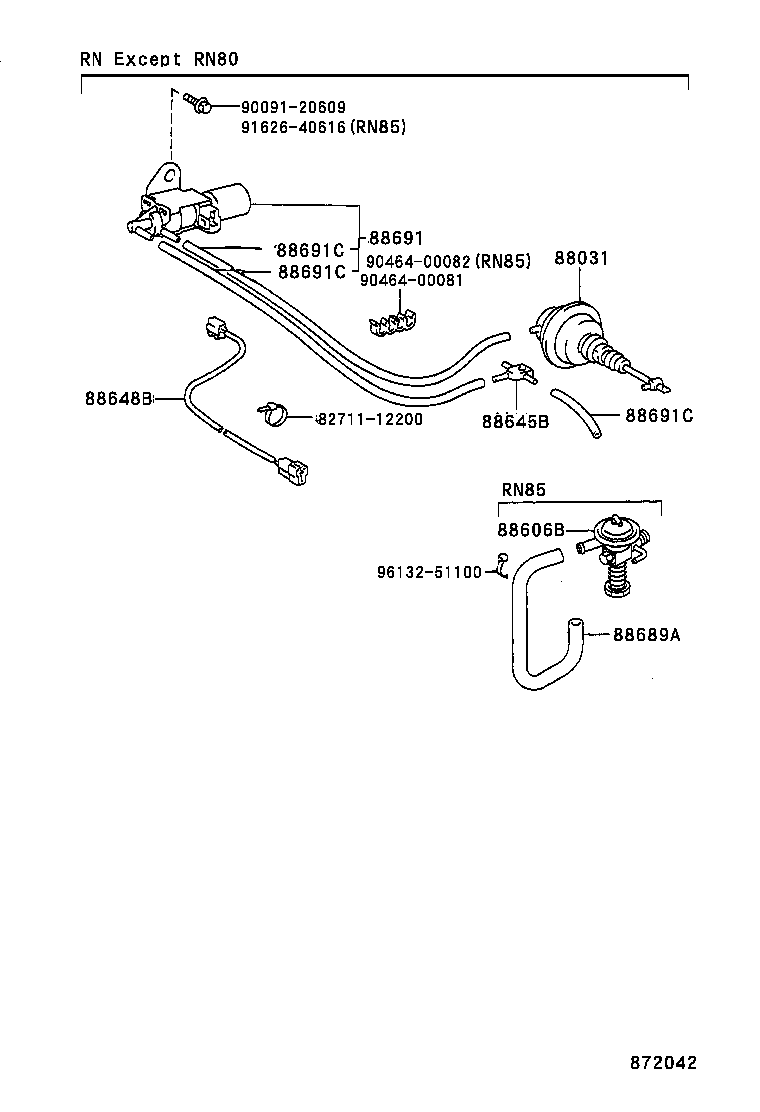

Click highlighted areas on diagram

diagram 8271112200 88031 88606B 88645B 88648B 88689A 88691 88691C 88691C 88691C 9009120609 9046400081 9046400082 9162640616 9613251100
Part # Description Qty Price
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-35020

RN85..EFI

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-20390

RN85..EFI

L=200

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89132

RN85..EFI

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LN85,86,RN8#,90

*H,L=300,MARK=#*

 1
90999-92002

RN85..EFI

*H,L=260,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LN85,86,RN8#,90

*H,L=300,MARK=#*

 1
90999-92002

RN85..EFI

*H,L=260,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

LN85,86,RN8#,90

*H,L=300,MARK=#*

 1
90999-92002

RN85..EFI

*H,L=260,MARK=#0

 1
Common parts
82711-12200
90091-20609
90464-00081
90464-00082
91626-40616
96132-51100
