RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

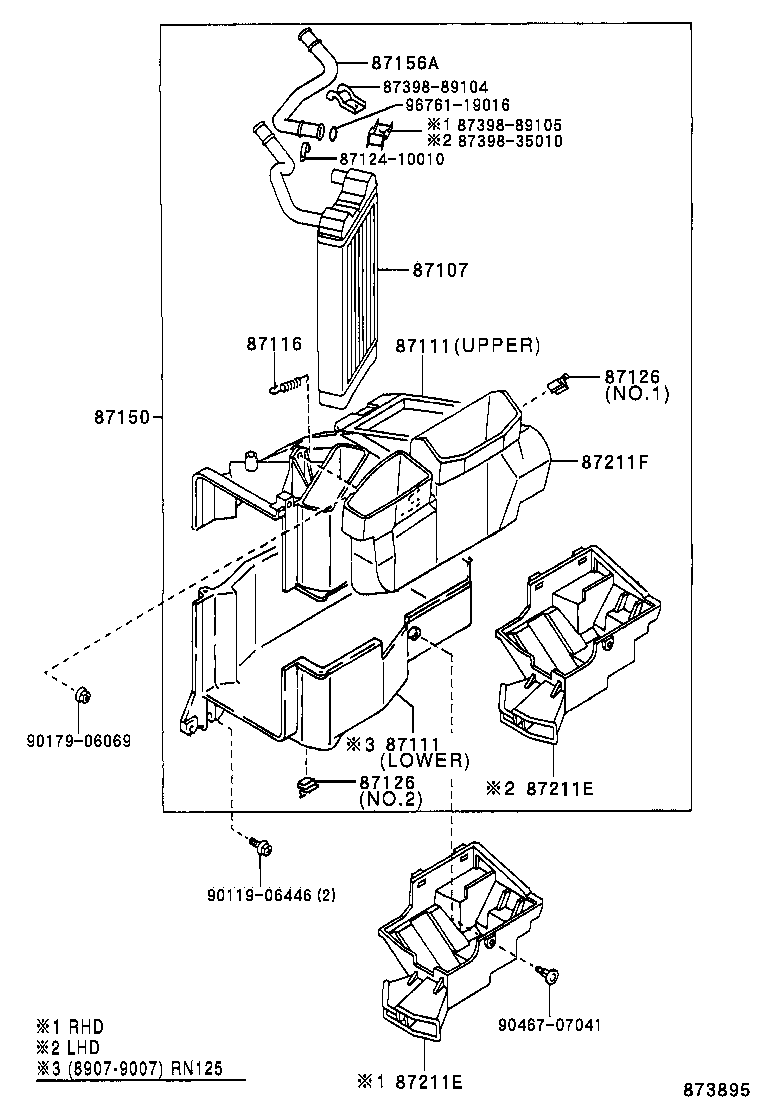

RADIATOR

diagram 87107 87111 87111 87116 8712410010 87126 87126 87150 87156A 87211E 87211E 87211F 8739835010 8739889104 8739889105 9011906446 9017906069 9046707041 9676119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-89116

LN81,85,86,90,RN8#,YN8#,92..LHD

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

LN8#,90,RN125,8#,90,YN8#,92

NO.1

 2
87126-89101

LN8#,90,RN125,8#,90,YN8#,92

NO.2

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

LN8#,90,RN125,8#,90,YN8#,92

NO.1

 2
87126-89101

LN8#,90,RN125,8#,90,YN8#,92

NO.2

 1
87150 - RADIATOR ASSY, HEATER
87150-89114

LN85,90,RN8#,YN8#,92..LHD

 1
87156A - CONNECTOR, HEATER WATER HOSE
87156-34010

LN85,90,RN8#,YN8#,92..LHD

 1
87211E - DUCT, AIR
87211-89116

LN81,85,86,90,RN8#,YN8#,92..LHD

 1
87211E - DUCT, AIR
87211-89116

LN81,85,86,90,RN8#,YN8#,92..LHD

 1
Common parts
87124-10010
87398-35010
87398-89104
87398-89105
90119-06446
90179-06069
90467-07041
96761-19016

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

BLOWER

diagram 87103 87105 87126 87130 87138 87211L 9011906446 9017906069
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-89101

LN81,85,86,90,RN8#,YN8#,92..LHD

 1
87103-17020

RN85..EFI;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,90,YN8#,92..LHD

DENSO

 1
87103-17020

LN81,85,86,RN8#,90,YN8#,92..LHD

DENSO

 1
87103-04021

RN85..EFI;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,90,YN8#,92..LHD

DENSO USA

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32020

LN85,90,RN8#,YN8#,92..LHD

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

LN8#,90,RN125,8#,90,YN8#,92

NO.1

 2
87126-89101

LN8#,90,RN125,8#,90,YN8#,92

NO.2

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-89115

LN81,85,86,90,RN8#,YN8#,92..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-89105

LN81,85,86,90,RN8#,YN8#,92..LHD

 1
Common parts
90119-06446
90179-06069

ILLUST NO. 3 OF 3(8808- )LN8#,9#,RN125,8#,90,YN8#,9#..GEN,TH,V

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 87111 87111 87126 88910 9011906446 9017906026 9017906069
Part # Description Qty Price
87126 - CLAMP, HEATER CONTROL
87126-12050

LN8#,90,RN125,8#,90,YN8#,92

NO.1

 2
87126-89101

LN8#,90,RN125,8#,90,YN8#,92

NO.2

 1
88910 - VENTILATOR ASSY, BOOST
88910-89107

YN86..V;RN85..STD..V;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN80,81,85,87,92..LHD

 1
Common parts
90119-06446
90179-06026
90179-06069
