RN85L-TRMRE (1994)
Toyota Hilux 2wd

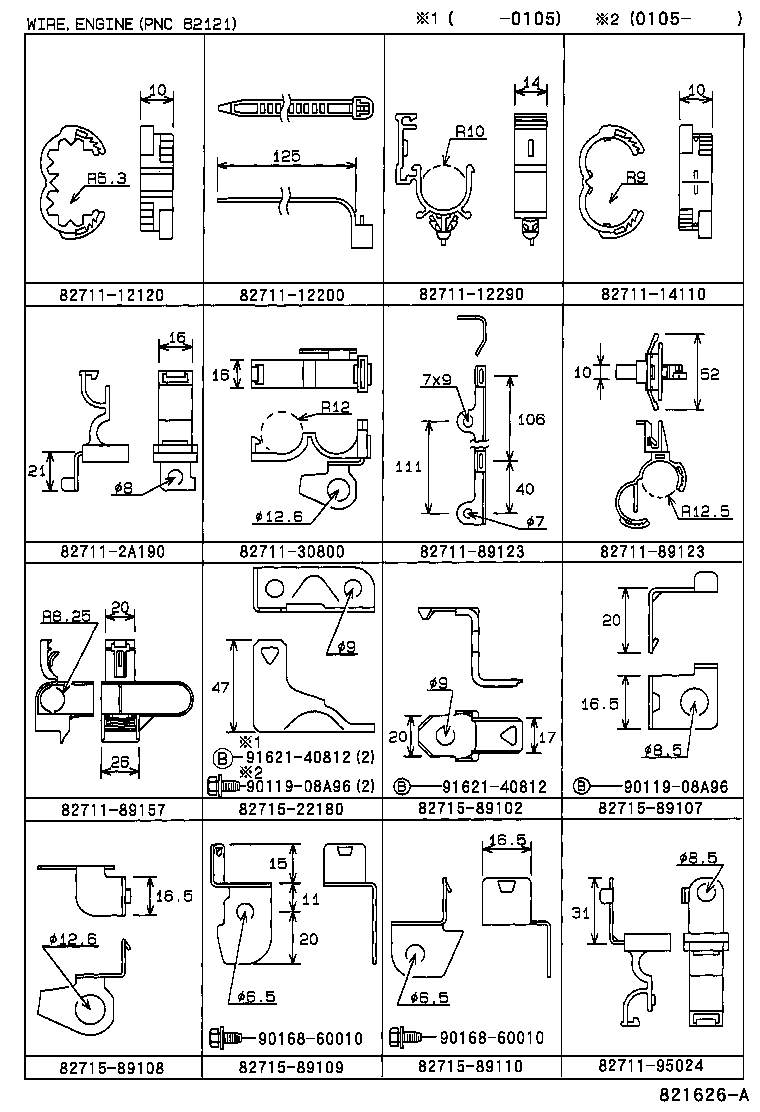

ILLUST NO. 4 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
ENGINE WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-14110 | ||||
| 82711-2A190 | ||||
| 82711-30800 | ||||
| 82711-89123 | ||||
| 82711-89157 | ||||
| 82711-95024 | ||||
| 82715-22180 | ||||
| 82715-89102 | ||||
| 82715-89107 | ||||
| 82715-89108 | ||||
| 82715-89109 | ||||
| 82715-89110 | ||||
| 90119-08A96 | ||||
| 90168-60010 | ||||
| 91621-40812 | ||||

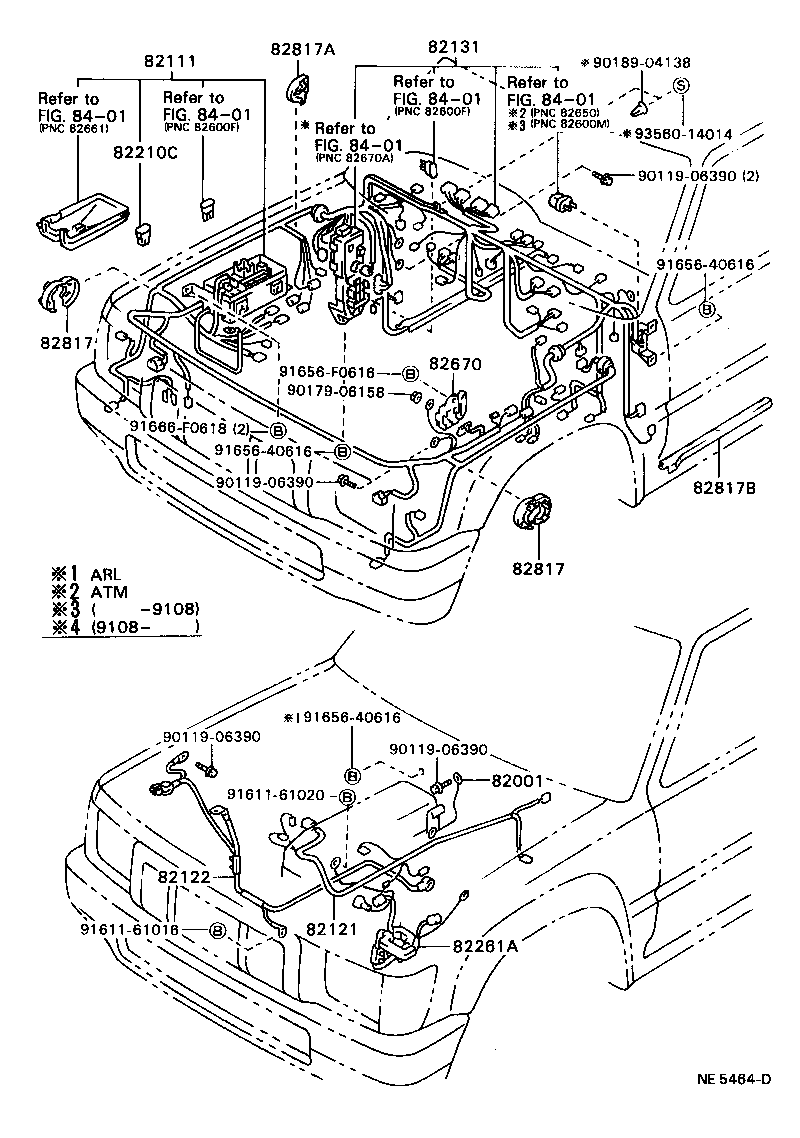

ILLUST NO. 1 OF 4(8808- )LN200,8#,9#,RZN200
ENGINE ROOM & INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07311 |
LN80,85,90..GEN |
1 | ||
| 90980-07108 |
RN125,8#,90 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-35190 |
RN85..EFI |
1 | ||
| 82111-35643 |
YN86..V;YN80,81,85,92..LHD |
1 | ||
| 82111-35191 |
RN85..EFI |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-35830 |
RN85..EFI |
1 | ||
| 82121-35831 |
RN85..EFI..CBU |
1 | ||
| 82121-35432 |
LN85..LHD..TH;LN80,81,85..GEN,V;LN86..5F..(ARL,V) |
1 | ||
| 82121-3D820 |
RN85..EFI..CBU COLUMBIA SPEC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-89103 |
YN86..TW1..DLX;YN80,85,92..GEN W(55D23R BATTERY) OR W(48D26R BATTERY) |
1 | ||
| 82123-89103 |
YN80,85,87,92..GEN W(55D23R BATTERY) OR W(48D26R BATTERY) |
1 | ||
| 82123-89103 |
YN80,85,92..GEN W(55D23R BATTERY) OR W(48D26R BATTERY) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-89653 |
YN80,85..LHD W(CLOCK OR LIGHTER) |
1 | ||
| 82131-89657 |
YN85..LHD..TW1;YN80,85..LHD..T1..CBU W(HEATER OR DISC BRAKE) |
1 | ||
| 82131-89652 |
YN80,85..LHD |
1 | ||
| 82131-89654 |
YN80,85..LHD W(DISC BRAKE) |
1 | ||
| 82131-89656 |
YN80,85..LHD W(HEATER OR BOOST VENTILATOR) |
1 | ||
| 82131-3D262 |
YN80,85..LHD W(CLOCK) OR W(CIGARETTE LIGHTER) |
1 | ||
| 82131-3N280 |
RN85..EFI |
1 | ||
| 82131-3D252 |
YN80,85..LHD |
1 | ||
| 82131-3D272 |
YN80,85..LHD W(DISC BRAKE & HEATER & BOOST VENTILATOR) |
1 | ||
| 82131-3N281 |
RN85..EFI |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
RN125;RN85..RHD;RN85..EFI;LN85,86,RN90,YN85..ARL 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08190 |
RN125,8#,90,YN8#,92 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08189 |
RN85..EFI 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08189 |
RN8#,90 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
RN8#,90;LN86,YN85..ARL 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08216 |
LN86,YN85..ARL;RN8#,90..GEN,V 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-89104 |
RN8#,90 |
1 | ||
| 82261-35301 |
RN85..EFI |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
LN8#,90,RN125,8#,90,YN8#,92 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
LN8#,90,RN125,8#,90,YN8#,92 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-89130 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-89126 |
LN80,85,86,9#,RN85,90,YN80,85,86,87,9#..ARL,GEN,TH |
1 | ||
| Common parts | ||||
| 82817-35850 | ||||
| 90119-06390 | ||||
| 90159-50304 | ||||
| 90189-04138 | ||||
| 91611-61014 | ||||
| 91611-61016 | ||||
| 91621-40814 | ||||
| 91635-60618 | ||||
| 91656-40616 | ||||
| 91666-F0618 | ||||
| 93385-15010 | ||||
| 93385-16010 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

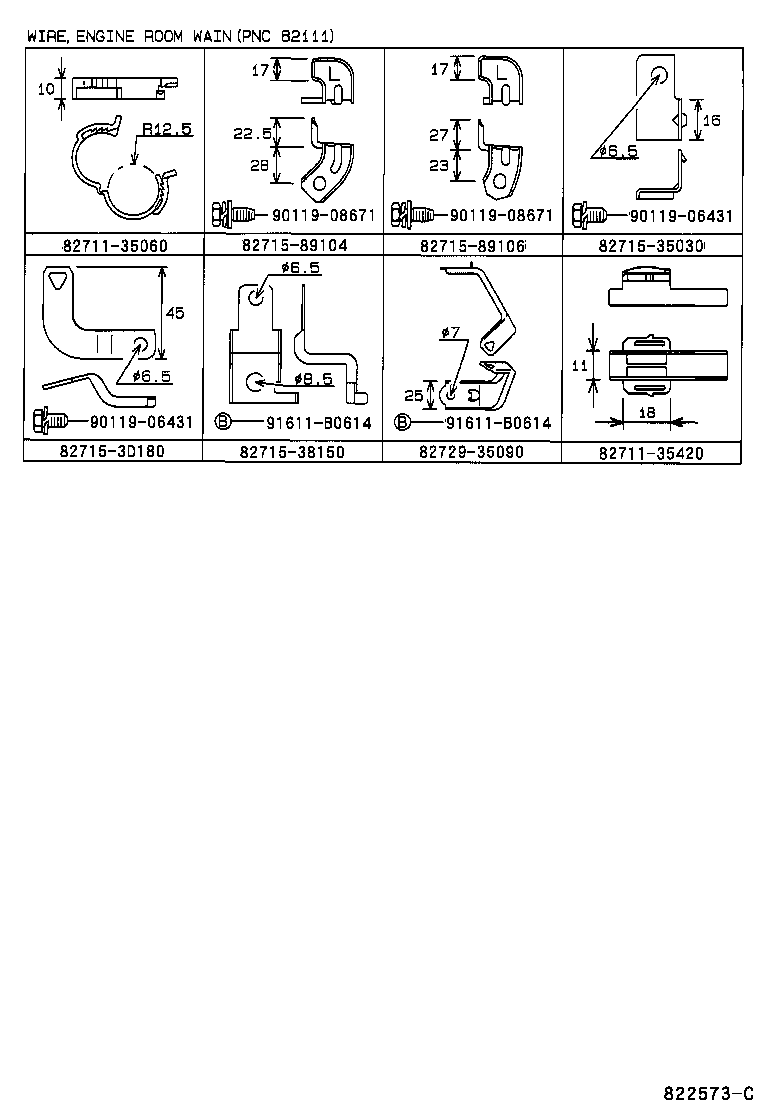

ILLUST NO. 4 OF 4(8808- )
ENGINE WIRE CLAMP & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35060 | ||||
| 82711-35420 | ||||
| 82715-35030 | ||||
| 82715-38150 | ||||
| 82715-3D180 | ||||
| 82715-89104 | ||||
| 82715-89106 | ||||
| 82729-35090 | ||||
| 90119-06431 | ||||
| 90119-08671 | ||||
| 91611-B0614 | ||||

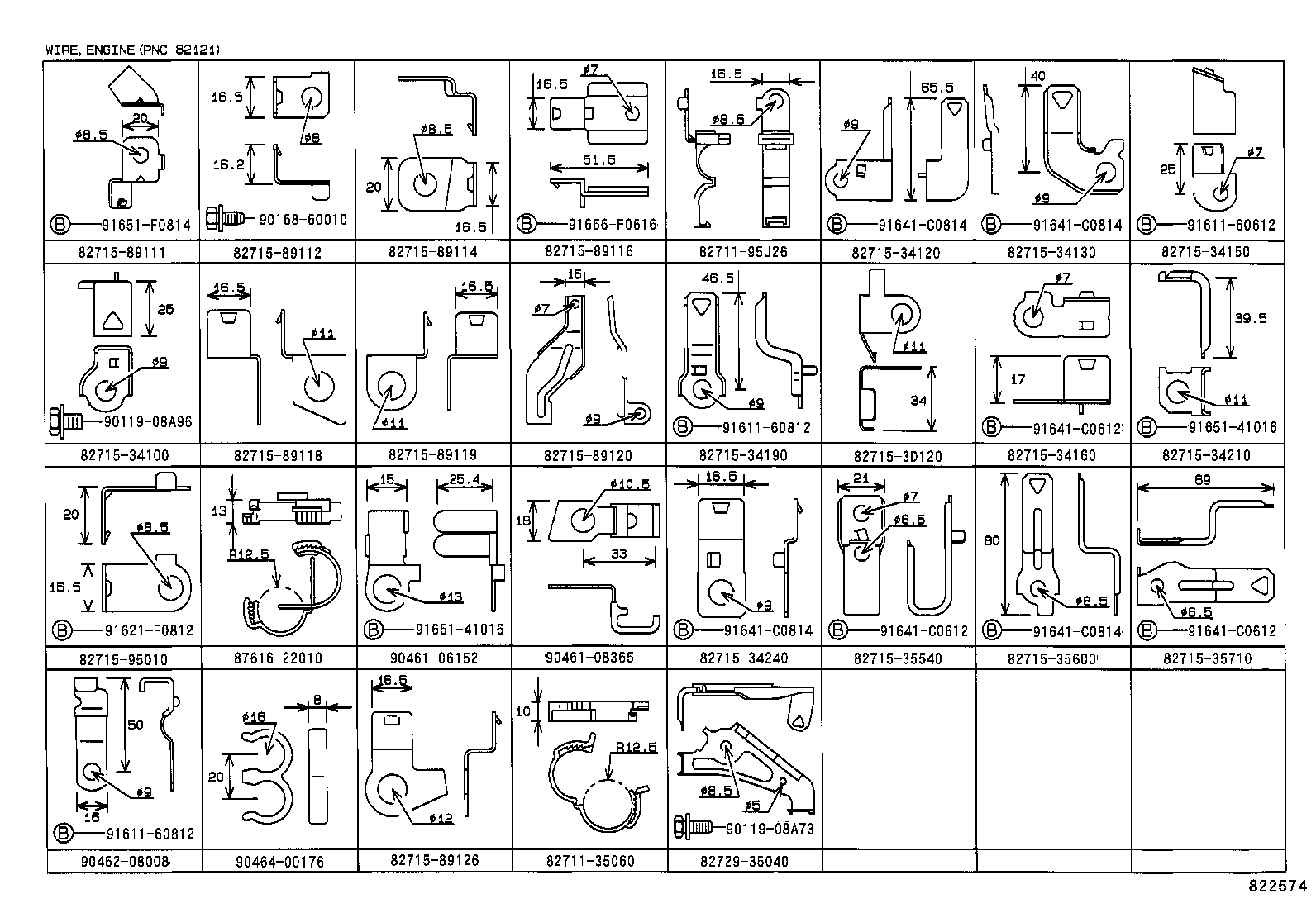

ILLUST NO. 4 OF 4(8808- )
ENGINE ROOM WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35060 | ||||
| 82711-95J26 | ||||
| 82715-34100 | ||||
| 82715-34120 | ||||
| 82715-34130 | ||||
| 82715-34150 | ||||
| 82715-34160 | ||||
| 82715-34190 | ||||
| 82715-34210 | ||||
| 82715-34240 | ||||
| 82715-35540 | ||||
| 82715-35600 | ||||
| 82715-35710 | ||||
| 82715-3D120 | ||||
| 82715-89111 | ||||
| 82715-89112 | ||||
| 82715-89114 | ||||
| 82715-89116 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 82715-89120 | ||||
| 82715-89126 | ||||
| 82715-95010 | ||||
| 82729-35040 | ||||
| 87616-22010 | ||||
| 90119-08A73 | ||||
| 90119-08A96 | ||||
| 90168-60010 | ||||
| 90461-06152 | ||||
| 90461-08365 | ||||
| 90462-08008 | ||||
| 90464-00176 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91621-F0812 | ||||
| 91641-C0612 | ||||
| 91641-C0814 | ||||
| 91651-41016 | ||||
| 91651-F0814 | ||||
| 91656-F0616 | ||||
ILLUST NO. 4 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
ENGINE WIRE NO.2,NO.3 CLAMPS & BKTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-35080 | ||||
| 82715-35120 | ||||
| 82715-3D010 | ||||
| 82715-3D340 | ||||
| 82715-89103 | ||||
| 82715-89104 | ||||
| 82715-89105 | ||||
| 82715-89106 | ||||
| 82715-89131 | ||||
| 82729-35070 | ||||
| 87616-22010 | ||||
| 90119-08671 | ||||
| 90119-08A50 | ||||
| 91611-B0614 | ||||
ILLUST NO. 4 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
ENGINE WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-35830 |
RN85..EFI |
1 | ||
| 82121-35831 |
RN85..EFI..CBU |
1 | ||
| 82121-35432 |
LN85..LHD..TH;LN80,81,85..GEN,V;LN86..5F..(ARL,V) |
1 | ||
| 82121-3D820 |
RN85..EFI..CBU COLUMBIA SPEC |
1 | ||
| Common parts | ||||
| 82710-87002 | ||||
| 82711-89120 | ||||
| 82711-89123 | ||||
| 82715-30500 | ||||
| 82715-35040 | ||||
| 82715-35070 | ||||
| 82715-89113 | ||||
| 82715-89127 | ||||
| 82715-89128 | ||||
| 82715-89135 | ||||
| 82715-89136 | ||||
| 82715-89137 | ||||
| 82715-95J26 | ||||
| 82751-89104 | ||||
| 84248-35010 | ||||
| 87616-35010 | ||||
| 91631-60616 | ||||
| 91651-40610 | ||||
| 91656-F0616 | ||||
| 93381-16014 | ||||

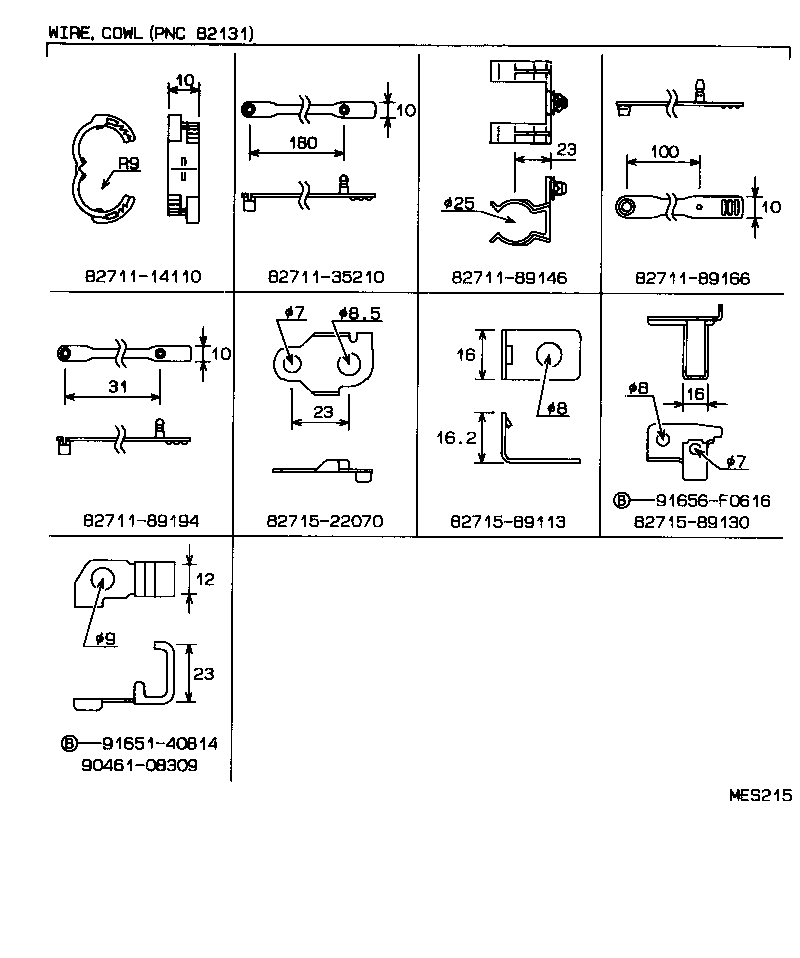

ILLUST NO. 4 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
COWL WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-89653 |
YN80,85..LHD W(CLOCK OR LIGHTER) |
1 | ||
| 82131-89657 |
YN85..LHD..TW1;YN80,85..LHD..T1..CBU W(HEATER OR DISC BRAKE) |
1 | ||
| 82131-89652 |
YN80,85..LHD |
1 | ||
| 82131-89654 |
YN80,85..LHD W(DISC BRAKE) |
1 | ||
| 82131-89656 |
YN80,85..LHD W(HEATER OR BOOST VENTILATOR) |
1 | ||
| 82131-3D262 |
YN80,85..LHD W(CLOCK) OR W(CIGARETTE LIGHTER) |
1 | ||
| 82131-3N280 |
RN85..EFI |
1 | ||
| 82131-3D252 |
YN80,85..LHD |
1 | ||
| 82131-3D272 |
YN80,85..LHD W(DISC BRAKE & HEATER & BOOST VENTILATOR) |
1 | ||
| 82131-3N281 |
RN85..EFI |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-35210 | ||||
| 82711-89146 | ||||
| 82711-89166 | ||||
| 82711-89194 | ||||
| 82715-22070 | ||||
| 82715-89113 | ||||
| 82715-89130 | ||||
| 90461-08309 | ||||
| 91651-40814 | ||||
| 91656-F0616 | ||||

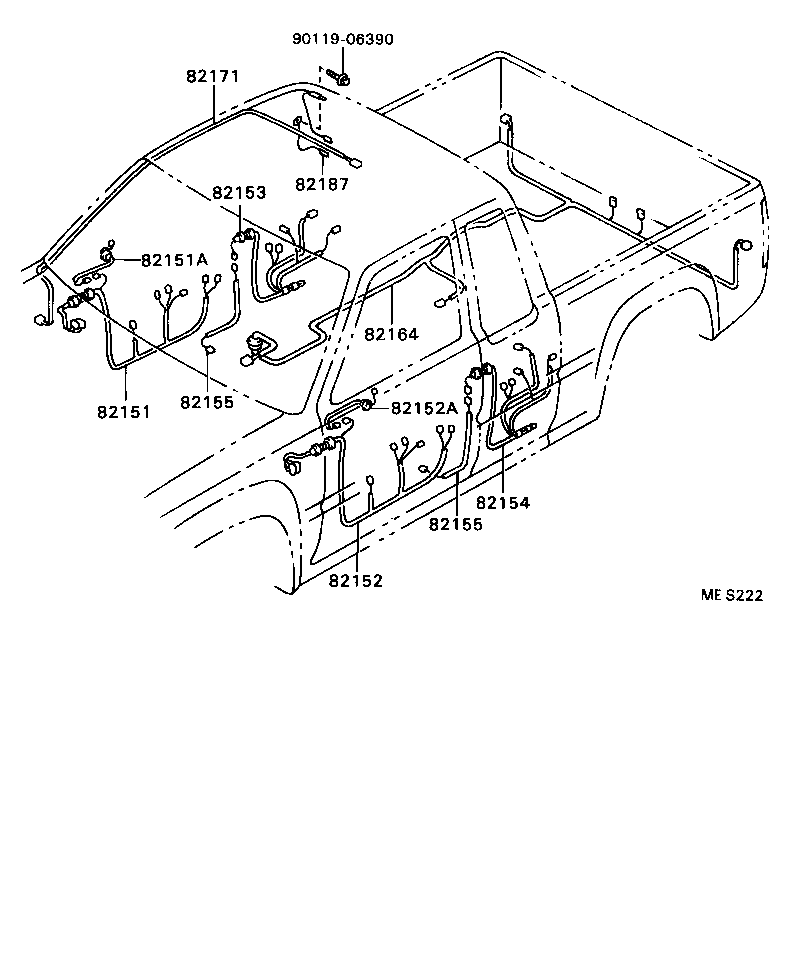

ILLUST NO. 2 OF 4(8808- )LN8#,9#,RN8#,90,YN8#,9#
ROOF,DOOR,FRAME & BACK WINDOW WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-89170 |
LN85,RN85,YN85,87..T1..(ARL,GEN)..CBU |
1 | ||
| 82164-35160 |
RN85..T1..EFI |
1 | ||
| 82164-35161 |
RN85..T1..EFI..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-89117 |
LN8#,RN8#,YN8#..T1 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
ILLUST NO. 4 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
FRAME,ROOF WIRE CLAMPS & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-89170 |
LN85,RN85,YN85,87..T1..(ARL,GEN)..CBU |
1 | ||
| 82164-35160 |
RN85..T1..EFI |
1 | ||
| 82164-35161 |
RN85..T1..EFI..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-89117 |
LN8#,RN8#,YN8#..T1 |
1 | ||
| Common parts | ||||
| 82711-22300 | ||||
| 82711-89104 | ||||
| 82711-89108 | ||||
| 82711-89183 | ||||
| 82711-89189 | ||||
| 82711-89206 | ||||
| 82715-89131 | ||||
| 90119-08671 | ||||
| 90463-10337 | ||||
| 90464-00165 | ||||
ILLUST NO. 4 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
ALTERNATOR WIRE BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-89104 | ||||
| 82715-89106 | ||||
| 90119-08671 | ||||
ILLUST NO. 1 OF 4(8808- )RN125,8#,90
ENGINE ROOM & INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07311 |
LN80,85,90..GEN |
1 | ||
| 90980-07108 |
RN125,8#,90 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-35190 |
RN85..EFI |
1 | ||
| 82111-35643 |
YN86..V;YN80,81,85,92..LHD |
1 | ||
| 82111-35191 |
RN85..EFI |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-35830 |
RN85..EFI |
1 | ||
| 82121-35831 |
RN85..EFI..CBU |
1 | ||
| 82121-35432 |
LN85..LHD..TH;LN80,81,85..GEN,V;LN86..5F..(ARL,V) |
1 | ||
| 82121-3D820 |
RN85..EFI..CBU COLUMBIA SPEC |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-89653 |
YN80,85..LHD W(CLOCK OR LIGHTER) |
1 | ||
| 82131-89657 |
YN85..LHD..TW1;YN80,85..LHD..T1..CBU W(HEATER OR DISC BRAKE) |
1 | ||
| 82131-89652 |
YN80,85..LHD |
1 | ||
| 82131-89654 |
YN80,85..LHD W(DISC BRAKE) |
1 | ||
| 82131-89656 |
YN80,85..LHD W(HEATER OR BOOST VENTILATOR) |
1 | ||
| 82131-3D262 |
YN80,85..LHD W(CLOCK) OR W(CIGARETTE LIGHTER) |
1 | ||
| 82131-3N280 |
RN85..EFI |
1 | ||
| 82131-3D252 |
YN80,85..LHD |
1 | ||
| 82131-3D272 |
YN80,85..LHD W(DISC BRAKE & HEATER & BOOST VENTILATOR) |
1 | ||
| 82131-3N281 |
RN85..EFI |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
RN125;RN85..RHD;RN85..EFI;LN85,86,RN90,YN85..ARL 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08190 |
RN125,8#,90,YN8#,92 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08189 |
RN85..EFI 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08189 |
RN8#,90 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
RN8#,90;LN86,YN85..ARL 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08216 |
LN86,YN85..ARL;RN8#,90..GEN,V 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-89104 |
RN8#,90 |
1 | ||
| 82261-35301 |
RN85..EFI |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-89107 |
RN8#,90 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
LN8#,90,RN125,8#,90,YN8#,92 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
LN8#,90,RN125,8#,90,YN8#,92 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-89130 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-89126 |
LN80,85,86,9#,RN85,90,YN80,85,86,87,9#..ARL,GEN,TH |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06158 | ||||
| 90189-04138 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| 91656-40616 | ||||
| 91656-F0616 | ||||
| 91666-F0618 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
FUSIBLE LINK REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-89104 |
RN125,8#,90,YN8#,92 |
1 | ||
| 82991-35020 |
RN85..EFI |
1 | ||
| 82991-89106 |
LN86..5F;LN80,81,85,90 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-89104 |
RN125,8#,90,YN8#,92 |
1 | ||
| 82991-35020 |
RN85..EFI |
1 | ||
| 82991-89106 |
LN86..5F;LN80,81,85,90 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-89104 |
RN125,8#,90,YN8#,92 |
1 | ||
| 82991-35020 |
RN85..EFI |
1 | ||
| 82991-89106 |
LN86..5F;LN80,81,85,90 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-89104 |
RN125,8#,90,YN8#,92 |
1 | ||
| 82991-35020 |
RN85..EFI |
1 | ||
| 82991-89106 |
LN86..5F;LN80,81,85,90 |
1 | ||
| Common parts | ||||
| 82991-35010 | ||||
| 82991-35030 | ||||
| 82991-89104 | ||||
| 82991-89106 | ||||
ILLUST NO. 4 OF 4(8808- )LN8#,9#,RN125,8#,90,YN8#,9#
ENGINE WIRE NO.2 CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-89162 | ||||
| 82711-89197 | ||||
| 82715-89101 | ||||
| 82715-89103 | ||||
| 82715-89104 | ||||
| 82715-89105 | ||||
| 82715-89106 | ||||
| 82715-89108 | ||||
| 82715-89110 | ||||
| 82715-89115 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 82751-89104 | ||||
| 90119-08671 | ||||
| 90168-60010 | ||||
| 90464-00503 | ||||
| 91656-F0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
