RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)LN8#,9#,RN8#,90,YN8#,9# ; (0106- )

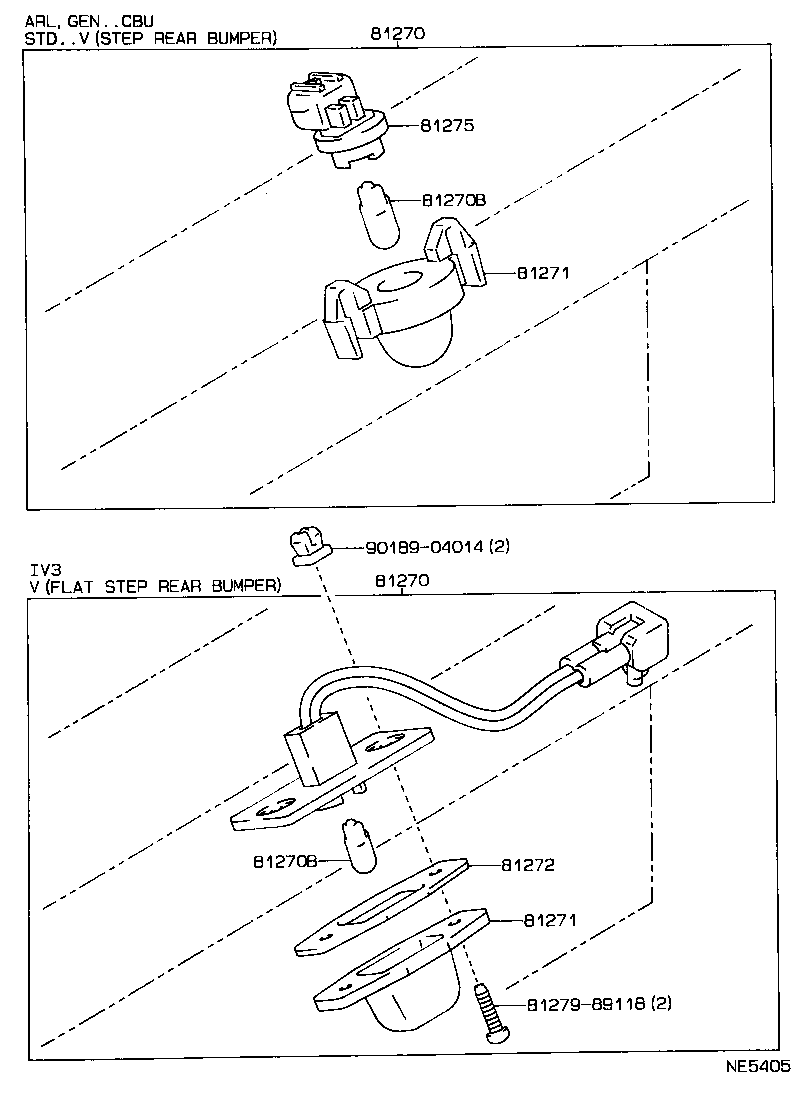

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81275 8127989118 9018904014
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-89126

RN85..ARL..CBU;RN8#,YN86..STD..V;LN8#,90,RN90,YN80,81,85,87,92..CBU

ROUND 2 TYPE

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-89126

RN85..ARL..CBU;RN8#,YN86..STD..V;LN8#,90,RN90,YN80,81,85,87,92..CBU

ROUND 2 TYPE

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

LN8#,9#,RN125,8#,90,YN8#,9#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

LN8#,9#,RN125,8#,90,YN8#,9#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89126

RN85..ARL..CBU;RN8#,YN86..STD..V;LN8#,90,RN90,YN80,81,85,87,92..CBU

ROUND 2 TYPE

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89126

RN85..ARL..CBU;RN8#,YN86..STD..V;LN8#,90,RN90,YN80,81,85,87,92..CBU

ROUND 2 TYPE

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99012

RN85..ARL..CBU;RN8#,YN86..STD..V;LN8#,90,RN90,YN80,81,85,87,92..CBU

 2
Common parts
81279-89118
90189-04014
