Toyota Hilux 2wd RN85 FUEL TANK & TUBE

RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999

Engine 22RE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )LN8#,9#,RN8#,90,YN8#,9#

Click highlighted areas on diagram

Part #	Description	Period	Qty
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-89102	RN85..T1..V;YN85..T1..GEN..CBU;LN85,86,RN85..T1..(DSL,EFI)..(GEN,V)..CBU;LN80,81,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU	08/1988 - 08/1994	1
77037-89102	YN85..T1..GEN..CBU;LN86,RN85,YN86..T1..V;LN85,9#,YN90..RHD..T1..CBU;LN80,81,RN80,90,YN80,81,92..ARL,GEN,V;LN85,RN85..LHD..T1..(DSL,EFI)..GEN..CBU	08/1994 - 09/1999	1
77100 - TANK ASSY, FUEL
77001-35977	LN85,86,90,RN85,90,YN85,86,87,92..T1	08/1988 - 08/1991	1
77001-3D901	RN85..T1..EFI	01/1994 - 09/1999	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	LN8#,9#,RN125,8#,90,YN8#,9#	08/1988 - 05/1997	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	LN8#,90,RN8#,90,YN8#,92	08/1988 - 08/1991	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77408-35020	LN8#,9#,RN8#,90,YN8#,9#..T1 L=340	08/1988 - 05/1997	1
77161C - PROTECTOR, FUEL TANK, LOWER
77161-35050	LN8#,90,RN8#,90,YN8#,92..T1	08/1988 - 08/1991	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35380	RN85,YN85..T1..(GEN,TH,V);LN8#,90,RN80,YN80,81,86,87,92..T1	08/1988 - 08/1991	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35380	RN85,YN85..T1..(GEN,TH,V);LN8#,90,RN80,YN80,81,86,87,92..T1	08/1988 - 08/1991	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-35200	LN8#,9#,RN8#,90,YN8#,9#..T1	08/1988 - 05/1997	1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-89110	RN80,YN86..T1;LN8#,90,RN85,YN80,81,85,87,90..T1..(SR5,STD)..CBU	08/1988 - 08/1994	1
77305-89111	LN8#,RN8#,YN8#..T1..(GEN,V)..CBU W(FUEL LID OPENER)	08/1988 - 03/1991	1
77305-89111	LN86,RN85,YN86..T1..V;LN85..RHD..T1..STD..CBU;LN85,RN85..LHD..T1..(DSL,EFI)..GEN..CBU;LN80,81,RN80,YN80,81,85..T1..(GEN,V)..CBU W(FUEL LID OPENER)	08/1994 - 09/1999	1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-89110	RN80,YN86..T1;LN8#,90,RN85,YN80,81,85,87,90..T1..(SR5,STD)..CBU	08/1988 - 08/1994	1
77305-89111	LN8#,RN8#,YN8#..T1..(GEN,V)..CBU W(FUEL LID OPENER)	08/1988 - 03/1991	1
77305-89111	LN86,RN85,YN86..T1..V;LN85..RHD..T1..STD..CBU;LN85,RN85..LHD..T1..(DSL,EFI)..GEN..CBU;LN80,81,RN80,YN80,81,85..T1..(GEN,V)..CBU W(FUEL LID OPENER)	08/1994 - 09/1999	1
77310A - CAP ASSY, FUEL TANK
77310-12100	RN125,8#,90,YN8#,92..(4D,T1)..CBU	08/1988 - 08/1991	1
77310-48010	RN85,YN85..T1..CBU	03/1998 - 09/1999	1
77316 - GASKET, FUEL TANK CAP
77316-12050	LN8#,90,RN125,8#,90,YN8#,92..(4D,T1)..CBU	08/1988 - 08/1991	1
77319 - KNOB, FUEL TANK CAP
77319-8910203	LN85,RN85,YN85..T1..(GEN,V)..CBU;LN80,81,86,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU GRAY,TRIM1#	08/1988 - 08/1991	1
77319-8910204	LN85,RN85,YN85..T1..(GEN,V)..CBU;LN80,81,86,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU BLUE,TRIM8#	08/1988 - 08/1991	1
77319-8910206	LN85,RN85,YN85..T1..(GEN,V)..CBU;LN80,81,86,90,RN80,90,YN80,81,86,87,92..T1..(ARL,GEN,V)..CBU BROWN,TRIM4#	08/1988 - 08/1991	1
77319-89103S4	YN85..T1..GEN..CBU;LN86,RN85,YN86..T1..V;LN85,9#,YN90..RHD..T1..CBU;LN80,81,RN80,90,YN80,81,92..ARL,GEN,V;LN85,RN85..LHD..T1..(DSL,EFI)..GEN..CBU GRAY,TRIM1#	08/1994 - 09/1999	1
77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD
77338-89105	RN85..T1..V;LN86,YN80,85,87..T1..(GEN,V)..CBU;LN85,RN85..T1..(DSL,EFI)..(GEN,TH)..CBU;LN80,81,90,RN125,80,90,YN81,86,92..(4D,T1)..CBU	08/1988 - 08/1994	1
77338-89105	YN80,85..T1..GEN..CBU;LN86,RN85,YN86..T1..V;LN80,81,RN80,90,YN81,9#;LN85,RN85..T1..STD..(DSL,EFI)..CBU	08/1994 - 09/1999	1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-24010	LN8#,90,RN8#,90,YN8#,92..T1..CBU	08/1988 - 02/1989	1
77360-89102	YN85..T1..GEN..CBU;LN86,RN85,YN86..T1..V;LN85..RHD..T1..STD..CBU;LN80,81,RN80,90,YN80,81,92..ARL,GEN,V;LN85,RN85..LHD..T1..(DSL,EFI)..GEN..CBU W(FUEL LID OPENER)	08/1994 - 09/1999	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030	YN85..T1..GEN..CBU;LN86,RN85,YN86..T1..V;LN85,9#,YN90..RHD..T1..CBU;LN80,81,RN80,90,YN80,81,92..ARL,GEN,V;LN85,RN85..LHD..T1..(DSL,EFI)..GEN..CBU	08/1994 - 09/1999	1
Common parts
90119-08667
90119-08668
90159-60032
90167-50028
90170-08204
90170-11006
90179-05020
90460-22001
90460-65002
90463-12002
90463-15003
90541-06058
90541-08014
91626-40618
93319-14010
93382-15010
93385-15010
Linked diagrams
2211
8401

ILLUST NO. 2 OF 2(8808- )YN80,85,86,87,9#..ARL,GEN,TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77205-35110	RN85..T1..EFI	01/1994 - 09/1999	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-08030	LN81,85,86,90..LHD *H,L=240,ID=7.6	08/1988 - 06/2001	1
77255D - TUBE, FUEL RETURN
77255-35560	RN85..T1..EFI	01/1994 - 09/1999	1
77255D - TUBE, FUEL RETURN
77255-35560	RN85..T1..EFI	01/1994 - 09/1999	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-35390	YN86..T1;RN85..T1..V;RN85..T1..EFI	08/1988 - 09/1999	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030	RN85..EFI;YN85..ARL *H,L=260	12/1994 - 09/1999	1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35290	RN90;RN85..RHD..T1;RN85..T1..EFI L=460	08/1988 - 12/1994	1
77209-35290	RN90;LN86..ARL;RN85..RHD..T1;RN85..T1..EFI L=460	12/1994 - 09/1999	1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35290	RN90;RN85..RHD..T1;RN85..T1..EFI L=460	08/1988 - 12/1994	1
77209-35290	RN90;LN86..ARL;RN85..RHD..T1;RN85..T1..EFI L=460	12/1994 - 09/1999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35100	RN85..EFI *H,L=600	01/1994 - 09/1999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35100	RN85..EFI *H,L=600	01/1994 - 09/1999	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10054	YN86..GEN;LN8#,9#,YN80,85,87,9#	08/1988 - 06/2001	1
77740 - CANISTER ASSY, CHARCOAL
77740-35240	RN85..EFI	01/1994 - 09/1999	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35151	YN81,86;RN85..EFI L=530	08/1988 - 09/1999	1
Common parts
47372-35050
77285-35140
77285-35170
90119-08744
90179-06161
90460-13081
90461-08663
90461-10186
90461-10722
90464-00108
90467-13007
90480-18492
90480-25030
90480-28006
90929-01206
90949-01461
90949-01462
91611-60614
91651-G0614
91656-F0822
96132-41100

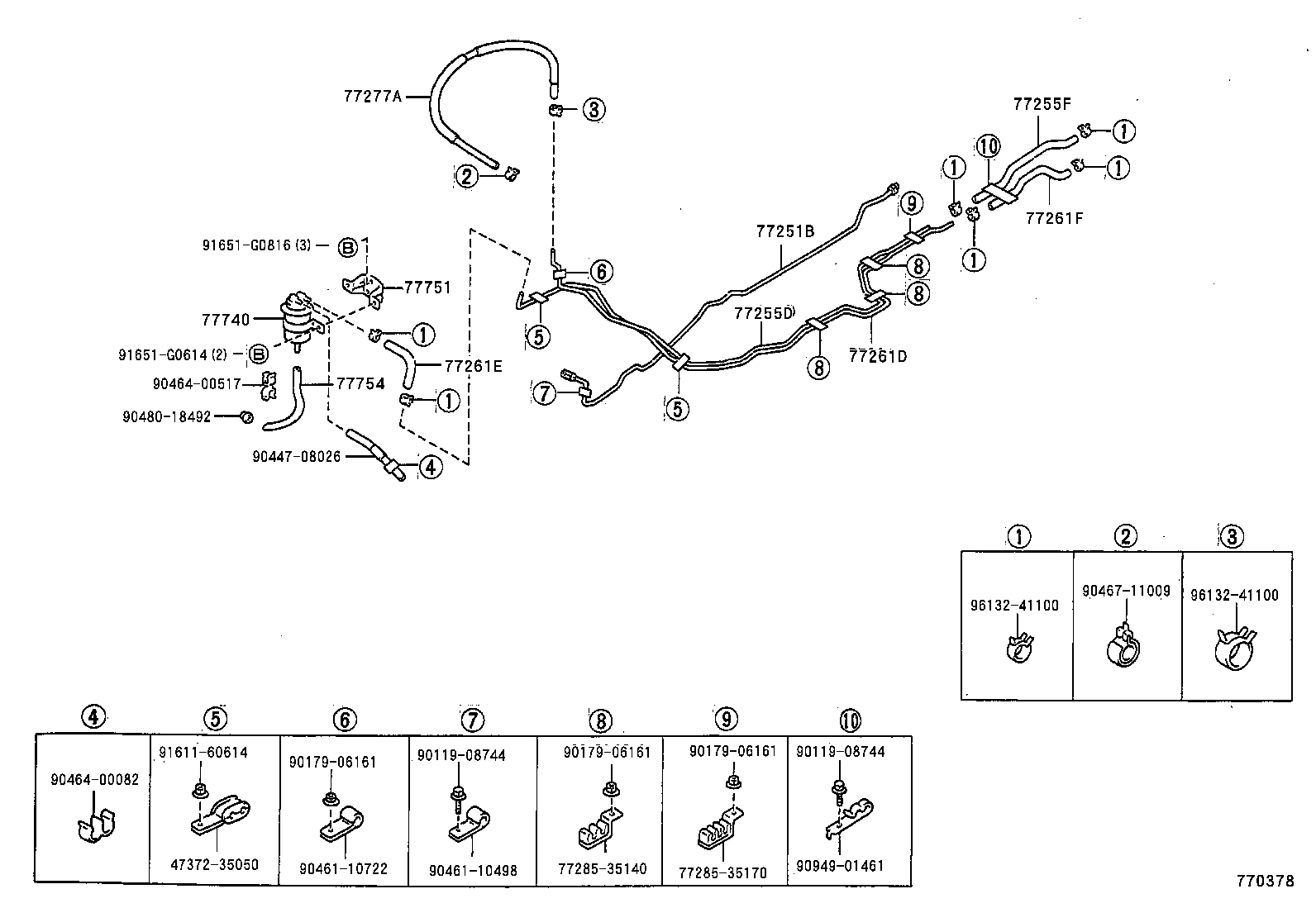

ILLUST NO. 2 OF 2(9401- )RN85..EFI

Click highlighted areas on diagram

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77205-35110	RN85..T1..EFI	01/1994 - 09/1999	1
77255D - TUBE, FUEL RETURN
77255-35560	RN85..T1..EFI	01/1994 - 09/1999	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-35390	YN86..T1;RN85..T1..V;RN85..T1..EFI	08/1988 - 09/1999	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030	RN85..EFI;YN85..ARL *H,L=260	12/1994 - 09/1999	1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77209-35290	RN90;RN85..RHD..T1;RN85..T1..EFI L=460	08/1988 - 12/1994	1
77209-35290	RN90;LN86..ARL;RN85..RHD..T1;RN85..T1..EFI L=460	12/1994 - 09/1999	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-35100	RN85..EFI *H,L=600	01/1994 - 09/1999	1
77740 - CANISTER ASSY, CHARCOAL
77740-35240	RN85..EFI	01/1994 - 09/1999	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-35040	RN85..EFI	01/1994 - 09/1999	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35151	YN81,86;RN85..EFI L=530	08/1988 - 09/1999	1
Common parts
47372-35050
77285-35140
77285-35170
90119-08744
90179-06161
90447-08026
90461-10498
90461-10722
90464-00082
90464-00517
90467-11009
90480-18492
90949-01461
91611-60614
91651-G0614
91651-G0816
96132-41100
