RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN200,8#,9#,RN8#,90,RZN200,YN8#,9#

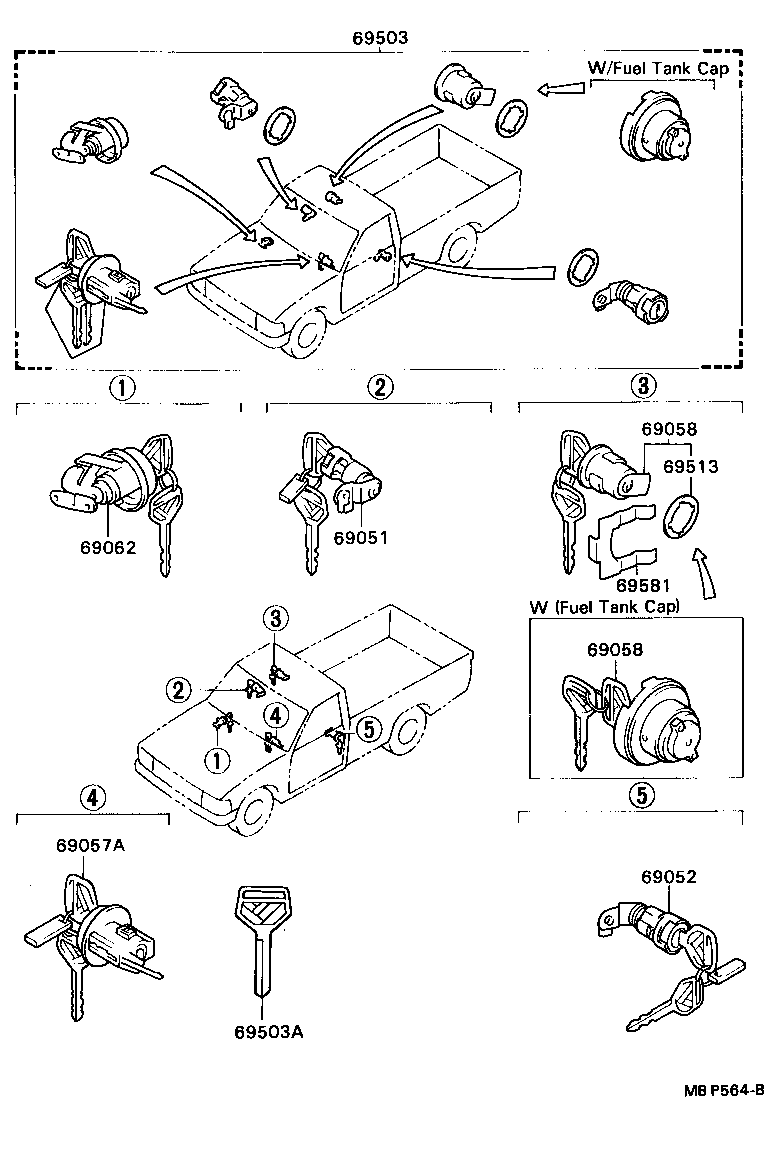

Click highlighted areas on diagram

diagram 69051 69052 69057A 69058 69058 69062 69503 69503A 69513 69581
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-35030

LN8#,90,RN125,8#,90,YN8#,92

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-35030

LN8#,90,RN125,8#,90,YN8#,92

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-89116

LN8#,90,RN125,8#,90,YN8#,92

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-89114

LN8#,90,RN8#,90,YN8#,92..T1..CBU

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-89114

LN8#,90,RN8#,90,YN8#,92..T1..CBU

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-35030

LN86..V;YN85..GEN;LN86..DLX..GEN;RN85..LHD..IV3;RN85..(GEN,V)..CBU;LN80,81,85,9#,RN80,90,YN80,81,86,9#..GEN,TH,V

 1
69503 - CYLINDER SET, LOCK
69005-89203

LN80,85,90,YN80,85,87,92..T1..GEN..CBU

W(GLOVE BOX KEY)

 1
69005-89204

LN80,85,90,RN85,YN80,85,87,92..T1..(ARL,GEN)..CBU

 1
69005-35190

RN85..T1..EFI..CBU;LN80,85,90,YN80,85,87,92..T1..GEN..CBU

W(FUEL LID OPENER)

 1
69005-35200

RN85..T1..EFI..CBU;LN80,85,90,YN80,85,87,92..T1..GEN..CBU

W(GLOVE BOX KEY & FUEL LID OPENER)

 1
69503A - KEY, BLANK
90999-00130

LN8#,90,RN125,8#,90,YN8#,92

MASTER KEY

 1
90999-00132

LN8#,9#,RN125,8#,90,YN8#,9#

MASTER KEY,W(*68)

 1
90999-00137

RN85..EFI..CBU;LN85,86,RN85..DLX..(ARL,GEN);LN80,85,90,YN80,85,86,87,92..GEN

SUB KEY,W(GLOVE BOX KEY)

 1
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-32010

LN8#,90,RN8#,90,YN8#,9#..T1..CBU

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69511-32010

LN8#,90,RN8#,90,YN8#,9#..T1..CBU

 1
