RN85L-TRMRE (1994)
Toyota Hilux 2wd

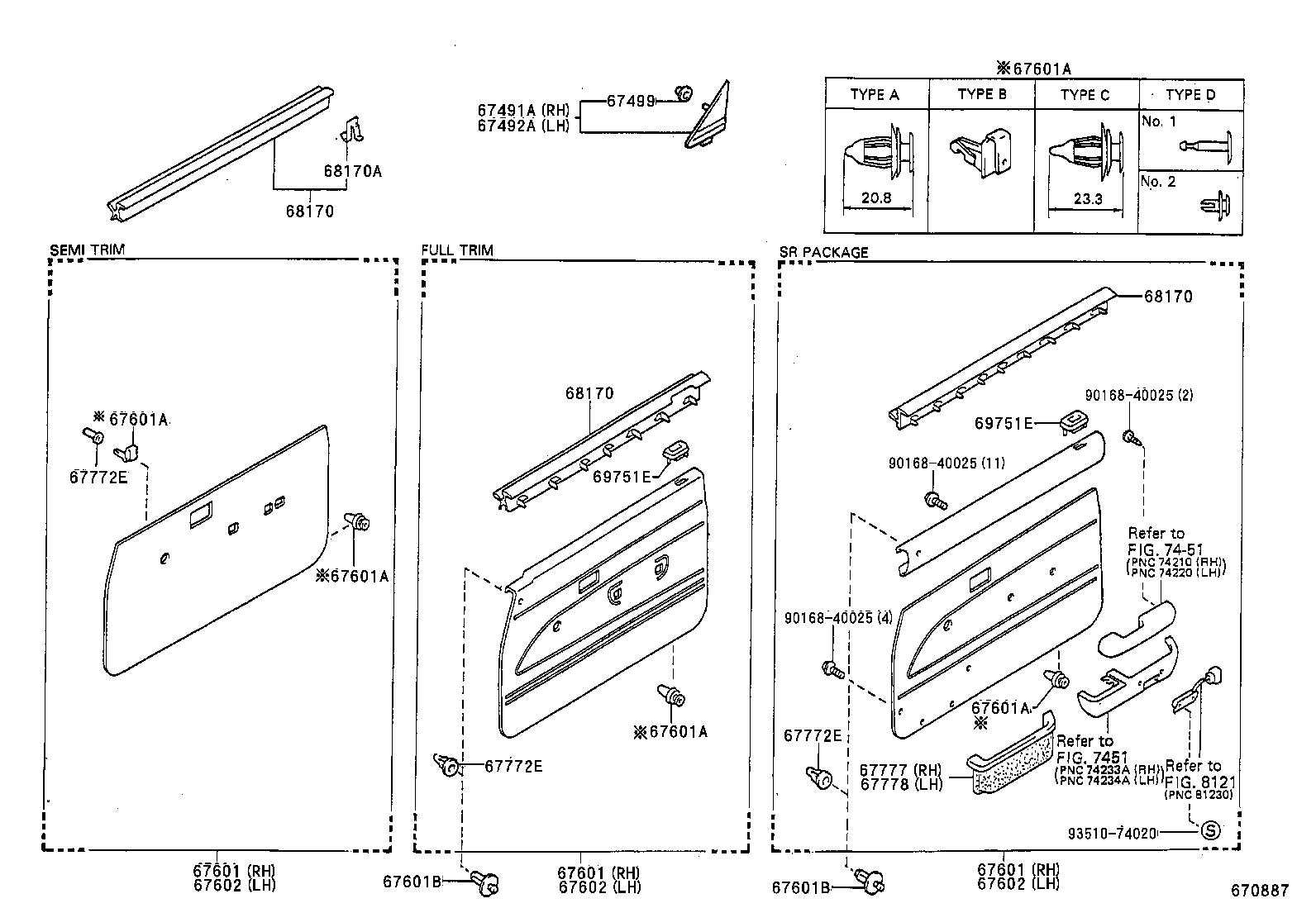

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-89101 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-89101 |
LN8#,9#,RN125,8#,90,YN8#,9# |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-89101 |
LN8#,9#,RN125,8#,90,YN8#,9# |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-8924903 |
LN8#,RN8#,YN8#..T1..STD GRAY,TRIM1# |
1 | ||
| 67610-8924904 |
LN8#,RN8#,YN8#..T1..STD BLUE,TRIM8# |
1 | ||
| 67610-8925003 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67610-8924906 |
LN8#,RN8#,YN8#..T1..STD BROWN,TRIM4# |
1 | ||
| 67610-8925004 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67610-8925006 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67610-8925204 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67610-8925203 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67610-8925206 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-8924903 |
LN8#,RN8#,YN8#..T1..STD GRAY,TRIM1# |
1 | ||
| 67610-8924904 |
LN8#,RN8#,YN8#..T1..STD BLUE,TRIM8# |
1 | ||
| 67610-8925003 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67610-8924906 |
LN8#,RN8#,YN8#..T1..STD BROWN,TRIM4# |
1 | ||
| 67610-8925004 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67610-8925006 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67610-8925204 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67610-8925203 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67610-8925206 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-8924903 |
LN8#,RN8#,YN8#..T1..STD GRAY,TRIM1# |
1 | ||
| 67610-8924904 |
LN8#,RN8#,YN8#..T1..STD BLUE,TRIM8# |
1 | ||
| 67610-8925003 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67610-8924906 |
LN8#,RN8#,YN8#..T1..STD BROWN,TRIM4# |
1 | ||
| 67610-8925004 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67610-8925006 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67610-8925204 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67610-8925203 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67610-8925206 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
LN8#,RN85,YN80,85,87..T1 DLX PACKAGE,TYPE A |
18 | ||
| 67771-30090 |
LN8#,90,RN8#,YN8#,92 TYPE C |
6 | ||
| 67771-16080 |
LN8#,RN8#,YN8#..T1..STD TYPE A |
26 | ||
| 67771-89101 |
LN8#,RN8#,YN8#..STD TYPE B |
4 | ||
| 67771-89113 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..STD..CBU TYPE B |
4 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
LN8#,RN85,YN80,85,87..T1 DLX PACKAGE,TYPE A |
18 | ||
| 67771-30090 |
LN8#,90,RN8#,YN8#,92 TYPE C |
6 | ||
| 67771-16080 |
LN8#,RN8#,YN8#..T1..STD TYPE A |
26 | ||
| 67771-89101 |
LN8#,RN8#,YN8#..STD TYPE B |
4 | ||
| 67771-89113 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..STD..CBU TYPE B |
4 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
LN8#,RN85,YN80,85,87..T1 DLX PACKAGE,TYPE A |
18 | ||
| 67771-30090 |
LN8#,90,RN8#,YN8#,92 TYPE C |
6 | ||
| 67771-16080 |
LN8#,RN8#,YN8#..T1..STD TYPE A |
26 | ||
| 67771-89101 |
LN8#,RN8#,YN8#..STD TYPE B |
4 | ||
| 67771-89113 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..STD..CBU TYPE B |
4 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
LN8#,RN85,YN80,85,87..T1 DLX PACKAGE,TYPE A |
18 | ||
| 67771-30090 |
LN8#,90,RN8#,YN8#,92 TYPE C |
6 | ||
| 67771-16080 |
LN8#,RN8#,YN8#..T1..STD TYPE A |
26 | ||
| 67771-89101 |
LN8#,RN8#,YN8#..STD TYPE B |
4 | ||
| 67771-89113 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..STD..CBU TYPE B |
4 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
LN8#,RN85,YN80,85,87..T1 DLX PACKAGE,TYPE A |
18 | ||
| 67771-30090 |
LN8#,90,RN8#,YN8#,92 TYPE C |
6 | ||
| 67771-16080 |
LN8#,RN8#,YN8#..T1..STD TYPE A |
26 | ||
| 67771-89101 |
LN8#,RN8#,YN8#..STD TYPE B |
4 | ||
| 67771-89113 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..STD..CBU TYPE B |
4 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0708503 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
2 | ||
| 90467-0708504 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
2 | ||
| 90467-0708506 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0708503 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 GRAY,TRIM1# |
2 | ||
| 90467-0708504 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BLUE,TRIM8# |
2 | ||
| 90467-0708506 |
RN8#,YN86..4FC,5F;LN8#,90,RN90,YN80,85,87,92 BROWN,TRIM4# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-8921503 |
LN8#,RN8#,YN8#..T1..STD GRAY,TRIM1# |
1 | ||
| 67620-8921504 |
LN8#,RN8#,YN8#..T1..STD BLUE,TRIM8# |
1 | ||
| 67620-8921506 |
LN8#,RN8#,YN8#..T1..STD BROWN,TRIM4# |
1 | ||
| 67620-8921606 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67620-8921603 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67620-8921803 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67620-8921604 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67620-8921804 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67620-8921806 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-8921503 |
LN8#,RN8#,YN8#..T1..STD GRAY,TRIM1# |
1 | ||
| 67620-8921504 |
LN8#,RN8#,YN8#..T1..STD BLUE,TRIM8# |
1 | ||
| 67620-8921506 |
LN8#,RN8#,YN8#..T1..STD BROWN,TRIM4# |
1 | ||
| 67620-8921606 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67620-8921603 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67620-8921803 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67620-8921604 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67620-8921804 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67620-8921806 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-8921503 |
LN8#,RN8#,YN8#..T1..STD GRAY,TRIM1# |
1 | ||
| 67620-8921504 |
LN8#,RN8#,YN8#..T1..STD BLUE,TRIM8# |
1 | ||
| 67620-8921506 |
LN8#,RN8#,YN8#..T1..STD BROWN,TRIM4# |
1 | ||
| 67620-8921606 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BROWN,TRIM4# |
1 | ||
| 67620-8921603 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,GRAY,TRIM1# |
1 | ||
| 67620-8921803 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),GRAY,TRIM1# |
1 | ||
| 67620-8921604 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE,BLUE,TRIM8# |
1 | ||
| 67620-8921804 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BLUE,TRIM8# |
1 | ||
| 67620-8921806 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(VENTILATOR WINDOW),BROWN,TRIM4# |
1 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-20021 |
LN8#,RN85,YN8#..STD |
4 | ||
| 67772-16020 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE |
2 | ||
| 67772-20021 |
LN8#,RN8#,YN8#..STD |
4 | ||
| 67772-20021 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..STD..CBU |
4 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-20021 |
LN8#,RN85,YN8#..STD |
4 | ||
| 67772-16020 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE |
2 | ||
| 67772-20021 |
LN8#,RN8#,YN8#..STD |
4 | ||
| 67772-20021 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..STD..CBU |
4 | ||
| 67772E - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-20021 |
LN8#,RN85,YN8#..STD |
4 | ||
| 67772-16020 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE |
2 | ||
| 67772-20021 |
LN8#,RN8#,YN8#..STD |
4 | ||
| 67772-20021 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..STD..CBU |
4 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-89118 |
LN8#,YN80,85,87..T1..GEN W(FRONT DOOR VENTILATOR WINDOW),RH |
1 | ||
| 68172-89114 |
RN85..T1..EFI;LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68171-89131 |
YN85..T1..4F;RN85..T1..EFI;YN85..GEN..IV3;LN80,85,YN80..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68220-89105 |
LN8#,YN80,85,87..T1..GEN W(FRONT DOOR VENTILATOR WINDOW),LH |
1 | ||
| 68171-89131 |
RN85..T1..EFI;LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68172-89114 |
YN85..T1..4F;RN85..T1..EFI;YN85..GEN..IV3;LN80,85,YN80..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68171-89130 |
YN85..T1..5F..GEN;RN85..RHD..GEN..IV3;YN80,85..T1..4F..(GEN,TH);LN80,85,YN87..T1..STD..(GEN,TH) DLX PACKAGE,RH |
1 | ||
| 68171-89131 |
RN85..T1..EFI..CBU;LN80,85,YN80,85..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68172-89114 |
RN85..T1..EFI..CBU;LN80,85,YN80,85..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68172-89113 |
YN85..T1..5F..GEN;RN85..RHD..GEN..IV3;YN80,85..T1..4F..(GEN,TH);LN80,85,YN87..T1..STD..(GEN,TH) DLX PACKAGE,LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-89118 |
LN8#,YN80,85,87..T1..GEN W(FRONT DOOR VENTILATOR WINDOW),RH |
1 | ||
| 68172-89114 |
RN85..T1..EFI;LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68171-89131 |
YN85..T1..4F;RN85..T1..EFI;YN85..GEN..IV3;LN80,85,YN80..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68220-89105 |
LN8#,YN80,85,87..T1..GEN W(FRONT DOOR VENTILATOR WINDOW),LH |
1 | ||
| 68171-89131 |
RN85..T1..EFI;LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68172-89114 |
YN85..T1..4F;RN85..T1..EFI;YN85..GEN..IV3;LN80,85,YN80..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68171-89130 |
YN85..T1..5F..GEN;RN85..RHD..GEN..IV3;YN80,85..T1..4F..(GEN,TH);LN80,85,YN87..T1..STD..(GEN,TH) DLX PACKAGE,RH |
1 | ||
| 68171-89131 |
RN85..T1..EFI..CBU;LN80,85,YN80,85..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68172-89114 |
RN85..T1..EFI..CBU;LN80,85,YN80,85..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68172-89113 |
YN85..T1..5F..GEN;RN85..RHD..GEN..IV3;YN80,85..T1..4F..(GEN,TH);LN80,85,YN87..T1..STD..(GEN,TH) DLX PACKAGE,LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-89118 |
LN8#,YN80,85,87..T1..GEN W(FRONT DOOR VENTILATOR WINDOW),RH |
1 | ||
| 68172-89114 |
RN85..T1..EFI;LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68171-89131 |
YN85..T1..4F;RN85..T1..EFI;YN85..GEN..IV3;LN80,85,YN80..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68220-89105 |
LN8#,YN80,85,87..T1..GEN W(FRONT DOOR VENTILATOR WINDOW),LH |
1 | ||
| 68171-89131 |
RN85..T1..EFI;LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68172-89114 |
YN85..T1..4F;RN85..T1..EFI;YN85..GEN..IV3;LN80,85,YN80..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68171-89130 |
YN85..T1..5F..GEN;RN85..RHD..GEN..IV3;YN80,85..T1..4F..(GEN,TH);LN80,85,YN87..T1..STD..(GEN,TH) DLX PACKAGE,RH |
1 | ||
| 68171-89131 |
RN85..T1..EFI..CBU;LN80,85,YN80,85..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,RH |
1 | ||
| 68172-89114 |
RN85..T1..EFI..CBU;LN80,85,YN80,85..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR,LH |
1 | ||
| 68172-89113 |
YN85..T1..5F..GEN;RN85..RHD..GEN..IV3;YN80,85..T1..4F..(GEN,TH);LN80,85,YN87..T1..STD..(GEN,TH) DLX PACKAGE,LH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
LN8#,RN8#,YN8#..STD |
8 | ||
| 68211-10030 |
LN8#,YN8#..STD;RN85..RHD..STD;RN85..EFI..IV3;RN85..LHD..T1..CBU;RN85..LHD..TW1..(DLX,STD) |
8 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006010 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE,BLUE,TRIM8# |
2 | ||
| 69751-2006023 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE,MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-2006046 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE,BROWN,TRIM4# |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006010 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE,BLUE,TRIM8# |
2 | ||
| 69751-2006023 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE,MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-2006046 |
LN8#,RN85,YN80,85,87..STD..(ARL,GEN) DLX PACKAGE,BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90168-40025 | ||||
| 93510-74020 | ||||

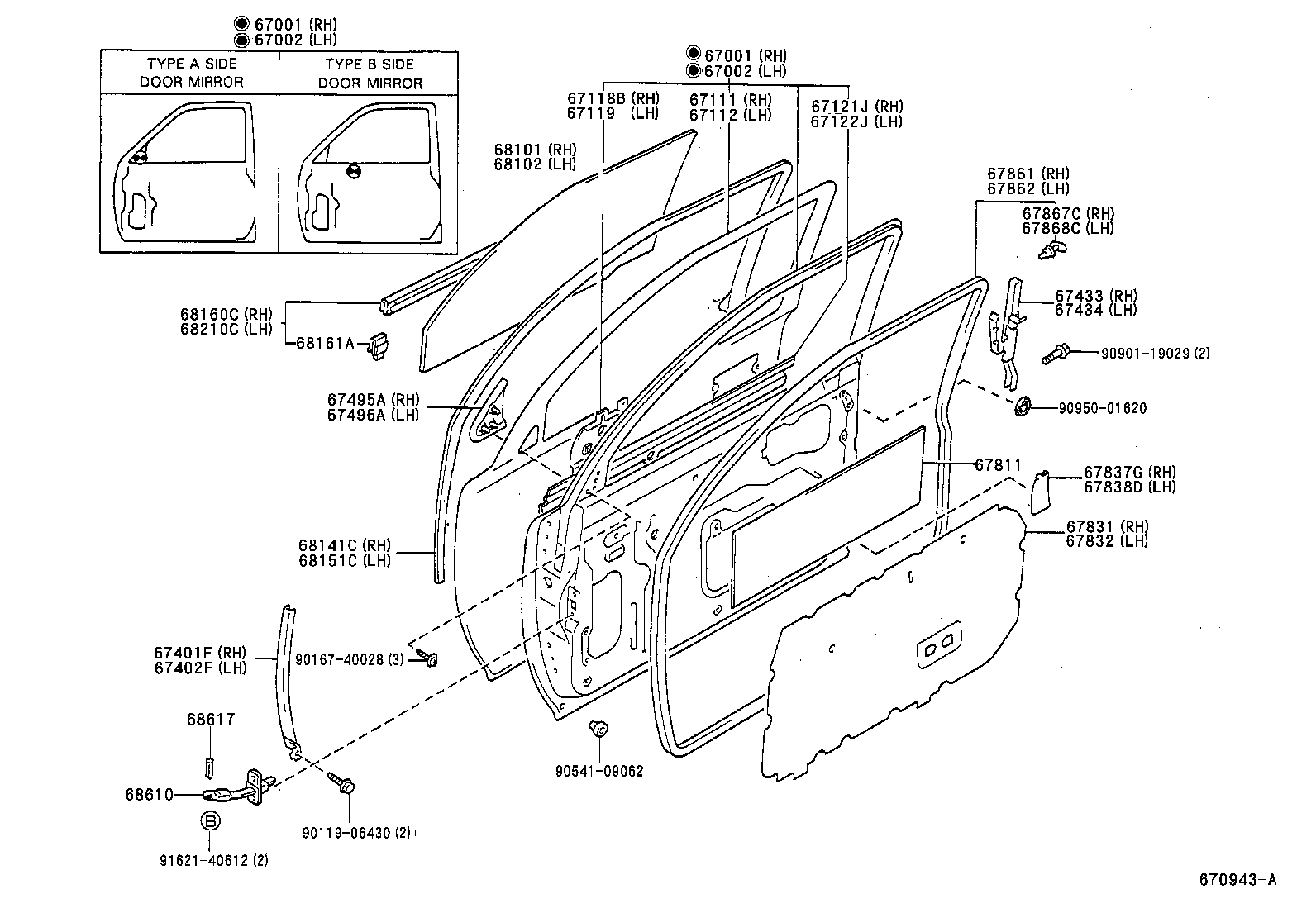

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-89195 |
LN80,85,YN80,85,87..T1..STD..(GEN,TH) W(DOOR MIRROR) |
1 | ||
| 67001-89201 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-89194 |
LN85,YN80,85,87..LHD..T1 DLX PACKAGE |
1 | ||
| 67001-89190 |
LN85,YN80,85,87..LHD..T1 W(FR DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-89191 |
LN85,YN80,85,87..LHD..T1 |
1 | ||
| 67001-89196 |
LN85,YN80,85,87..LHD..T1 W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67001-89202 |
LN85,YN80,85,87..LHD..T1 DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67001-35060 |
RN85..T1..EFI;YN85..GEN..IV3;YN85..LHD..T1..4F;LN85,YN80..LHD..T1..GEN W(FR DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-35150 |
RN85..T1..EFI..CBU;LN85,YN80,85..LHD..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-35070 |
YN85..LHD..T1..4F;RN85..T1..EFI..CBU;LN85,YN85..LHD..IV3;RN85,YN85..T1..(TH,V);LN80,85,YN80..T1..STD..CBU W(DOOR MIRROR) |
1 | ||
| 67001-35060 |
RN85..T1..EFI..CBU;LN85,YN80,85..LHD..T1..GEN W(FR DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-89195 |
LN80,85,YN80,85,87..T1..STD..(GEN,TH) W(DOOR MIRROR) |
1 | ||
| 67001-89201 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-89194 |
LN85,YN80,85,87..LHD..T1 DLX PACKAGE |
1 | ||
| 67001-89190 |
LN85,YN80,85,87..LHD..T1 W(FR DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-89191 |
LN85,YN80,85,87..LHD..T1 |
1 | ||
| 67001-89196 |
LN85,YN80,85,87..LHD..T1 W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67001-89202 |
LN85,YN80,85,87..LHD..T1 DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67001-35060 |
RN85..T1..EFI;YN85..GEN..IV3;YN85..LHD..T1..4F;LN85,YN80..LHD..T1..GEN W(FR DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-35150 |
RN85..T1..EFI..CBU;LN85,YN80,85..LHD..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67001-35070 |
YN85..LHD..T1..4F;RN85..T1..EFI..CBU;LN85,YN85..LHD..IV3;RN85,YN85..T1..(TH,V);LN80,85,YN80..T1..STD..CBU W(DOOR MIRROR) |
1 | ||
| 67001-35060 |
RN85..T1..EFI..CBU;LN85,YN80,85..LHD..T1..GEN W(FR DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-89210 |
LN85,YN80,85,87..LHD..T1 DLX PACKAGE & W(DOOR MIRROR) |
1 | ||
| 67002-89206 |
LN80,85,YN80,85,87..T1..STD..(GEN,TH) W(DOOR MIRROR) |
1 | ||
| 67002-89194 |
LN85,YN80,85,87..LHD..T1 |
1 | ||
| 67002-89191 |
LN81,85,86,RN80,YN8#..LHD..T1..STD W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67002-89193 |
LN85,YN80,85,87..LHD..T1 DLX PACKAGE |
1 | ||
| 67002-89200 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67002-35130 |
YN85..T1..4F;RN85..T1..EFI;YN85..GEN..IV3;LN80,85,YN80..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67002-35130 |
RN85..T1..EFI..CBU;LN80,85,YN80,85..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67002-35070 |
YN85..LHD..T1..4F;RN85..T1..EFI..CBU;LN85,YN85..LHD..IV3;RN85,YN85..T1..(TH,V);LN80,85,YN80..T1..STD..CBU W(DOOR MIRROR) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-89210 |
LN85,YN80,85,87..LHD..T1 DLX PACKAGE & W(DOOR MIRROR) |
1 | ||
| 67002-89206 |
LN80,85,YN80,85,87..T1..STD..(GEN,TH) W(DOOR MIRROR) |
1 | ||
| 67002-89194 |
LN85,YN80,85,87..LHD..T1 |
1 | ||
| 67002-89191 |
LN81,85,86,RN80,YN8#..LHD..T1..STD W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67002-89193 |
LN85,YN80,85,87..LHD..T1 DLX PACKAGE |
1 | ||
| 67002-89200 |
LN80,85,YN80,85,87..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67002-35130 |
YN85..T1..4F;RN85..T1..EFI;YN85..GEN..IV3;LN80,85,YN80..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67002-35130 |
RN85..T1..EFI..CBU;LN80,85,YN80,85..T1..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW & DOOR MIRROR) |
1 | ||
| 67002-35070 |
YN85..LHD..T1..4F;RN85..T1..EFI..CBU;LN85,YN85..LHD..IV3;RN85,YN85..T1..(TH,V);LN80,85,YN80..T1..STD..CBU W(DOOR MIRROR) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-89135 |
LN8#,YN80,85,87..T1..STD..(GEN,TH) |
1 | ||
| 67111-89138 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67111-89138 |
LN85..SR5;LN85,YN85..STD..ARL;LN90,RN8#,90,YN81,86,92..T1 |
1 | ||
| 67111-35030 |
YN85..T1..4F;RN85..T1..EFI;LN85..LHD..4F;LN80,YN80..GEN;YN85..GEN..IV3;LN85..RHD..T1..GEN DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67111-35030 |
RN85..T1..EFI;YN85..GEN..IV3;LN85,YN80,85..LHD..T1..4F DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67111-35030 |
YN85..GEN..IV3;YN85..LHD..T1..4F;RN85..T1..EFI..CBU;LN85,YN80..LHD..T1..GEN DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67111-35030 |
YN85..T1..4F;RN85..T1..EFI;LN80,YN80..GEN;LN85..RHD..T1..GEN;YN85..T1..GEN..IV3 DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-89137 |
LN8#,YN80,85,87..T1..STD..(GEN,TH) |
1 | ||
| 67112-89140 |
LN85..SR5;LN85,YN85..STD..ARL;LN90,RN8#,90,YN81,86,92..T1 |
1 | ||
| 67112-89140 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67112-35030 |
YN85..T1..4F;RN85..T1..EFI;LN85..LHD..4F;LN80,YN80..GEN;YN85..GEN..IV3;LN85..RHD..T1..GEN DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67112-35030 |
YN85..T1..4F;RN85..T1..EFI;LN80,YN80..GEN;LN85..RHD..T1..GEN;YN85..T1..GEN..IV3 DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67112-35030 |
RN85..T1..EFI;YN85..GEN..IV3;LN85,YN80,85..LHD..T1..4F DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67112-35030 |
YN85..GEN..IV3;YN85..LHD..T1..4F;RN85..T1..EFI..CBU;LN85,YN80..LHD..T1..GEN DLX PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW) OR DOOR MIRROR |
1 | ||
| 67118B - RETAINER, OUTER REAR VIEW MIRROR, RH | ||||
| 67118-89110 |
RN85..EFI..CBU;LN80,85,YN80,85..GEN W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67118-89110 |
YN80,85,87..LHD;LN85,RN85..LHD..(DSL,EFI)..GEN DLX PACKAGE & W(FRONT DOOR VENTILATOR WINDOW) & DOOR MIRROR |
1 | ||
| 67119 - RETAINER, OUTER REAR VIEW MIRROR, LH | ||||
| 67119-89114 |
YN80,85,87,92..LHD;LN85,90,RN85..LHD..(DSL,EFI)..GEN W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67119-89114 |
LN85..T1..IV3;RN85..SR5..GEN;YN85..LHD..TW1;YN80,85,92..T1..GEN;LN85..RHD..TW1..CBU;LN85,RN85..LHD..(DSL,EFI)..GEN..CBU W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67119-89113 |
RN85..SR5..GEN;RN85..EFI..CBU;LN85,90,YN80,85,87,92..LHD |
1 | ||
| 67121J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, RH | ||||
| 67121-89101 |
LN8#,9#,RN8#,90,YN8#,9#..T1 |
1 | ||
| 67122J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, LH | ||||
| 67122-89101 |
LN8#,9#,RN8#,90,YN8#,9#..T1 |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-89103 |
LN80,85,90,RN85,90,YN80,85,87,92..T1..(ARL,GEN,TH) |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-89103 |
LN80,85,90,RN85,90,YN80,85,87,92..T1..(ARL,GEN,TH) |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-89102 |
LN80,85,YN80,85,87..STD..(GEN,TH) DLX PACKAGE |
1 | ||
| 67495-89102 |
RN85..EFI..CBU;LN80,85,YN80,85..STD..(GEN,TH) DLX PACKAGE |
1 | ||
| 67495-89101 |
RN85..SR5..GEN;RN85..EFI..CBU;LN80,85,90,YN80,85,87,92..GEN W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-89102 |
LN80,85,YN80,85,87..STD..(GEN,TH) DLX PACKAGE |
1 | ||
| 67496-89101 |
RN85..SR5..GEN;RN85..EFI..CBU;LN80,85,90,YN80,85,87,92..GEN W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 67496-89102 |
RN85..EFI..CBU;LN80,85,YN80,85..STD..(GEN,TH) DLX PACKAGE |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-89116 |
LN8#,9#,RN8#,90,YN8#,9#..T1 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-89104 |
LN8#,9#,RN8#,90,YN8#,9#..T1 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-89108 |
LN8#,90,RN8#,90,YN8#,92..T1 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-89107 |
LN8#,90,RN8#,90,YN8#,92..T1 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
LN8#,9#,RN8#,90,YN8#,9#..T1 |
18 | ||
| 67868-22020 |
LN8#,90,RN8#,90,YN8#,9#..T1 |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
LN8#,90,RN8#,90,YN8#,92..T1 |
18 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-89121 |
RN85..LHD..T1..GEN;LN85,86,RN85,90,YN85..T1..ARL *TEM,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-89120 |
RN85..LHD..T1..GEN;LN85,86,RN85,90,YN85..T1..ARL *TEM,T=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-89109 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE |
1 | ||
| 68141-89110 |
LN85,YN80,85..T1..GEN;LN80,90,RN80,YN86,87,92..T1..5F W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68141-89115 |
YN85..T1..4F;RN85..T1..EFI;LN80,YN80..GEN;LN85..RHD..T1..GEN;YN85..T1..GEN..IV3 DLX PACKAGE & DOOR MIRROR |
1 | ||
| 68141-89115 |
YN85..T1..4F;RN85..T1..EFI;LN85..LHD..4F;LN80,YN80..GEN;YN85..GEN..IV3;LN85..RHD..T1..GEN DLX PACKAGE & DOOR MIRROR |
1 | ||
| 68141-89115 |
YN85..T1..4F;YN85..GEN..IV3;RN85..T1..EFI..CBU;LN80,85,YN80..T1..GEN DLX PACKAGE & DOOR MIRROR |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-89102 |
LN85,YN80,85..T1..GEN;LN80,90,RN80,YN86,87,92..T1..5F W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68151-89101 |
LN8#,YN80,85,87..T1..GEN DLX PACKAGE |
1 | ||
| 68151-89107 |
YN85..T1..4F;RN85..T1..EFI;LN85..LHD..4F;LN80,YN80..GEN;YN85..GEN..IV3;LN85..RHD..T1..GEN DLX PACKAGE & DOOR MIRROR |
1 | ||
| 68151-89107 |
YN85..T1..4F;YN85..GEN..IV3;RN85..T1..EFI..CBU;LN80,85,YN80..T1..GEN DLX PACKAGE & DOOR MIRROR |
1 | ||
| 68151-89107 |
YN85..T1..4F;RN85..T1..EFI;LN80,YN80..GEN;LN85..RHD..T1..GEN;YN85..T1..GEN..IV3 DLX PACKAGE & DOOR MIRROR |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-89118 |
LN85,YN80,85..T1..GEN;LN80,90,RN80,YN86,87,92..T1..5F W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68160-89121 |
LN80,YN80;YN85..T1..4F;LN85..LHD..TH;RN85..T1..EFI;LN85..LHD..4F;YN85..GEN..IV3;LN85..RHD..T1..STD DLX PACKAGE & DOOR MIRROR |
1 | ||
| 68160-89117 |
YN85..T1..5F..GEN;RN85..T1..EFI..CBU;YN85..T1..4F..(GEN,TH);LN80,85,YN80,87..T1..STD..(GEN,TH) DLX PACKAGE |
1 | ||
| 68160-89121 |
YN85..T1..4F;YN85..GEN..IV3;RN85..T1..EFI..CBU;LN80,85,YN80..T1..STD DLX PACKAGE & DOOR MIRROR |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-89111 |
RN8#,YN86..DLX..V;LN8#,90,YN80,85,87,92..GEN W(FRONT DOOR VENTILATOR WINDOW),RH |
3 | ||
| 68211-89112 |
RN8#,YN86..DLX..V;LN8#,90,YN80,85,87,92..GEN W(FRONT DOOR VENTILATOR WINDOW),VENT WINDOW-RH,LH |
2 | ||
| 68211-89111 |
LN8#,YN80,85,87..GEN DLX PACKAGE,RH |
4 | ||
| 68211-89112 |
RN85..EFI;RN85..DLX..V;YN86..TW1..STD;RN85,YN86..T1..V;LN8#,RN80,90,YN80,81,85,92..GEN,V W(FRONT DOOR VENTILATOR WINDOW),VENT WINDOW-RH,LH |
2 | ||
| 68212-89101 |
LN8#,YN80,85,87..GEN DLX PACKAGE,LH |
4 | ||
| 68212-89101 |
RN8#,YN86..DLX..V;LN8#,90,YN80,85,87,92..GEN W(FRONT DOOR VENTILATOR WINDOW),LH |
3 | ||
| 68211-89112 |
LN86,YN86..V;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN80,81,85,RN80,90,YN80,81,85,92..GEN,V W(FRONT DOOR VENTILATOR WINDOW),VENT WINDOW-RH,LH |
2 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-89102 |
LN85,YN80,85..T1..GEN;LN80,90,RN80,YN86,87,92..T1..5F W(FRONT DOOR VENTILATOR WINDOW) |
1 | ||
| 68210-89101 |
YN85..T1..5F..GEN;RN85..T1..EFI..CBU;YN80,85..T1..4F..(GEN,TH);LN80,85,YN87..T1..STD..(GEN,TH) DLX PACKAGE |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-89103 |
LN8#,90,RN125,8#,90,YN8#,92 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
LN8#,9#,RN125,8#,90,YN8#,9# |
2 | ||
| Common parts | ||||
| 90119-06430 | ||||
| 90167-40028 | ||||
| 90541-09062 | ||||
| 90901-19029 | ||||
| 90950-01620 | ||||
| 91621-40612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
