RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LN200,8#,RN8#,RZN200,YN8#..T1

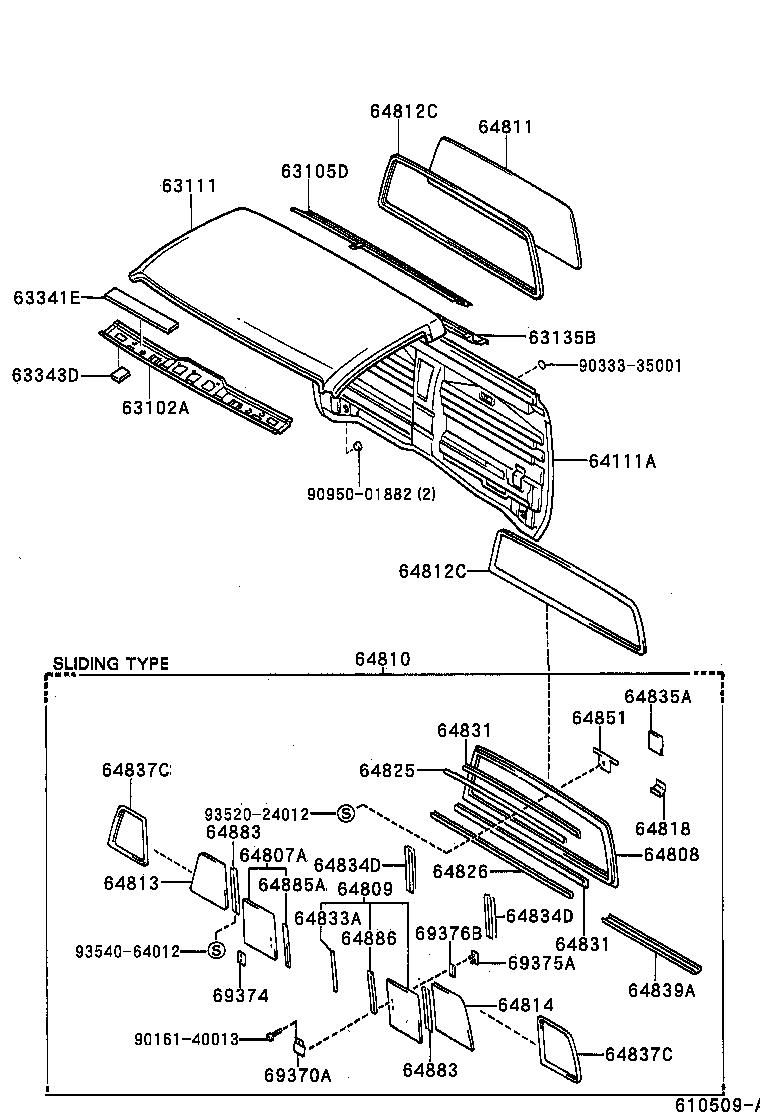

Click highlighted areas on diagram

diagram 63102A 63105D 63111 63135B 63341E 63343D 64111A 64807A 64808 64809 64810 64811 64812C 64812C 64813 64814 64818 64825 64826 64831 64831 64833A 64834D 64834D 64835A 64837C 64837C 64839A 64851 64883 64883 64885A 64886 69370A 69374 69375A 69376B 9016140013 9033335001 9095001882 9352024012 9354064012
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-89107

LN8#,9#,RN8#,90,YN8#,9#..T1

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-89106

LN8#,RN8#,YN8#..T1

 1
63111 - PANEL, ROOF
63111-89118

LN8#,RN8#,YN8#..T1

 1
64111A - PANEL, BACK
64101-89133

LN85,YN80,85..T1..GEN;LN80,RN80,YN86,87..T1..5F..(GEN,V)

W(SEPARATE SEAT)

 1
64101-89142

LN80,85,86,RN85,YN80,85,86,87..T1..GEN

 1
64807A - GLASS SUB-ASSY, BACK WINDOW SLIDE, RH
64807-89135

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

*TEM,T=3.5

 1
64808 - CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS
64808-89105

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 1
64809 - GLASS SUB-ASSY, BACK WINDOW SLIDE, LH
64809-89102

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

*TEM,T=3.5

 1
64810 - WINDOW ASSY, BACK
64810-89109

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

*TEM,T=3.5

 1
64811 - GLASS, BACK WINDOW
64811-89119

LN8#,RN8#,YN8#

*TEM,T=3.5

 1
64811-89119

RN85..T1..GEN;RN85..SR5..GEN;RN85..TW1..EFI;LN86,RN85..ARL,V;LN80,81,85,RN80,YN8#

*TEM,T=3.5

 1
64811-89119

RN85..EFI..IV3;LN86,RN85..ARL,V;RN85..LHD..GEN..CBU;RN85..RHD..GEN..IV3;LN80,81,85,RN80,YN8#

*TEM,T=3.5

 1
64812C - WEATHERSTRIP, BACK WINDOW GLASS
64812-89109

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

W(SLIDING REAR WINDOW)

 1
64812-89108

LN8#,RN8#,YN8#

 1
64812C - WEATHERSTRIP, BACK WINDOW GLASS
64812-89109

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

W(SLIDING REAR WINDOW)

 1
64812-89108

LN8#,RN8#,YN8#

 1
64813 - GLASS, BACK WINDOW CORNER, RH
64813-89101

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

*TEM,T=3.5

 1
64814 - GLASS, BACK WINDOW CORNER, LH
64814-89101

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

*TEM,T=3.5

 1
64833A - WEATHERSTRIP, BACK WINDOW CENTER CHANNEL
64833-89114

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 1
64834D - WEATHERSTRIP, BACK WINDOW SLIDE GLASS
64834-89101

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 2
64834D - WEATHERSTRIP, BACK WINDOW SLIDE GLASS
64834-89101

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 2
64837C - WEATHERSTRIP, BACK WINDOW CORNER GLASS
64837-89101

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 2
64837C - WEATHERSTRIP, BACK WINDOW CORNER GLASS
64837-89101

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 2
64883 - FRAME, BACK WINDOW
64881-89104

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 2
64883 - FRAME, BACK WINDOW
64881-89104

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 2
64885A - CHANNEL, BACK WINDOW GLASS, RH
64885-89102

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 1
64886 - CHANNEL, BACK WINDOW GLASS, LH
64886-89102

RN85..V;LN86..T1..V;RN85..RHD..TW1;RN85..RHD..GEN..IV3;LN85,86..TW1..(ARL,V);LN80,81,85,RN80,YN8#..GEN,TH,V

 1
Common parts
90161-40013
90333-35001
90950-01882
93520-24012
93540-64012
