RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

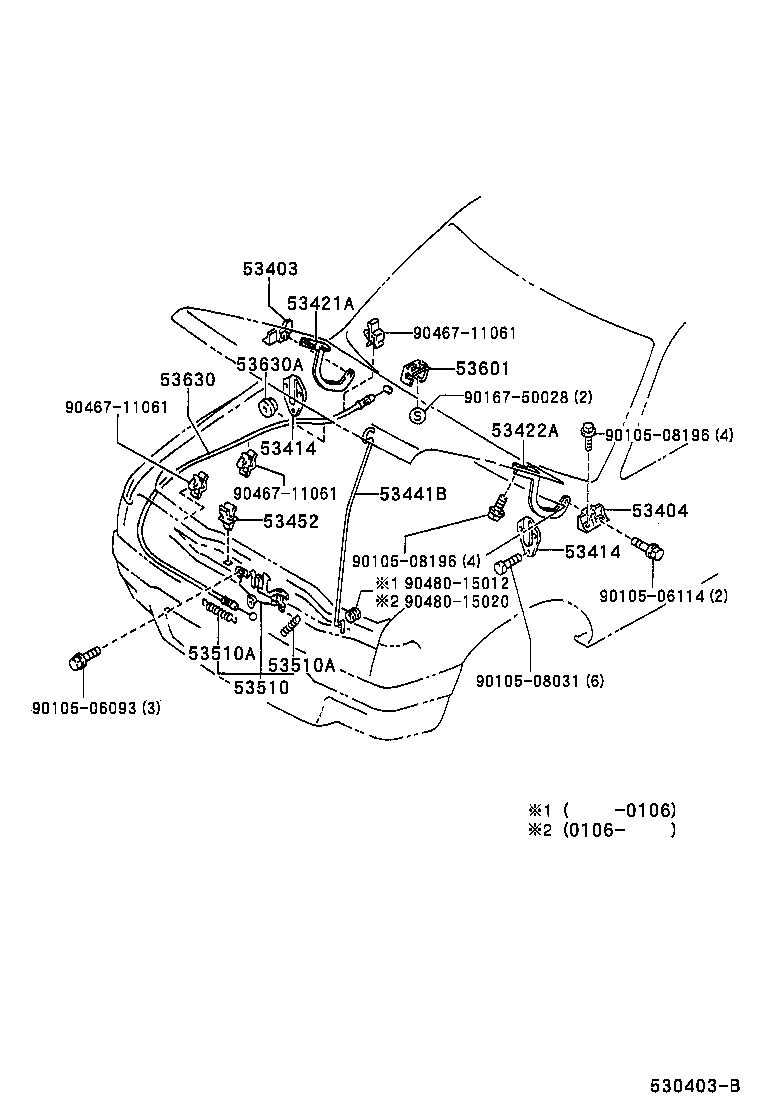

Click highlighted areas on diagram

diagram 53403 53404 53414 53414 53421A 53422A 53441B 53452 53510 53510A 53510A 53601 53630 53630A 9010506093 9010506114 9010508031 9010508196 9010508196 9016750028 9046711061 9046711061 9046711061 9048015012 9048015020
Part # Description Qty Price
53403 - BRACKET SUB-ASSY, HOOD HINGE, RH
53403-89102

LN8#,90,RN125,8#,90,YN8#,92

 1
53404 - BRACKET SUB-ASSY, HOOD HINGE, LH
53404-89102

LN8#,90,RN125,8#,90,YN8#,92

 1
53414 - SEAL, HOOD HINGE
53414-89103

LN8#,9#,RN125,8#,90,YN8#,9#

 2
53414 - SEAL, HOOD HINGE
53414-89103

LN8#,9#,RN125,8#,90,YN8#,9#

 2
53421A - ARM, HOOD HINGE, RH
53421-89103

LN8#,90,RN125,8#,90,YN8#,92

 1
53422A - ARM, HOOD HINGE, LH
53422-89102

LN8#,90,RN125,8#,90,YN8#,92

 1
53441B - SUPPORT, HOOD
53441-89105

LN8#,9#,RN125,8#,90,YN8#,9#

 1
53452 - HOLDER, HOOD STAY
53452-90351

LN8#,9#,RN125,8#,90,YN8#,9#

 1
53510 - LOCK ASSY, HOOD
53510-89115

LN85,90,YN80,85,87,92..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09039

LN8#,90,RN125,8#,90,YN8#,92

WD=0.9,CW=21.25,L=34

 1
90506-20008

LN8#,9#,RN125,8#,90,YN8#,9#

WD=2.0,CW=17,L=59

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09039

LN8#,90,RN125,8#,90,YN8#,92

WD=0.9,CW=21.25,L=34

 1
90506-20008

LN8#,9#,RN125,8#,90,YN8#,9#

WD=2.0,CW=17,L=59

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-8910303

LN8#,90,RN8#,90,YN8#,92

GRAY,TRIM1#

 1
53601-8910304

LN8#,90,RN8#,90,YN8#,92

BLUE,TRIM8#

 1
53601-8910306

LN8#,90,RN8#,90,YN8#,92

BROWN,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-89113

LN8#,90,RN85,90,YN80,85,87,92..ARL,GEN

 1
Common parts
90105-06093
90105-06114
90105-08031
90105-08196
90167-50028
90467-11061
90480-15012
90480-15020
