RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-0106)LN8#,9#,RN8#,90,YN8#,9#

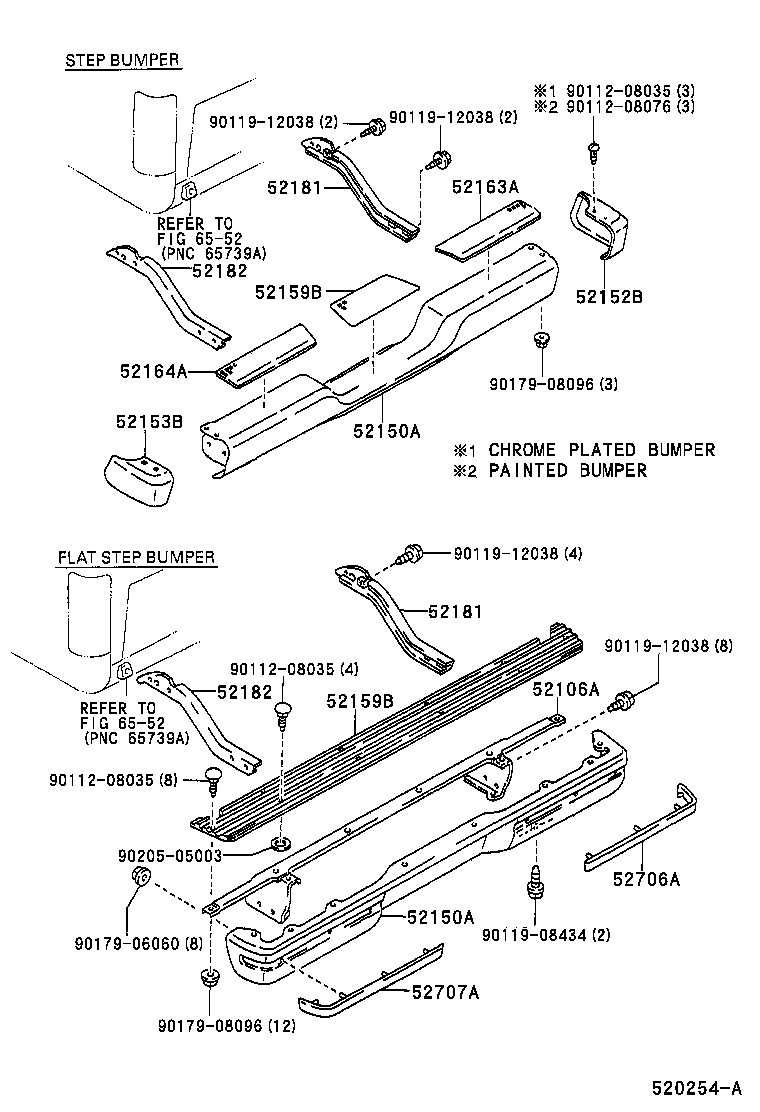

Click highlighted areas on diagram

diagram 52106A 52150A 52150A 52152B 52153B 52159B 52159B 52163A 52164A 52181 52181 52182 52182 52706A 52707A 6552 6552 9011208035 9011208035 9011208035 9011208076 9011908434 9011912038 9011912038 9011912038 9011912038 9017906060 9017908096 9017908096 9020505003
Part # Description Qty Price
52150A - BUMPER ASSY, REAR
52150-89108

LN8#,90,YN80,85,87,92..GEN..CBU

W(CHROME PLATED BUMPER)

 1
52150-89113

LN90,YN92..GEN..CBU;LN8#,RN8#,YN8#..STD..(GEN,V)..CBU

W(PAINTED BUMPER)

 1
52150A - BUMPER ASSY, REAR
52150-89108

LN8#,90,YN80,85,87,92..GEN..CBU

W(CHROME PLATED BUMPER)

 1
52150-89113

LN90,YN92..GEN..CBU;LN8#,RN8#,YN8#..STD..(GEN,V)..CBU

W(PAINTED BUMPER)

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-89112

LN8#,90,YN80,85,87,92..GEN..CBU

W(PAINTED BUMPER)

 1
52152-89104

LN8#,90,YN80,85,87,92..GEN..CBU

W(CROME PLATED BUMPER)

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-89112

LN8#,90,YN80,85,87,92..GEN..CBU

W(PAINTED BUMPER)

 1
52153-89104

LN8#,90,YN80,85,87,92..GEN..CBU

W(CHROME PLATED BUMPER)

 1
52163A - PLATE, REAR BUMPER, RH
52163-89101

LN90,RN90,YN92..(ARL,GEN)..CBU;LN8#,RN8#,YN8#..STD..(GEN,V)..CBU

 1
52164A - PLATE, REAR BUMPER, LH
52164-89101

LN90,RN90,YN92..(ARL,GEN)..CBU;LN8#,RN8#,YN8#..STD..(GEN,V)..CBU

 1
52181 - ARM, REAR BUMPER, RH
52181-89117

RN85..LHD..IV3;LN85,86,RN85,YN85,86,87..(GEN,V)..CBU

 1
52181 - ARM, REAR BUMPER, RH
52181-89117

RN85..LHD..IV3;LN85,86,RN85,YN85,86,87..(GEN,V)..CBU

 1
52182 - ARM, REAR BUMPER, LH
52182-89114

RN85..LHD..IV3;LN85,86,RN85,YN85,86,87..(GEN,V)..CBU

 1
52182 - ARM, REAR BUMPER, LH
52182-89114

RN85..LHD..IV3;LN85,86,RN85,YN85,86,87..(GEN,V)..CBU

 1
Common parts
90112-08035
90112-08076
90119-08434
90119-12038
90179-06060
90179-08096
90205-05003
Linked diagrams
6552
