RN85L-TRMRE (1994)
Toyota Hilux 2wd
(8808-0106)LN81,85,86..LHD

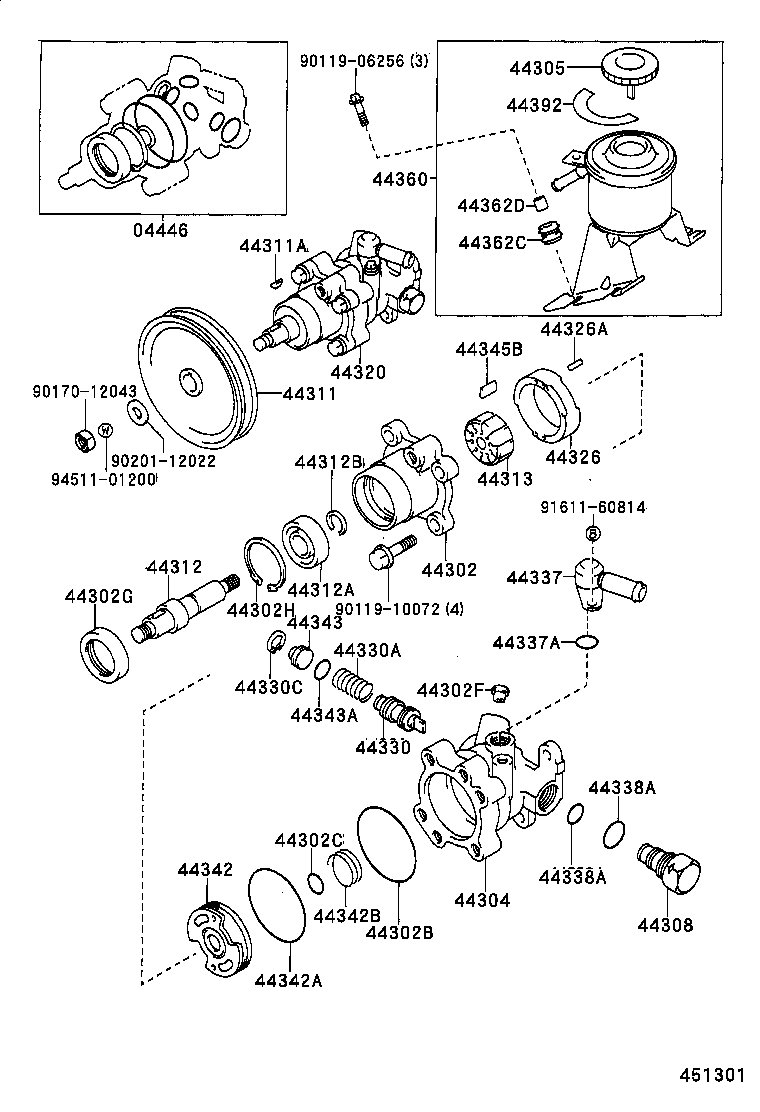

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30030 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 04446-30030 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 04446-30030 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12010 |
RN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90301-60001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 96711-19016 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 90311-24001 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90311-24001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90521-44002 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 90521-44002 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-35031 |
RN85..EFI..CBU |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-35010 |
RN85..V;RN85..RHD;RN85..T1..EFI;LN85..LHD..GEN;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 44305-35010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-35060 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44308-35060 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-20010 |
RN80,90;RN85..RHD;RN85..T1..EFI..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 90280-05008 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90280-05008 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44312-12010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 44312-12010 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90363-17004 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 90363-17004 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 90520-15001 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 90520-15001 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22060 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK 2 |
1 | ||
| 44313-22070 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK 3 |
1 | ||
| 44313-22080 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK 4 |
1 | ||
| 44313-22060 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK 2 |
1 | ||
| 44313-22050 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK 1 |
1 | ||
| 44313-22050 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK 1 |
1 | ||
| 44313-22070 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK 3 |
1 | ||
| 44313-22040 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) NO MARK |
1 | ||
| 44313-22080 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK 4 |
1 | ||
| 44313-22040 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V NO MARK |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-35241 |
RN85..EFI..CBU |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-22090 |
RN85..EFI..CBU MARK 2 |
1 | ||
| 44325-22110 |
RN85..EFI..CBU MARK 4 |
1 | ||
| 44325-22070 |
RN85..EFI..CBU NO MARK |
1 | ||
| 44325-22100 |
RN85..EFI..CBU MARK 3 |
1 | ||
| 44325-22080 |
RN85..EFI..CBU MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=25,OD=5.0 |
2 | ||
| 90250-05008 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=25,OD=5.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12151 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK C |
1 | ||
| 44330-12141 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK B |
1 | ||
| 44330-12181 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK F |
1 | ||
| 44330-12171 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK E |
1 | ||
| 44330-12161 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK D |
1 | ||
| 44330-12171 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK E |
1 | ||
| 44330-12151 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK C |
1 | ||
| 44330-12131 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK A |
1 | ||
| 44330-12131 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK A |
1 | ||
| 44330-12181 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK F |
1 | ||
| 44330-12141 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK B |
1 | ||
| 44330-12161 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90501-12103 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 96151-01700 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 90404-16016 |
RN80,90;RN85..RHD;RN85..T1..EFI..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
RN85..V;RN85..RHD;RN85..T1..EFI;LN85..LHD..GEN;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 96711-19013 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) OD=25.5,ID=22.5 |
1 | ||
| 96711-19014 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V OD=25.5,ID=22.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) OD=25.5,ID=22.5 |
1 | ||
| 96711-19014 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V OD=25.5,ID=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44341-12010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90301-53002 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 90501-23014 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44343-12040 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 96711-19014 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12020 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.995 |
10 | ||
| 44345-12050 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.989 |
10 | ||
| 44345-12020 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.995 |
10 | ||
| 44345-12050 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.989 |
10 | ||
| 44345-12010 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.997 |
10 | ||
| 44345-12040 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.991 |
10 | ||
| 44345-12030 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.993 |
10 | ||
| 44345-12010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.997 |
10 | ||
| 44345-12030 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.993 |
10 | ||
| 44345-12040 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-35061 |
RN80,90;RN85..RHD;RN85..T1..EFI..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09020 |
RN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
RN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
3 | ||
| 44392 - LABEL, OIL RESERVOIR CAUTION | ||||
| 44392-35010 |
RN85..V;RN85..RHD;RN85..T1..EFI;LN85..LHD..GEN;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 44392-35010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| Common parts | ||||
| 90119-06256 | ||||
| 90119-10072 | ||||
| 90170-12043 | ||||
| 90201-12022 | ||||
| 91611-60814 | ||||
| 94511-01200 | ||||
(8808-9909)RN125,8#,90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30030 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 04446-30030 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 04446-30030 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12010 |
RN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90301-60001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 96711-19016 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
RN85..EFI..CBU |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 90311-24001 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90311-24001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90521-44002 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 90521-44002 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-35031 |
RN85..EFI..CBU |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-35010 |
RN85..V;RN85..RHD;RN85..T1..EFI;LN85..LHD..GEN;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 44305-35010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-35060 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44308-35060 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-20010 |
RN80,90;RN85..RHD;RN85..T1..EFI..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 90280-05008 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90280-05008 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44312-12010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 44312-12010 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17004 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90363-17004 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 90363-17004 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 90520-15001 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 90520-15001 |
RN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22060 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK 2 |
1 | ||
| 44313-22070 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK 3 |
1 | ||
| 44313-22080 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK 4 |
1 | ||
| 44313-22060 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK 2 |
1 | ||
| 44313-22050 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK 1 |
1 | ||
| 44313-22050 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK 1 |
1 | ||
| 44313-22070 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK 3 |
1 | ||
| 44313-22040 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) NO MARK |
1 | ||
| 44313-22080 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK 4 |
1 | ||
| 44313-22040 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V NO MARK |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-35241 |
RN85..EFI..CBU |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-22090 |
RN85..EFI..CBU MARK 2 |
1 | ||
| 44325-22110 |
RN85..EFI..CBU MARK 4 |
1 | ||
| 44325-22070 |
RN85..EFI..CBU NO MARK |
1 | ||
| 44325-22100 |
RN85..EFI..CBU MARK 3 |
1 | ||
| 44325-22080 |
RN85..EFI..CBU MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=25,OD=5.0 |
2 | ||
| 90250-05008 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=25,OD=5.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12151 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK C |
1 | ||
| 44330-12141 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK B |
1 | ||
| 44330-12181 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK F |
1 | ||
| 44330-12171 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK E |
1 | ||
| 44330-12161 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK D |
1 | ||
| 44330-12171 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK E |
1 | ||
| 44330-12151 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK C |
1 | ||
| 44330-12131 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK A |
1 | ||
| 44330-12131 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) MARK A |
1 | ||
| 44330-12181 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK F |
1 | ||
| 44330-12141 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK B |
1 | ||
| 44330-12161 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90501-12103 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 96151-01700 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 90404-16016 |
RN80,90;RN85..RHD;RN85..T1..EFI..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
RN85..V;RN85..RHD;RN85..T1..EFI;LN85..LHD..GEN;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 96711-19013 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) OD=25.5,ID=22.5 |
1 | ||
| 96711-19014 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V OD=25.5,ID=22.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) OD=25.5,ID=22.5 |
1 | ||
| 96711-19014 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V OD=25.5,ID=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44341-12010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 90301-53002 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 90501-23014 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V |
1 | ||
| 44343-12040 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,RN80,YN81,86..LHD..(TH,V) |
1 | ||
| 96711-19014 |
RN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12020 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.995 |
10 | ||
| 44345-12050 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.989 |
10 | ||
| 44345-12020 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.995 |
10 | ||
| 44345-12050 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.989 |
10 | ||
| 44345-12010 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.997 |
10 | ||
| 44345-12040 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.991 |
10 | ||
| 44345-12030 |
RN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN) L=14.993 |
10 | ||
| 44345-12010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.997 |
10 | ||
| 44345-12030 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.993 |
10 | ||
| 44345-12040 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V L=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-35061 |
RN80,90;RN85..RHD;RN85..T1..EFI..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5) |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09020 |
RN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
RN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD |
3 | ||
| 44392 - LABEL, OIL RESERVOIR CAUTION | ||||
| 44392-35010 |
RN85..V;RN85..RHD;RN85..T1..EFI;LN85..LHD..GEN;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| 44392-35010 |
RN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90..ARL,TH,V |
1 | ||
| Common parts | ||||
| 90119-06256 | ||||
| 90119-10072 | ||||
| 90170-12043 | ||||
| 90201-12022 | ||||
| 91611-60814 | ||||
| 94511-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
