RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

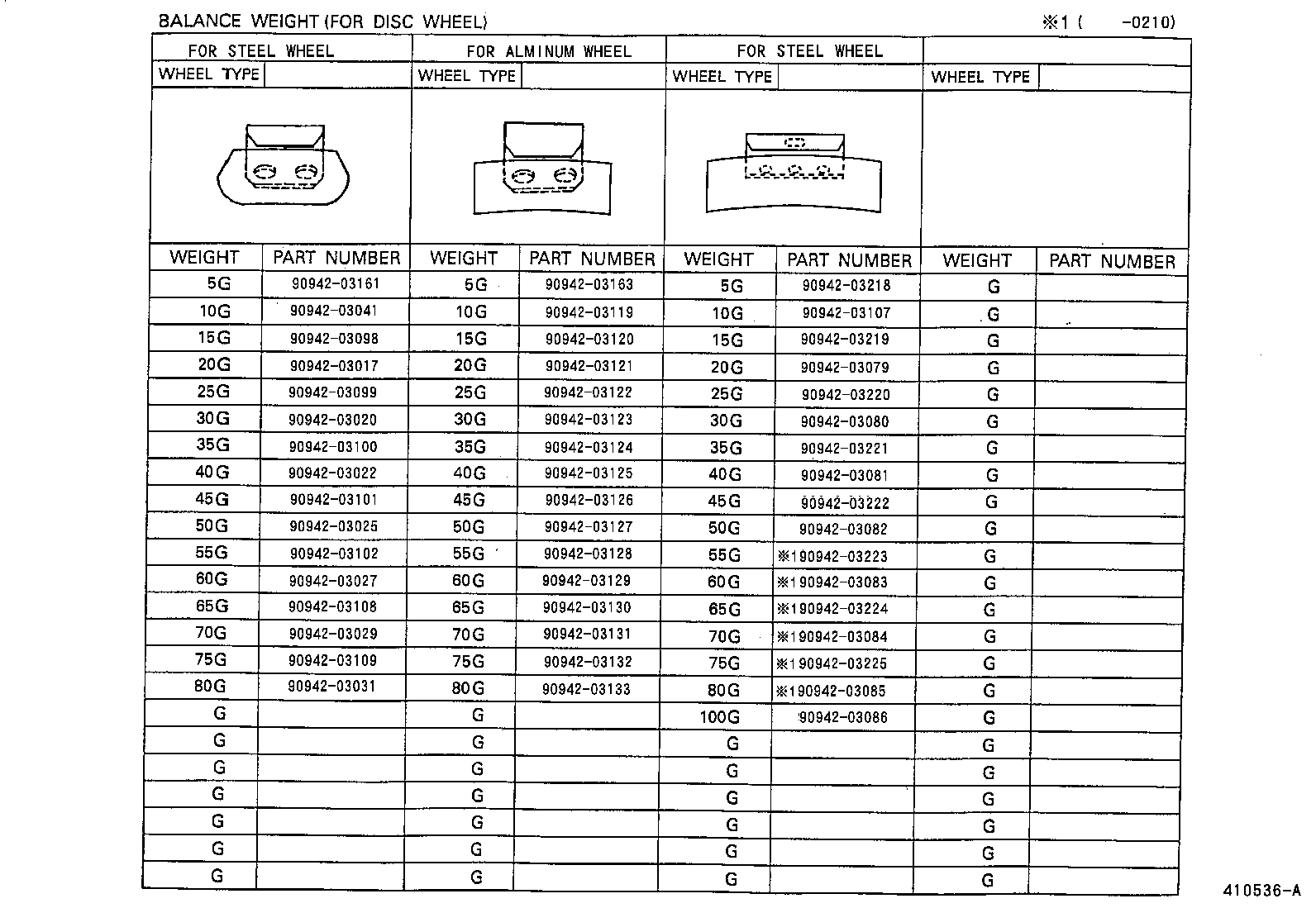

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203029 9094203031 9094203041 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203086 9094203098 9094203099 9094203100 9094203101 9094203102 9094203107 9094203108 9094203109 9094203119 9094203120 9094203121 9094203122 9094203123 9094203124 9094203125 9094203126 9094203127 9094203128 9094203129 9094203130 9094203131 9094203132 9094203133 9094203161 9094203163 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03086
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03107
90942-03108
90942-03109
90942-03119
90942-03120
90942-03121
90942-03122
90942-03123
90942-03124
90942-03125
90942-03126
90942-03127
90942-03128
90942-03129
90942-03130
90942-03131
90942-03132
90942-03133
90942-03161
90942-03163
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225

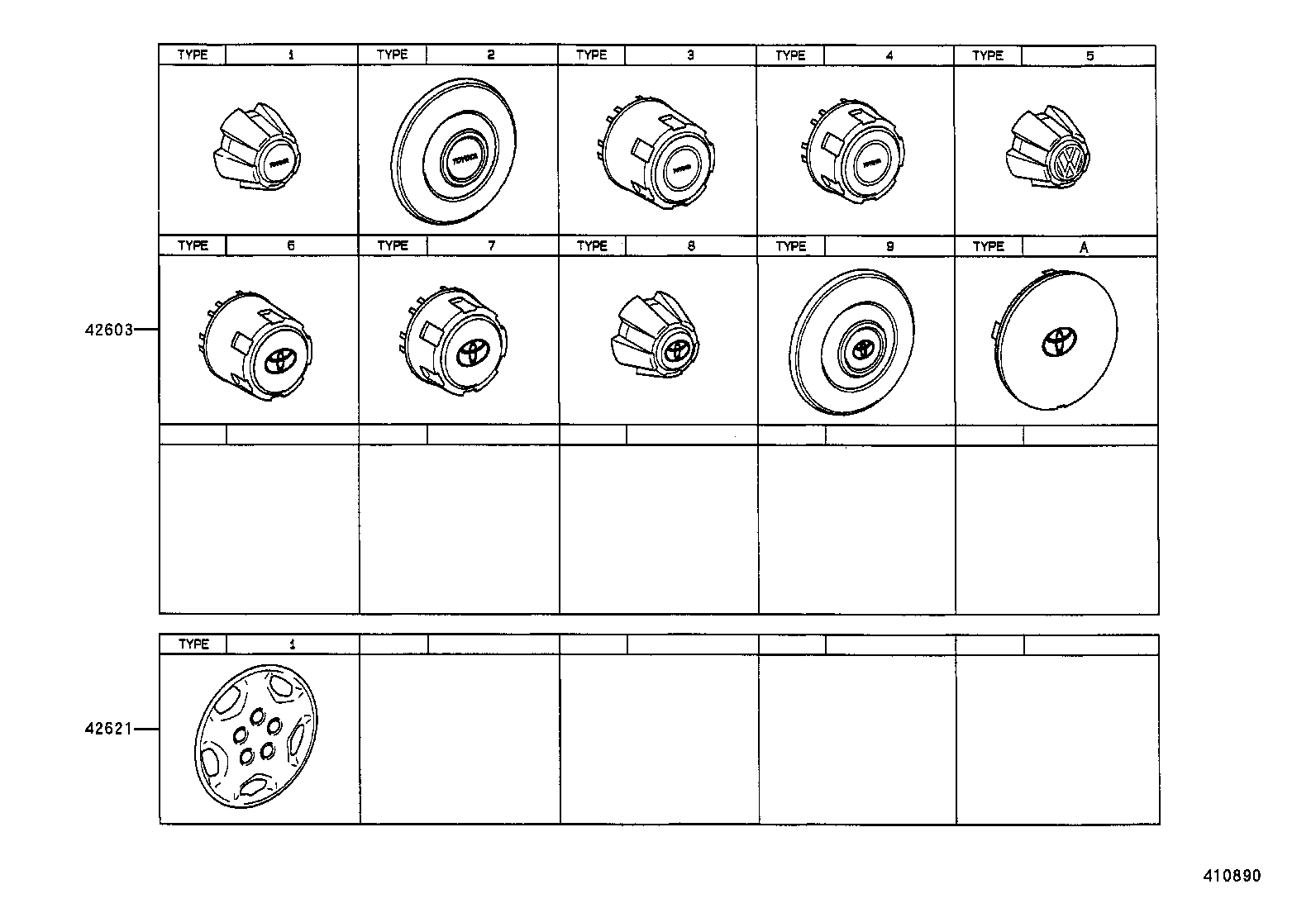

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35061

LN80,85,RN85,YN80,85,87..(DLX,STD)..(ARL,GEN,TH)

 4
42603-35240

LN85,RN90..SR5;LN81,86,90,RN8#,YN81,86,92..GEN,TH,V

 4

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

diagram 42601A 42601C 42601F 42601R 42611G 42611J 42652 42652A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42601-26250

LN8#,RN8#,YN8#..GEN,V

5.5J-14, #,TYPE A

 1
42601-3514203

LN80,85,YN80,85..GEN

4.5J-14,TYPE B,SILVER M.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01061

LN8#,90,RN8#,90,YN8#,92

 20
90942-01082

RN90..V;LN8#,90,RN8#,YN8#

 20
42601F - WHEEL, DISC (FOR FRONT)
42601-26250

LN8#,RN8#,YN8#..GEN,V

5.5J-14, #,TYPE A

 2
42601-3514203

LN80,85,YN80,85..GEN

4.5J-14,TYPE B,SILVER M.

 2
42601R - WHEEL, DISC (FOR REAR)
42601-26250

LN8#,RN8#,YN8#..GEN,V

5.5J-14, #,TYPE A

 2
42601-3514203

LN80,85,YN80,85..GEN

4.5J-14,TYPE B,SILVER M.

 2
42652 - TIRE
42605-35120

LN8#,RN8#,YN8#..GEN,V

185R14C-8PR,*D/L

 4
42605-35110

LN8#,RN8#,YN8#..GEN,V

185R14C-8PR,*B/S

 4
42605-35130

LN8#,RN8#,YN8#..GEN,V

185R14C-8PR,*Y/H

 4
42605-35240

YN80,85,87,90..GEN,TH;LN80,85,YN81,86..GEN,V

6.00-14-6PR

 2
42605-35250

YN80,85,87,90;LN80,85,YN81,86..GEN,V

6.50-14-8PR

 4
42605-35270

RN85..EFI;RN85,90,YN86..V;RN80,YN81..SR5,STD

195R15-6PR

 4
42605-35240

LN80,85,YN8#..GEN,V

6.00-14-6PR

 2
42605-35250

LN80,85,YN8#..GEN,V

6.50-14-8PR

 4
42605-35320

RN85..RHD..GEN;RN85..SR5..GEN;LN80,85,YN80,85..GEN

185R14-C8PR *Y/H

 4
42605-35300

RN85..RHD..GEN;RN85..SR5..GEN;LN80,85,YN80,85..GEN

185R14-C8PR *B/S

 4
42605-35310

RN85..RHD..GEN;RN85..SR5..GEN;LN80,85,YN80,85..GEN

185R14-C8PR *D/L

 4
42605-35131

RN85..RHD..GEN;RN85..SR5..GEN;LN80,85,YN80,85..GEN

185R14C-8PR

 4
42652A - TIRE (FOR SPARE)
42605-35110

LN8#,RN8#,YN8#..GEN,V

185R14C-8PR,*B/S

 1
42605-35250

YN80,85,87;LN8#,YN81,86..GEN,V

6.50-14-8PR

 1
42605-35130

LN8#,RN8#,YN8#..GEN,V

185R14C-8PR,*Y/H

 1
42605-35131

RN85..RHD..GEN;RN85..SR5..GEN;LN80,85,YN80,85..GEN

185R14C-8PR

 1
42605-35120

LN8#,RN8#,YN8#..GEN,V

185R14C-8PR,*D/L

 1
42605-35250

LN80,85,YN8#..GEN,V

6.50-14-8PR

 1
42605-35320

RN85..RHD..GEN;RN85..SR5..GEN;LN80,85,YN80,85..GEN

185R14-C8PR *Y/H

 1
42605-35310

RN85..RHD..GEN;RN85..SR5..GEN;LN80,85,YN80,85..GEN

185R14-C8PR *D/L

 1
42605-35300

RN85..RHD..GEN;RN85..SR5..GEN;LN80,85,YN80,85..GEN

185R14-C8PR *B/S

 1
