RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R ; (9401- )22RE

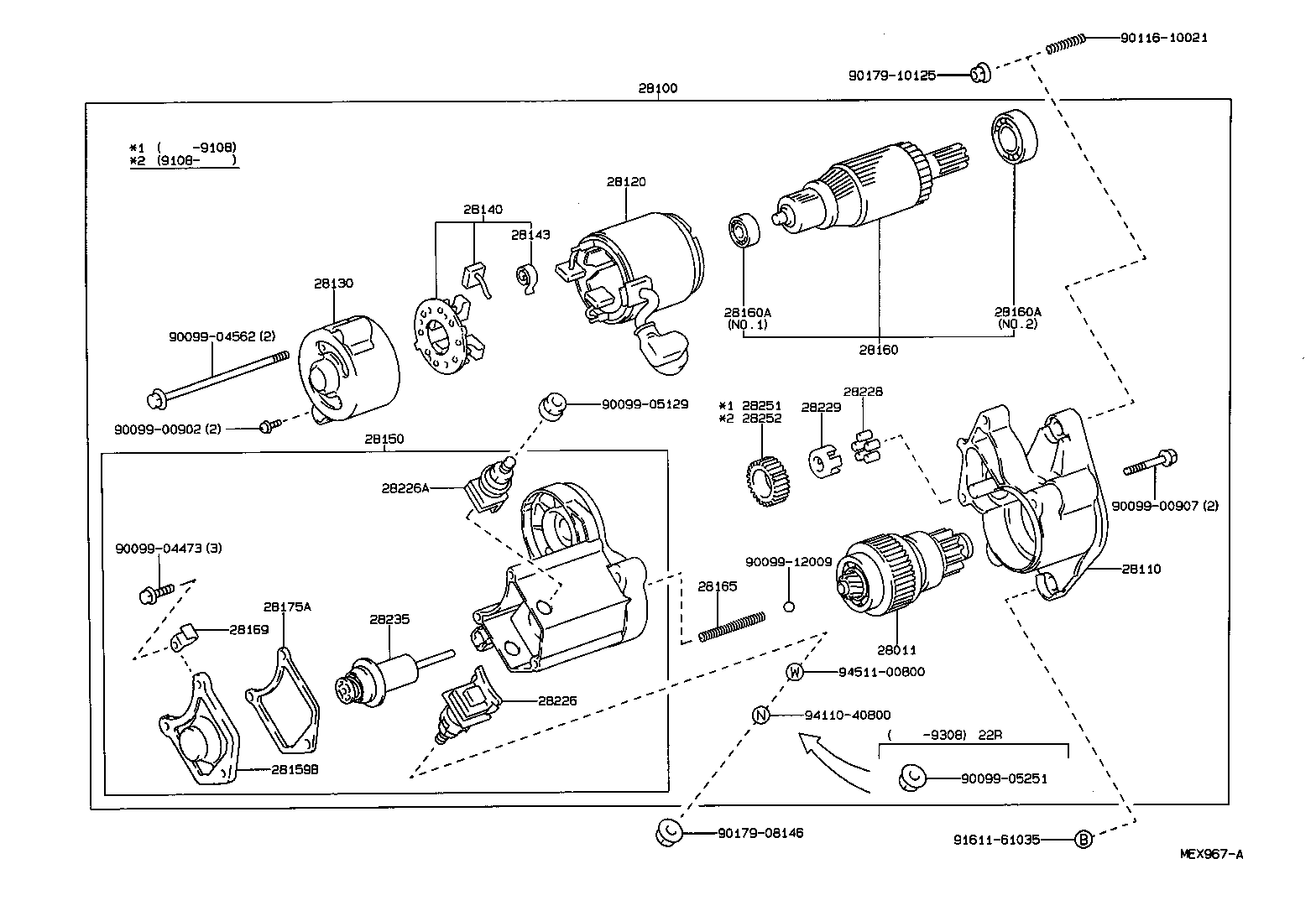

Click highlighted areas on diagram

12V 1.0KW

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28159B 28160 28160A 28160A 28165 28169 28175A 28226 28226A 28228 28229 28235 28251 28252 9009900902 9009900907 9009904473 9009904562 9009905129 9009905251 9009912009 9011610021 9017908146 9017910125 9161161035 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
28100 - STARTER ASSY
28100-34080

22R..RN125,8#,90

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-34080

22R#..RN125,8#,90

 1
28120 - YOKE ASSY, STARTER
28120-26071

22R..RN125,8#,90

 2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-34060

22R#..RN125,8#,90

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
28143 - SPRING, STARTER BRUSH
90099-17112

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34080

22R,2Y,3Y..RN125,8#,90,YN80,81,85,86

 1
28159B - COVER, MAGNET SWITCH
28159-10040

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
28159-10040

22R#,2Y,3Y..RN85,90,YN80,85,86;22R,2L,3L,3Y..LN80,85,9#,RN80,YN81..5F..(TH,V)

 1
28160 - ARMATURE ASSY, STARTER
28160-26070

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

NO.2

 1
28253-45020

22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

NO.1

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

NO.2

 1
28253-45020

22R#,2Y,3Y,4Y..RN125,8#,90,YN8#,9#

NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM

 1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040

22R#,2Y,3Y..RN125,8#,90,YN80,81,85,86,90

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040

22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-72080

22R,2Y,3Y..RN125,8#,90,YN80,81,85,86

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

22R..RN85,90;22R,2L,3L,2Y,3Y..LN8#,90,RN125,80,YN80,81,85,86..MTM

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

22R..RN85,90;22R#,2L,3L,2Y,3Y,4Y..LN8#,9#,RN125,8#,YN8#,9#..MTM

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM

 1
28235 - PLUNGER, MAGNET SWITCH
28235-35080

22R..RN85,90;22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,80,YN8#,92..MTM

 1
28251 - PINION, STARTER DRIVE
28254-45020

22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92

 1
Common parts
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-05251
90099-12009
90116-10021
90179-08146
90179-10125
91611-61035
94110-40800
94511-00800
