RN85L-TRMRE (1994)
Toyota Hilux 2wd
(9408- )22R
12V 55A

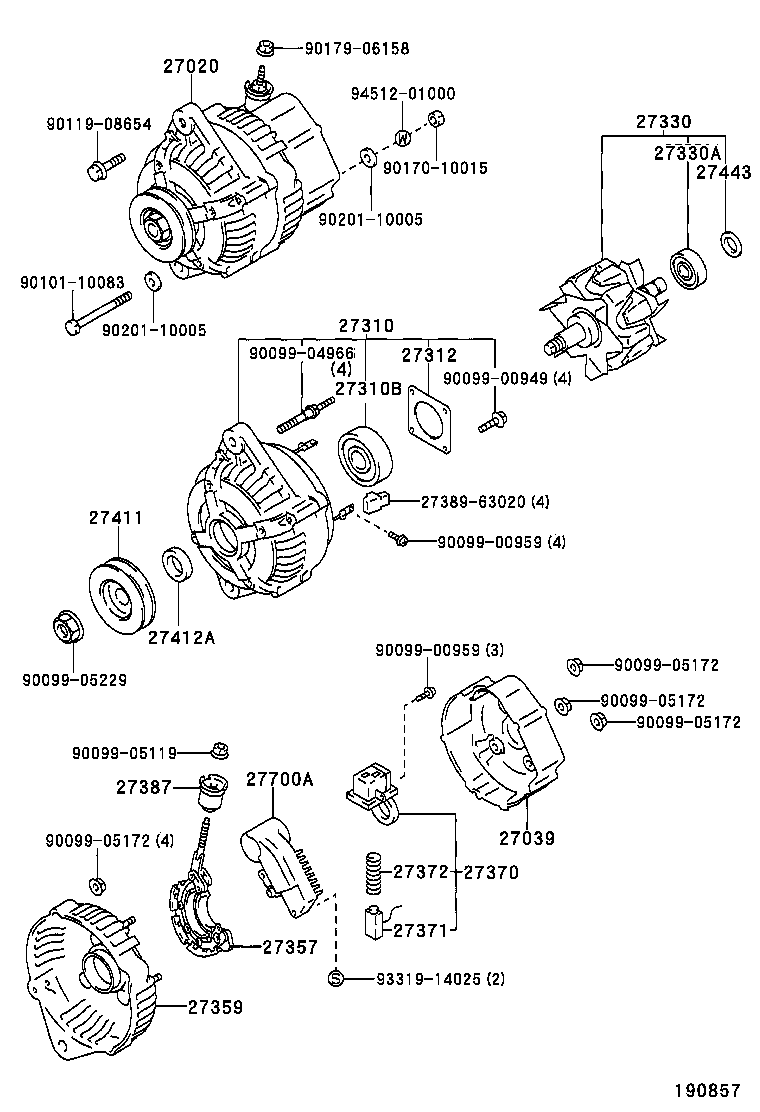

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-18011 |
22R..RN8#,90 12V 40A |
1 | ||
| 27060-35170 |
22R..RN8#,90 12V 55A |
1 | ||
| 27060-35150 |
22RE..RN85 12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
22R#..RN8#,90 |
1 | ||
| 27039-16380 |
22R#..RN8#,90 |
1 | ||
| 27039-18011 |
22R..RN8#,90 |
1 | ||
| 27039-73020 |
22RE..RN85 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-35120 |
22R#..RN8#,90 |
1 | ||
| 27310-35120 |
22RE..RN85 |
1 | ||
| 27310-18010 |
22R..RN8#,90 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
22R..RN125,8#,90 |
1 | ||
| 90099-10199 |
22RE..RN85 |
1 | ||
| 90099-10199 |
22R#..RN8#,90 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
22R#..RN8#,90 |
1 | ||
| 27312-72100 |
22RE..RN85 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
22R#..RN8#,90 |
1 | ||
| 27330-72101 |
22RE..RN85 |
1 | ||
| 27330-26050 |
22R,2Y,3Y,4Y..RN8#,90,YN8#,92 |
1 | ||
| 27330-64570 |
22RE..RN85 |
1 | ||
| 27330-11250 |
22R..RN8#,90 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9# |
1 | ||
| 90099-10140 |
22RE..RN85 |
1 | ||
| 90099-10140 |
22R#..RN8#,90 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
22R..RN8#,90 |
1 | ||
| 27357-16380 |
22RE..RN85 |
1 | ||
| 27357-63020 |
22RE..RN85 |
1 | ||
| 27357-13360 |
22R..RN8#,90 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16011 |
22R#..RN8#,90 |
1 | ||
| 27359-16011 |
22RE..RN85 |
1 | ||
| 27359-16012 |
22R#..RN8#,90 |
1 | ||
| 27359-13050 |
22R..RN8#,90 |
1 | ||
| 27359-16013 |
22R#..RN8#,90 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
22RE..RN85 |
1 | ||
| 27370-35060 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
2 | ||
| 27371-70300 |
22RE..RN85 |
2 | ||
| 27371-31011 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9# |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
2 | ||
| 27371-70300 |
22RE..RN85 |
2 | ||
| 27371-31011 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9# |
2 | ||
| 27372-63020 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
2 | ||
| 27372-63020 |
22RE..RN85 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9# |
2 | ||
| 27372-63020 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
2 | ||
| 27372-63020 |
22RE..RN85 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-45022 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92 |
1 | ||
| 27387-70170 |
22R#..RN8#,90 |
1 | ||
| 27387-70170 |
22RE..RN85 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
22R..RN125,8#,90 |
1 | ||
| 27411-35062 |
22R#..RN8#,90 |
1 | ||
| 27411-35062 |
22RE..RN85 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-35100 |
22R#..RN8#,90 |
1 | ||
| 27412-31040 |
22R..RN125,8#,90 |
1 | ||
| 27412-35100 |
22RE..RN85 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
22RE..RN85 |
1 | ||
| 27443-63020 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 27700-35040 |
22RE..RN85 |
1 | ||
| 27700-66040 |
22R..RN8#,90 |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90099-05229 | ||||
| 90101-10083 | ||||
| 90119-08654 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 93319-14025 | ||||
| 94512-01000 | ||||
(9401- )22RE
12V 60A

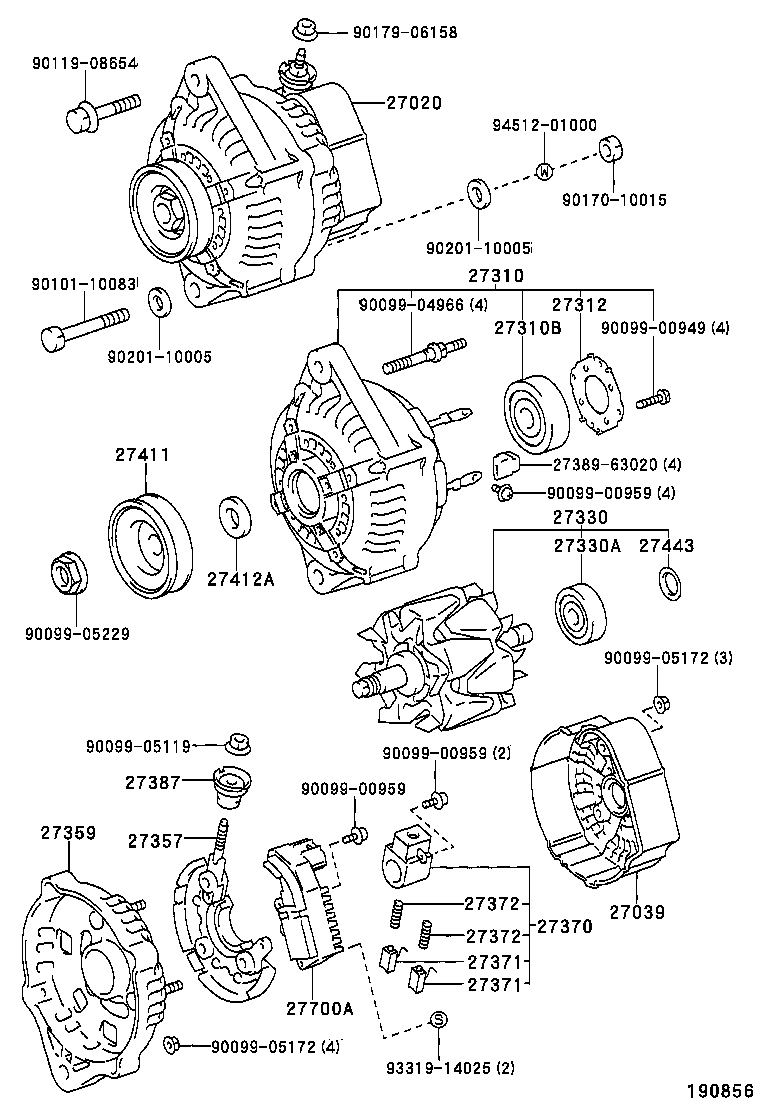

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-18011 |
22R..RN8#,90 12V 40A |
1 | ||
| 27060-35170 |
22R..RN8#,90 12V 55A |
1 | ||
| 27060-35150 |
22RE..RN85 12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
22R#..RN8#,90 |
1 | ||
| 27039-16380 |
22R#..RN8#,90 |
1 | ||
| 27039-18011 |
22R..RN8#,90 |
1 | ||
| 27039-73020 |
22RE..RN85 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-35120 |
22R#..RN8#,90 |
1 | ||
| 27310-35120 |
22RE..RN85 |
1 | ||
| 27310-18010 |
22R..RN8#,90 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
22R..RN125,8#,90 |
1 | ||
| 90099-10199 |
22RE..RN85 |
1 | ||
| 90099-10199 |
22R#..RN8#,90 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
22R#..RN8#,90 |
1 | ||
| 27312-72100 |
22RE..RN85 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
22R#..RN8#,90 |
1 | ||
| 27330-72101 |
22RE..RN85 |
1 | ||
| 27330-26050 |
22R,2Y,3Y,4Y..RN8#,90,YN8#,92 |
1 | ||
| 27330-64570 |
22RE..RN85 |
1 | ||
| 27330-11250 |
22R..RN8#,90 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9# |
1 | ||
| 90099-10140 |
22RE..RN85 |
1 | ||
| 90099-10140 |
22R#..RN8#,90 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
22R..RN8#,90 |
1 | ||
| 27357-16380 |
22RE..RN85 |
1 | ||
| 27357-63020 |
22RE..RN85 |
1 | ||
| 27357-13360 |
22R..RN8#,90 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16011 |
22R#..RN8#,90 |
1 | ||
| 27359-16011 |
22RE..RN85 |
1 | ||
| 27359-16012 |
22R#..RN8#,90 |
1 | ||
| 27359-13050 |
22R..RN8#,90 |
1 | ||
| 27359-16013 |
22R#..RN8#,90 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
22RE..RN85 |
1 | ||
| 27370-35060 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
2 | ||
| 27371-70300 |
22RE..RN85 |
2 | ||
| 27371-31011 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9# |
2 | ||
| 27372-63020 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
2 | ||
| 27372-63020 |
22RE..RN85 |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-45022 |
22R,2Y,3Y,4Y..RN125,8#,90,YN8#,92 |
1 | ||
| 27387-70170 |
22R#..RN8#,90 |
1 | ||
| 27387-70170 |
22RE..RN85 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
22R..RN125,8#,90 |
1 | ||
| 27411-35062 |
22R#..RN8#,90 |
1 | ||
| 27411-35062 |
22RE..RN85 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-35100 |
22R#..RN8#,90 |
1 | ||
| 27412-31040 |
22R..RN125,8#,90 |
1 | ||
| 27412-35100 |
22RE..RN85 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
22RE..RN85 |
1 | ||
| 27443-63020 |
22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,8#,90,YN8#,92 |
1 | ||
| 27700-35040 |
22RE..RN85 |
1 | ||
| 27700-66040 |
22R..RN8#,90 |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90099-05229 | ||||
| 90101-10083 | ||||
| 90119-08654 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 93319-14025 | ||||
| 94512-01000 | ||||
