RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

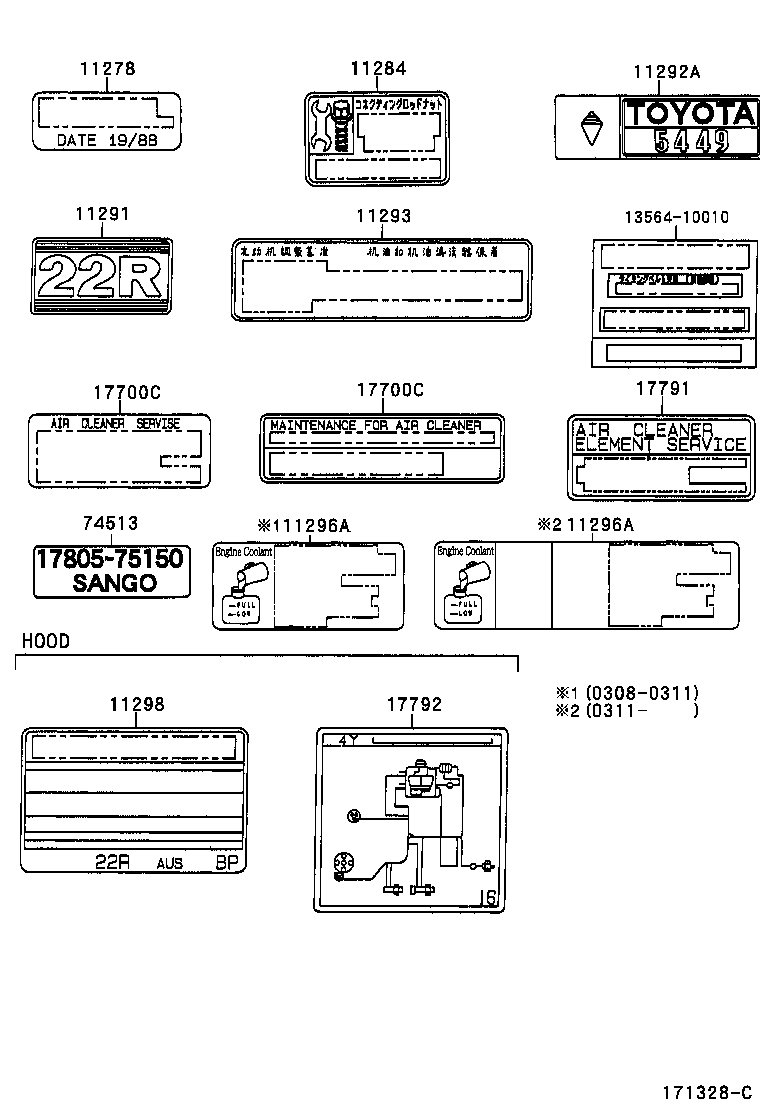

Click highlighted areas on diagram

diagram 11278 11284 11291 11292A 11293 11296A 11296A 11298 1356410010 17700C 17700C 17791 17792 74513
Part # Description Qty Price
11291 - PLATE, ENGINE NAME
11291-35030

22R..RN125,8#,90

 1
11291-35040

22RE..RN85

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-3D640

22RE..RN85

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
17791-35050

22R..RN125,8#,90

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
17791-35050

22R..RN125,8#,90

 1
17791 - LABEL, MAINTENANCE INFORMATION
17791-35070

22RE..RN85

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
17792-3D320

22RE..RN85

 1
17792-3D280

22RE..RN85

 1
Common parts
13564-10010
