Toyota Hilux 2wd RN85 MANIFOLD - JDM Part Detective

RN85L-TRMRE (1994)

Toyota Hilux 2wd

Production Jan 1994 - Sep 1999

Engine 22RE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

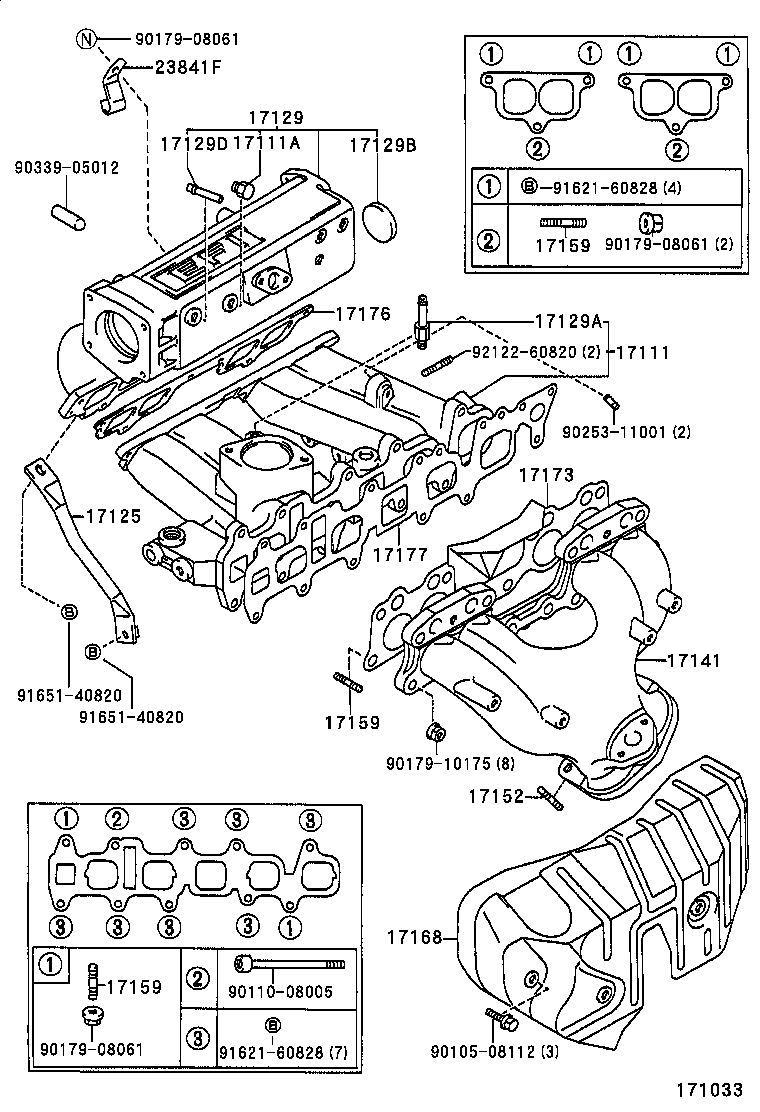

(9401- )22RE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-35100	22R..RN8#;22R..RN90..V	05/1994 - 08/1994	1
17101-35050	22RE..RN85	01/1994 - 09/1999	1
17111-35100	22R..RN125,8#,90..LHD	08/1988 - 05/1994	1
17111-35110	22R..RN8#;22R..RN90..V	08/1994 - 09/1999	1
17111A - PLUG, NO.1
90345-51006	22R#..RN125,8#,90	08/1988 - 11/1995	1
90345-51006	22R..RN90..ARL;22RE..RN85..CBU	11/1995 - 09/1999	1
90345-51025	22R..RN8#;22R..RN90..V;22RE..RN85..IV3	11/1995 - 09/1999	1
17125 - STAY, SURGE TANK, NO.1
17125-35030	22RE..RN85	01/1994 - 09/1999	1
17129 - TANK, INTAKE AIR SURGE
17109-35040	22RE..RN85	01/1994 - 09/1999	1
17129A - UNION, NO.1
90404-51060	22RE..RN85	01/1994 - 09/1999	1
17129B - PLUG
96411-44000	22RE..RN85	01/1994 - 09/1999	1
17129D - UNION, NO.2
90406-06001	22RE..RN85	01/1994 - 09/1999	1
17141 - MANIFOLD, EXHAUST
17141-35150	22RE..RN85	08/1994 - 09/1999	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	22R#..RN125,8#,90	08/1988 - 09/1999	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172	22R#..RN125,8#,90 INTAKE TO HEAD	08/1988 - 09/1999	2
90116-10067	22R#..RN125,8#,90 EXHAUST MANIFOLD UPR	08/1988 - 09/1999	4
90116-10064	22R#..RN125,8#,90 EXHAUST MANIFOLD LWR	08/1988 - 09/1999	4
92122-60825	22RE..RN85 INTAKE TO SURGE TANK	01/1994 - 09/1999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172	22R#..RN125,8#,90 INTAKE TO HEAD	08/1988 - 09/1999	2
90116-10067	22R#..RN125,8#,90 EXHAUST MANIFOLD UPR	08/1988 - 09/1999	4
90116-10064	22R#..RN125,8#,90 EXHAUST MANIFOLD LWR	08/1988 - 09/1999	4
92122-60825	22RE..RN85 INTAKE TO SURGE TANK	01/1994 - 09/1999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172	22R#..RN125,8#,90 INTAKE TO HEAD	08/1988 - 09/1999	2
90116-10067	22R#..RN125,8#,90 EXHAUST MANIFOLD UPR	08/1988 - 09/1999	4
90116-10064	22R#..RN125,8#,90 EXHAUST MANIFOLD LWR	08/1988 - 09/1999	4
92122-60825	22RE..RN85 INTAKE TO SURGE TANK	01/1994 - 09/1999	2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35180	22R..RN125,8#,90	08/1988 - 05/1990	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35120	22R#..RN125,8#,90	08/1988 - 09/1999	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-35020	22RE..RN85	01/1994 - 09/1999	1
23841F - CLAMP, FUEL HOSE
23841-35040	22RE..RN85	01/1994 - 09/1999	1
Common parts
90105-08112
90110-08005
90179-08061
90179-10175
90253-11001
90339-05012
91621-60828
91651-40820
92122-60820

(8808- )22R

Click highlighted areas on diagram

Part #	Description	Period	Qty
16347 - GASKET, WATER BY-PASS
16347-35040	22R..RN8#;22R..RN90..V	05/1994 - 09/1999	1
16347-35040	22R..RN125,8#,90..LHD	08/1988 - 05/1994	1
16347 - GASKET, WATER BY-PASS
16347-35040	22R..RN8#;22R..RN90..V	05/1994 - 09/1999	1
16347-35040	22R..RN125,8#,90..LHD	08/1988 - 05/1994	1
16353 - FLANGE, WATER BY-PASS
16353-35030	22R..RN125,8#,90..LHD	08/1988 - 05/1994	1
16353-35030	22R..RN8#;22R..RN90..V	05/1994 - 09/1999	1
16353 - FLANGE, WATER BY-PASS
16353-35030	22R..RN125,8#,90..LHD	08/1988 - 05/1994	1
16353-35030	22R..RN8#;22R..RN90..V	05/1994 - 09/1999	1
17111 - MANIFOLD, INTAKE
17111-35100	22R..RN8#;22R..RN90..V	05/1994 - 08/1994	1
17101-35050	22RE..RN85	01/1994 - 09/1999	1
17111-35100	22R..RN125,8#,90..LHD	08/1988 - 05/1994	1
17111-35110	22R..RN8#;22R..RN90..V	08/1994 - 09/1999	1
17111A - PLUG, NO.1
90345-51006	22R#..RN125,8#,90	08/1988 - 11/1995	1
90345-51006	22R..RN90..ARL;22RE..RN85..CBU	11/1995 - 09/1999	1
90345-51025	22R..RN8#;22R..RN90..V;22RE..RN85..IV3	11/1995 - 09/1999	1
17111B - PLUG, NO.2
90345-53007	22R..RN8#;22R..RN90..V	05/1994 - 08/1994	2
17141 - MANIFOLD, EXHAUST
17141-35150	22RE..RN85	08/1994 - 09/1999	1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051	22R..RN125,8#,90	08/1988 - 09/1999	2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	22R#..RN125,8#,90	08/1988 - 09/1999	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172	22R#..RN125,8#,90 INTAKE TO HEAD	08/1988 - 09/1999	2
90116-10067	22R#..RN125,8#,90 EXHAUST MANIFOLD UPR	08/1988 - 09/1999	4
90116-10064	22R#..RN125,8#,90 EXHAUST MANIFOLD LWR	08/1988 - 09/1999	4
92122-60825	22RE..RN85 INTAKE TO SURGE TANK	01/1994 - 09/1999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172	22R#..RN125,8#,90 INTAKE TO HEAD	08/1988 - 09/1999	2
90116-10067	22R#..RN125,8#,90 EXHAUST MANIFOLD UPR	08/1988 - 09/1999	4
90116-10064	22R#..RN125,8#,90 EXHAUST MANIFOLD LWR	08/1988 - 09/1999	4
92122-60825	22RE..RN85 INTAKE TO SURGE TANK	01/1994 - 09/1999	2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35180	22R..RN125,8#,90	08/1988 - 05/1990	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35180	22R..RN125,8#,90	08/1988 - 05/1990	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35120	22R#..RN125,8#,90	08/1988 - 09/1999	1
Common parts
90105-08112
90179-08061
90179-10175
91611-60616
91611-60816
91621-60828

RN85L-TRMRE (1994)

(9401- )22RE

(8808- )22R
