RN85L-TRMRE (1994)
Toyota Hilux 2wd

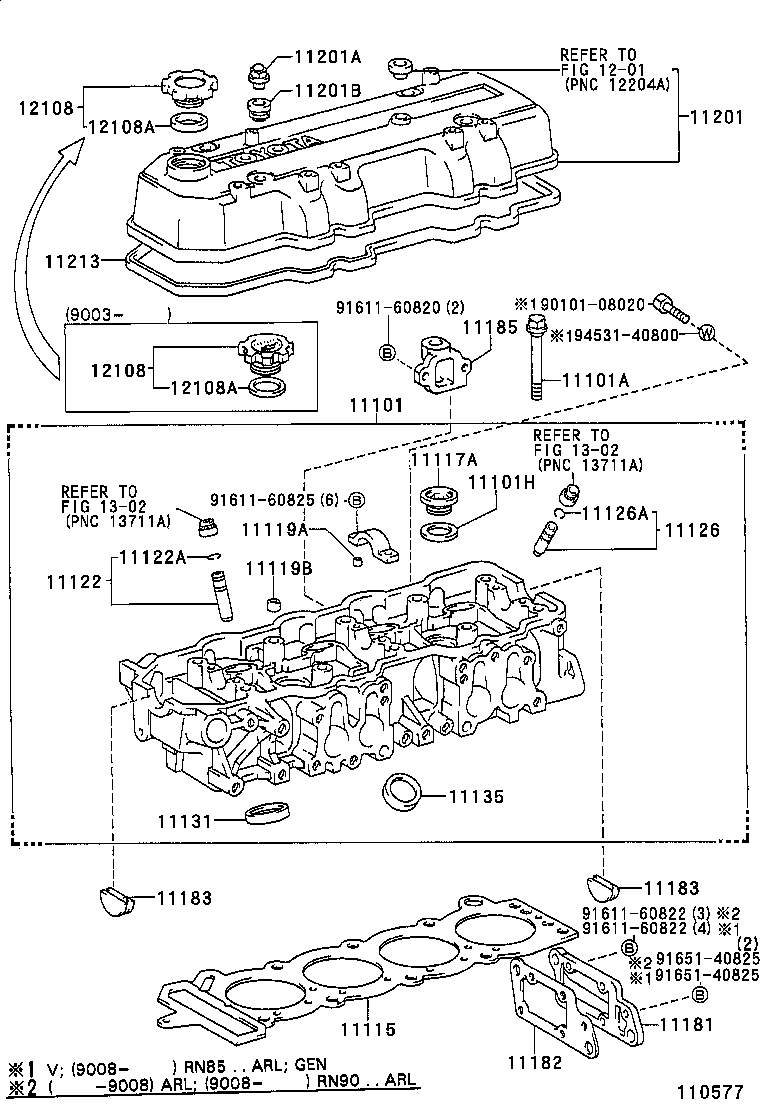

(8808- )22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-35060 |
22RE..RN85 |
1 | ||
| 11101-35080 |
22R..RN8#;22R..RN90..V |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90105-12092 |
22R#..RN125,8#,90 |
10 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-33133 |
22R#..RN125,8#,90 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-32070 |
22R#..RN125,8#,90 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90253-11021 |
22R#..RN125,8#,90 L=8,OD=11 |
6 | ||
| 11119B - PIN, STRAIGHT, NO.2 | ||||
| 90253-16020 |
22R#..RN125,8#,90 L=16,OD=15.5 |
5 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-35020 |
22R#..RN125,8#,90 O/S 0.05 |
4 | ||
| 11122-35020 |
22R#..RN125,8#,90 STD |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
22R#..RN125,8#,90 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-38021 |
22R#..RN125,8#,90 STD |
4 | ||
| 11123-38021 |
22R#..RN125,8#,90 O/S 0.05 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
22R#..RN125,8#,90 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-35010 |
22R..RN8#,90 O/S 0.03 |
4 | ||
| 11131-35010 |
22R..RN8#,90 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-35010 |
22R#..RN125,8#,90 STD |
4 | ||
| 11136-35010 |
22R#..RN125,8#,90 O/S 0.03 |
4 | ||
| 11135-35020 |
22R#..RN8#,90 STD |
4 | ||
| 11136-35020 |
22R#..RN8#,90 O/S 0.03 |
4 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-35050 |
22R#..RN125,8#,90 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-35050 |
22R#..RN125,8#,90 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-38010 |
22R#..RN125,8#,90 |
2 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-38010 |
22R#..RN125,8#,90 |
2 | ||
| 11185 - COVER, CYLINDER HEAD SIDE | ||||
| 11184-35010 |
22R..RN125,8#,90 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-35031 |
22R..RN125,8#,90 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08041 |
22R#..RN125,8#,90 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08026 |
22R..RN125,8#,90 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-35010 |
22R#..RN125,8#,90 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
22R..RN125,8#,90 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
22R..RN125,8#,90 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
22R#..RN125,8#,90 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
22R#..RN125,8#,90 |
1 | ||
| Common parts | ||||
| 90101-08020 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91651-40825 | ||||
| 94531-40800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1302 | ||||

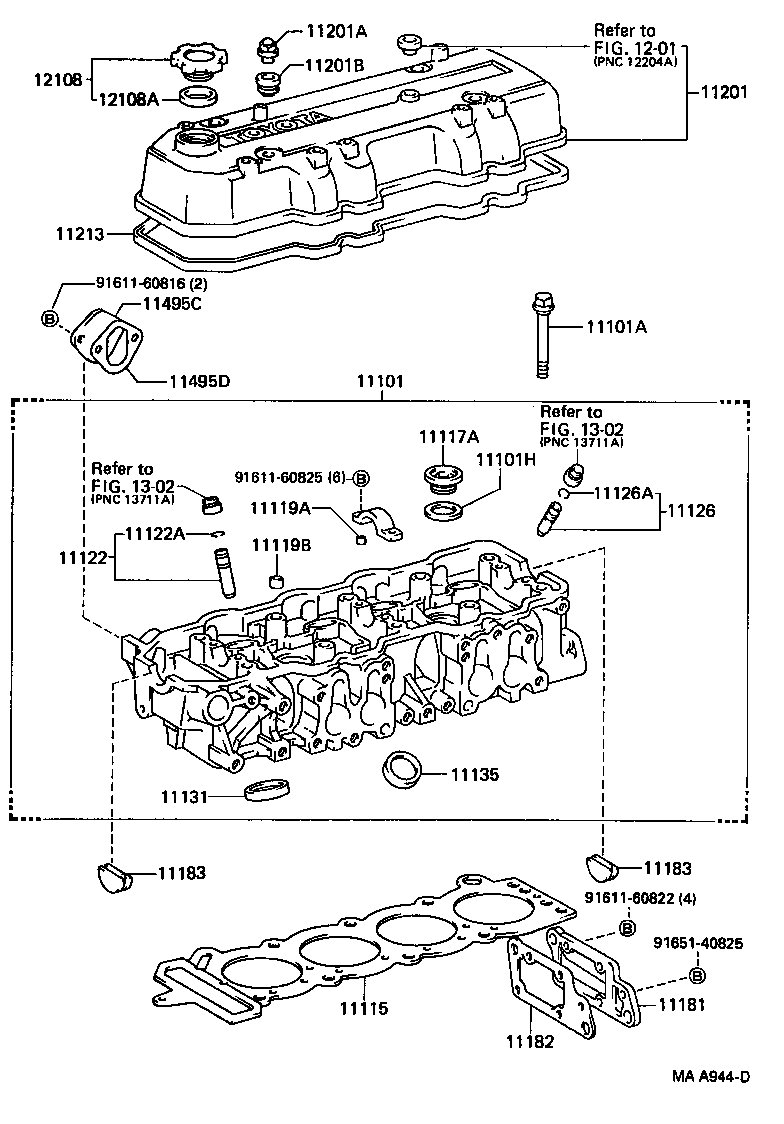

(9401- )22RE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-35060 |
22RE..RN85 |
1 | ||
| 11101-35080 |
22R..RN8#;22R..RN90..V |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90105-12092 |
22R#..RN125,8#,90 |
10 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-33133 |
22R#..RN125,8#,90 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-32070 |
22R#..RN125,8#,90 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90253-11021 |
22R#..RN125,8#,90 L=8,OD=11 |
6 | ||
| 11119B - PIN, STRAIGHT, NO.2 | ||||
| 90253-16020 |
22R#..RN125,8#,90 L=16,OD=15.5 |
5 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-35020 |
22R#..RN125,8#,90 O/S 0.05 |
4 | ||
| 11122-35020 |
22R#..RN125,8#,90 STD |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
22R#..RN125,8#,90 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-38021 |
22R#..RN125,8#,90 STD |
4 | ||
| 11123-38021 |
22R#..RN125,8#,90 O/S 0.05 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
22R#..RN125,8#,90 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-35010 |
22R..RN8#,90 O/S 0.03 |
4 | ||
| 11131-35010 |
22R..RN8#,90 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-35010 |
22R#..RN125,8#,90 STD |
4 | ||
| 11136-35010 |
22R#..RN125,8#,90 O/S 0.03 |
4 | ||
| 11135-35020 |
22R#..RN8#,90 STD |
4 | ||
| 11136-35020 |
22R#..RN8#,90 O/S 0.03 |
4 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-35050 |
22R#..RN125,8#,90 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-35050 |
22R#..RN125,8#,90 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-38010 |
22R#..RN125,8#,90 |
2 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-38010 |
22R#..RN125,8#,90 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-35031 |
22R..RN125,8#,90 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08041 |
22R#..RN125,8#,90 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08026 |
22R..RN125,8#,90 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-35010 |
22R#..RN125,8#,90 |
1 | ||
| 11495C - PLUG, PLATE(FOR CYLINDER HEAD) | ||||
| 11495-40010 |
22RE..RN85 |
1 | ||
| 11495D - GASKET(FOR CYLINDER HEAD) | ||||
| 11496-35010 |
22RE..RN85 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
22R..RN125,8#,90 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
22R#..RN125,8#,90 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91651-40825 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1302 | ||||
